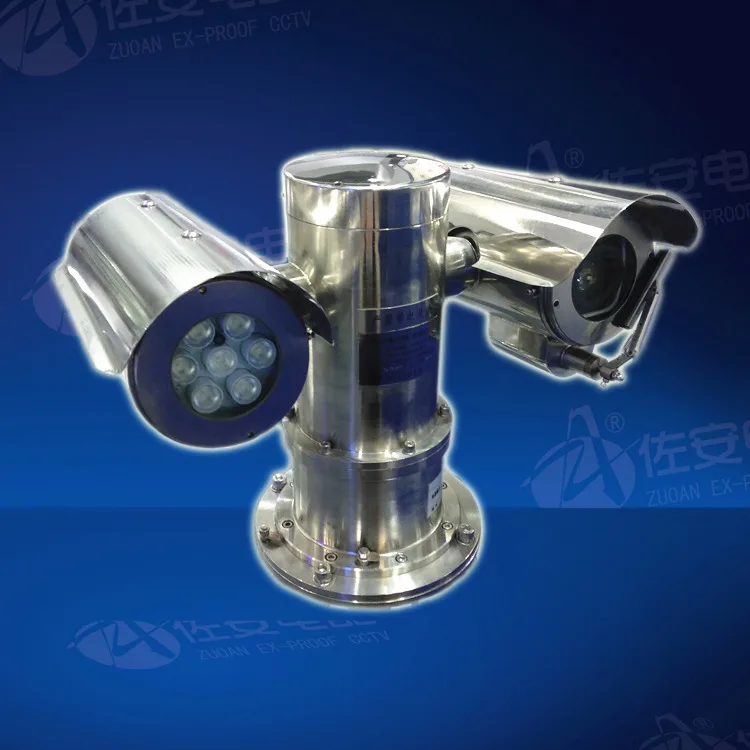

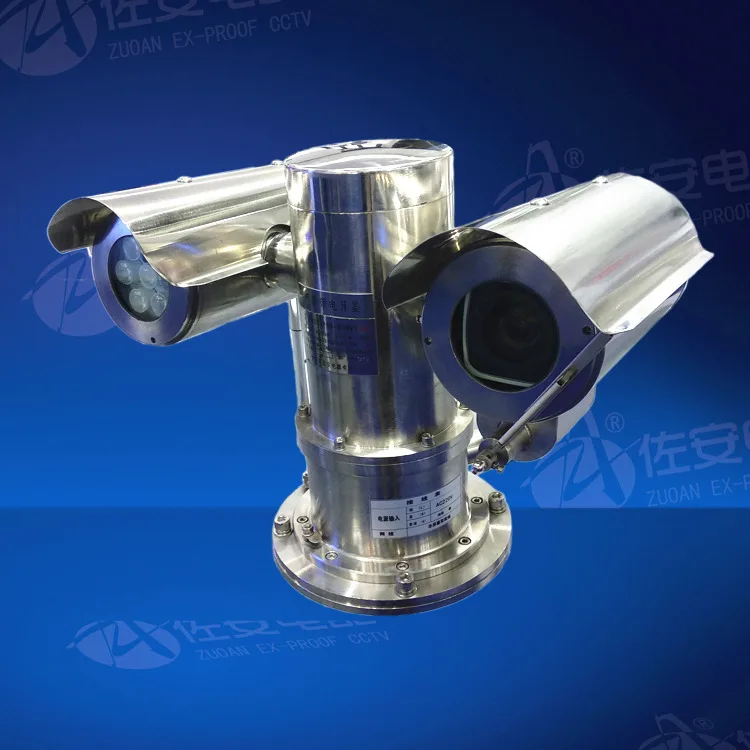

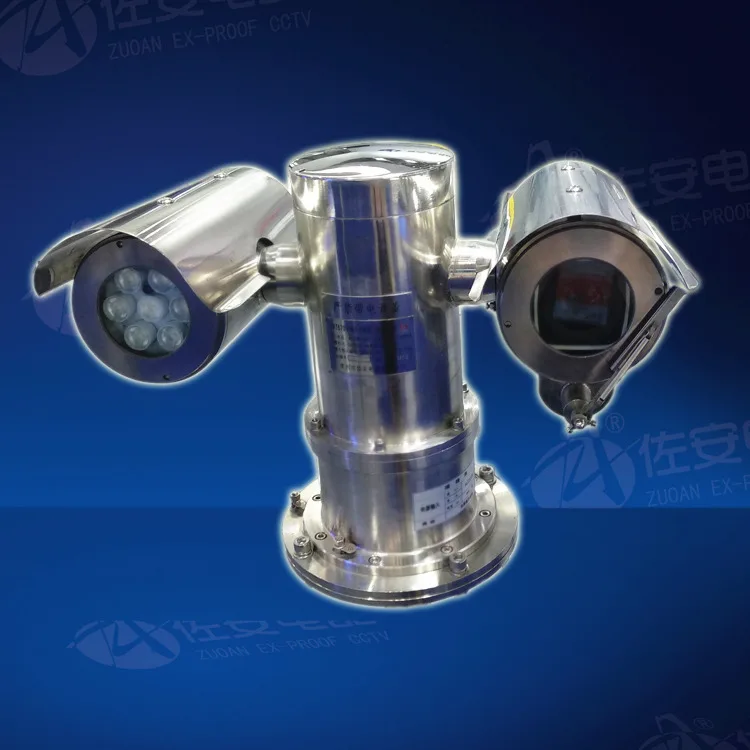

ATEX IECEx 1080P 30X Network Explosion Proof Camera IR Laser PTZ Camera

Product Overview

Description



Zuoan is China top manufacturer of explosion proof camera for more than 13 years.  Our product has covered the whole CCTV surveillance solution, from the explosion proof camera housing, explosion proof pan tilt, integrated explosion proof camera PTZ station, to the display and control station, like explosion proof monitor, explosion proof control box, explosion proof speaker, and explosion proof phone.



With ATEX, IECEx, CNEx explosion proof certifiate, Zuoan products are welcomed by the international market.



Client can offer your brand camera to us do assembly inside of explosion proof camera housing. Or we can offer integrated explosion proof PTZ camera station.



The explosion proof PTZ camera is featured as auto tracking by RS485 control.  It support the horizontal and vertical auto rotation, which speed can reach to 0-40 ° per second.



The explosion proof PTZ camera is integrated with wiper system, infrared lights, laser lights, and camera for various aggressive are surveillance.



All Zuoan explosion proof PTZ camera housing is made of stainless steel 304 or 316L material.  The front window adopts strong tempered glass. The glass passed impact and terminal shock test.  At the rear cover, there are 2 pcs glands for cable thread by.



Zuoan explosion proof PTZ camera housing has passed the IP68 test. The test follows the IECEx standards, include water and dust ingress test.



The explosion proof PTZ camera surface can be special treated, such as electropolished and painting finish for more aggressive area.



The power supply for explosion proof PTZ camera  can be AC24V or AC100-240V.  In cold winter, hot summer or heavy moister area, it is optional to add heating and cooling kit inside of the explosion proof PTZ camera. so as to make a dry and comfortable working temperature for camera operation.



ATEX explosion proof PTZ camera can apply for industry hazardous area, gas zone 1,2; dust zone 21, 22. Its surface temperature will no more than 80°C in normal operation. The explosion proof camera housing is also fit for T1 to T6 grade gases, vapors and air may exist.





With stringent certifications, explosion proof PTZ camera enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.











·ATEX, IECEx certificated

·stepping motor drive window wiper

·Adopts stainless steel 304 or 316L

·Surface finish: electropolished or painting finish

·IP68

·1 cable gland

·Tempered glass

·applicable for the extreme circumstances with explosive gas or dust, like petro-chemical, offshore, marine, oil tank, gas station, onshore sites.

·optional accessories: sun shield, lens decoder, window wiper, wiper decoder, auto-heating, auto-cooling modular.

·Communication : Pelco-D/ Pelco-P/TCP/IP

·Communication rate: 2400~19200bps

·Resolution: 2.0MP/1.3MP/ 700TVL

·Sensor: CCD/HD-CMOS

·Output: AV/H.264/RJ45

·Control: RS-232/RS485

·Telephoto limited speed: yes

·Variable angle: horizontal 360°, vertical ±90°

·Preset patrol: 256/ 128 points

·night vision: with array infrared light

· 20X. 23X, 30X, 32X, 36X optical zoom
