90 troy oz Mini Gold Jewellery Making Machine

Product Overview

Description

90 troy oz Mini Gold Jewellery Making Machine

Definition:Removable crucible for melting or maintaining melted state of non-ferrouse metals.Handleing the crucible with tong.
Construction:consists of a cylindrical furnace, an insulated handle for easy pouring, and a temperature controller.
Heating:Heating elements surrounded working SIC chamber,which is no crack,no distoration
Electricity: Single-phase 220 VAC,50Hz.2000W
Melting Speed:15-20mins with 1kg,2kg,3kg gold.
Capacity:1kg,2kg,3kg gold
Include:1x 1kg crucible,1xtongs,1xglove,1xglasses.

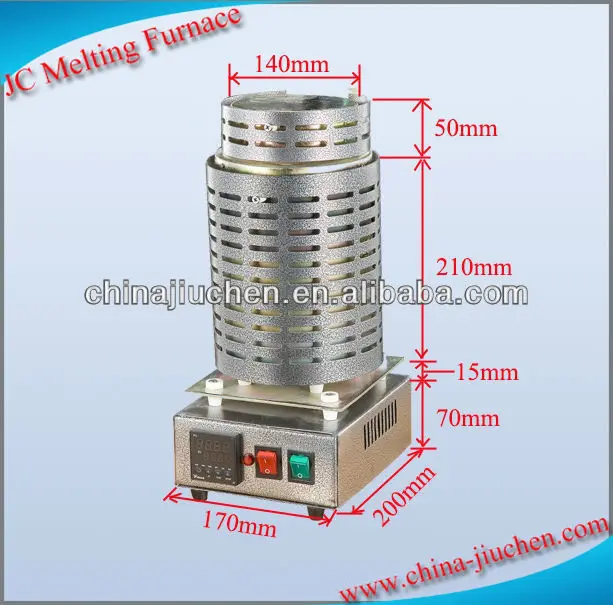

Overall Dimension:170X220X370mm,
Packing Size:310x310x470mm.
Weight:9kg



Some of the Metals that can be melted with this Furnace;
Aluminum, Gold, Lead, Silver, Sterling Silver, Tin & Zinc



Equipped with high-quality graphite crucibles models1kg 2kg 3kg all available for use one furnace This crucible has a groove in the rim to accept the specially designed crucible tongs for added safety

Heating elements such as chamber , thermocouple are easy to replace, made of international standard quality material and fluxes resistant.

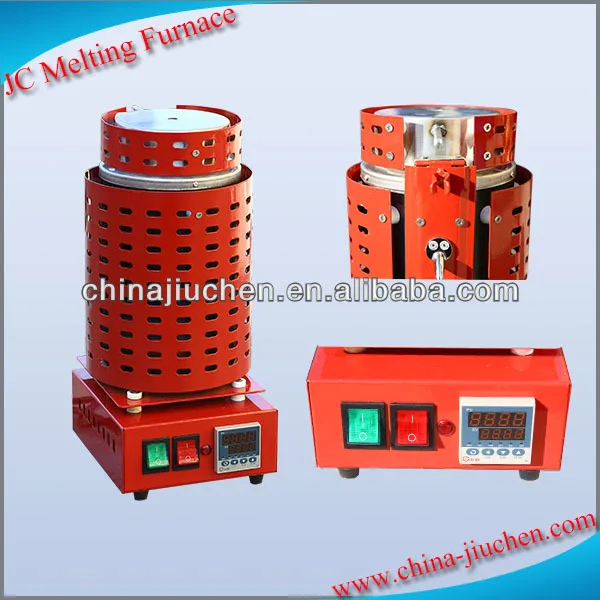

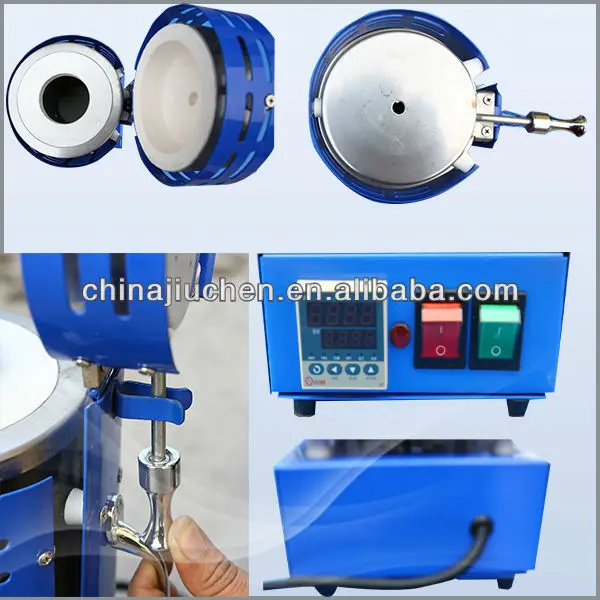

Gold Jewellery Making Machine Structural Map and Object Picture

Advantages of Gold Jewellery Making Machine

1. Light weight and small volume;
2. High efficiency of refining;
3. Easy installation and operation;
4. Fast speed of raising temperature, the temperature is constant;
5.Safe and environment-friendly operation;
6.Complete Protection:Equipped with over-voltage,over-current,over-heat,water shortage device which control and protect automatically;

7.Insulated lid holds heat in and keeps oxygen out for a cleaner melt.

8. You can melt pure silver & gold or alloys such as sterling silver, 14k gold 18k gold up to pure.

9. It takes 4-5 Minutes to first warm up depending on the metal your melting and 11-15 minutes to fully melt your metal depending on the form of material. Shot or small parts melt faster than large bars or blocks.

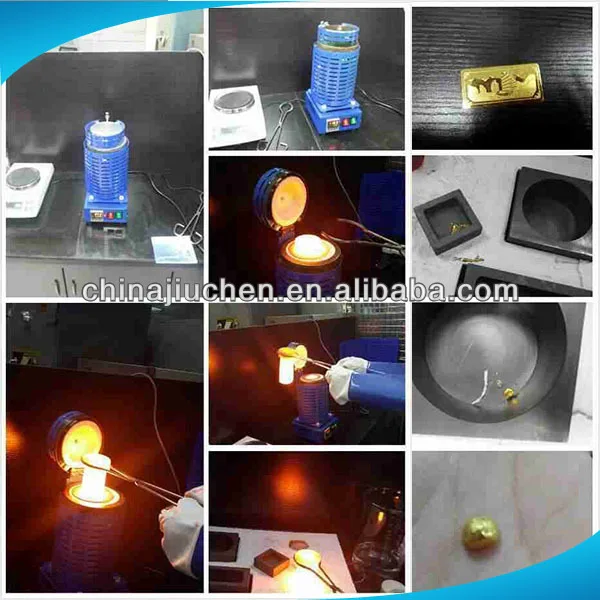

Process of Melten Gold Jewellery Making Machine

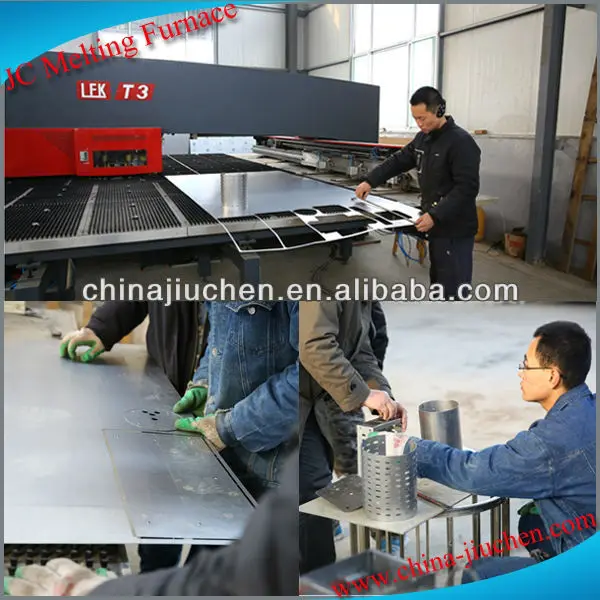

Production Line Show

Gold Jewellery Making Machine Certificate

About US

JC K Series of melting furnaces are suitable for 110V~130V ,220V~240V voltage.

It is widely used in melting gold,copper, silver and other noble metals,metallurgy,petroleum,chemical, Laboratory, heat-treatment.

The characteristic of this furnace is Small size,light weight,easy operation and accuratetemperature control.

Our product has got Quality System Certificate, CE Certificate, utility model and designpatent.
