BY1000 agricultural machinery piston pump three sides self loader
- Category: >>>
- Supplier: Nantong Ant Machinery Co. Lid.
Share on (1993547514):
Product Overview
Description
Product Description

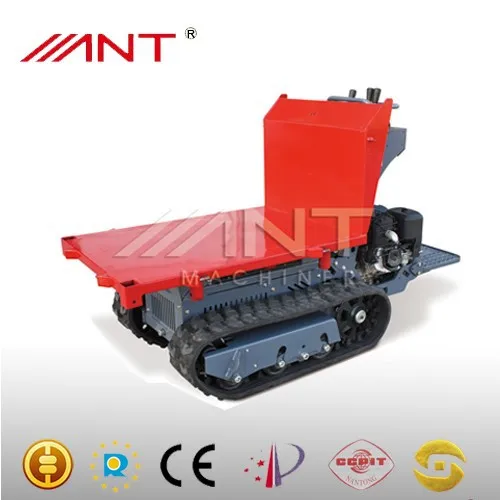

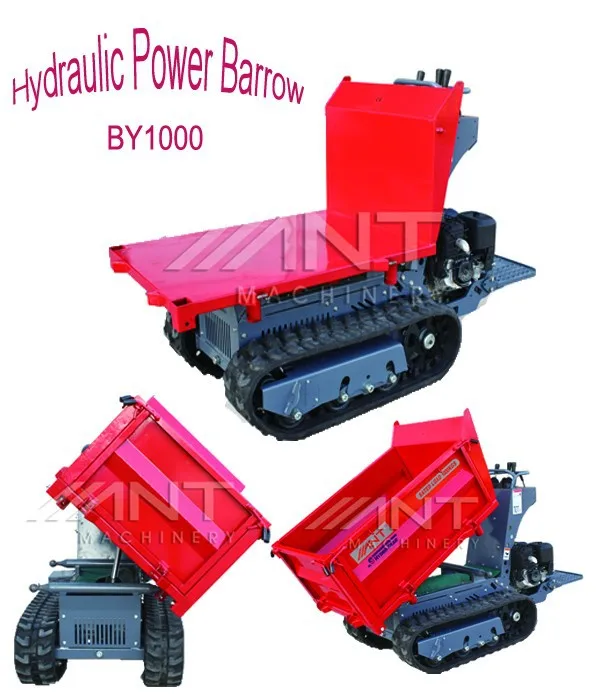

BY1000 agricultural machinery piston pump three sides self loader
Specifications of three sides self loader
- Maximum loading weight is 1ton.
- Easy and comfortable operation due to the intuitive controls.
- Hydraustatic dumping from three sides, easily changed by screw pins.
- Easy climbing and stable crossing the obstacles.
- Spot turning ,mini slipping.
- Piston pump from Hydro-Gear with global warranty.
| MODEL | BY1000 |
| Engine | 13hp 4stroke gasoline engine |
| Max loading capacity | 1ton |
| Max travel speed | 0-4.8km/h(0-3.9mph) |
| Transmission | |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4l/min(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | mechanical |
| Hydraulic system | |
| Hydraulic pump | Piston pump |
| Flow std | 1*13.5l/min(1*3.5gpm) |
| Max pressure bar | 150bar(2180psi) |
| Main valve | 2-3way |
| Coller system oil | air-cooled |
| Skip tipping system | hydraulic |
| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | yes |
| Track tensioning | yes |
| Loading capacity | |
| 20GP | 6pcs |
| 40GP | 14pcs |
| Packing | |
| Weight | 610kgs |
| Dimension | 182*90*96(L*W*H cm) |
| 20GP | 6PCS |
| 40GP | 12PCS |
Packaging & Shipping
Our Services
fc
| Model | Feature and Working Type | Engine | Loading Weight | |
| BY150 | Manual | Honda, Loncin | 150kg | |
| BY250S | Manual (Chain Drive) | Honda, B&S, Loncin | 250kg | |
| BY250X | Electric Self Loaing | B&S | 300kg | |
| BY300S | Manual (Chain Drive) | Honda, B&S, Loncin | 300kg | |
| BY300X | Electric Self Loaing | B&S | 300kg | |
| BY300C | Manual (Crawler Drive) | Honda, B&S, Loncin | 800kg | |
| BY800 | Piston Pump Self Loading (1.4m hit up, shovel) | Honda, B&S, Yanmar | 800kg | |
| BY800W | Piston Pump Self Loading (shovel) | Honda, B&S, Yanmar | 800kg | |
| BY800S | Piston Pump Self Loading | Honda, B&S, Yanmar | 800kg | |
| BY1000 | Piston Pump Three Sides Self Loading | Honda, B&S, Yanmar | 1000kg | |
| BY1000M | Piston Pump Self Loading | Honda, B&S, Yanmar | 1000kg | |
Certifications
Production Flow
Company Information
Our company is a professional manufacturer, and we have strong technological advantages, complete producer`s equipment and perfect testing technology.
