automatic bottle water washing filling capping machine

Product Overview

Description

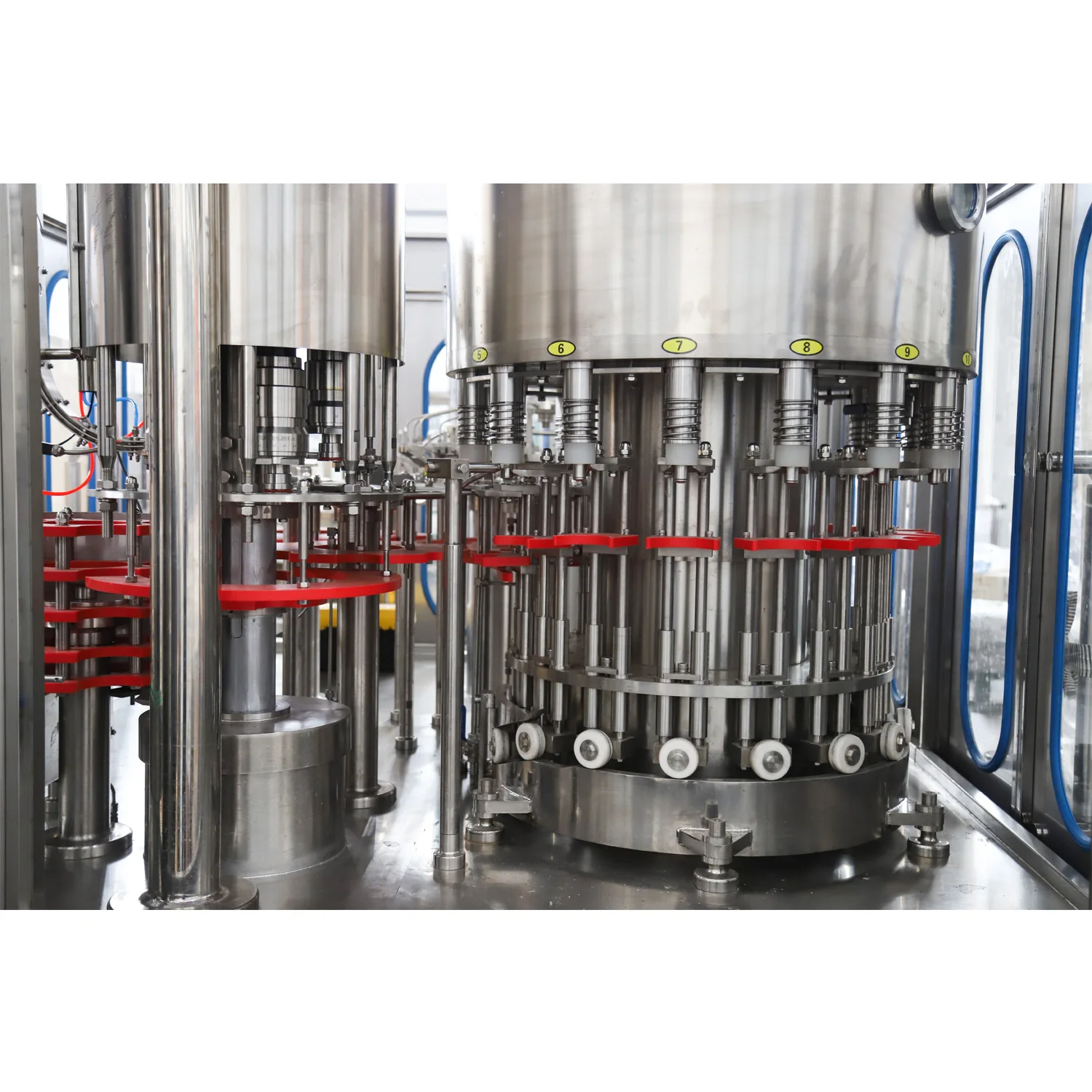

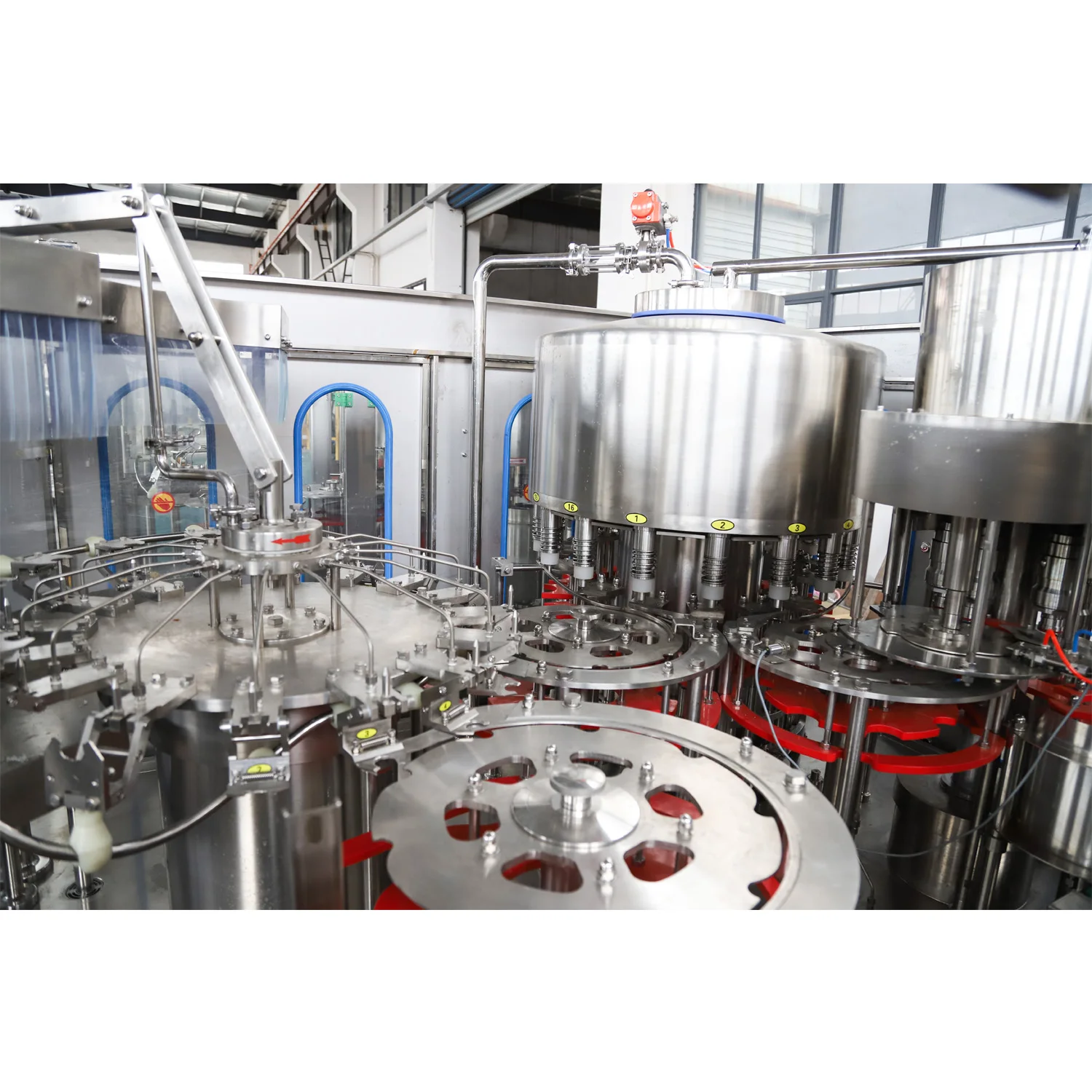

Automatic bottle water washing filling capping machine



Main Feature

Ø This machine has a compact structure, perfect control system, easy to operate and highly automatic degree.

Ø The parts contact with product is made of quality SUS, anti-corrosive, and easy to clean.

Ø By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

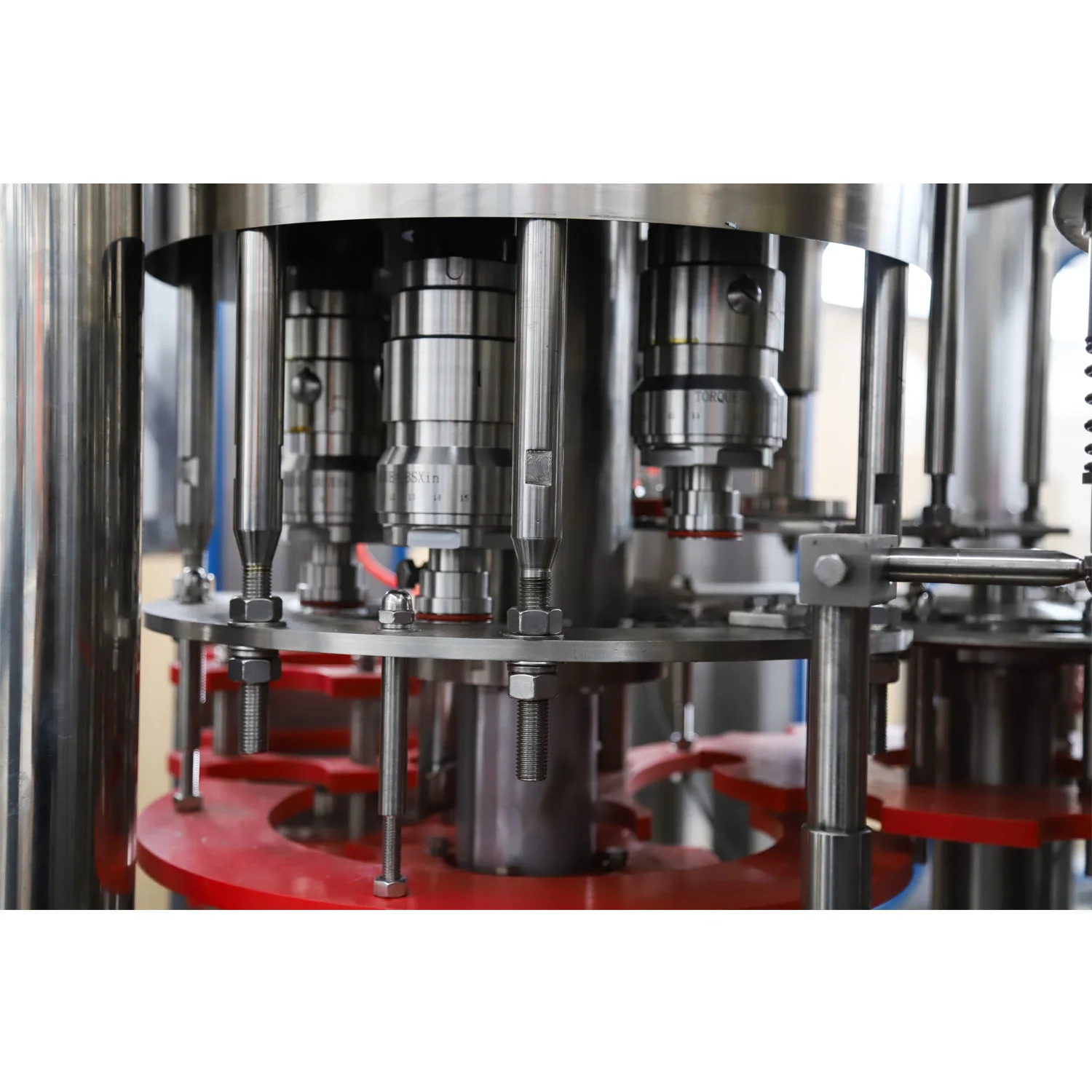

Ø The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.

Ø This machine has a high efficient cap arranging system, perfect cap feeding and protection device.

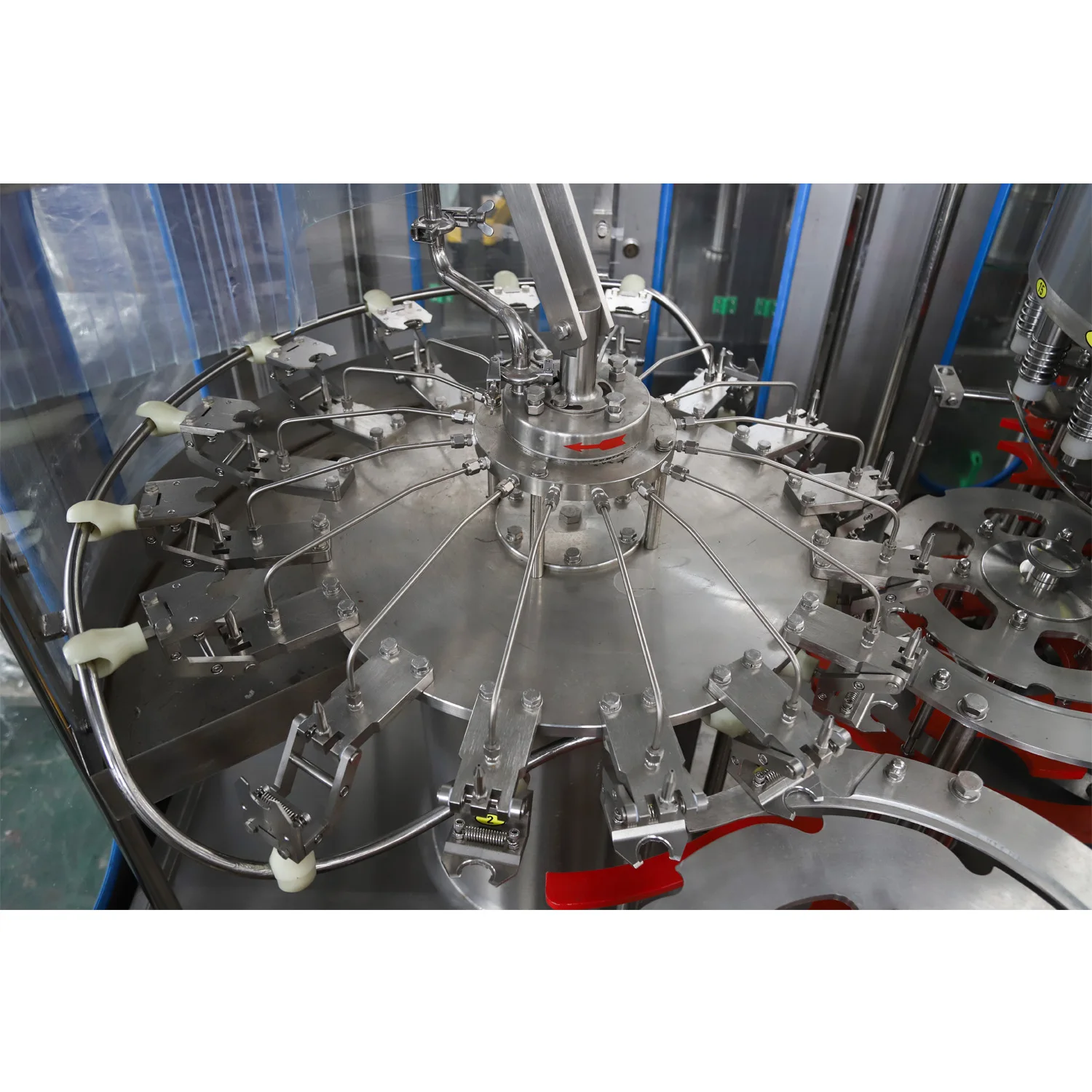

Ø Equipped with perfect clean management system to ensure the bottle clean.

Ø Only by changing the star-wheel, can realize to fill the changed bottle shape.

Ø The machine adopts perfect overload protective device can ensure the operator and machine safe.

Ø This machine adopts adjustable frequency converter.

Ø The main electric components, frequency, photoelectric switch, proximity switch, electric control valves all adopt imported components, which can ensure the quality performance.

Ø The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

Ø The electric components and pneumatic components are all introduced from world famous brand products.



Technical parameter:

Model	CGF8-8-3
Production capacity	2,500-3,000B/H(basis on 500ml bottle)
Filling precision	≤±3mm(liquid level)
Suitable bottle diameter	φ50-φ105mm
Suitable bottle height	150-340mm
Suitable cap type	Plastic screw cap
Water pressure of washing bottle	0.18Mpa
water consumption for washing bottle	800Kg/h
Spraying position	2
Dripping bottle position	2
Gas source pressure	0.4Mpa
Gas consumption	0.3m3/min
Total power	4.23Kw
Overall dimension	L1850×W1500×H2200mm
Total weight	2000Kg
