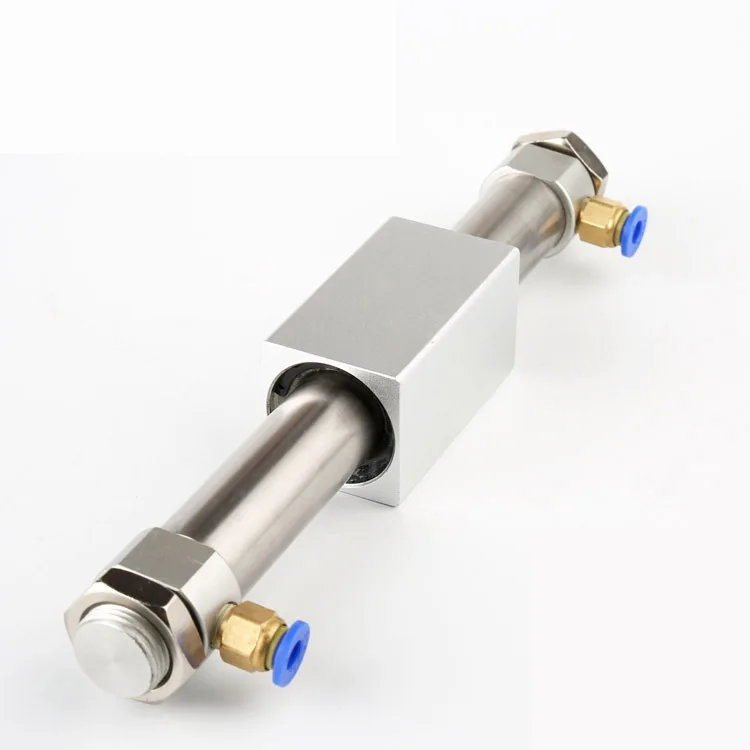

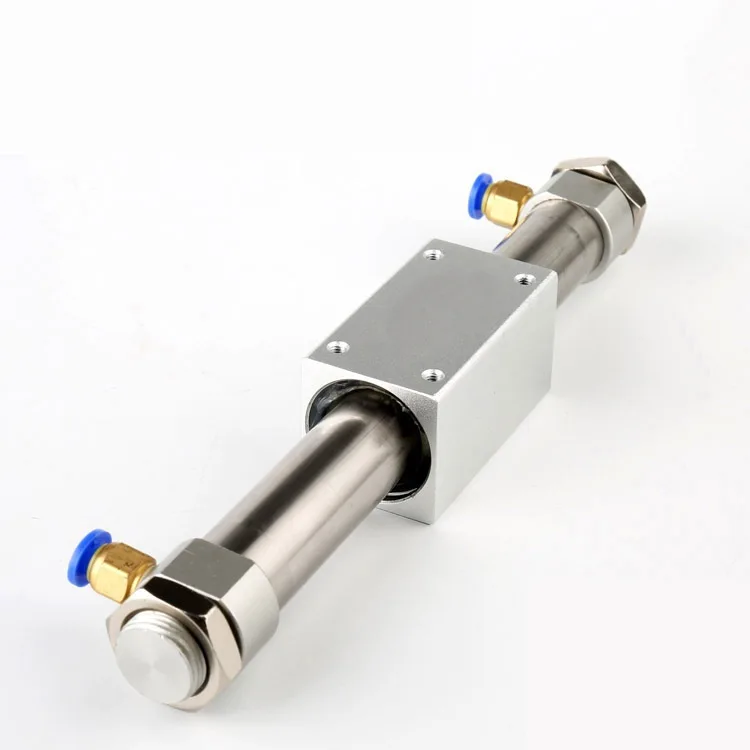

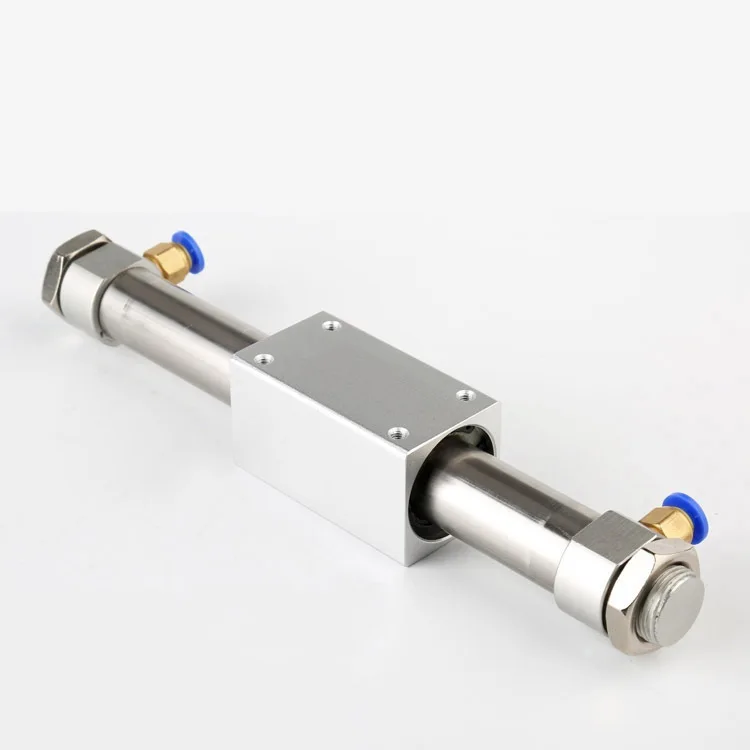

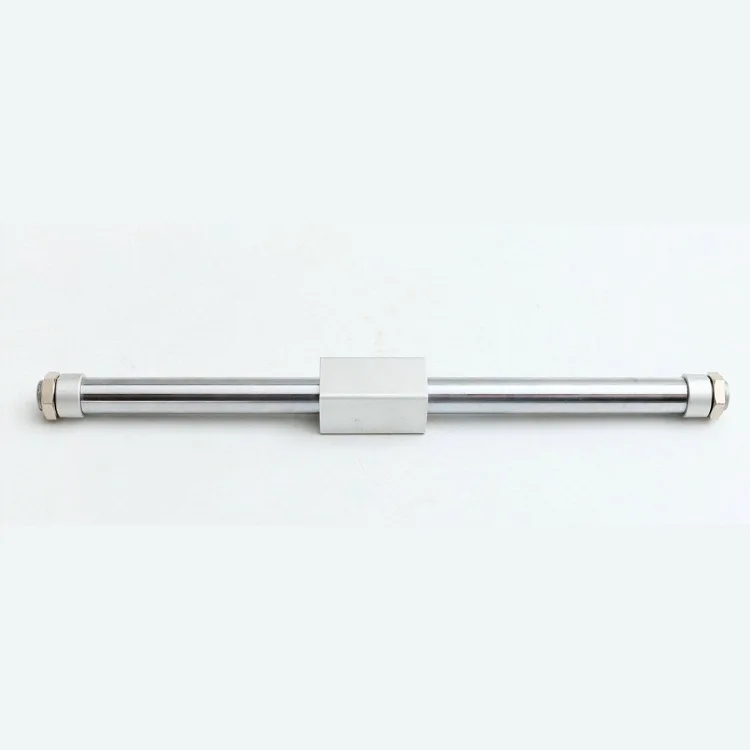

CY1B Magnetically Coupled Rodless Pneumatic Cylinder
- Category: Pneumatic Cylinders >>>
- Supplier: Shanghai Chenwei Trading Co. Ltd.
Share on (1994866487):
Product Overview
Description
CY1B Magnetically Coupled Rodless Pneumatic Cylinder
Features:
1) Basic magnetically coupled rodless cylinder.
2) Bore size 10,15,20,25,32,40
3) Strokes from 50 to 1600mm
4) Available with high or low magnetic holding force
5) Long life time with no external leakage
How to Order:
Specification:
| Bore size(mm) | 10 | 15 | 20 | 32 | 40 | ||||
| Fluid | Filtered compressed air | ||||||||
| Proof pressure | 1.05Mpa | ||||||||
| Operating pressure range | 0.18~0.7Mpa | ||||||||
| Ambient and fluid temperature | -20~80ºC(No freezing) | ||||||||
| Piston speed | 50~400mm/s | ||||||||
| Port size | M5X0.8 | Rc1/8 | Rc1/4 | ||||||
| Cushion | Rubber bumpers at both ends | ||||||||
| Mounting orientation | Unrestricted | ||||||||

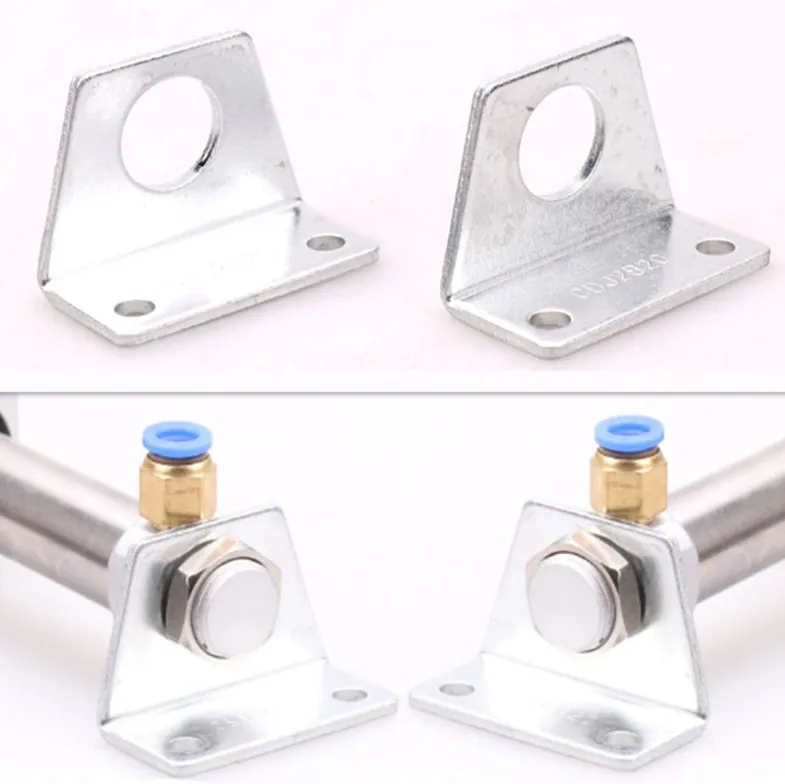

| Mounting nuts(2pcs) | Standard equipment(Accessory) | ||||||||
Standard Stroke:
Main Mterial:
| No | Description | Material |
| 01 | Cylinder Body | Aluminium Alloy |
| 02 | Cylinder Tube | Stainless Steel |
| 03 | Cylinder Cover | Aluminium Alloy |
| 04 | Piston | Aluminium Alloy |
| 05 | Cushion Gasket | Polyurethane |
| 06 | Wearing Ring | Special Resin |
| 07 | Piston Seal | NBR |
| 08 | Wiper Scraper Seal | Special Resin |
Dimensions and sizes
