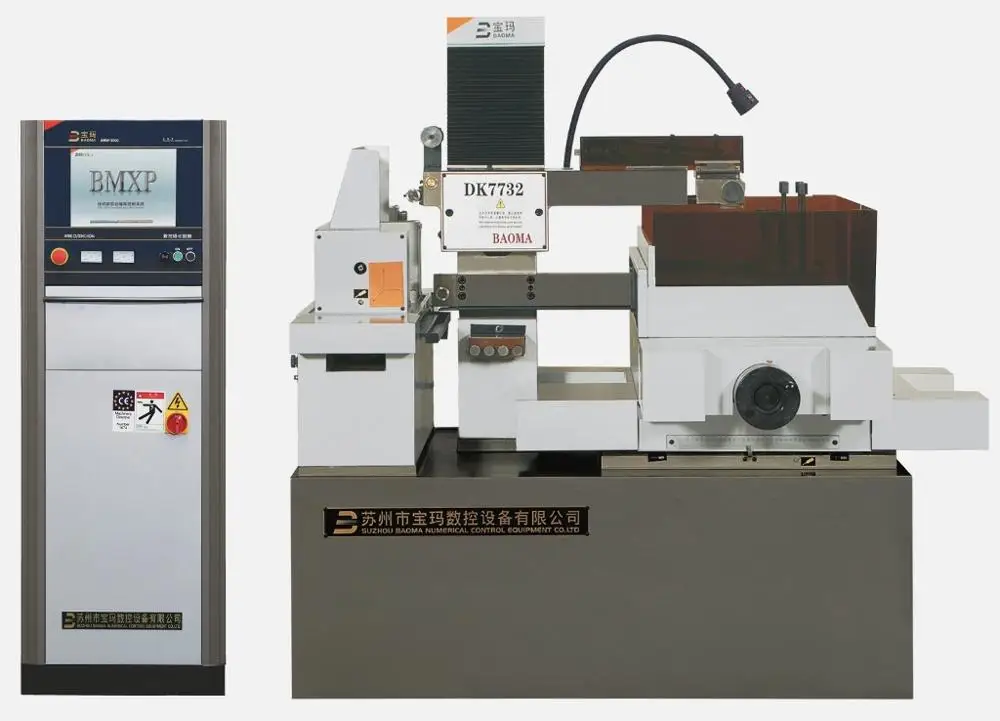

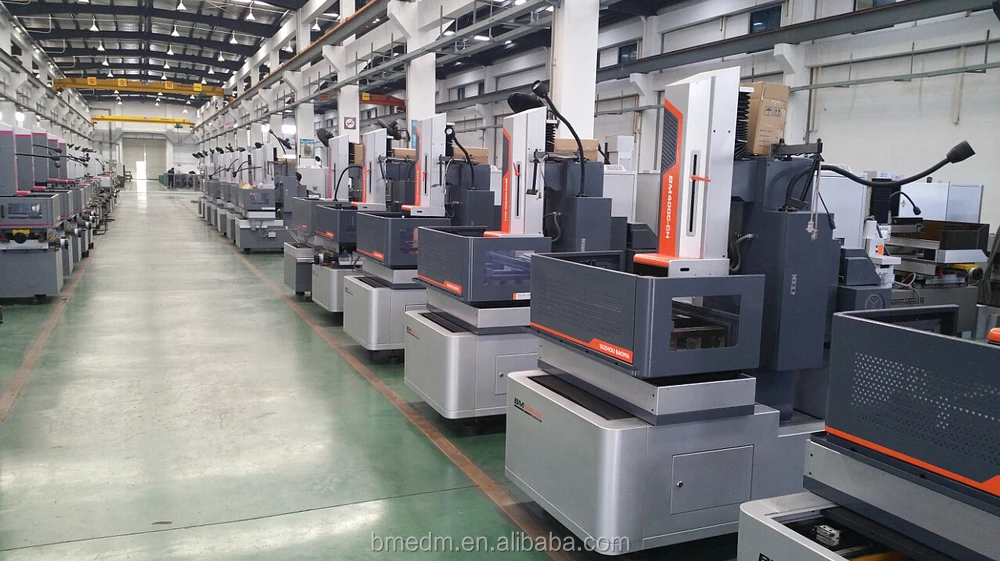

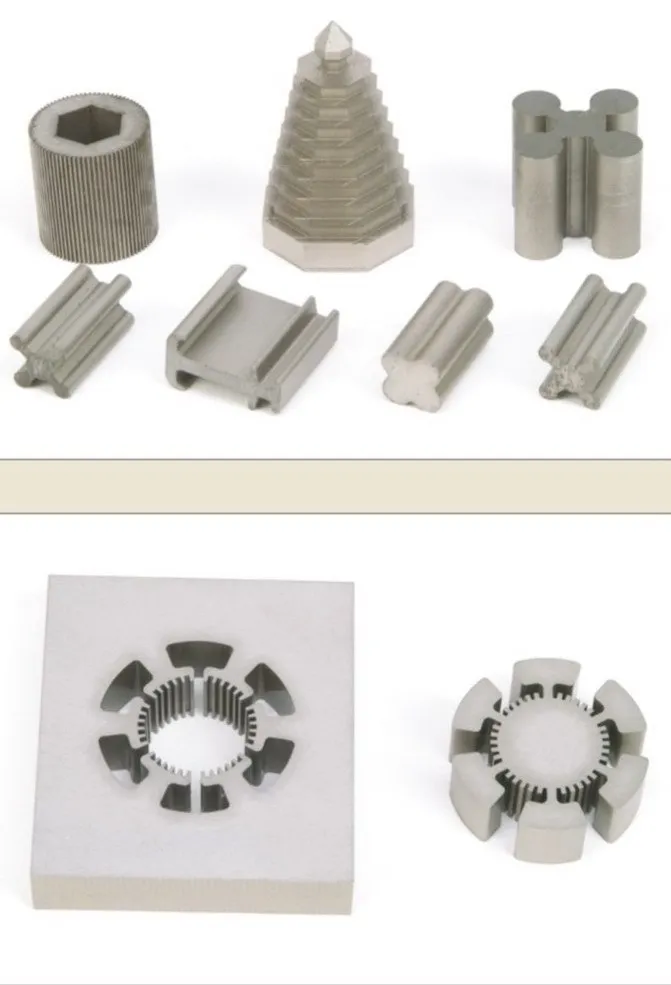

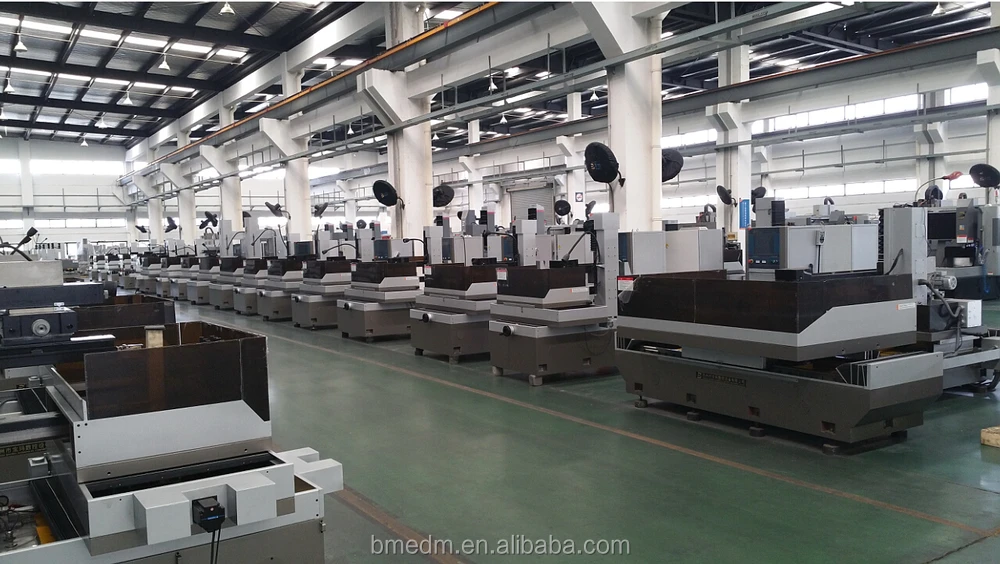

Product Overview

Description





 MACHINE MODEL

ITEM	A	B	C	D	E	F
Max. Cutting Thickness(mm)	300	500	300	500	300	500
Max. Cuttting Taper(<=100mm thick)	0	0	±3°	±3°	±30°	±30°

 SPECIFICATIONS

PARAMETERS	BM320A	BM320B	BM320C	BM320D	BM320E	BM320F
Table Travel (mm)		250 x 320
Table Size (mm)		380 x 525
Roughness	Once Cutting (um)	<= 2.5
	Multi-Cutting (um)	<=1.2
Precision	Octagon (mm)	<= 0.012	<= 0.012	<= 0.012	<= 0.012	<= 0.012	<= 0.012
	Taper (mm)			<= 0.04	<= 0.04	<= 0.1	<= 0.1
Screw and guide way		High Quality Ball Screw  ;  Steel Linear guideway
Load of Table (Kg)		300
Machine Weight (Kg)		1600

 UNIVERSAL PARAMETERS

Max. Cutting Speed	150 mm2/Min.
Wire Speed	5 - 11 m/Min
Max. working Current	6 A
Wire Diameter	Dia. 0.15-0.2mm
Work Solution	BM2/BM4 Water Base Working solution
Water Tank	100 L
Rated Voltage	AC~,3N, 220-415V,50/60HZ
Ratde Power	3 KVA
Wire Guide Frame	Adjustable
Controller	BMW-3000





INTELLIGENT BMXP CONTROL SYSTEM

1. BMXP Intelligent software, which integrates the program and control and based on Windows Xp. This new designed BMXP software is the unique software for WEDM running on the condition of windows XP.


2. Using the PCI slot controller card and the High-tech Industrial computer, which greatly enhanced the stability of control and greatly reduced the computer the failure rate.


3. To achieve a fast and convenient computer communication network, through network technology, graphics, data and program transmission, can be directly controlled by the technical design department since the first establishment of a program


4. Embedded Control system can be smoothly connected with many design software such as AUTOCAD & etc.


5. The search function of mechanical origin enable the transmission screw pitch compensation, in order to greatly improve the positioning accuracy, especially in Servo control system.


6. With a large storage capacity database, which accumulated from many experiences. User can choose the suitable parameter according to deferent working conditions. Users can adjust machining parameters to establish a database at any time according to their own experience


7. The parameters of pulse power is directly controlled by the software , so as to not only improve anti-jamming capability in pulse power output, but also increase the roughness of work piece and reduce the loss of molybdenum wire .


8. Pulse power of the control parameters directly from the software to control and improve the ability of pulsed power output of the interference, thereby increasing the roughness of workpiece, reducing the loss of molybdenum wire, you can choose a variety of pulse waveforms for a variety of processing conditions, improve the cutting ability of the workpiece.


9. Simplifies the operation buttons on the control panel, a large number of button functions directly controlled by software to achieve.

BMXP Software basic function

1. Coordinate system: absolute coordinate, incremental coordinate (relative coordinate)


2. Functions of coordinate transforming, zoom in and zoom out, rotating and tracking display in real time


3. Functions of interpolation of straight line and circular arc.


4. Function of taper processing


5. Function of processing different top and bottom shape


6. Functions of short circuit and wire-break handling


7. Functions of memorizing when power was cut and auto-stop after processing


8. Functions of auto-edge position and auto-centering


9. Function of auto-adding transitional arc (Arbitrary angle)


10. Function of processing backward


11. Functions of menu technology and auto-programming;


12. Data transmission


13. functions of multi-cutting

CNC System Configuration and Performances

1. CNC hardware



   1. Indutrial PC:  P4;


   2. 1024MB RAM;


   3. 160GB hard disk;


   4. 15″ LCD color display;


   5. USB and INTERNET






2. CNC software and operating platform:



   1. CNC Auto-program and control function


   2. The operating platform is Windows XP






3. CNC system technical performance:



   1. CNC 4 axes simultaneously control;


   2. Function of processing different top and bottom abnormities parts






4. CNC system working environment:



   1. The voltage: 3-phase 380V± (1%-10%), 50Hz (customizing accepted)


   2. Relative humidity: 40%~80%


   3. Cleaning environment, the dust with active gas and precipitation is not allowed; make sure there are no machines making much dust while working.


   4. No vibration source, no electromagnetic wave source in the rang of 20m
