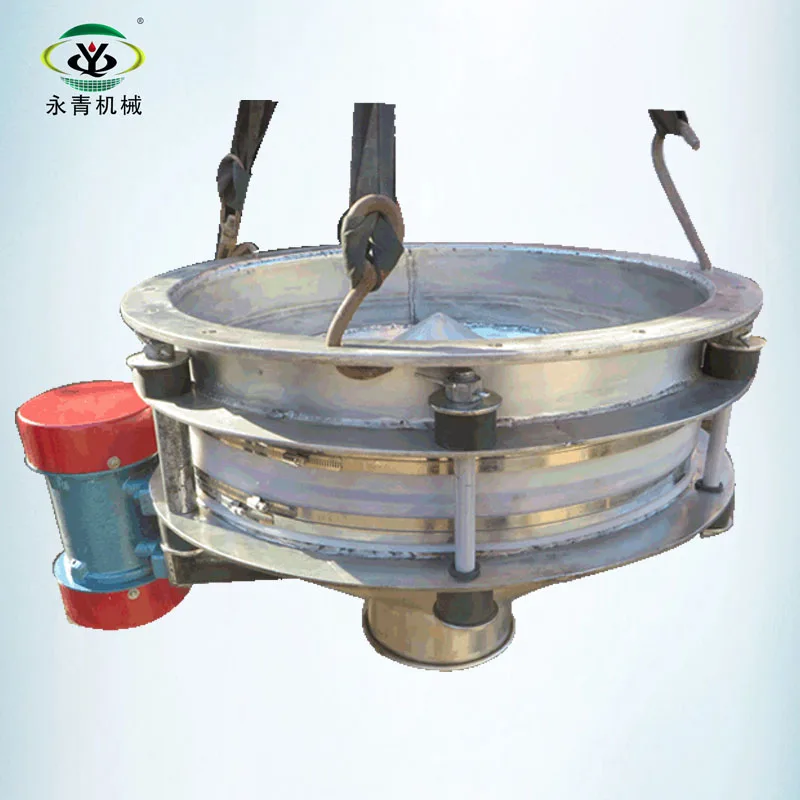

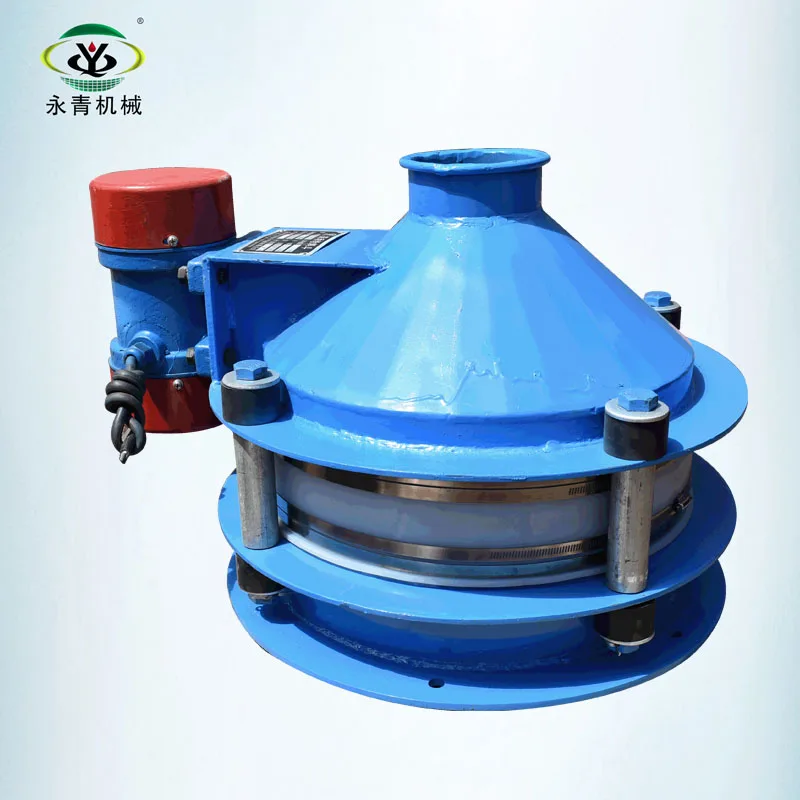

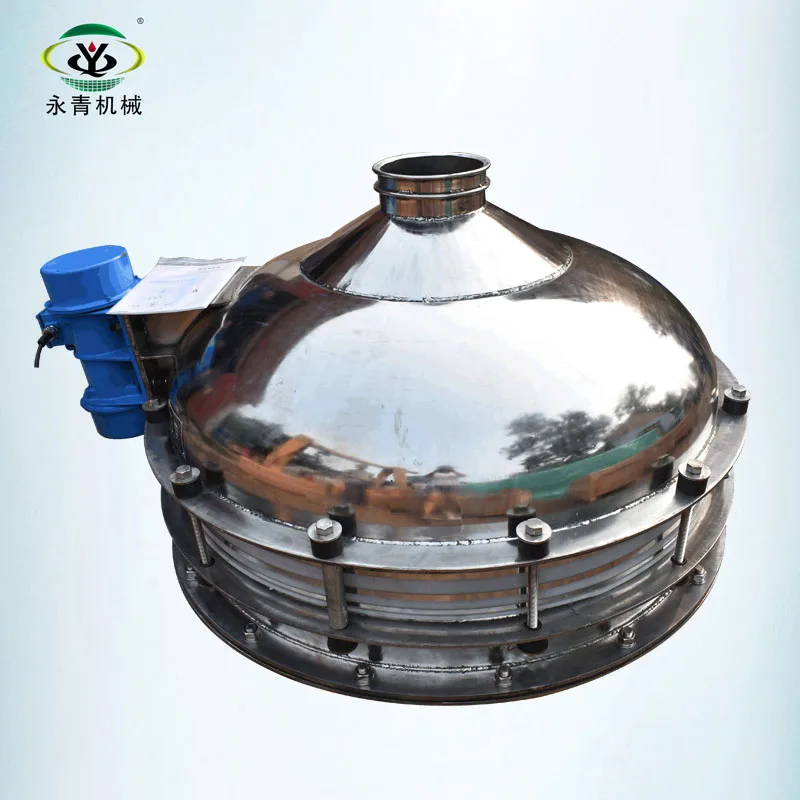

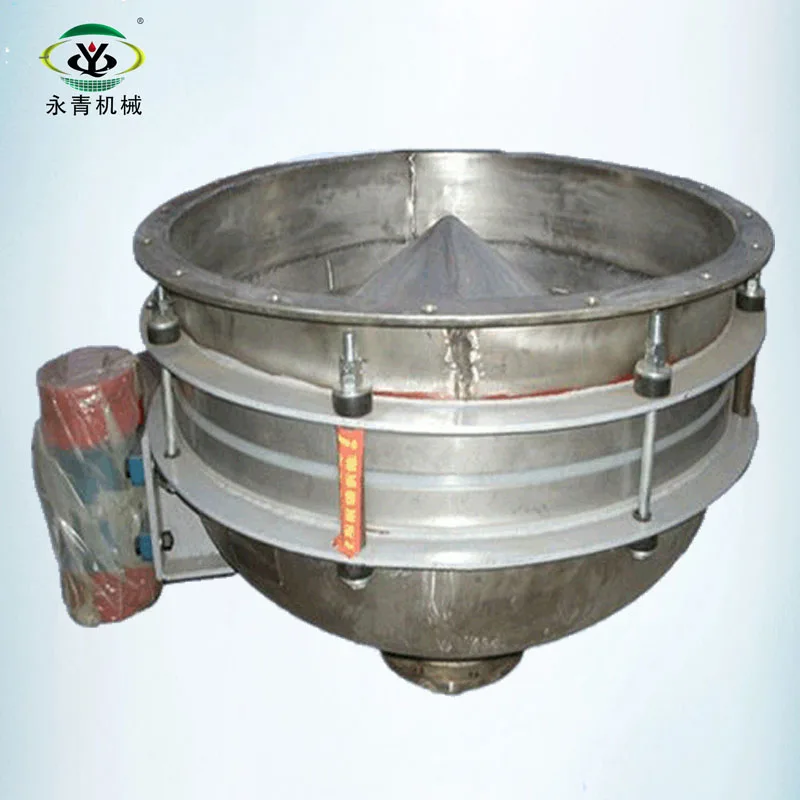

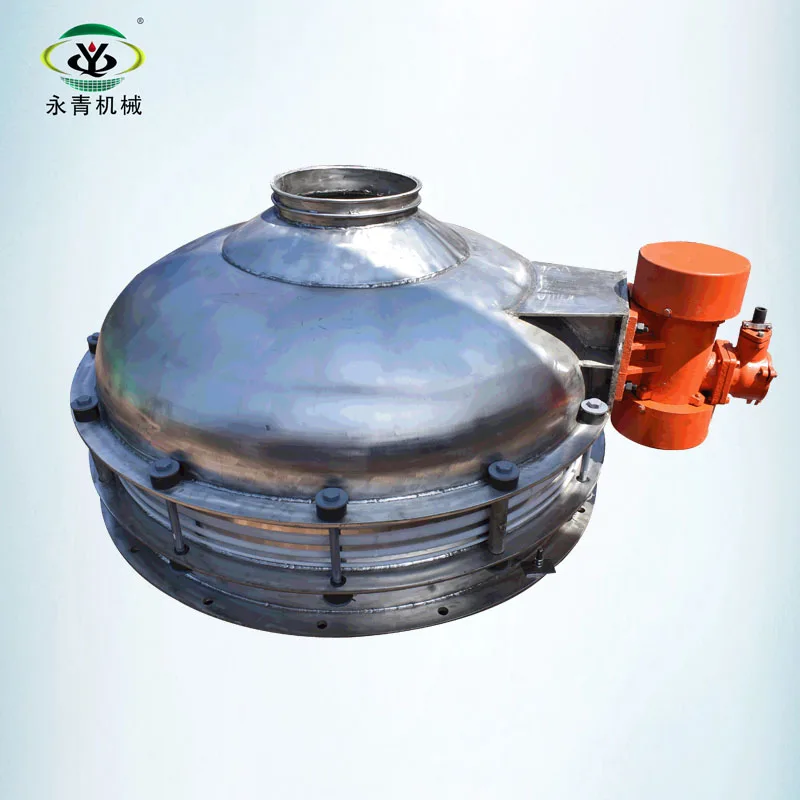

china factory price vibrating bowl feeders for sand clay concrete and mining industry

Product Overview

Description



China factory price vibrating bowl feeders for sand  clay  concrete and  mining industry



1.Brief description:

Electromagnetic vibrating hopper feeder is a new type of feeding equipment, widely used in mining, metallurgy, coal, building materials, chemical , electric power , food and other industries. It is used for transmitted the massive granular and powdered materials from storage silo, to the stored material equipment continuously or quantitatively. It adapted to automatic batching , quantitative packaging and automatic control.

It is with the advantages of small size, low noise, light weight, low power consumption, easy installation and maintenance .



2. electric  vibrating grizzly feeder structure:

Vibrating hopper feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of  fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through vibration, the materials will slip and sling on the funnel, moving forward, and when the materials pass the screening part, smaller parts will fall down, thus avoiding the further crushing, and therefore, screening purpose can be reached.



3. Primary competive advantages:

 a. Brand-name parts

b. Country of origin: China

c. Gurantee/warranty: 1 year

d. Packing: Wooden packing. Special fumigation-free wooden material or according to your requirement.

e. Price. We promise a factory price for each machine.

f. Product features: 1. Dust-proof, heat-proof, oil-proof, explosion-proof.

                                2. Green, Environment, Performance.

g. Product performance: Low power consumption.

h. Prompt delivery: 7 days

i. Services: ±2% spare parts.

j. Small order accepted.

k. company nature:china OEM

L: High efficiency:95%

M: low noise

N: Reasonable and simple structure, easy maintenance.

O: all carbon steel materials or stainless steel materials

P: Customized for you



4.Technical index :



Model	Vibration  diameter (mm)	Bunker  diameter (m)	Motor  Power (kw)	Flange outer  diameter (mm)	Weight(kg)	Excitation strength scope (kg)	Discharge (mm)
GZD04	400	0.4-0.8	0.15	490	50	0-150	120
GZD06	600	0.6-1.2	0.2	710	100	0-250	150
GZD08	800	0.8-1.6	0.5	930	180	0-500	200
GZD10	1000	1.0-2.0	0.75	1130	300	0-1000	250
GZD12	1200	1.2-2.4	1.10	1330	450	0-1500	250
GZD15	1500	1.5-3.0	1.50	1660	650	0-2000	300
GZD20	2000	2.0-4.0	1.50	2200	1200	0-3000	400



5.Features

1.Simple structure, low weight, low noise, reliable operation, large feeding capacity, easy to install and maintain

2Adopting special auto-synchronizer vibrating motor, it start quickly, work stably, and parking smoothly

3.The materials moving in a parabolic track, less wear of the feed chute

4.It can change or close the material flow in a short time; therefore, it is high precision

5.This machine is not suitable for explosion-proof occasion



 Application 1

Vibrating hopper feeder is widely used in crushing and screening production lines in the following industries: mineral, quarry, metallurgy, building materials, chemical industry, ore dressing, coal mine and etc.



6.Please provide the following information to get a suitable vibrating feeder?  Customized for you

1.the materials that you will process and some specific index?



2.the maximum capacity?



3.the voltage?



4.the machine materials?



5.your other special requirements?



 Our company

Yongqing machine is a professional manufacturer of  vibrating screen equipment, conveyor system, vibration motor, vibration table. So far, there are 1 advanced mechanical and manufacturing engineer, 1 secondary mechanical engineer, 1 design engineer and a few senior mechanics in our company. Their average working experience is over 15 years. 8 years' professional manufacturing experience, 4 years' alibaba golden supplier. We are always focusing on quality, pursuing innovation and devoting ourselves to technology improvement all the time. With the professional technical teams and rich manufacturing experience, we can supply excellent vibrating machines for global customers.
