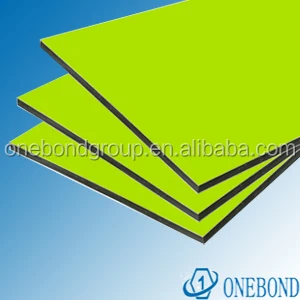

aluminum composite panel with PVDF coating for exterior wall of high building

Product Overview

Description

PVDF aluminum composite panel

PVDF is a composite panel consisting of two pre-painted aluminium cover sheets that are fusion bonded to both sides of a polyethylene core. PVDF is well known for its outstanding profermance in outdoor application, the surfaces are coated by exclusively high-quality lacquer systems with PVDF coil coating which have an optimum resistance against strong solar radiation, weather and industrial pollution. These properties are achieved by using UV resistant bonding agents and PVDF top coats.

Structure of Photo:

Standard Products:
        For Exterior: 1220X2440X4MM, al: 0.3mm,0.4mm,0.50MM, PVDF
        For Interior: 1220X2440X3MM, al:0.10mm,0.12MM,0.18MM.0.21MM PE

Products Available:
        Thickness: 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
        Length: can be customized
        Width: 800mm~1570mm
        Aluminum thickness: 0.12mm, 0.18MM ,0.21mm, 0.30mm, 0.40mm, 0.50mm
        Coating: Polyester coating, Fluorocarbon coating.

Scope of Application: Internal and external decoration for all kinds of buildings, airports, ceilings, tunnels, billboards, doors, furniture, car bodies, ships, etc.

Cutting: Cut with a saw, cutter, or trimmer.

Cleaning and Maintenance: Clean with water or neutral cleaner, using a soft cloth. Do not use force. Do not use a knife or other sharp object.



 PVDF(Fluorine-carbon) coating

PVDF(fluorine-carbon) coating: made of fluorine carbon resin, pigment, ester solvent, after high temperature roasting and baking, the paint is solidified to dry film with super weather resistance. PVDF coating also can be classified as traditional PVDF,and nanometer PVDF coating.





A. Traditional PVDF Coating, with Kynar 500®  PVDF, two or three times for coating and baking, has good properties of anti-acid, anti-alkali and is durable in atrocious weather and environment, keeping 15 years no unwonted fading. In view of these facts, we recommend this panel applied for external wall cladding.

Why PVDF Promising Super Durability

In house coil applied, baked on 70% PVDF(Kynar 500® ) Fluoropolymer resin based paint coating to protect aluminium. No other coating system with stands the rigors of nature and time. The high-performance fluoropolymer resin, with its extraordinary capability to retain color and gloss, keeps painted aluminum looking vibrant and appealing for exterior usage.

The Molecular structure of PVDF showing a unique isosymmetrial structure of C-H, C-F BOND which is two of the strongest bonds known, both of them, the bond Energy are over 100 (Kcal/mole), however the effect of sun, rain and pollutants can break down most coatings which are less than 90(Kcal/mole).

Technical data:



Testing items		Result	Testing items	Result	Testing items	Result
Appearance   quality	Vestige	Indistinct	Weight	t4 mm=5.7kg/m	Finish coating   thickness	30+-5um
	Coating amit	No	Outdoor   temperature	NO abnormity	Gloss   talerance	4.3   (gloss56.8)
	Ripples	No	Thermal   expansion	1.59*10-3.0   c-1	Pencil   hardness	3H
	Flaw	No	Deflection   temperature	105 c	Toughness(T-bend)	2T no rift
	Aberation	No	Thermal   conductivity	0.102   kcal/m.hrc	Coating   achesive farce	Class 1 (4B)
	Scratch	No	Flexural   rigidity	14.0-103	Impact   resistance(50kg.cm)	no   depainting.no crack
	Aberation	Indistinct	penetrating   resistance	9.0KN	Grinding   resistance	7.4l/um
			180° peel   strength	11.7N/mm	Mortar   resistance	24 Hrspat test   exceed
Dimensians   deviaticn	Length	0~+0.4mm	Acoustic   insulation	25 dB	Humidity   resistance	3000hr no   blister
	Width	0~+0.6mm	Bending   elastic modulus	2.8*10MPa	Bailing-water   resistance	No change
	Thickness	-0.02~0mm	Shearing   resistance	28.6MPa	Salt-spray   resistance	3000hr no   blister
	Diagonals   windage	1.7mm	Fire propagation	Qualified	Acidresistance	No change
	Edge   unstraightness	0.4mm/m	Wind-pressure   resistance	Passed	Alkali   resistance	Passed
	Warpage	2.0mm/m	Properites   against water	Passed	Salvent   resistance	Passed
			Properites   against air	Passed	Color retention	E<5
			Bending   strenght	112MPa	Chalk   resistance	Max value 8   unit
			Minimum   bending redius	~300MM	Gloss   retention	90%
