If you want to buy one film blowing machine,please let me know below information
1. the max film width you want to make?
2. The raw material if it's LDPE,HDPE OR LLDPE?
3.The power supply if 380V or 220V or others?
4.If you need branded parts like panasonic, delta,schneider?
5.If any optional parts you need too, like air compressor and screen changer, surface treater?

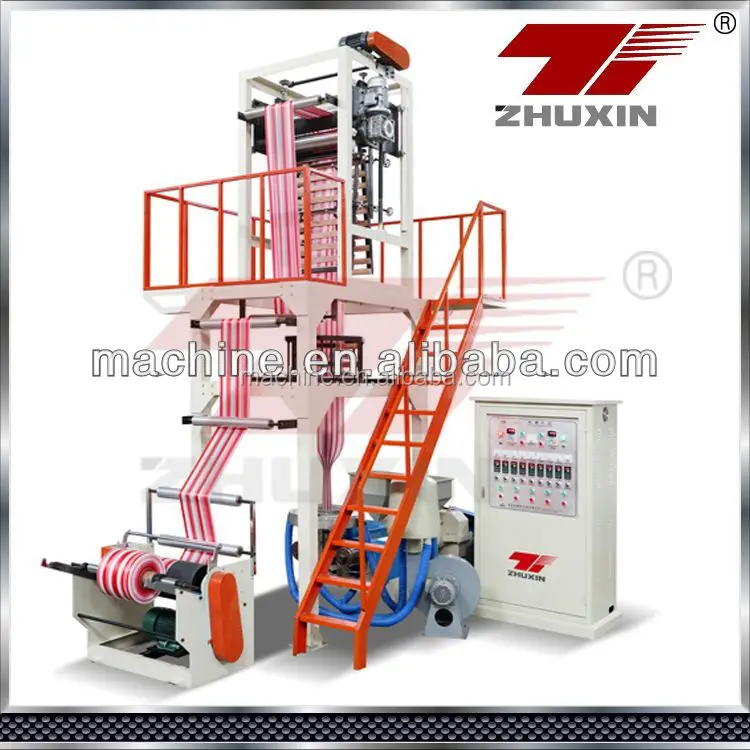

Product Description
Performance and Characteristics:
It is used for blowing the various low density polyethylene(LDPE) and high density polyethylene (HDPE) color striped
plastic film,etc. which are widely used for packing food,fruit, garments,textile, daily necessities and other civil and
industrial products. The cylinders and the screw stems of model SJ-40Dx2 extruder are made of high-quality alloy
steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment. SJ-600 the auxiliary machine can be freely adjusted within the limits of 700mm according to the technological requirements

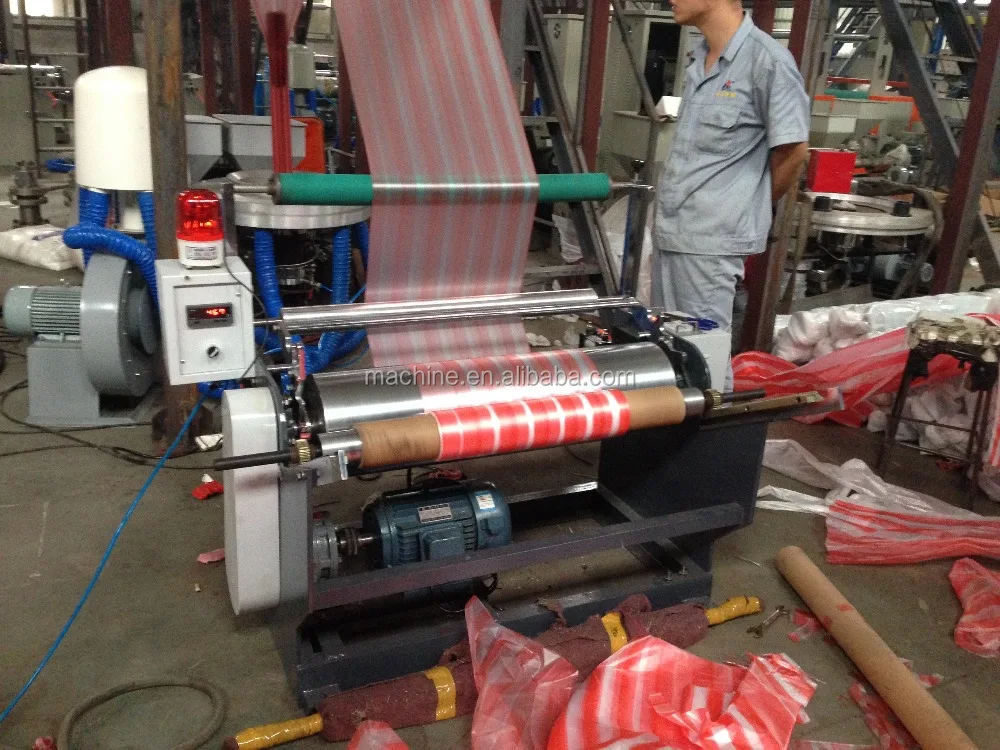

of different materials,and has is fitted with a plug-in plate mechanism for making vest bag. The coiling unit adopts
torque motor to keep proper tension and make rolling even and roll-changing easy
Main Technical Variables:
MODEL
SJ-40Dx2x500
SJ-40Dx2x600
SJ-40Dx2x700
Diameter of screw
40mmx2
40mmx2
40mmx2
Screw Ratio
L/D28:1
L/D28:1
L/D28:1
Reduced diameter of film(mm)
10-100r/min
10-100r/min
10-100r/min
Motor power
15KW
15KW
15KW
Max.output(kg/h)
30kg/h
30kg/h
30kg/h
Max folding Width of film
480mm
580mm
680mm
Single-sided Thickness of film
0.006-0.06mm
0.006-0.06mm
0.006-0.06mm
Weight(T)
2200kg
2300kg
2400kg
Outline diameter(L*W*H)
(mm)
3800*2000*2800
3800*2000*2800
3800*2000*2800
Optional equipment
1. Auto loader 2. Film surface treater 3. Rotary die head
4. Air compressor 5. Mechanics screen changer 6. Double wind
Video: //www.tudou.com/programs/view/n3cWbv4c34M/
Packaging & Shipping
Our Services
Services
Our engineers are available to service machinery overseas all the year,round with after-sale.
Our machinery can be monitored via the Internet, solve customer requirements timely.
We are continuous innovation and reform to ensure the quality of mechanical stability.
We undertake various non-standard machinery to meet customers' requirements.
