HSP 7 wet mix concrete shotcrete machine

Product Overview

Description

  HSP-7 wet-mix concrete shotcrete machine









HSP-series wet shotcrete machine is an advanced and high efficient concrete spraying machine, d has been designed especially for spraying of concrete . It has the advantages of low dust , low rebound , high-strength concrete , simple operation , convenient for maintaining , prolong operation life etc.







The machine , combined with dosing unite , is suitable for manual spraying or by means of a robotic arm .







It is used for the application of shotcrete in rail and road tunnel , subway engineering , hydro-power engineering, underground engineering , mine gallery and more concrete engineering.







Wet shotcrete is use the mixed concrete, and then add accelerator.











parameter













Item	HSP-7	HSP-9
Output	5-7m³/H	6-9m³/H
Max. Convey dist	Horizontal:30m Vertical: 20m	Horizontal:30m Vertical: 20m
Concrete proportion	1:4-5C/A	1:4-5C/A
Water cement ratio	≤0.4	≤0.4
Hose inner size	Φ51m/64mm	Φ51m/64mm
Max. Aggregate size	15mm	15mm
Operating air pressure	0.4-0.6MPa	0.4-0.6MPa
Air consumption	10-15m³/min	10-15m³/min
Rotor  diameter	480mm(160)	480mm(175)
Spring rate level	≤10%	≤10%
The accelerating liquid adding amount	0.3-0.7%	0.3-0.7%
main Electric motor power	Y160m-6-7.5KW	Y160m-6-7.5KW
vibration electric motor power	0.37KW	0.37KW
Accelerating metering pump	pneumatic	pneumatic
Electric Voltage	380V	380V
Overall dimension(mm)	2000X800X1300	2000X800X1300
Whole weight	800kg	900kg
wheel	Nylon wheel ;Rubber wheel ;skid wheel ;Rail wheel

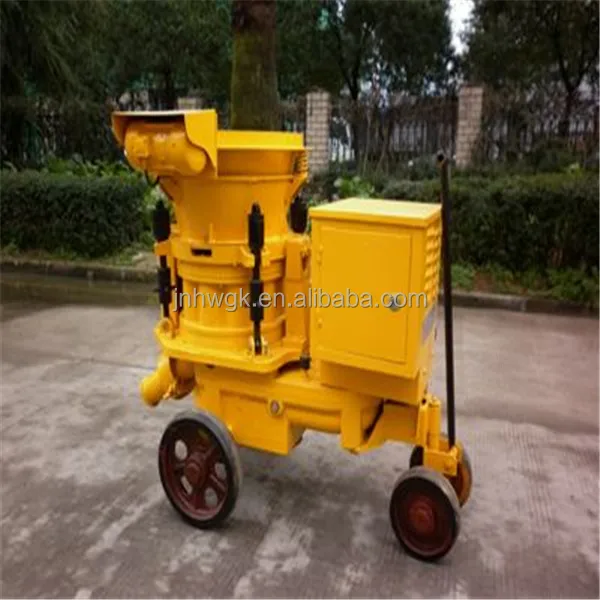

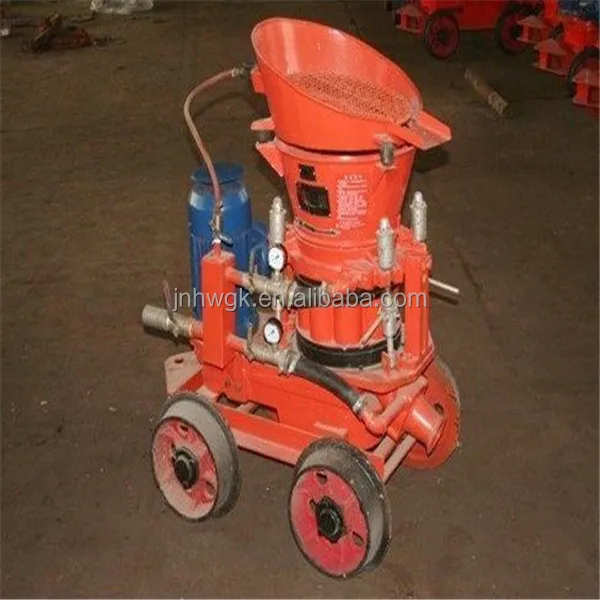

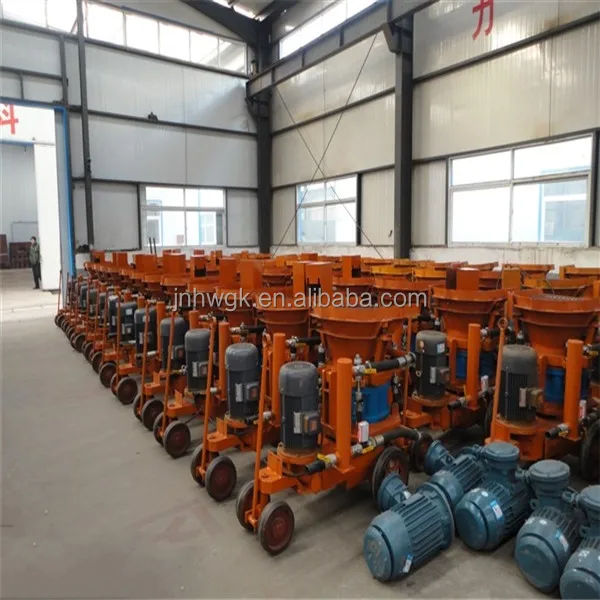

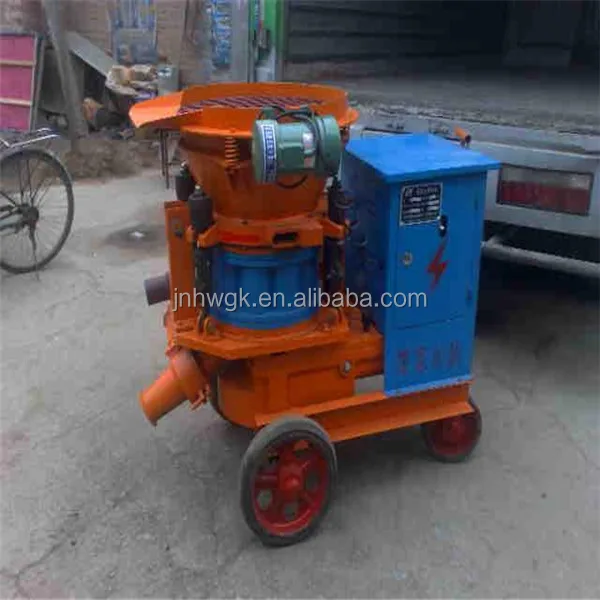

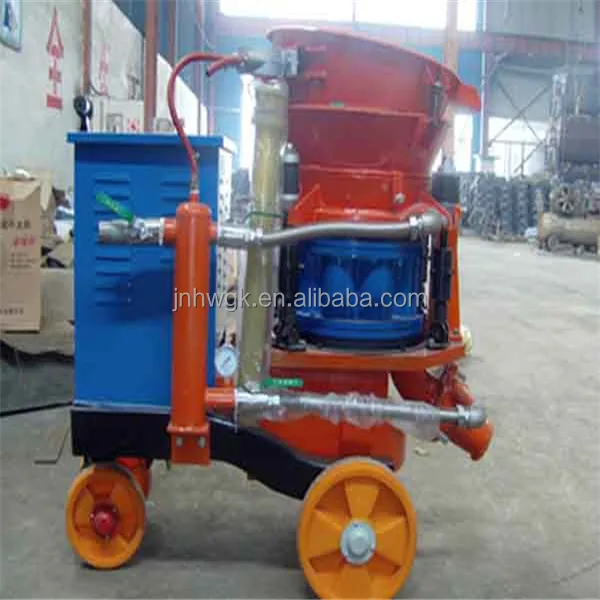

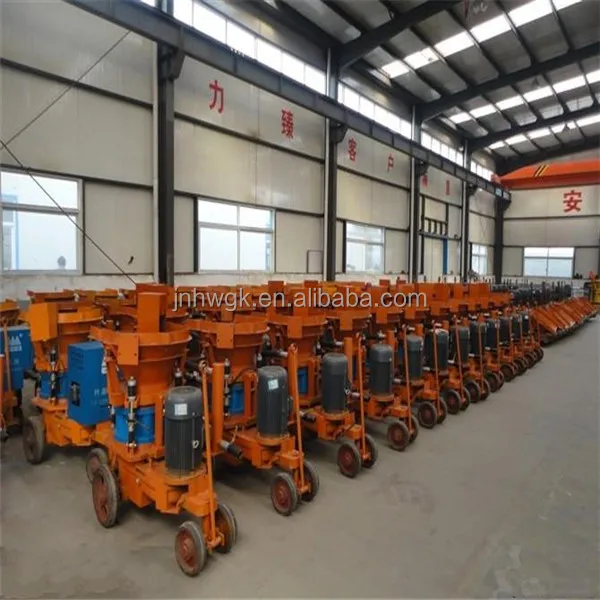

 pictures
