GBDR 700 t shirt bag on roll/shopping bag on roll/garbage bag on roll bag making machine

Product Overview

Description

GBDR-700 t-shirt bag on roll/shopping bag on roll/garbage bag on roll bag making machine



 Performance & use:

This machine is designed and manufactured upon exporting. It is a computer-controlled full-automatic bag-making machine which combines optic, electric, gas and instrument control. It is suitable for making bags of many kinds of heat-melting film such as PE, PP and PVC and etc. There are such features as photoelectric control automatic material feeding, photoelectric tracing color code in color printing,double working-position feeding and double working position sealing, step or servo motor which controls speed and lenght of the bag, computer counting and cutting. It is the best machine for producing vest bags and flat mouth bags.



 Main technical parameters:

Model	GBDR-500	GBDR-600	GBDR-800
Sealing & cutting width	50-400mm	50-500mm	50-700mm
Sealing & cutting length	100-1200mm	100-1200mm	100-1200mm
Sealing & cutting thickness	0.02-0.15mm	0.02-0.15mm	0.02-0.15mm
Bag-making speed	printed bag 10-120pcs/min plain bag 20-200pcs/min	printed bag 10-120pcs/min  plain bag 20-200pcs/min	printed bag 10-120pcs/min plain bag 20-200pcs/min
Power of motor(kw)	1.1	1.1	1.5
Electric Heating power(kw)	1.2	1.6	2.2
Weight(kg)	800	900	1100
Overall dimensions(L*W*H)	3600X1200X1700	3600X1300X1700	3600X1500X1700

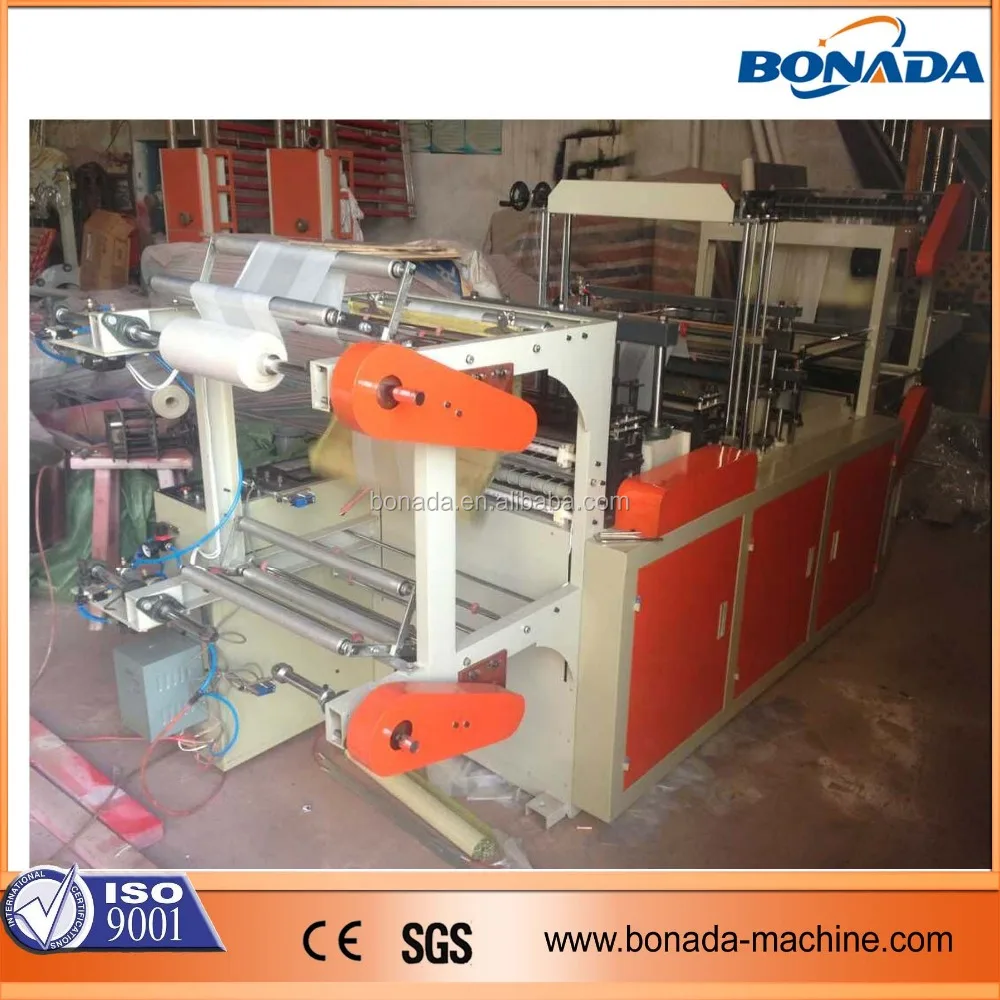

Photo of machine:
