Asphalt Road Milling Machine with Electric Start 178F Diesel Engine,200mm Milling width and 5mm depth, CE Certificate (JHE 200D)
- Category: Concrete Scarifier >>>
- Supplier: Changzhou Jiehe Machinery Co. Ltd.
Share on (1996637295):
Product Overview
Description

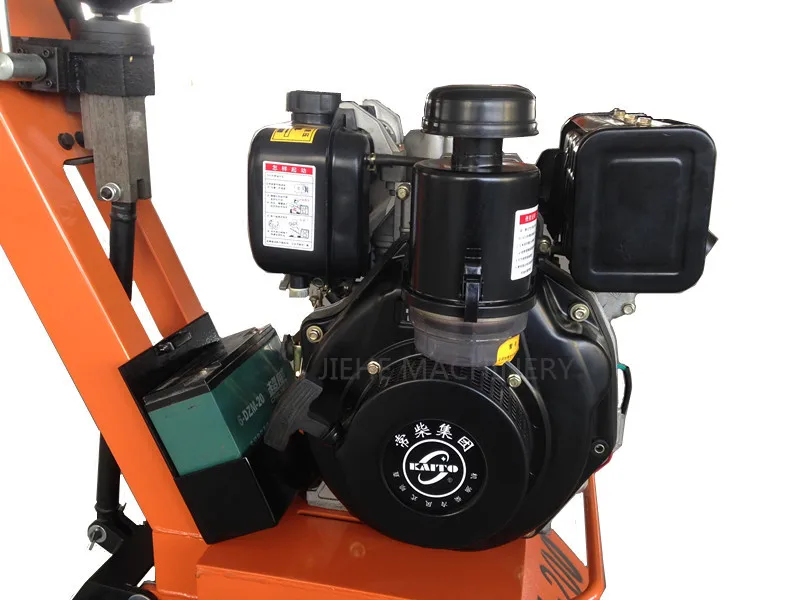

Asphalt Road Milling Machine with Electric Start 178F Diesel Engine,200mm Milling width and 5mm depth, CE Certificate (JHE-200D)
Jiehe concrete and milling machine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.
Product detail
What's the Specifications?
4KW Siemens Motor engine and super four or six bearings;
Drum is heat treated specially;
Exclusive supply good quality cutter;
Drum can be replaced easily;
With a dust-proof device?
Parameter
|
Model |
JHE-200 |
JHE-200E |
JHE-200K |
JHE-200D |
|
Power Source |
GX160 Honda/ GX270 |
Siemens Electrical motor |
Kohler CH270/ CH395 |
178F Diesel Gasoline engine |
|
Horse Power |
5.5HP/9HP |
7.5KW |
7HP/9.5HP |
5.5 HP |
|

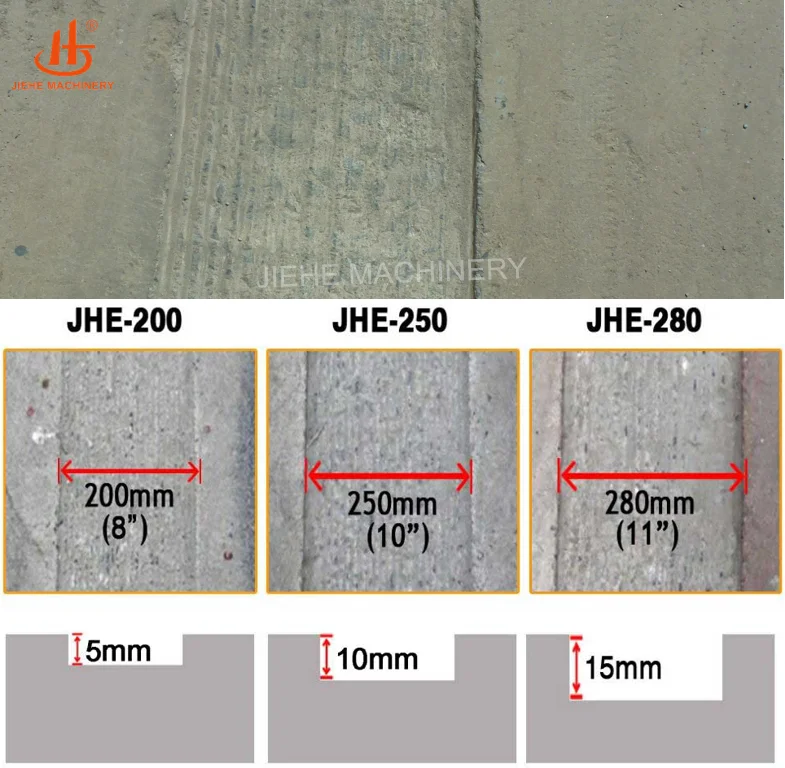

Working width |
200mm |
200mm |
200mm |
200mm |
|
Working depth |
0-5mm |
0-5mm |
5-10mm |
3-5mm |
|
No. of shaft |
6pieces |
6pieces |
6pieces |
6pieces |
|
No. of cutter |
90pieces |
90pieces |
90pieces |
90pieces |
|
Power Drive |
Manual |
Manual |
Manual |
Manual |
|
Working area |
20-40 m2 / H |
20-40 m2 / H |
25-50 m2 / H |
20-40m2 / H |
|
Net Weight |
105KG |
116KG |
132KG |
119KG |
|
L× W× H |
820×490×810mm |
820×490×810mm |
910×470×880mm |
820×490×810mm |
|
Drum Rotation |
Down cut (clock wise) |
|||
|
Milling mode |
downward cut |
|||
|
Depth Control |
Adjustable |
|||

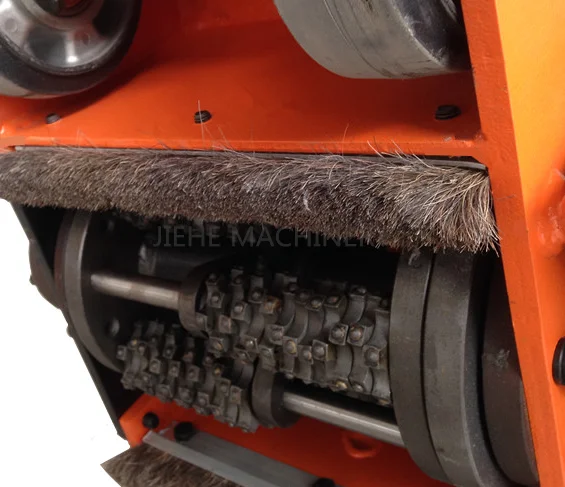

About our Drum and cuttrers
What's our road scarifier machine used for?
Our products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
What's your Packaging & Shipping?
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-200D packaging dimensions(mm) is: 900*570*910.
30 sets 1 container normally.
FAQ
About US
Related Products
All of our scarifying machines are provided with a dust suction mouth,external vacuum cleaners,reduce dust phenomenon.
