4x2 dongfeng small flatbed tow truck manufacturers

Product Overview

Description

4x2 dongfeng small flatbed tow truck manufacturers



Tow truck, whole name is road wrecker, also called as the wrecker truck, tow wrecker truck, tow truck wrecker, wrecker towing truck,etc.



Our tow truck consists of the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric control system, truck body and the tool boxes.



The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.



Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.

Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electronic lamp, 20M steel wire,  megaphone,etc



As a professional tow truck manufacturer, the wrecker tow truck we produce is from 3 ton to 60 ton. The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotator tow truck, tow truck mounted crane,etc.



The technical paramters of 4x2 dongfeng small flatbed tow truck



Items	Descriptions	Specifications and Types
General	Truck Name	Wrecker tow truck
	Drive Type	4*2, left hand drive or right hand drive
	Gross Vehicle Weight(kg)	7490
	Curb Weight (kg)	5495
	Overall Dimensions L*W*H(mm)	7420×2300×2380
Engine	Engine Model	CY4102-E3C
	Engine Brand	CHAOCHAI
	Fuel Type	Diesel
	Power	91kw/120HP
	Emission Standard	Euro III
	Displacement(ml)	3856
	Engine Type	4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis	Chassis Brand	Dongfeng
	Front/Rear Axle Load(KG)	3150/4340
	Tire No.	6
	Tire Specification	8.25-16 Nylon tire
	Wheelbase (mm) ;	3800
	Axle No.	2
	Gear Box	5 speed forward with 1 reverse, manual
	Brake	Air break
	Radiator	Suitable for tropical climate
	Front/rear suspension(mm)	1180/1715
	Leaf Spring No.	11/9+7
Towing and lifting	Tow truck winch	3 ton to 5 ton
	Wire rope	21 meter
	Wheel lift capacity(kg)	1500
	Towing capacity (kg)	3000
	Transport capacity(kg)	5000

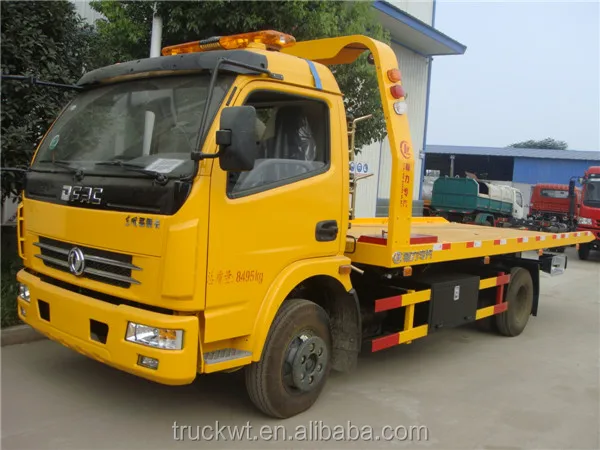

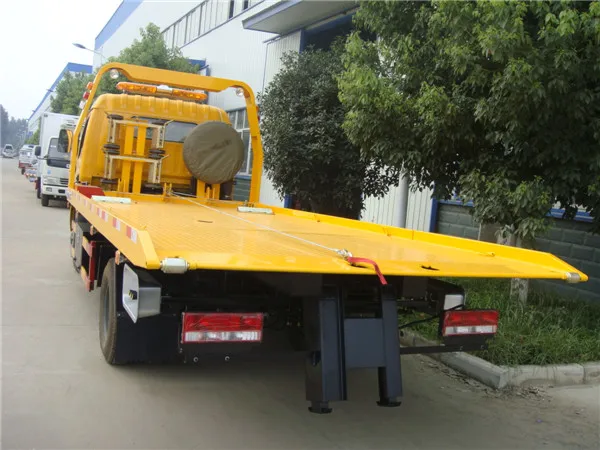

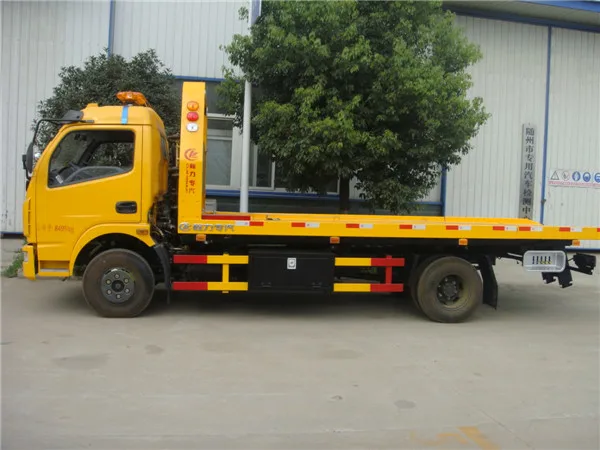

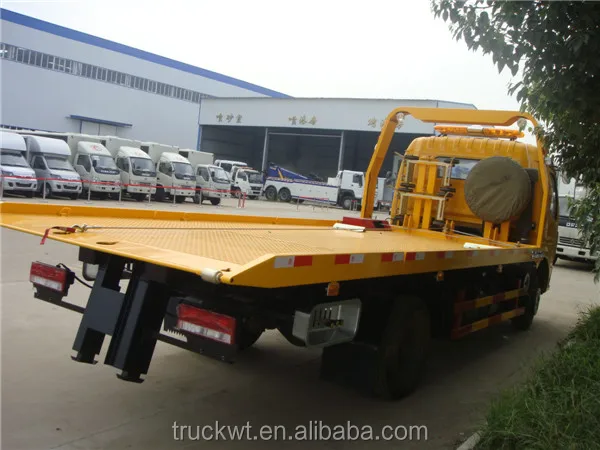

Pictures of  4x2 dongfeng small flatbed tow truck













Product Note: Above parameters of  truck is just for reference.As a professional tow  truck manufacturer in China, we can customize the truck according to your requriement. if you are interested in any of our wrecker truck, please feel free to contact me.







 We, Chengli Special Automobile Co., Ltd., were established in 2004. We are a professional manufacturer and exporter that is concerned with the design, development and production of special trucks, including LPG trucks, cement mixer trucks, water trucks, refrigerator trucks, cargo trucks,garbage truck, oil tanker truck,wrecker towing truck, truck mounted crane and others.



We are located in Suizhou City, Hubei Province, in the middle of China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.



Covering a large area, we now have over 1000 employees and an annual sales figure that exceeds USD 5 Million. We are currently exporting 30%-40% of our products worldwide. Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, we have received ISO9001:2008 certification and Chinese TOP 500 Certificate.



As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Africa, Southeast Asia, Middle and South America, the Middle East and other regions.

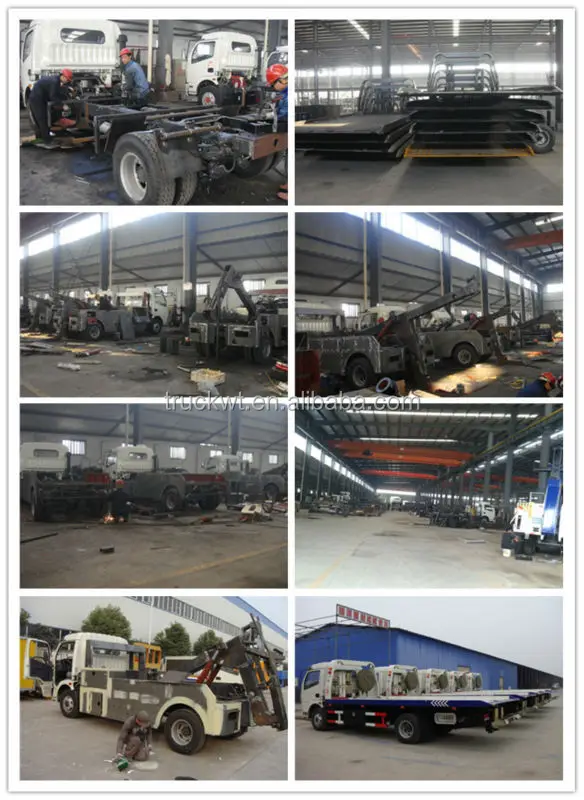

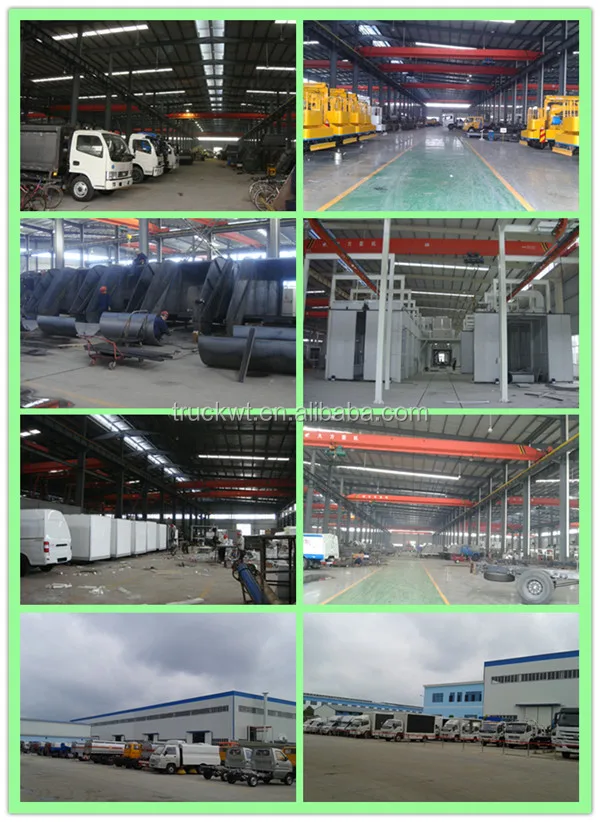

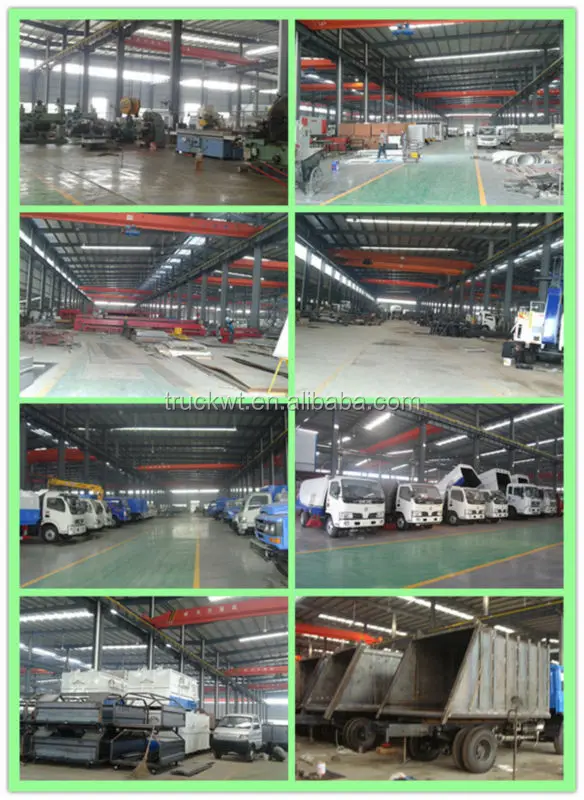

Tow truck manufacturer











Factory ISO Certificate

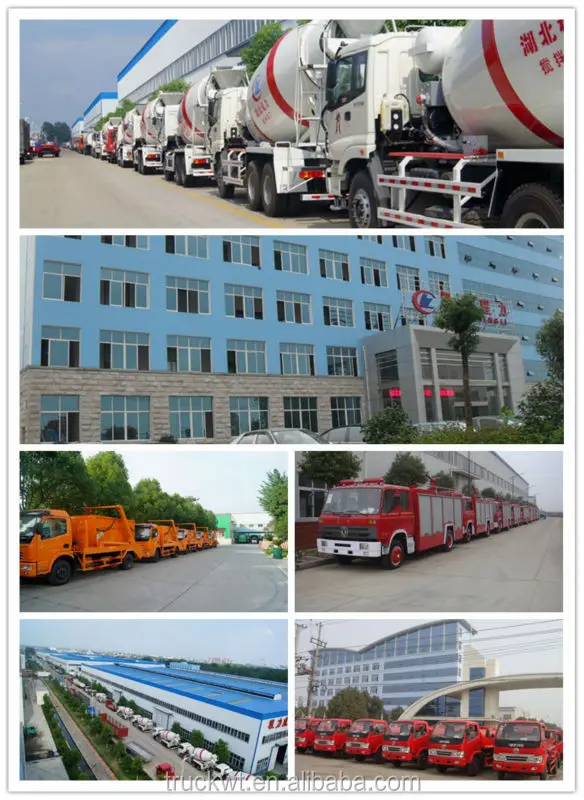

 More trucks we manufacture



1. Water Tanker/Sprinkler Truck/Pesticide Spraying Truck/Dust Removable Truck



2. Garbage Truck/Garbage Compactor/ Sealed Garbage Truck/ Skip Loader/ Self-loader/ Butt-type Garbage Truck/ Hook Loader



3. Sewage Suction Truck/Fecal Suction Truck/ Sewer Cleaning Truck



4. Aerial Working Truck/ Crane Truck



5. Road Wrecker



6. Road Sweeper



7. Oil tanker/ Refuelling Truck



8. LPG Storage Tanker



9. Chemical Liquid Tanker



10. Bulk Cement Tanker



11. Milk Transport Truck



12. Concrete Mixer/ Concrete Pump Truck



13. Tractor Head



14. Asphalt Distributor



15. Fire Fighting Truck



16.Van Truck/ Refrigerator Truck/ Explosion Proof Truck



17. Mobile Stage Truck/ LED Advertising Truck



18. Dump Truck/ Tipper



19. Feed Delivery Truck



20. Semi-trailer/ Flatbed Semi-trailer/ Container Semi-trailer/ Skeleton Semi-trailer/ Low flatbed Semi-trailer/Stake Semi-trailer/LPG tanker Semi-trailer

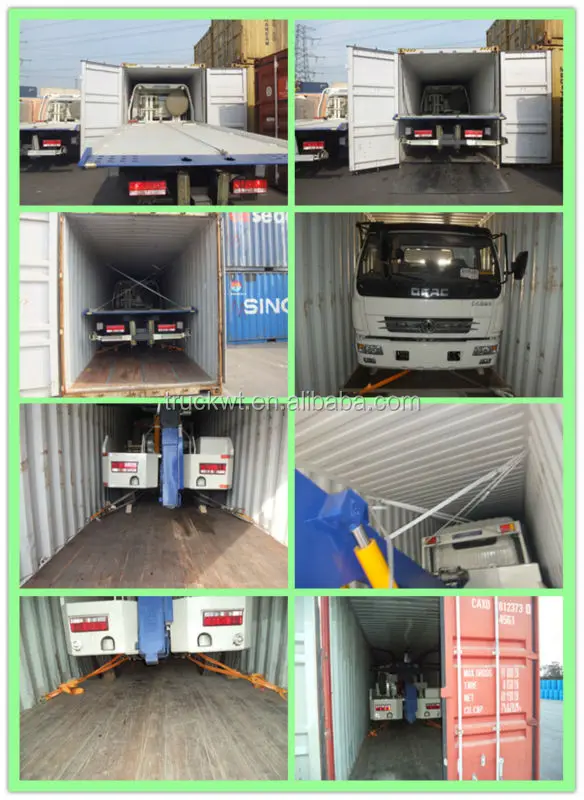

Normally the packging is nude with wax. The transport type of it are bulk carrier ship or ro-ro ship. If remove the large alarm lamp on the top, it can be ship by 40' high cubic container.





As a professional special vehicle manufacturer in China, we can customize almost 300 kinds of trucks for you. Any products information, please feel free to contact Ms.Amie Nie by calling at +0086-13872889770 or through following contact information. Also, welcome to China and visit our factory.
