Plastic cup crusher/plastic chair crusher/plastic scrap crusher

Product Overview

Description



TAIRONG MACHINERY

        Plastic cup crusher/plastic chair crusher/plastic scrap crusher





Model	800	1000	1200
Motor power(kW)	37-45	55-75	90-110
Opening motor power(kW)	0.55	0.75	0.75
Rotor diameter(mm)	550	550,700	550,700
Rotor length(mm)	800	1000	1200
Stator knives(pcs)	4	4	4
Rotor knives(pcs)	5*2	5*2	10/12
Cutting geometry	V-shaped arrangement of the rotor knives
Knives material	SKD-11	SKD-11	SKD-11
Rotary speed(rpm)	500	500	500
Screen hole diameter(mm)	14-100mm	14-100mm	14-100mm
Capacity(kg/hr)	300-800	500-1000	800-1500





 Application (pet, pe/pp Plastic crusher, crushing machine)



Crusher plastic/Plastic crusher is used to crush the big waste plasitc products to small size.





Processed material(pet, pe/pp Plastic crusher, crushing machine)



PP PE plastic films, PP PE bags, PP woven bags,HDPE/PET plastic bottles, plastic containers.





Centrally hinged twopiece welded steel construction, upper and lower sections of the housing meet horizontally, the stator knives are mounted to opposite sides of the dividing surface, reversible stator knives with double cutting edges fitted as single elements to the lower housing section, multiple resharpening and adjustment of stator knives is possible,hinged screen holder and separate door for screen access, the upper housing is opened by means of a wrench operated manually

Main drive(pet, pe/pp Plastic crusher, crushing machine)

AC-motor three phase, type B3, degree of protection IP-54, 1500 rpm including of heavy duty bearings



Safety devices(pet, pe/pp Plastic crusher, crushing machine)

integrated run down safety devices prevent access to the unit until the rotor has reached a stand still

Starting equipment(pet, pe/pp Plastic crusher, crushing machine)

Electrical control cabinet for electrical controlling of the entire system, all electrical units mounted in a steel plate cabinet, switches are equipped with star delta protection, press button switches with light indicators, lockable main switch, wired to a terminal strip, all fuses included. Designed in accordance with the valid VDE safety requirements.

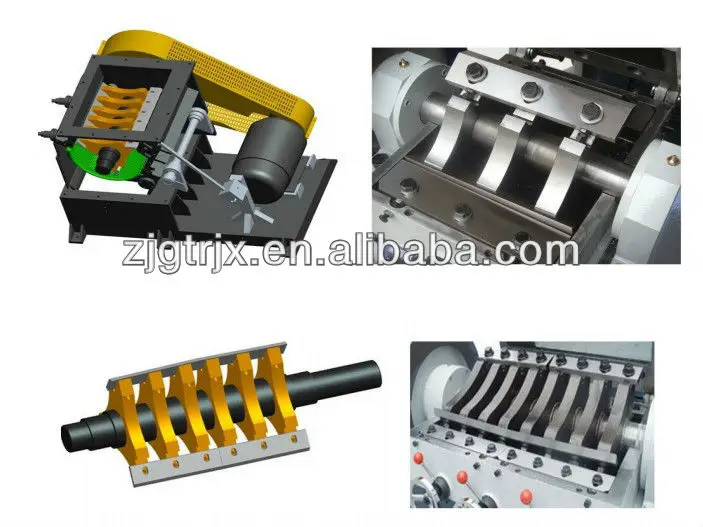

Blade shaft



 FInal Flakes
