YD series full automatic continuous tiles cutting machine suit for cutting big floor or wall tiles (such as polishing tiles) into needed bar tiles .

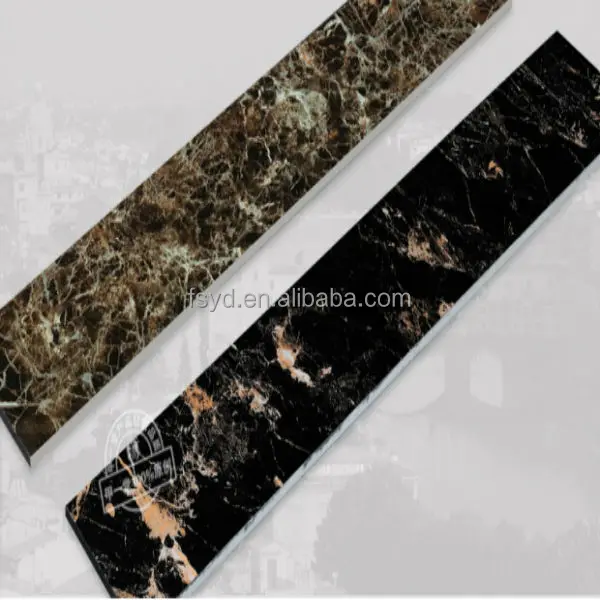

Anti-slip step tiles, shirting tiles cutting, cut from one piece of tile into many strips.
Product Description

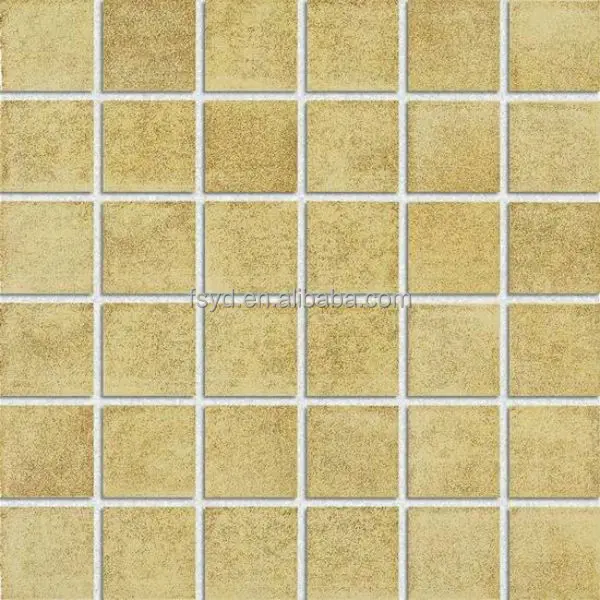

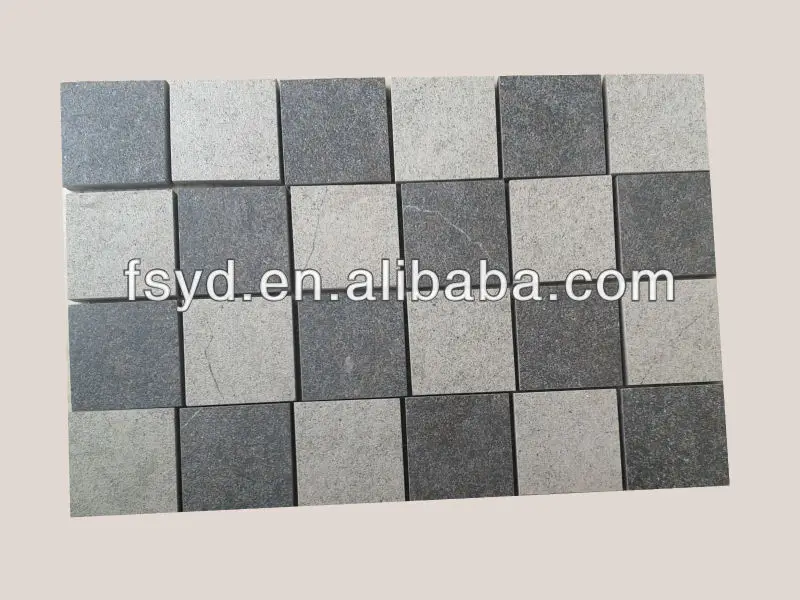

The processing width ranges 30-800mm, they are capable of processing tiles with different width as well as chamfering, especially suitable use for notching the ceramic (such like classical tiles and glaze tiles) equipped with special spare parts, it can cut minimum size 10*10mm mosaic tiles.
Technicial Data :
Model
YD-600(3)
YD-800(3)
Main shaft quanitity
3PCS
3PCS
Dia. of Cutting blade
180-350mm
180-350mm
Processing Width
30-600mm
30-800mm
Blet width
650mm
850mm
Procesing speed
0.6-4m/min
0.6-4m/min
Power of main Shaft
15kw*3
15kw*3
Total Power
50.2KW
50.2KW
Outter Dimension
3200*2200*1900mm
3200*2200*1900mm
Company Information
FOSHAN YONGSHENGDA MACHINERYCO., LTD is national high-tech enterprise specializing in R&D and manufacturing deep processing equipments for stone, ceramic, glass and metal industry. In 1996, the 1st Ceramic Arc-edge Polishing machine of China was born in YONGDA, marking the rising up of China’s deep processing industry from then on.
With strong technical force, superior production conditions and years of rich experience in manufacturing deep processing equipment, YONGDA has successfully researched and developed the CNC Machining centre,Up/Down Cutting and Edge Grinding /Chamfering Line, Fully Automatic Continuous Cutting Machine, Etc., which achieved good reputation from ceramic enterprise and deep processing factories. YONGDA has helped to bring up large quantities of ceramic deep processing enterprise in China too.
YONGDA has begin the export since year 2003.
FOSHAN YONGDA MACHINERY CO.,LTD is now a well know brand among many famous enterprises in ceramic, stone and glass industry .YONGDA products has been exported to many countries and areas all over the world, such USA, Canada, Russia, Australia ,India , Saudi Arabia, UAE, Qatar , Indonesia, Vietnam, Malaysia, Egypt, Algeria, South Africa, etc.
Packaging & Shipping
ALL YONGDA Machinery will be packed in standard packing, suitable for long distance ocean transportation and well protected against damage, moisture, shock, rust and handling.
It also covers:
-storing of the equipment waiting to be shipped;
-preparation and packing of the equipment.
Our Services
YONGDA will guarantees that the equipmetn is completely brand-new and will conform to the technical specifications. the mechanical guarantee on machinery and equipment shall be 12months after the acceptance date.
FAQ
1 . will there technician to our side for the installation and the tranining of the machine?
- yes, we will send the technician for the installation and the traning of the machine.
2.how long is the installation and the traning required?
-it is required around 3day to 7 days for the installation and the training .
