FH7 6CRNB Industrial Digital Cable Length Measuring Meter Counter

Product Overview

Description

 FH7-6CRNB Industrial Digital Cable Length Measuring Meter Counter







Please check the video in Facebook

  https://www.facebook.com/photo.php?v=139667735394314 &saved





The set of  Length/Position controller consists of  one digital length/position controller FH8-6CRNB and one wheeled length sensor MLK-80. It's widely used in machinary of printing, packing, textile,plastic & rubber, cable $ wiring, mechnical and any other production line for auto length dection.



By means of the reverse rolling friction between drive gear and the measured objects(such as textile or plastic tape) or the reverse rolling tetween drive gear and the main shaft of machine producing the measured objects, the sensor sends photoelectrical signals to the controller(FH8-6CRNB). The controller will turn the photoelectrical signals to digital signals and display the  the accumulated length..

 .

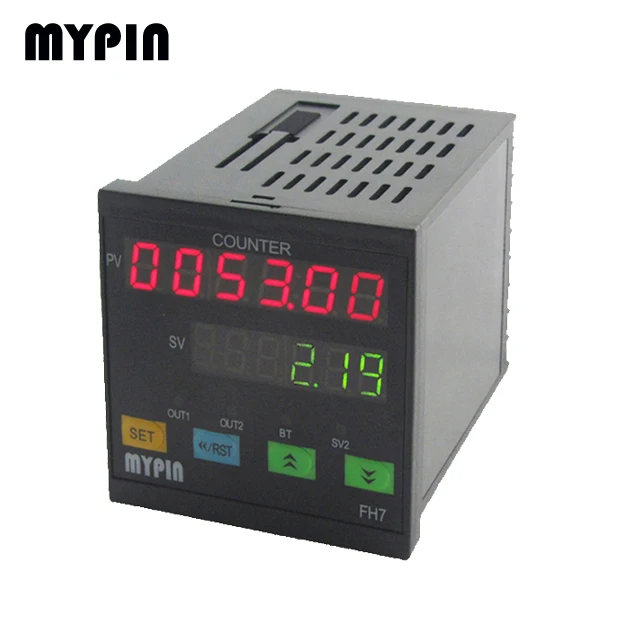

FH7-6CRNB,

Size:72H*72W*80Lmm

Display: dual line 6 bit LED

Counting range: -199999~999999

Coefficien set up range:0.00001~99999.9

Output: relay( AC 250V/3A,DC 30V/3A cos¢=1)

Output mode: R.N,C.F.H,L

Input resistance: ≥10KΩ

Environment:0-50C, 35-85% RH

Aux. power:24V DC +/-5% 30mA max.

power off memory :over 10years(25°c) .

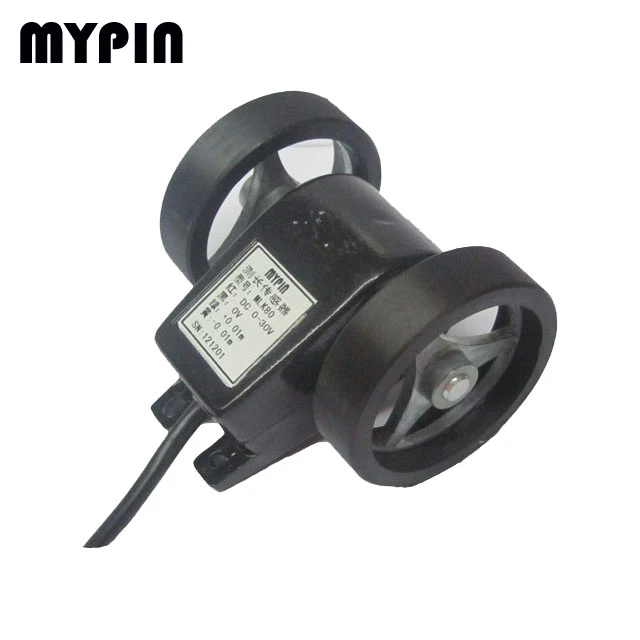

Wheeled length sensor MLK-80





 Cable:2m

Wiring: Red: 0-30V DC

              Black: 0V(GND)

              Green: positive counting +0.01m

              Yellow: negtive counting  -0.01m

              White: +0.1m

              Blue:   +1m.

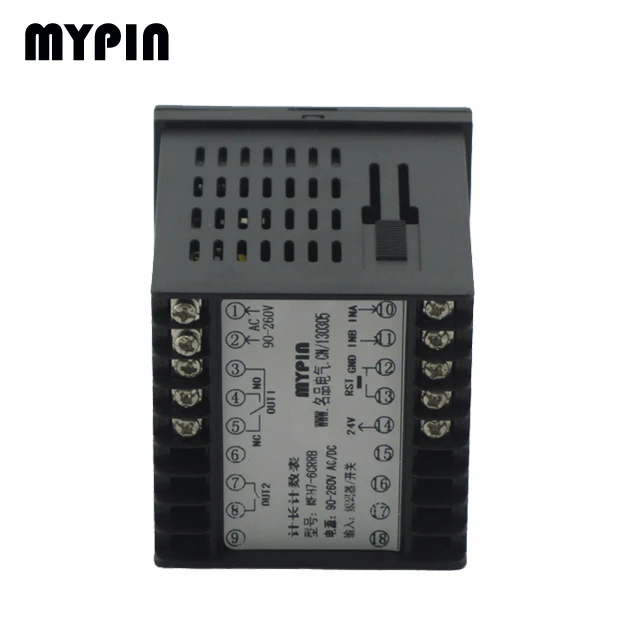

Wiring(example from FH8-6CRNB)





1.The complement packing contains 1 meter, 1 wheeled sensor,1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.









• We provide 18 months warranty for all Mypin products.
• OEM / ODM service available to meet up to client's requirements
