big block ice making plant for Ice carving
- Category: >>>
- Supplier: Dalian Bingyuan Refrigeration Co. Ltd.
Share on (1998878544):
Product Overview
Description
Product Description
Key Specifications/Special Features:

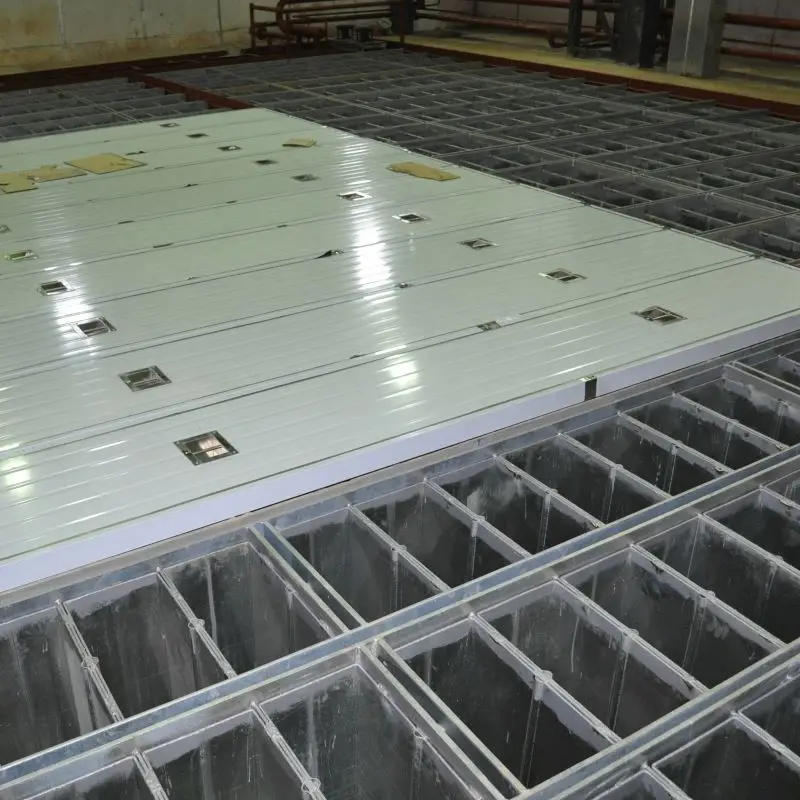

Ice making tank:
A rectangular water tank, welded of steel plates, evaporator coils are mounted as both ends
The inner walls of the tank are welded by pieces of angle steel as frame for placing the frame carrying the ice cans, the tank is filled with bringer of certain concentration
The tank should be wrapped by insulator and moisture barrier around its four sides and under its bottom, to prevents heat from entering the tank
If is covered by a wooden cover (made by the users) ice making tank will be supplied in semi-finished product

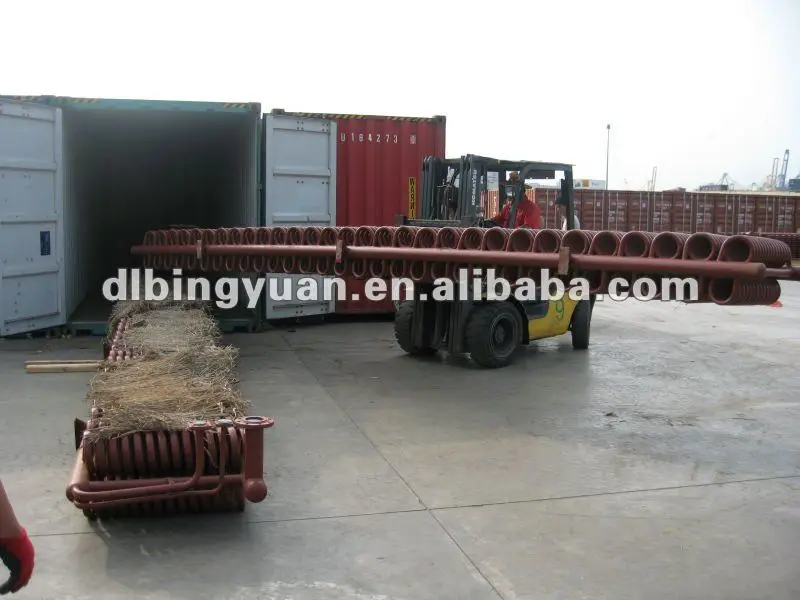

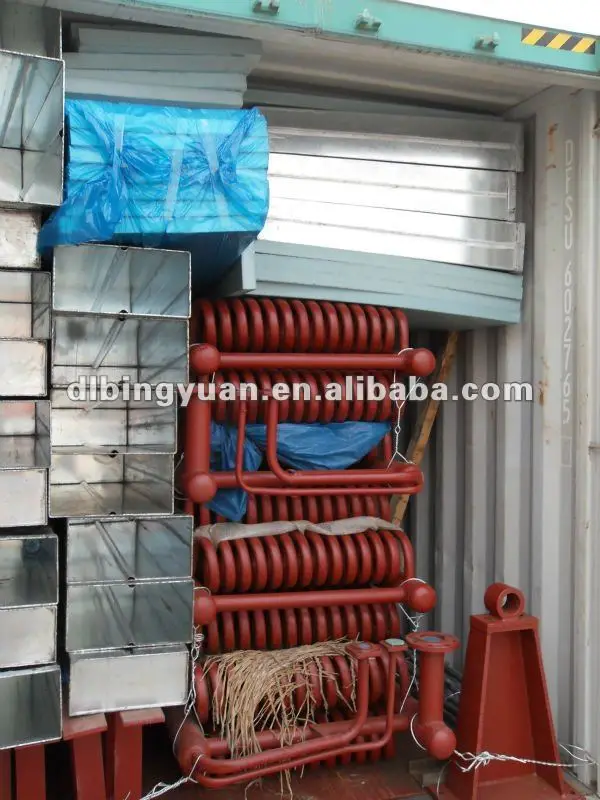

Evaporator coils:
Welded of two main pipes and two rows of spiral pipes and are set within the ice making tank
Liquid ammonia enters the evaporator coils through the throttle valve and absorbs heat from brine, thus resulting in vaporizing liquid ammonia and temperature falling of brine
Vertical agitator:
It is mounted on both sides within the ice making brine in the tank to make brine in the tank to make brine flow rapidly through the space between evaporator coils and ice cans, so as to increase efficiency of heat transfer

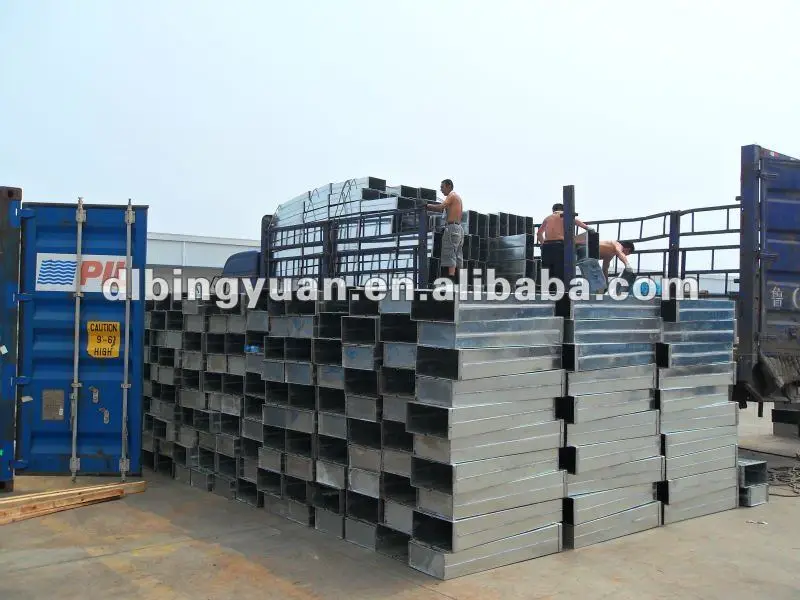

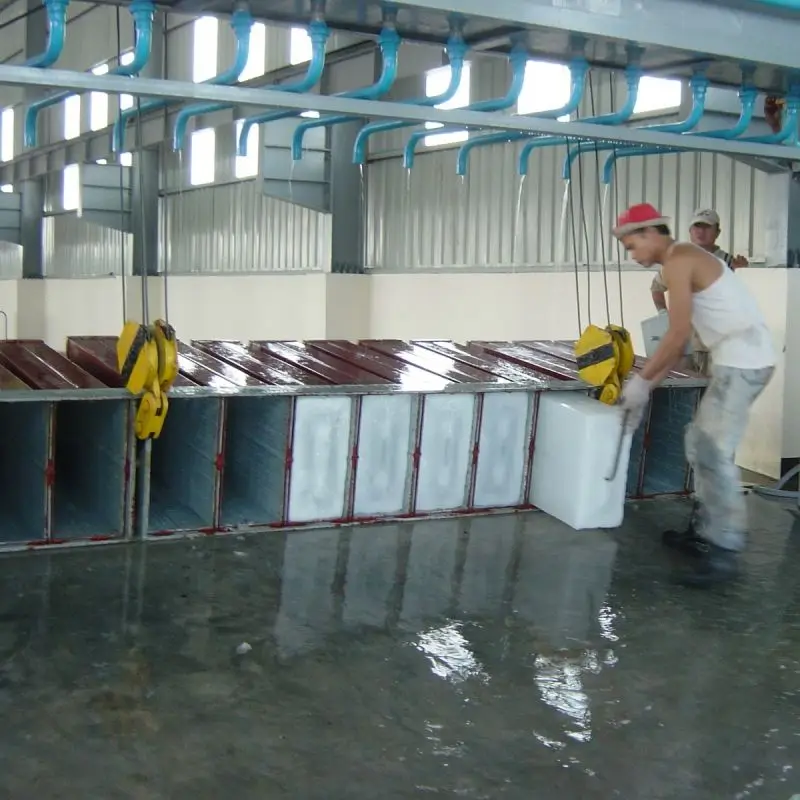

Ice cans:
Made of galvanized steel plate, and is some what taper shaped in order to facilitate the discharge of ice blocks
Top openings of the ice cans are riveted with flat steel in order to get reinforced
Thawing tank:
The tank is an open-type water container filled with water at the temperature of 35-40 degrees Celsius
It is used for melting surfaces of the ice blocks in contact with ice cans, in order to facilitate the discharge of ice blocks from the ice cans

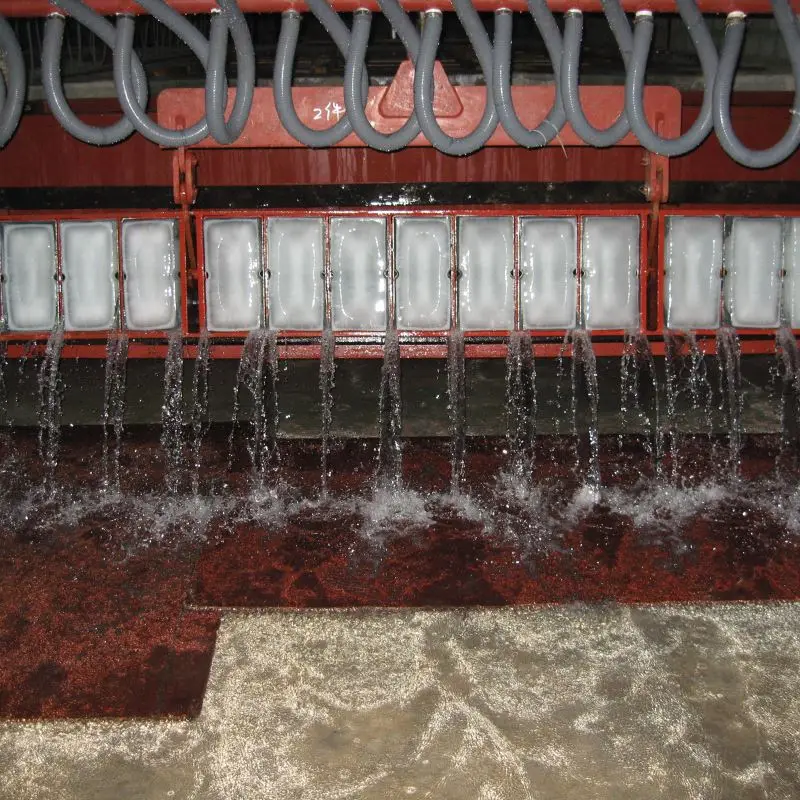

Ice-dumper: frame of L-type supported by its both ends on a bracket, it is used to slant the ice cans for discharging ice blocks

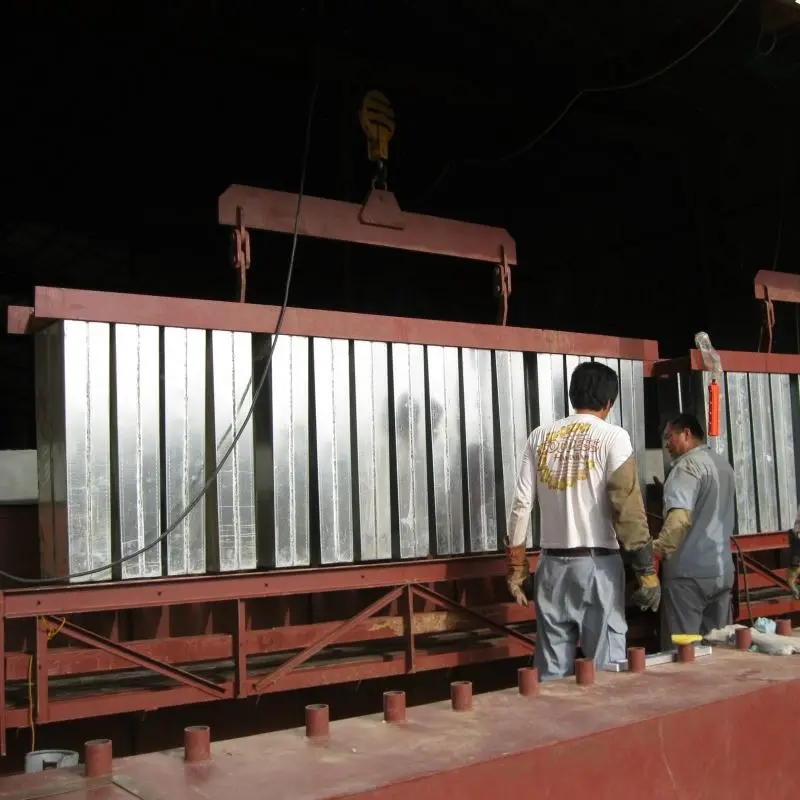

Ice can frame: holding a row of ice cans is put on the ice making tank, it can be lifted up and put into the tank by a double-hook bridge cran
Bingyuan
Block Ice Machine is plug-ready and specially designed for tropical conditions and coastal climate according to ISO/GFRP
1. Special design for the Africa, Middle East and Oceania market, performance well in the hot environment;
2. Adopt stainless steel for the salt water tank and ice moulds, no corrosion and low maintenance;
3. Reasonable and separated design for the structure, save space, easy to install;
4. All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation;
5. Ice block size: 20kg/piece, 25kg/piece, 30kg/piece, 50kg/piece
If you want us send you the quotation, please provide us some basic information, then we can quote you.
1. Area of the lot or sketch of the plant with dimensions
2. Maximum ambient temperature (Dry bulb and wet bulb temperature) and relative humidity
3. Information of the cooling water available (Kind, maximum temperature and quantity)
4. Electric current and frequent available
5. Desired capacity (How many tons per day)
6. Size and weight of an ice block
7. Capacity of ice storage room if need
