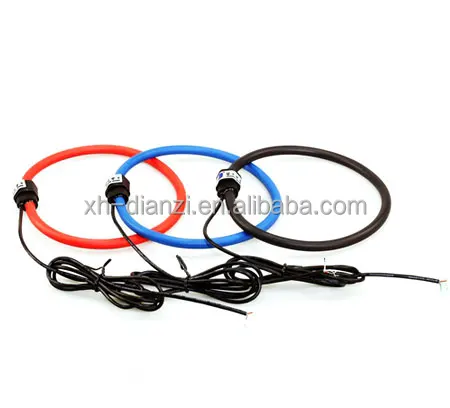

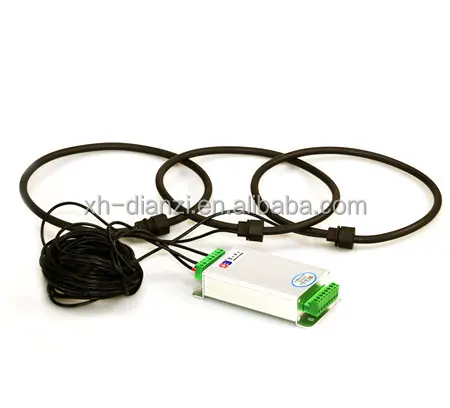

flexible rogowski coil transducer 0.33V output/3 phase flexible rogowski coil 1000A/4 20MA DC

Product Overview

Description

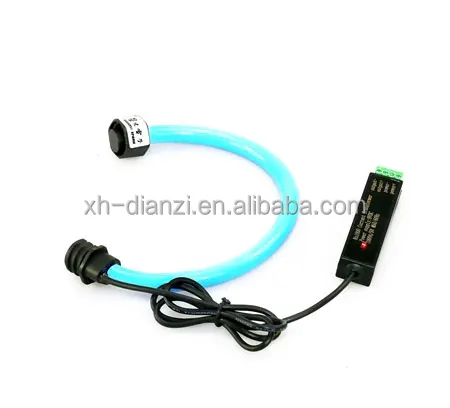

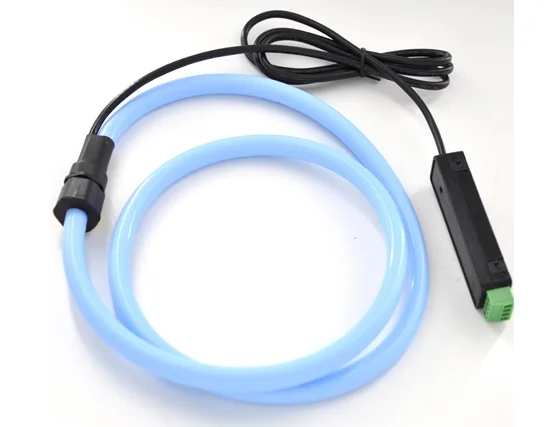

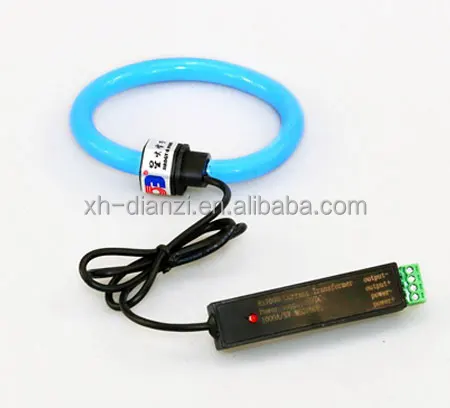

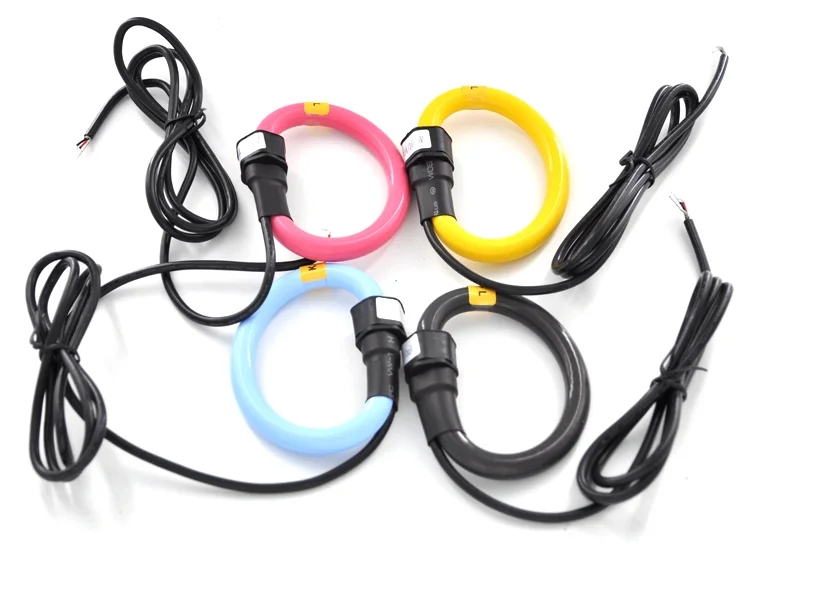

Split Rogowski Coil current sensors



• Capable of accommodating a range of primary conductor sizes.


• Characterized by high sensitivity, accuracy, linearity, minimum phase shift.


• Suitable for harsh operating environments (temperature, humidity, EMI).

• Current Range: 1000A AC


• 4-20mA DC


• Accuracy: < 1%


• Phase Shift: < 1 degrees at 50/60Hz (< 0.5 degrees typical) /li>


• Linearity: ±0.2% from 10% to 100% of rated primary current


• Primary Conductor Position Sensitivity: ± 2% maximum


• Influence of External Field: ± 1.5% maximum


• Coil Working voltage: 1000VRMS or 1000VDC


• Coil Dielectric Surge Withstand: 5kVRMS for 1 minute


• Operating temperature: -20ºC to +60ºC


• Leads: Shielded cable, or as per customer need
