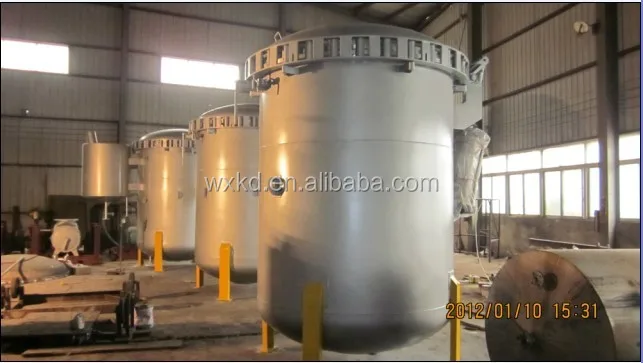

high temperature high pressure cone yarn dyeing machine

Product Overview

Description

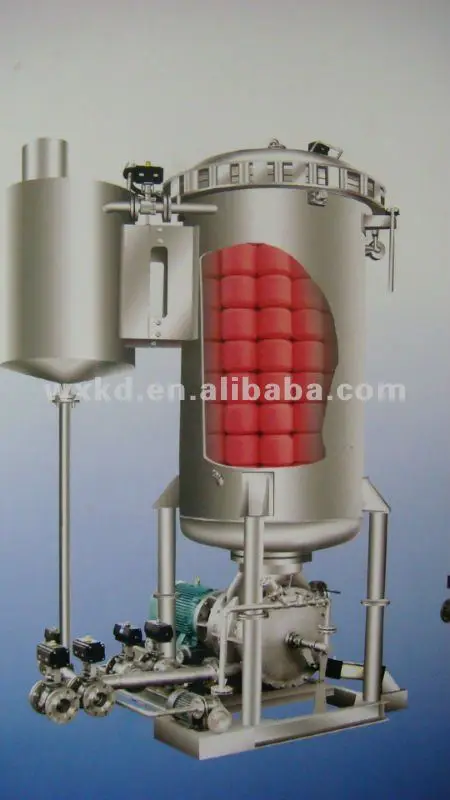

      DF241 high temperature high pressure cone yarn dyeing machine





The unit is for boiling ,  bleach, dyeing ,washing of cotton ,wool ,synthesize  fiber , and cone yarn , hank  yarn or zipper tape.











Specification





	(Model)	DF241-5~500
1	(Max  Operating  Volume)	5kg~500kg
2	(Max  Operating  Temperature)	140°C
3	(Max  Operating  Pressure)	0.39Mpa
4	(Dying  Match  Proportion)	1:12~1:15
5	(Motor  Power)	3kw~55kw

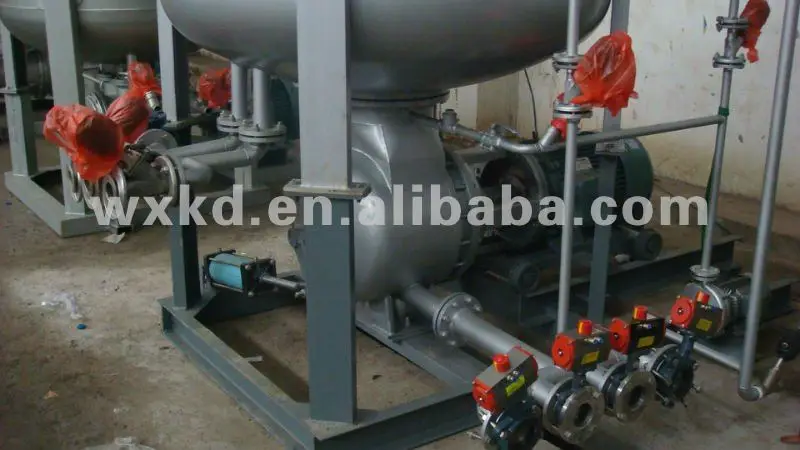

6	(Dyeing  Liquid  Pump)	Centrifugal and Mix flow pump
7	(Heating mode)	Indirect steam heating and heat preservation
8	(Material)	Stainless steel of  1Cr18Ni9ti or 316L
9	(Control mode)	manual autoloading and automatism

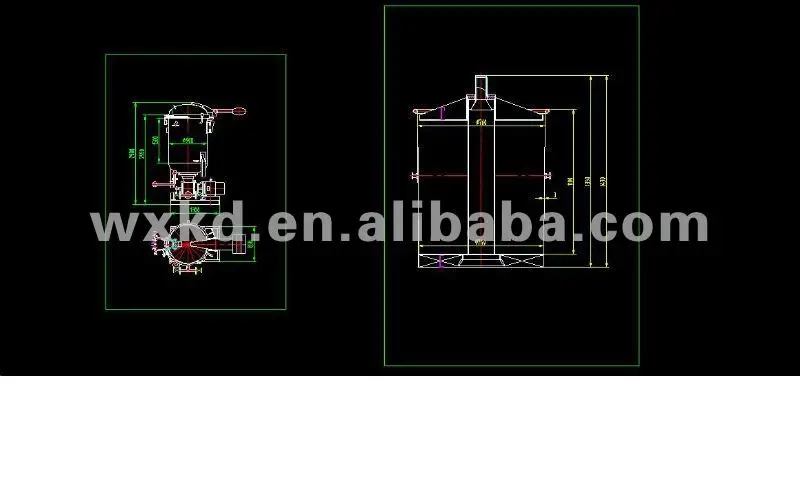

Structure Specification:



1. Diameter of main Frame: Ø2000mm

2.  Material of main frame: stainless steel 321

3.  Width of top end socket: § 8mm

    Width of bottom end socket: § 8mm

4.  Width of main frame (mm): § 8mm

5.  Sealing method of main frame: self-sealing

6.   Uncovering method: cylinder uncovering

7. Heater: stainless steel coil

8. Type: built-in

9.  Steam pressure: 0.6Mpa
