Jewelry making furnace dental lab burnout furnace dental dewaxing furnace
- Category: >>>
- Supplier: Zhengzhou Kejia Furnace Co. Ltd.
Share on (1999354091):
Product Overview
Description

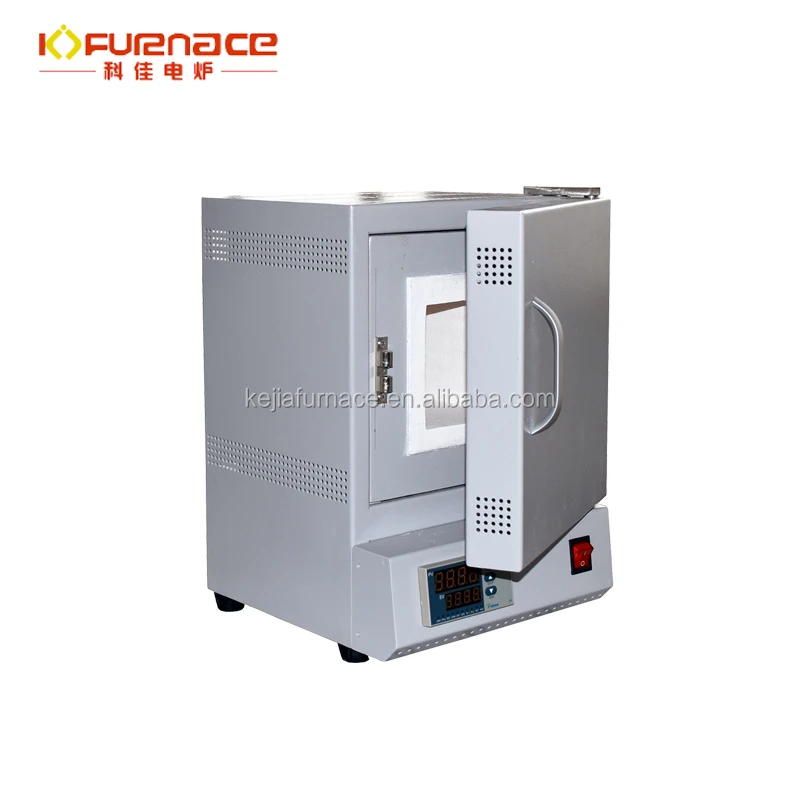

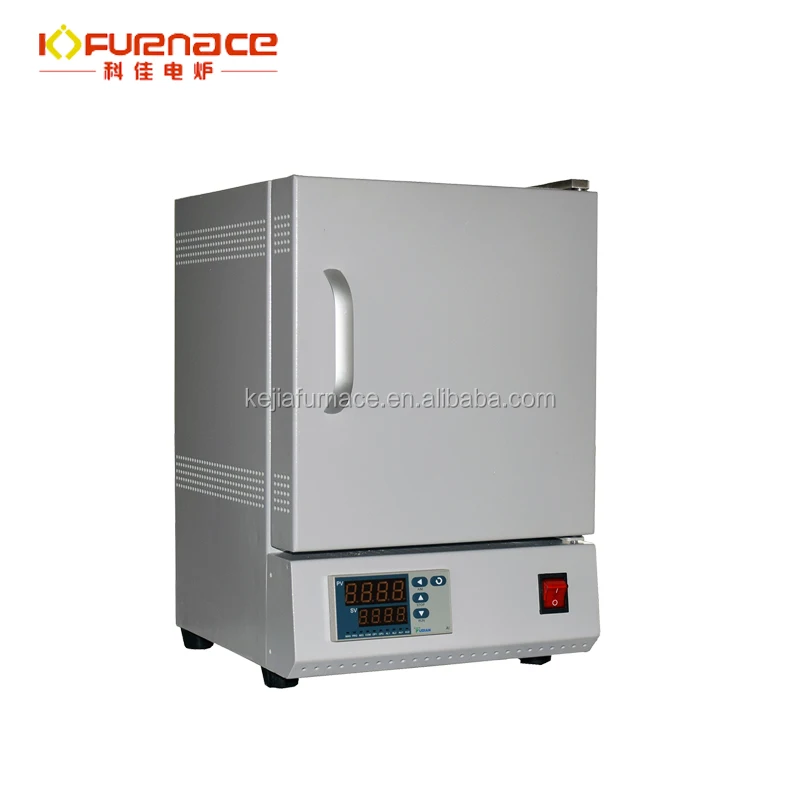

Model: KJ-1200X Muffle furnace
Size: 200*200*200mm (8"x8"x8"), (WxHxD)
Features of jewelry making furnace
1. Operation Temperature: 1100°C ( 1200°C for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Three sides resistance wire coil for fast and uniform heating.
4. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
5. 0.5" diameter observation window made of quartz glsss, allows users to see inside chamber during heating operation.
6. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
7. Power control with 30 segments programmable.
8. Vent port (gas outlet) installed on the top for gas flow.
Technical parameters of jewelry making furnace:
Chamber Size | 200x200x200mm (WxHxD) |
Working Temperature | 1100°C |
Maximum Temperature | 1200°C |
Heating Rate | 0~15°C/min (suggestion: ≤10°C) |
Temperature Accuracy | +/-1°C |
Temperature Controller | 30 steps programmable and auto control |
Heating Element | Resistance Wire |
Voltage | AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
Max. Power | 4 KW |
Outside Size | 550 x 540 x 820 mm |
Net Weight | 100 Kg |
Note: there are different chamber sizes for your choice.
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 15 days after receiving the payment
Warranty: 1 year limited warranty on all electronic parts.
Company Information
Zhengzhou Kejia Furnace Co., Ltd. is one hightech enterprises specialized in
development, production and sales of heating treatment product. Our products
cover muffle furnace, tube furnace, vacuum furnace, atmosphere furnace, CVD
system, dental furnace, bottom lift furnace, , track furnace and others, which is widely
used in metallurgy, vacuum brazing, sintering ceramics, battery materials dry, shiny
metal processing, parts annealing, science and many other different fields.
FAQ
1. What’s your MOQ?
At present we haven’t strict policy for this, so welcome orders with any quantity.
2. Are you a manufacturer or trade company?
We are a manufacturer. You can assure that we are a producer with full experience doing
business in domestic and oversea.
3. We are not professional for operation and installation of your machine?
While it is not a stumbling block, our machine is easy to operate, no need to professional
training, and the instruction manual and video sent to you are enough. What’s more, we
have professional engineers and they can solve all questions.
4. We don’t know how to use your furnace ?
Don’t worry . We will give your professional training for your technician and staff
how to use our furnace in free , and will teach them how to maintenance also.
