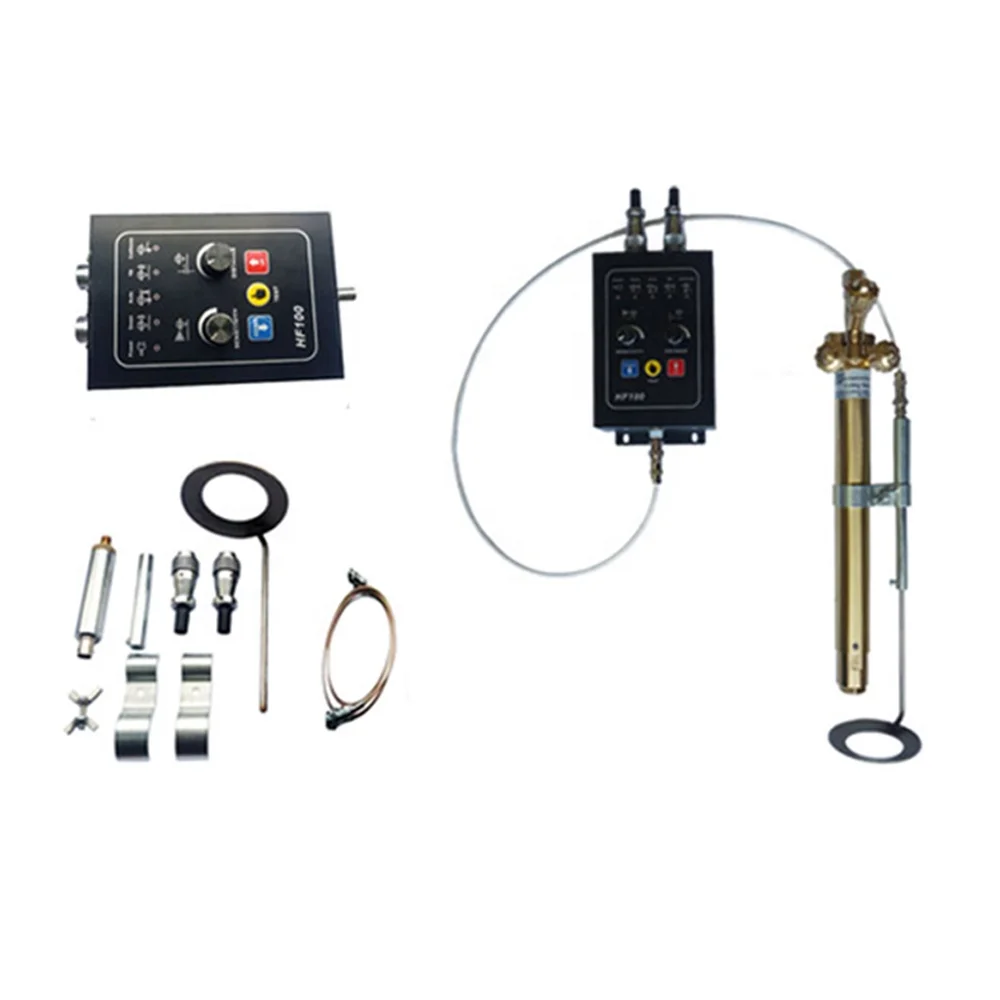

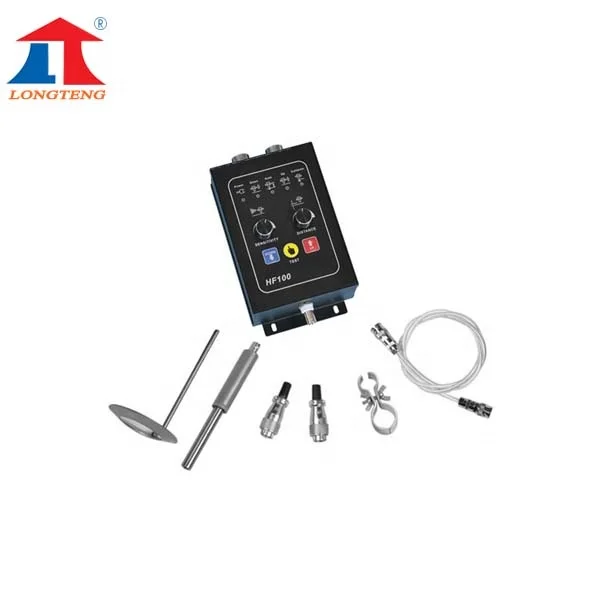

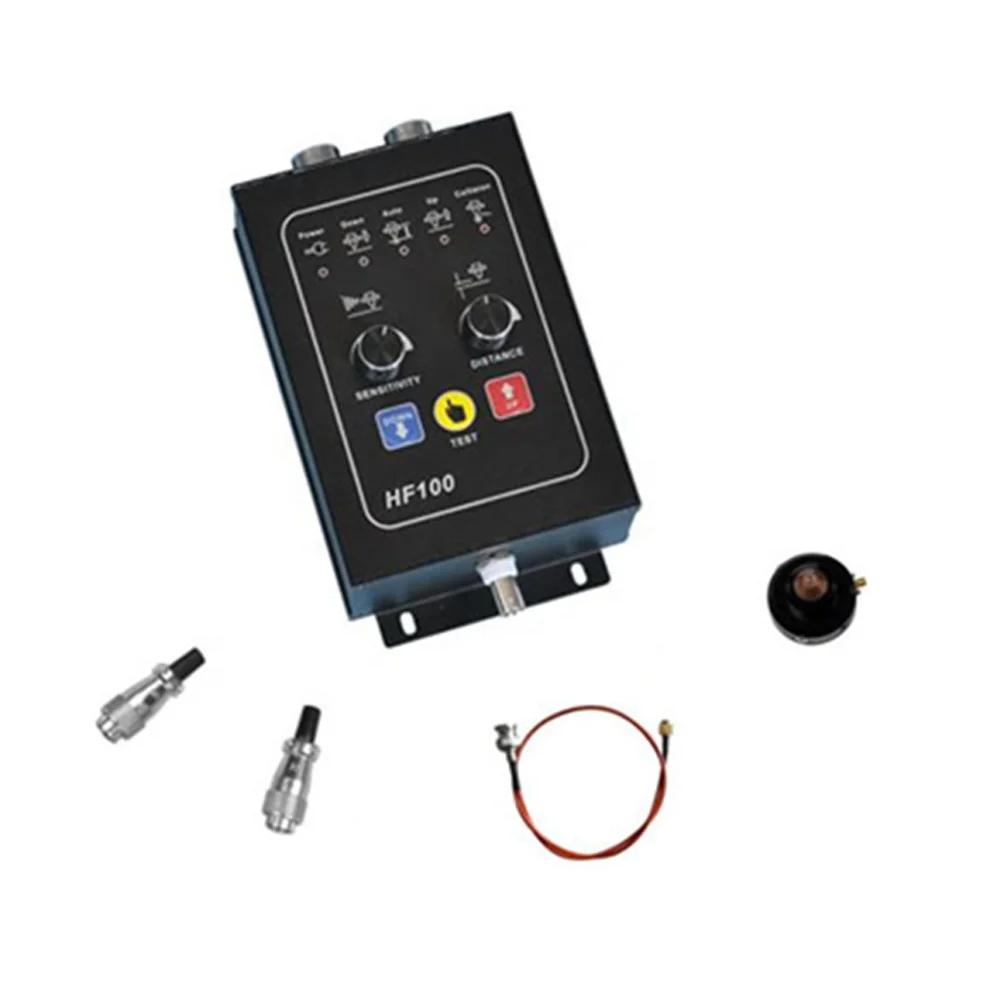

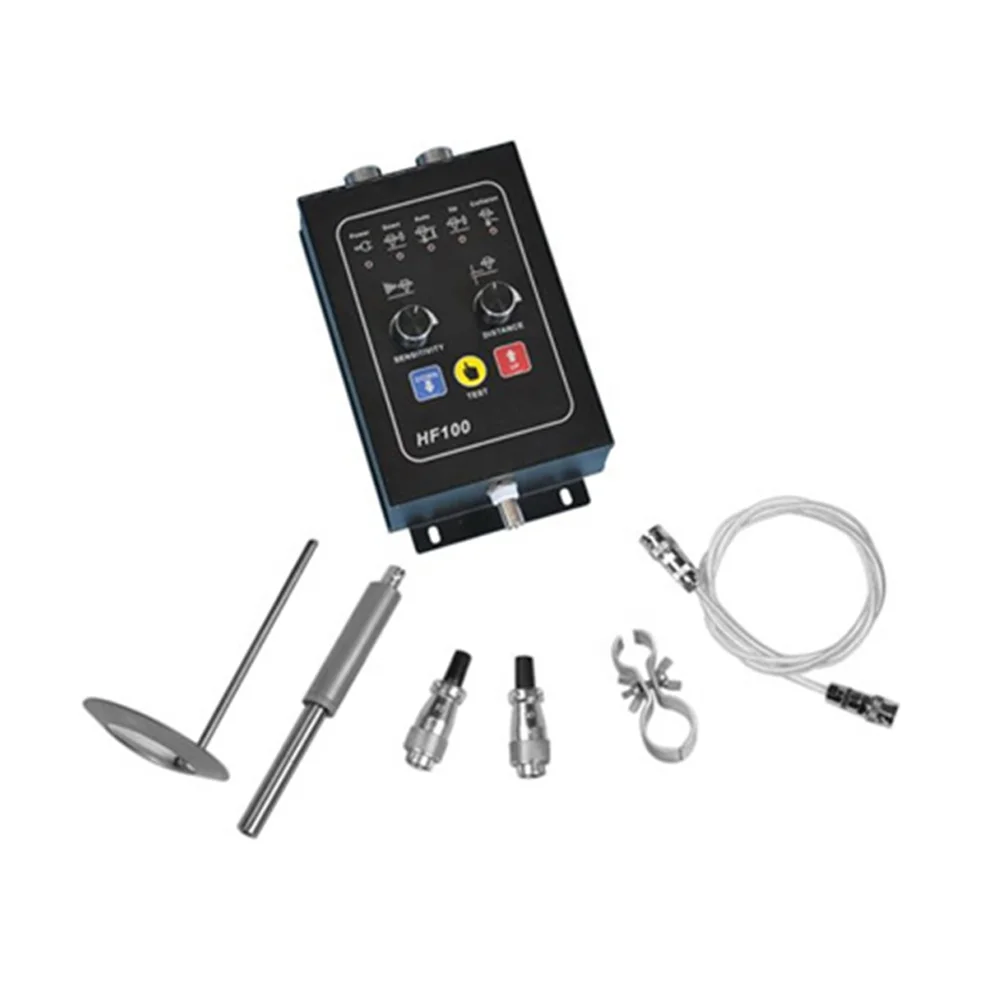

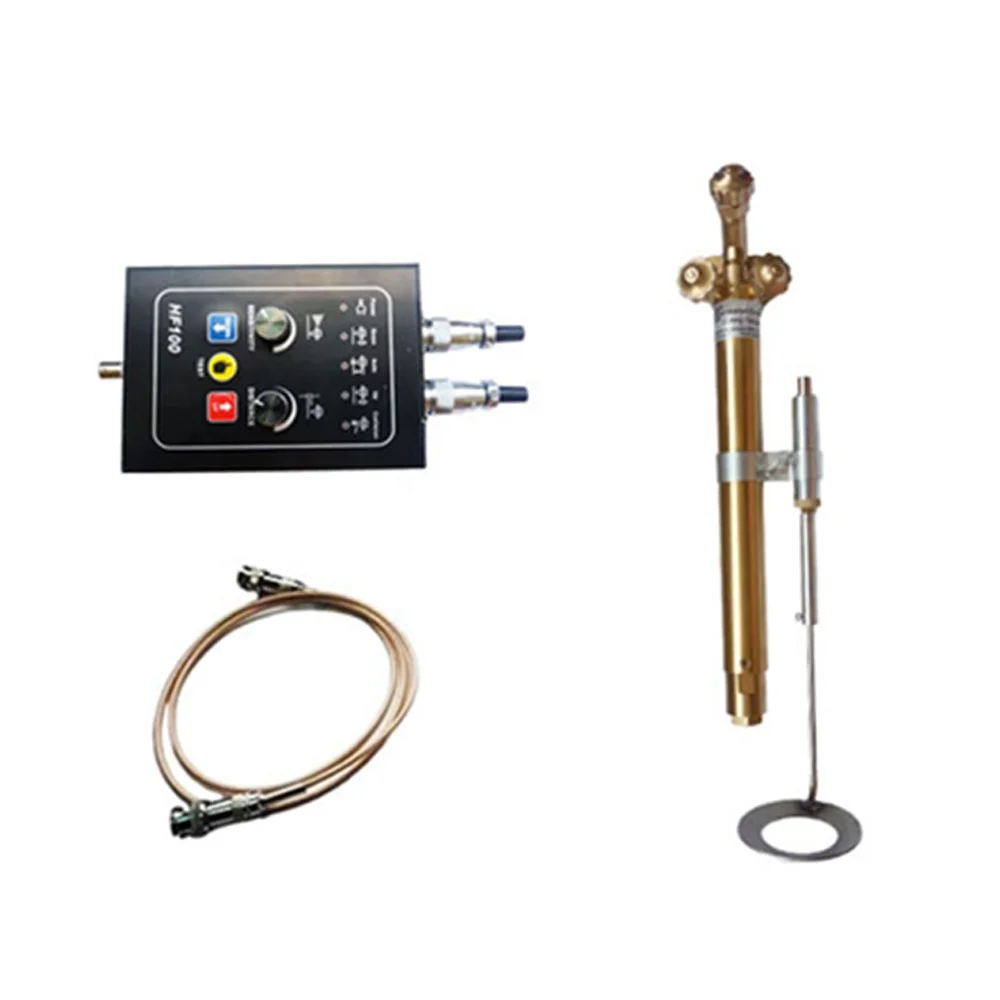

HF100 постоянной ёмкости, универсальный конденсатор высота ТГК контроллер для ЧПУ Пламя кислородной резки факел

Product Overview

Description

1) Quick Detail:
1. Flame cutting torch height controller
2. Apply to Flame CNC cutting machine
3. Power supply: AC24V/DC24V

2)Structural Features:
1. Designed for portable CNC cutting machine
2. High induction sensitivity, run smooth and stable
3. Set upper and lower limit switch inside, reduce the loss of motor, prolong the service life.

3) Applications:
Used for cutting torch auto height control of flame cutting machine, it is suitable for vast majority of imported or domestic models of flame.



4)Working Principles:
Using basic constant current of flame power source characteristics, by testing the change of flame arc voltage to test the change of Fame cutting torch height in the process, realize the control of cutting torch height.



5)Maintenance Skills:
1. Install the torch height controller correctlly.
2. Replace the consumbles in time before completely damaged.
3. Avoid the collision of the torch height controller.
4. Keep the connection threads clean.
5. Check if there are loose parts.



6)Specification:



length X width X high	180*100*65mm
Working voltage	AC24V±10% 50Hz/60Hz
Drive Mode	PWM (Pulse Width Modulation)
Lifting motor	DC 24V motor
Output current	1A~4A, Max 6A
Output power	100W
Working temperature	—10~60

FAQ:

Q1:When the machine can’t work well,What should I do?

A1.(1)Salesman is online for 24-hours, they can check the problems with engineer and then give you solutions as soon as possible.

     (2)Our machine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air in free.

     (3)Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.

Q2:What’s kind of payment way ?
A2.T/T ,Paypal,Western Union or Trade assurance order in alibaba.

Q3:Can you produce the product according to customers' request?
A3.Sure ,we are the professional manufacturer,just give us the drawing or request for customized.
