Letterpress Printing Machine For PE Film BOPP Film Flexo Printing Machine For Paper Roll Paper Cup Printer
- Category: >>>
- Supplier: Hangzhou Xianghuai Machinery Technology Co. Ltd.
Share on (1999542531):
Product Overview
Description
MASS_APP4_1618_BEGIN
MASS_APP4_1618_END

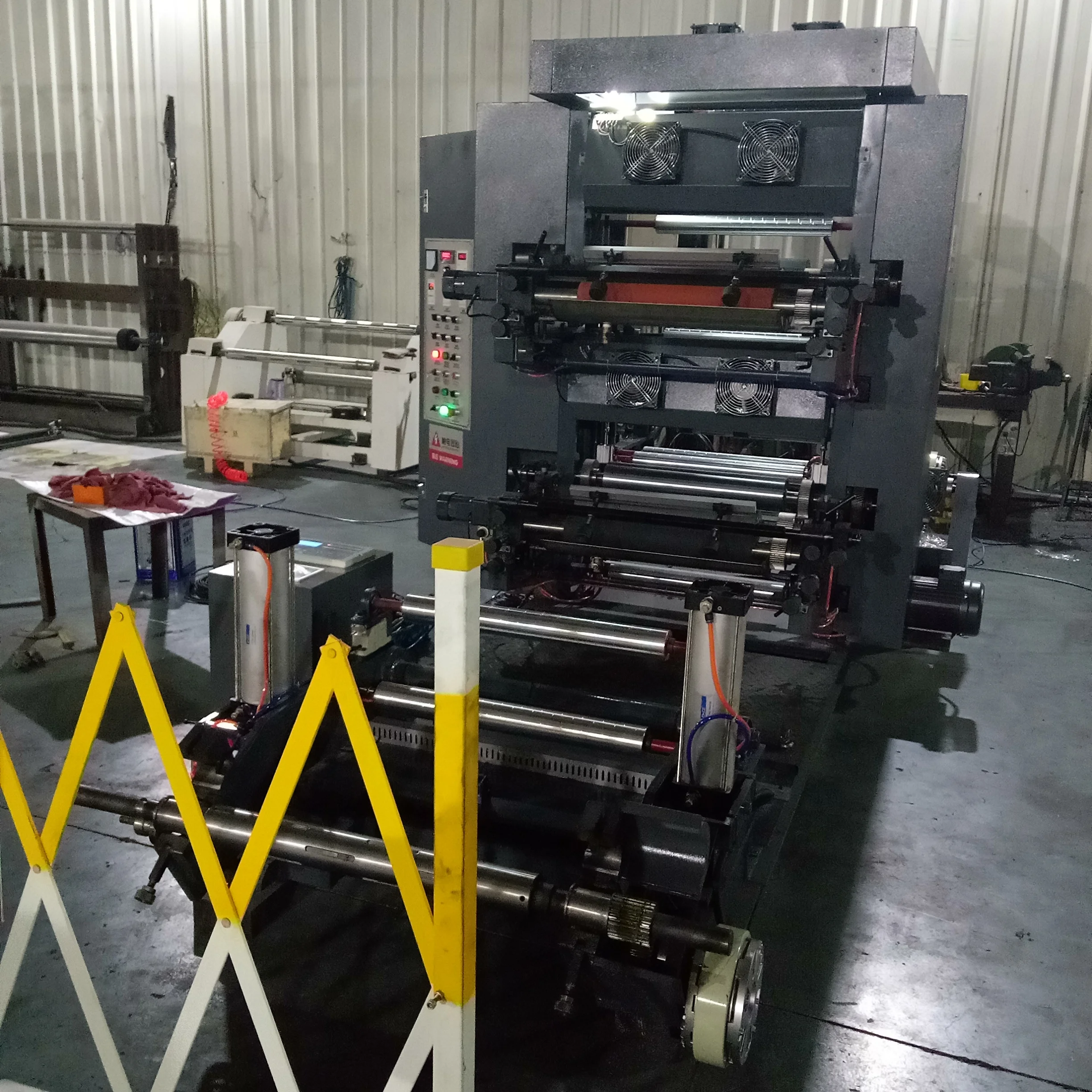

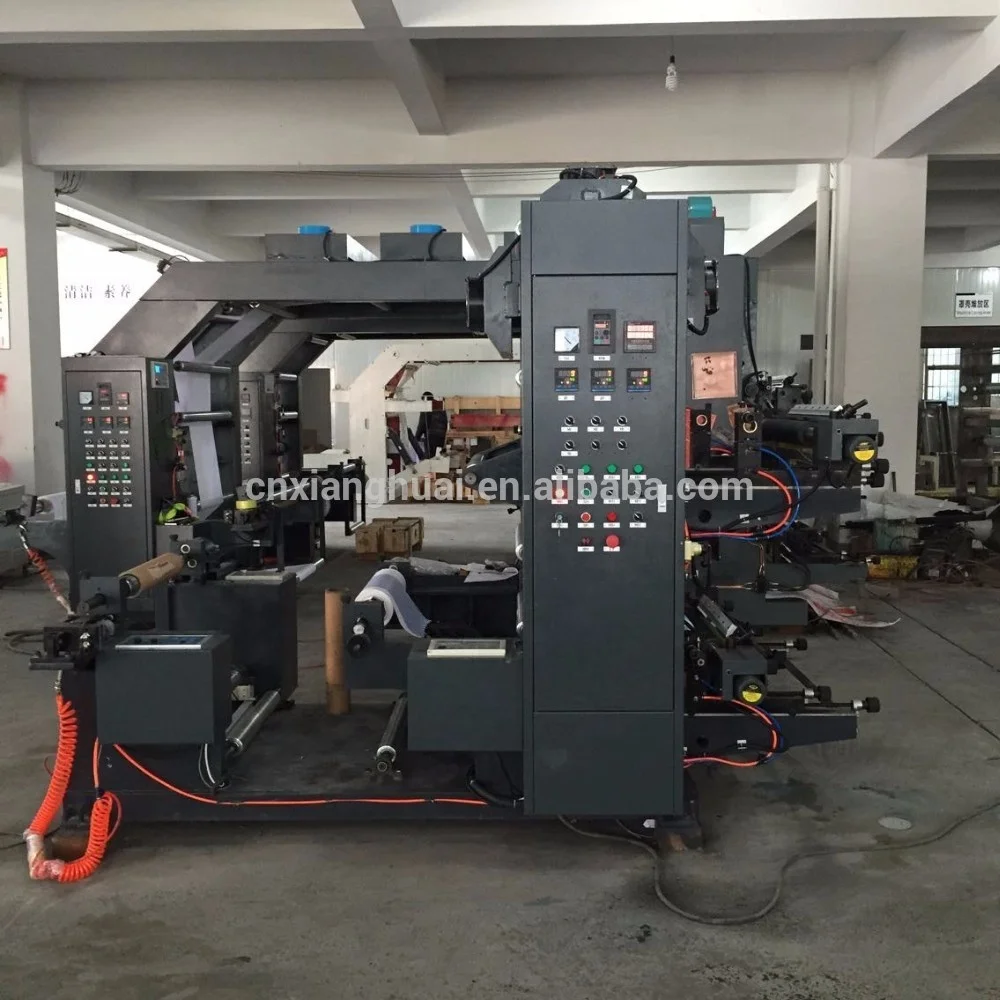

BOPP Film Flexo Printing Machine
Suitable material
Suitable material
Kraft paper: 40 ~ 350g/m2, single-sided coated paper: 30 ~ 350g/m2, copy paper: 15 ~ 350g/m2
firecrackers and paper: 40 ~ 350g/m2, paper money and incense: 25 ~ 350g/m2, silicone paper : 50 ~ 350g/m2
coated paper: 30 ~ 350g/m2, dust-free paper: 25 ~ 350g/m2, release paper: 40 ~ 350g/m2composite paper
30 ~ 350g/m2 woven :15-120 grams, woven :15-500 g, PVC: 10 ~ 120μm, OPP: 10 ~ 100μm, BOPP: 10 ~ 100μm
PE: 15 ~ 150μm, NY: 10 ~ 120μm, PET: 10 ~ 100μm, CPP: 10 ~ 100μm
Parameters
1)Main Parameter | |
Model: | YT-61200mm |
Max Width of Material | 1200mm |
Max.Width of Printing: | 1160mm |
Material: | Paper,Non-woven fabric,Woven Fabric ,Film(PE,PVC,OPP,BOPP,NY:15~120μm,PET:15~100μm,CPP)and so on |
Printing color: | 6colors |
Max.Length of Printing | 200-1100mm |
Machinery mechanical speed | 10-90m/min |
Max.Speed of Material Printing | 10-80m/min(according to the printing materials) |
Thickness of Plate (including the glue) | 2.28mm |
machine weight | 6200Kg |
machine dimension (L×W×H) | 5.0m×2.2m×2.7m |
Feature

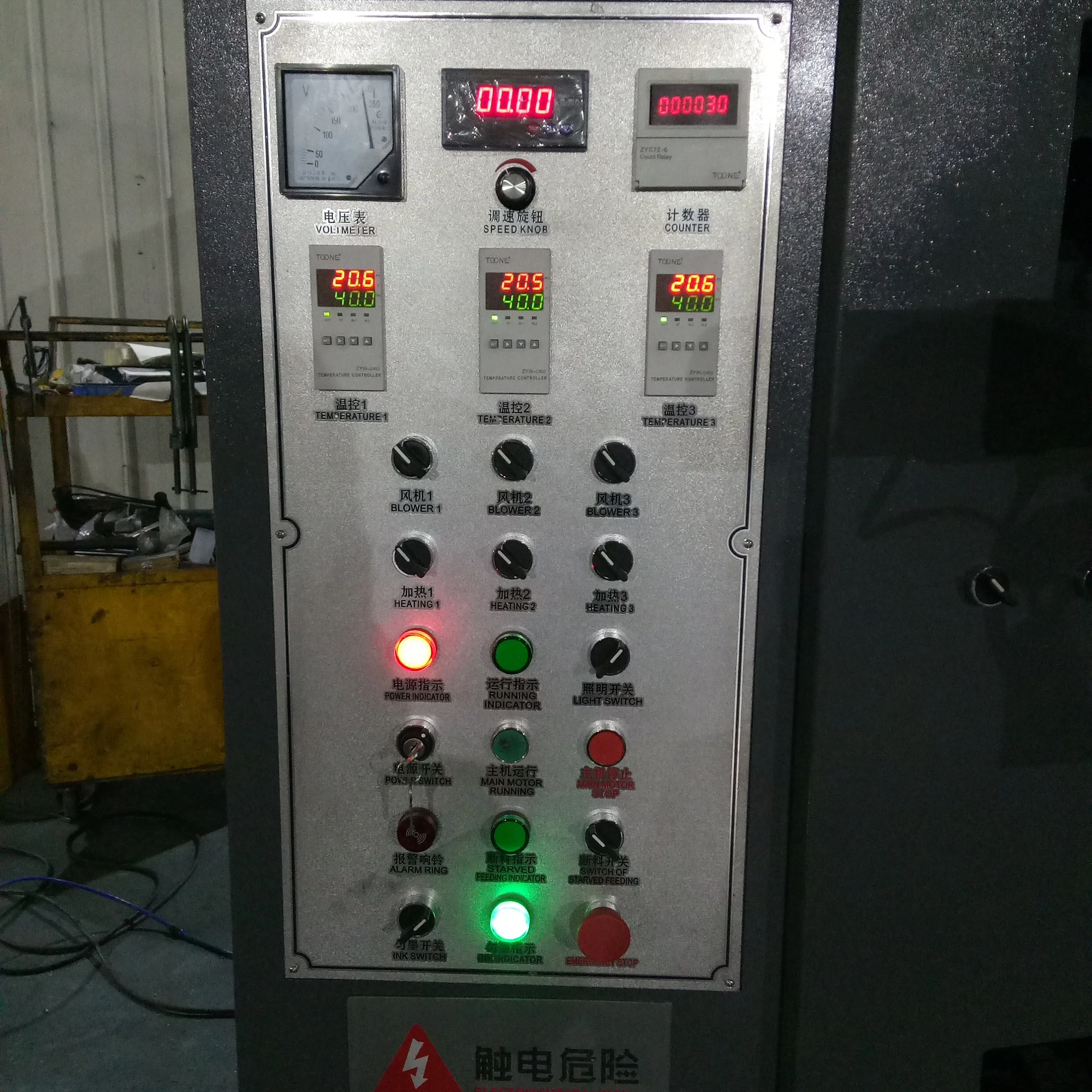

1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6. 360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

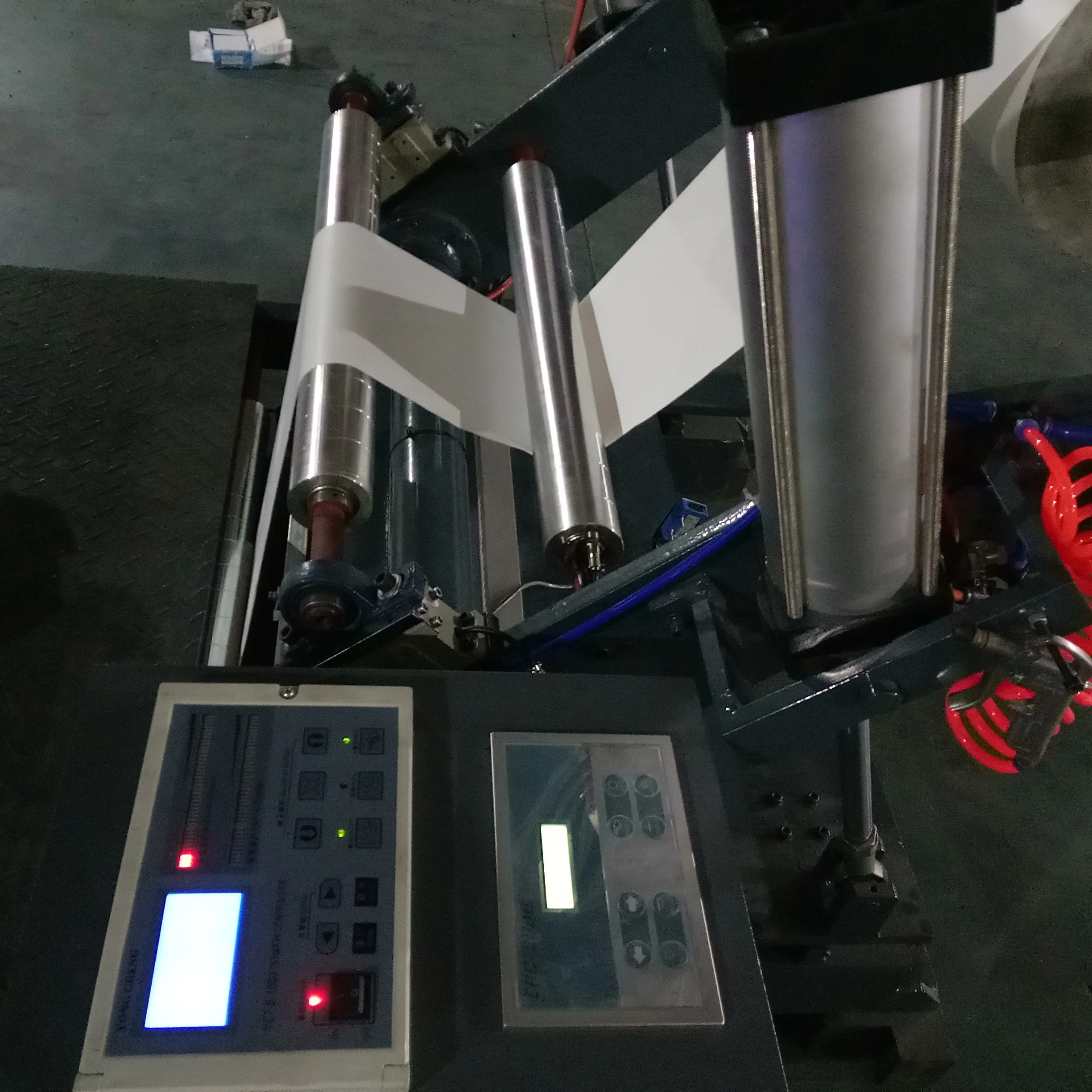

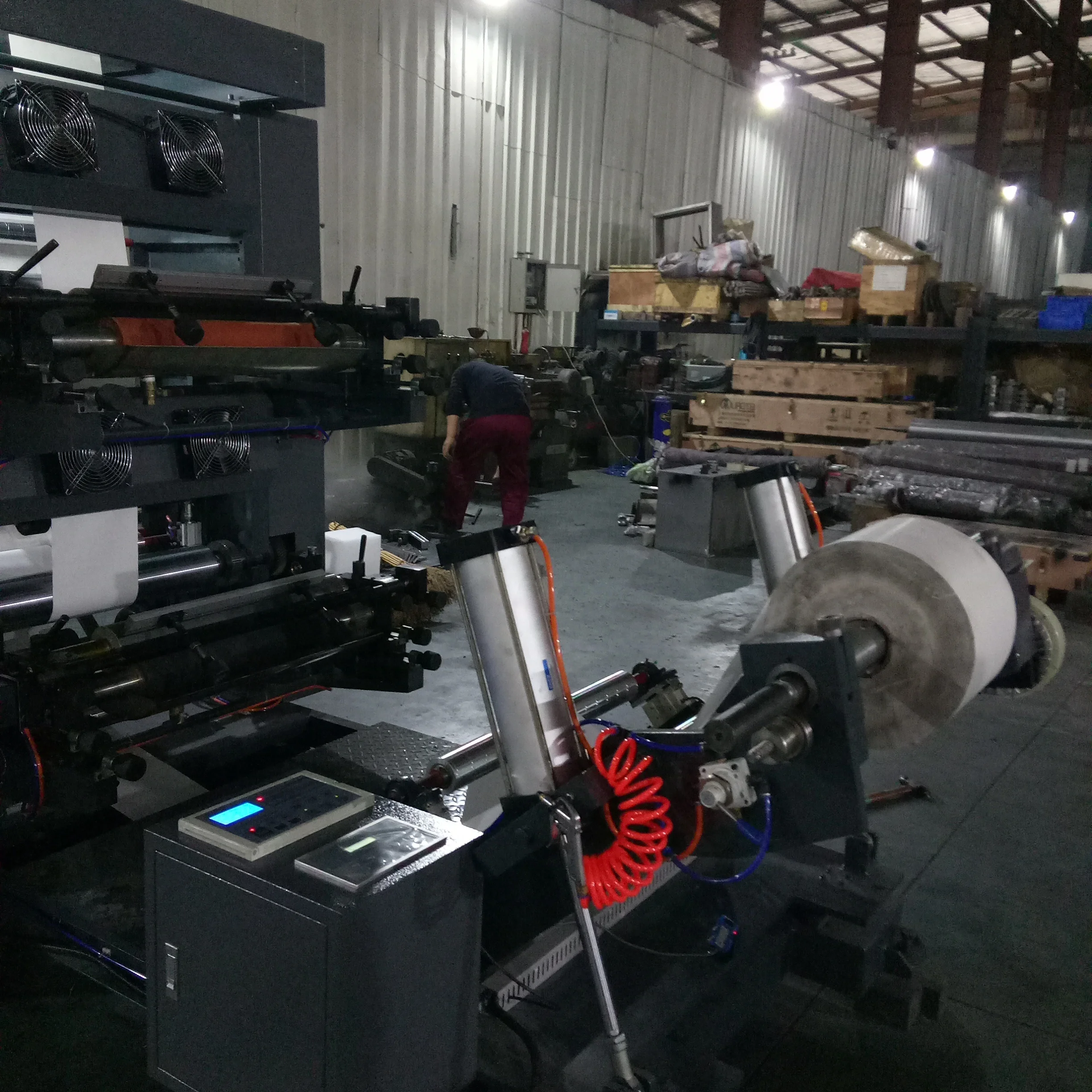

9. Magnetic powder brake for unwinding tension control,magnetic powder clutch for rewinding tension control.
Printing sample
Printing sample
Payment and service
Payment and service
Payment | TT, LC at sight for narrow web flexo printing machine |
Mini order | 1 Set |
Delivery time
| 30 days after receive the deposit (different machine has different produce time). |
Packing and Marking
| By standard export packing. If have Mark, please tell us before shipment. |
Installation
| If need our engineer go to your country to install, please repare the material and bulid machine firstly. Also buyer should take charge the tickets go and back, live, food and salary of our engineer. |
Guarantee
| One year, machine trouble is caused by nature not by human force from delivery time . Easily wear parts also is one year. after sale service for all life. |

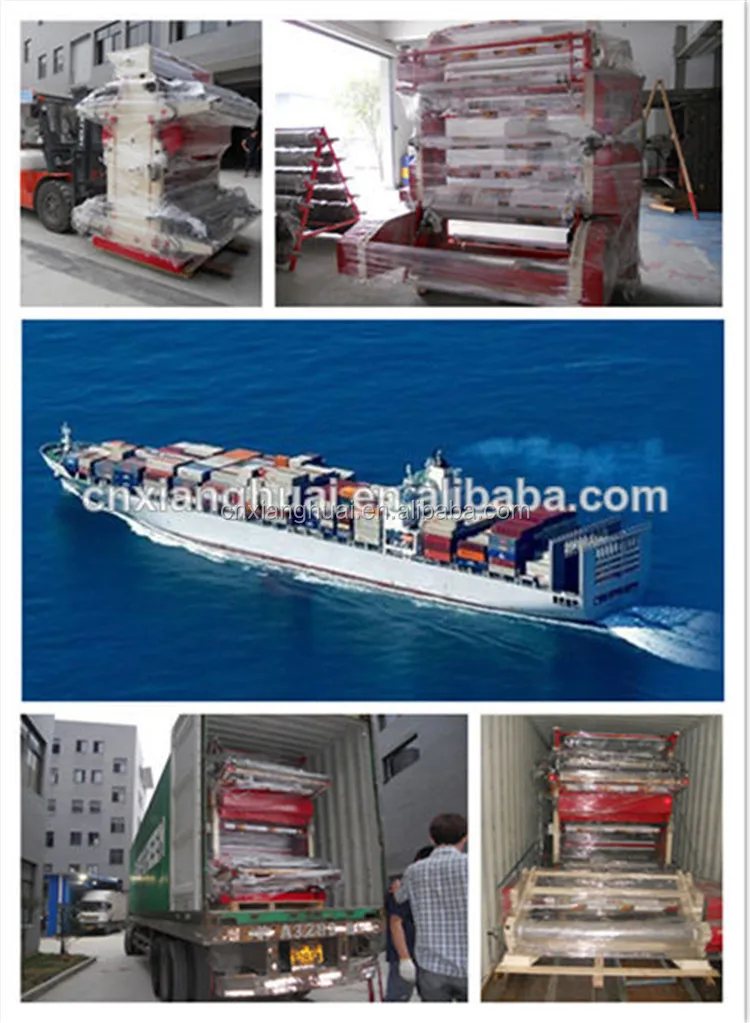

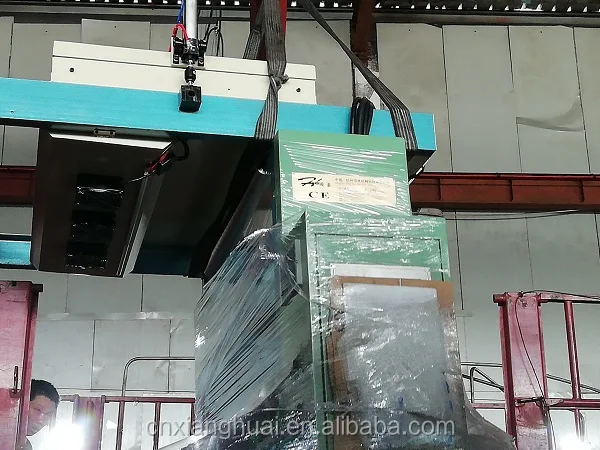

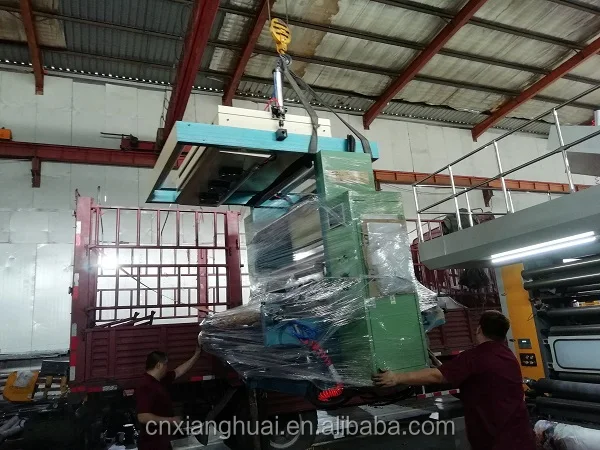

Packaging & shipping
Packaging & shipping

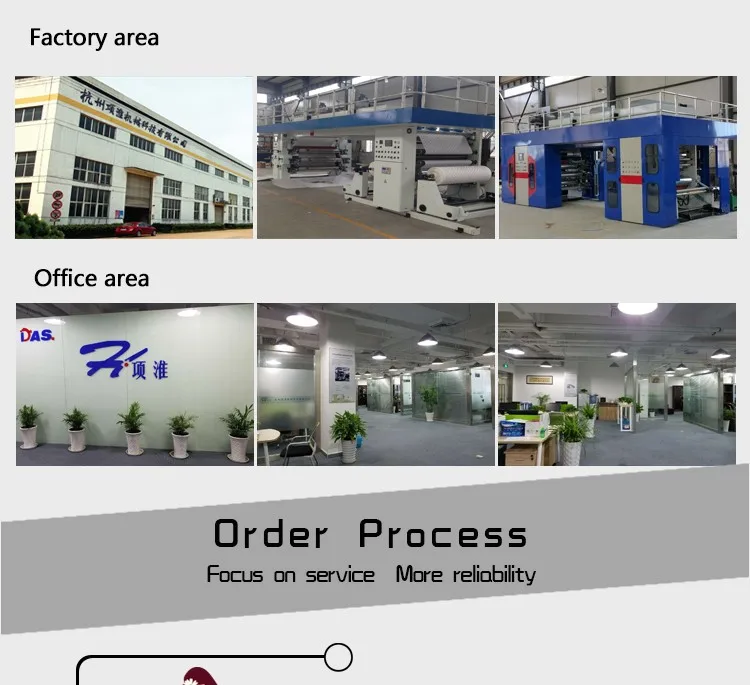

Company show
Company show
Hangzhou XiangHuai Machinery Technology Co., LTD. was founded in 2008, is a science and technology enterprise specialized in the production of flexible packaging equipment and related equipment, R & D, manufacturing flexographic printing machinery and equipment. Our company’s main products are: roll paper printing machine, four-color printing machine, paper printing machine, woven bag printing machine, printing machine, garment printing machine, heat transfer machine, garment printer, and related equipment etc. At present, our products have been widely used in printing, packaging, pharmaceutical and other related industries, the products are sold throughout the country and exported to the United States, Canada, Russia, Argentina, India, Brazil, Egypt, South Africa, Southeast Asia, dozens of countries and regions.
The company since its inception, and constantly improve the process equipment, technical team has continued to grow, with independent research and development, the printing industry related equipment independent design, manufacturing and installation debugging capabilities, access to the domestic and foreign customers praise. Customer service customer service based on the needs of the company established a perfect customer service platform technology consulting service system, welcome to cooperation with us!
