Factory Straight Spur Rack Used for Rail for CNC Gantry Flame Plasma Cutting Machine
- Category: >>>
- Supplier: Wuxi Longteng Welding And Cutting Equipment Co. Ltd.
Share on (1999718747):
Product Overview
Description
1) Description:

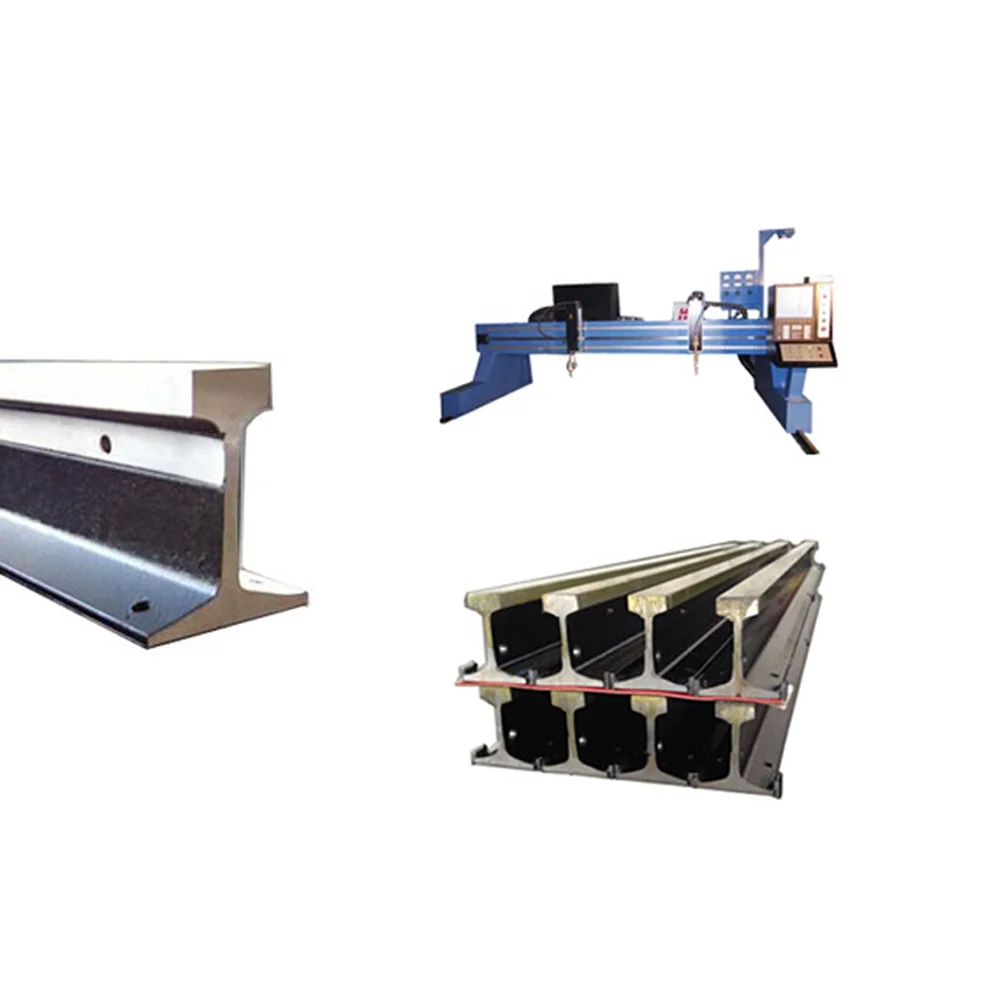

This rail is the part which use for the CNC gantry Cutting machine which include the H Type support rail beam, big and small base plate, left and right adjustment bolt, the first nut, pressing plate bolt, high and low bolt. The mentioned big and small base plate welding on the H beam support rail beam for support the rail; the big and small base plate has the left and right adjustment bolt and first nut to adjust the left and right position of the rail; the mentioned big and small base plate has the fixed bolt which could compress the rail, the rail has the high and low adjustment bolt to adjust the high and low position of that.
Above that all, the connection place insert the tie rod, use bolt, the second nut and the joint ring for fixing, which could achieve the gantry CNC machine for the stable moving and the high precision.

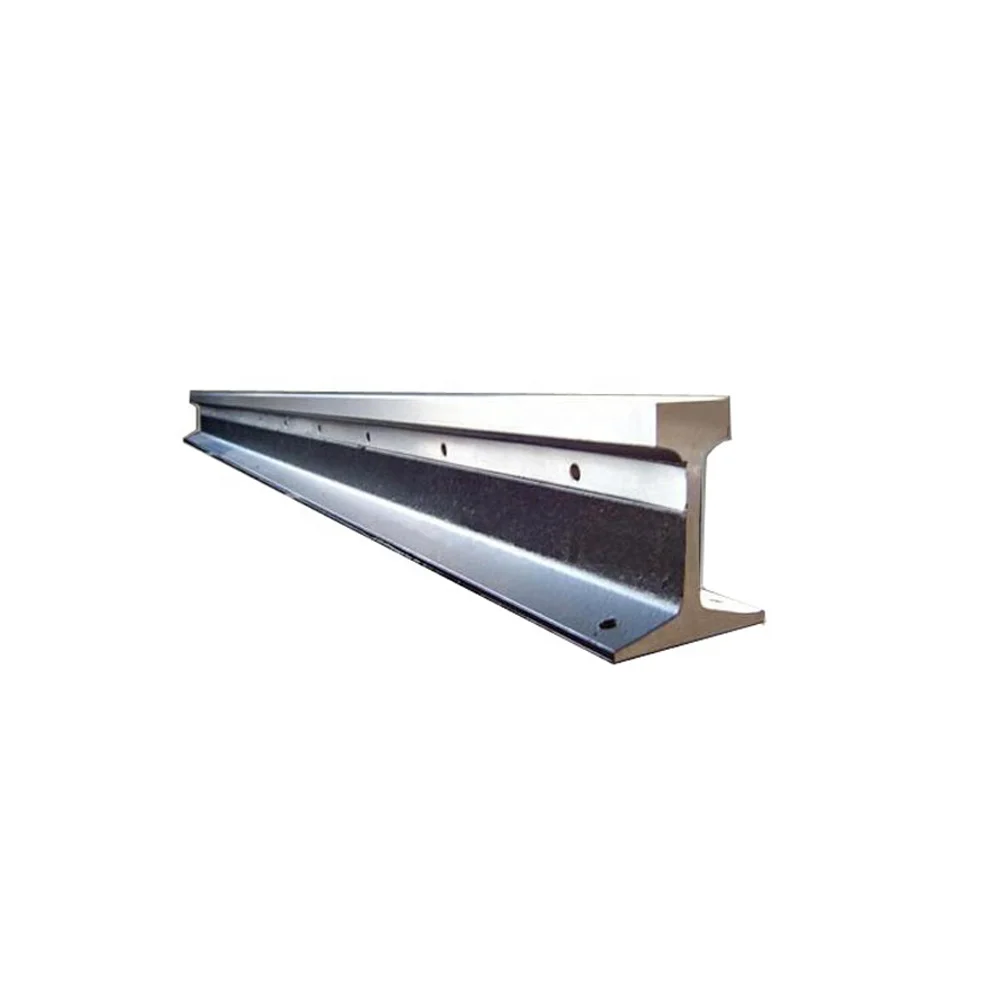

2) Specifications of rail:
Model | Length1 | Length 2 | Top Width | Base Width | Height |
24KG | 2 meter | 3 meter | 45mm | 88mm | 103mm |
38KG | 2 meter | 3 meter | 55mm | 108mm | 120mm |
43KG | 2 meter | 3 meter | 55mm | 108mm | 133mm |
50KG | 2 meter | 3 meter | 55mm | 125mm | 142mm |

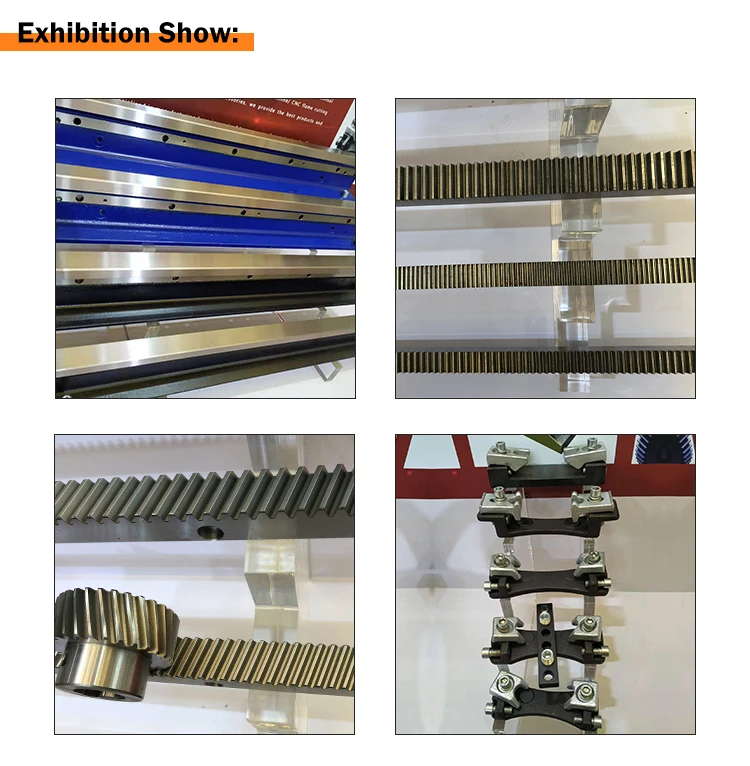

3) Specification of Rack:
1.Three types for rack,also can be customized according to the drawing.
Normal type for straight spur rack and helical rack:
20*20*999mm rack
25*25*999mm rack
20*25*999mm rack
Module is 1.5 or 2
2.Made of 45# cold drawn steel
FAQ:
Q1:When the machine can’t work well,What should I do?
A1.(1)Salesman is online for 24-hours, they can check the problems with engineer and then give you solutions as soon as possible.
(2)Our machine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air in free.
(3)Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
Q2:What’s kind of payment way ?
A2.T/T ,Paypal,Western Union or Trade assurance order in alibaba.
Q3:Can you produce the product according to customers' request?
A3.Sure ,we are the professional manufacturer,just give us the drawing or request for customized .
