High Efficiency Blower/ HEPA filter box/cheap hepa filters

Product Overview

Description

Note: Special Size Available Upon Request Specialty:



* The frame is advanced baking cold rolled sheet with surface static blasting painting treatment which can guarantee the air speed avoiding eddy flow.

* Compact construction assures HEPA filter box advanced sealing performance. There are side air intake way and top air intake way available, the header is square or round.

* If the clean room designed to compact construction for the height strict, ceiling filter module is the best choose.
* Each HEPA filter box is individually tested via PSL particle, Using MPPS (DOP Test) laser particle counting device to measure overall efficiency of the filter, special requirement is available.



Type		Cabinet Installation Size(mm)	Filter Size(mm)	Rated Airflow(m3/h)	Air Inlet Pipe Size(mm)	(mm)Airstream Pipe Connection Size	Cabinet Overall Size(mm)
Side Air Blowing	Vertical Air Bolwing
GH-320	GH-320D	370x370x530	320x320x220	500	200x200	250x250	425x425x570
GH-484	GH-484D	534x534x570	484x484x220	1000	320x200	375x250	584x584x570
GH-610	GH-610D	660x660x550	610x610x150	1000	320x250	370x300	710x710x550
GH-820	GH-820D	870x650x550	820x600x150	1200	320x250	370x300	920x700x550
GH-630	GH-630D	680x680x620	630x630x220	1500	320x250	370x300	730x730x620
GH-726	GH-726D	776x534x540	726x484x220	1500	400x200	450x250	830x590x580
GH-915	GH-915D	965x660x520	915x610x150	1500	500x250	550x300	1020x715x560
GH-945	GH-945D	995x680x570	945x630x220	2200	500x250	550x300	1050x735x610
GH-968	GH-968D	1018x534x530	968x484x220	2000	500x200	550x250	1070x590x570
GH-1220	GH-1220D	1270x660x510	1220x610x150	2000	500x200	550x250	1320x710x510
GH-1260	GH-1260D	1310x680x670	1260x630x220	3000	650x300	650x300	1360x730x670



 Note: Special Size Available Upon Request



 Application:

* HEPA filter box is designed for electron,semiconductor,optics and bio-industry which are strict with airflow.





                                         Brief Introduction Of Company



 Guangzhou Airy filter media Co., Ltd. is a professional filtering media manufacturer. Our company has completed management system, best technical specialists, advanced equipment; we always won customer’s satisfaction and trust with our high quality, cheap price and sincere service.

We are specialized in all kinds of air filter, the main products are: paint arrestor filter mat, pre-filter, ceiling filter, paint stop filter, paint filter paper, sepa paint, HVAC filter, rigid box filter, exhaust filter, non-woven, high temperature resistance filter, plank filter, pleated filter, auto filter, pocket filter, disposable filter, ULPA filter& HEPA filter, activated carbon filter, face mask, mesh filter, paper filter, V cell filter, FFU, HEPA filter box, fiberglass, air filter paper, HEPA media, ceiling filter module, and products for HVAC ventilation system. All sorts of products are widely used in air purification industrial, such as: Spray Coating Industry, Automotive plant, high-tech electron, pharmaceutical factory, Food sanitation, Furniture Manufacturing, Precision Industry, hospital, research institutions and so on. Till now our products hold biggest markets in many countries and areas, like European, USA, Japan, and Southeast Asia etc.

We always adhere to the principle “quality first, faith root, service foremost”. Let us stay together to build a purer world!

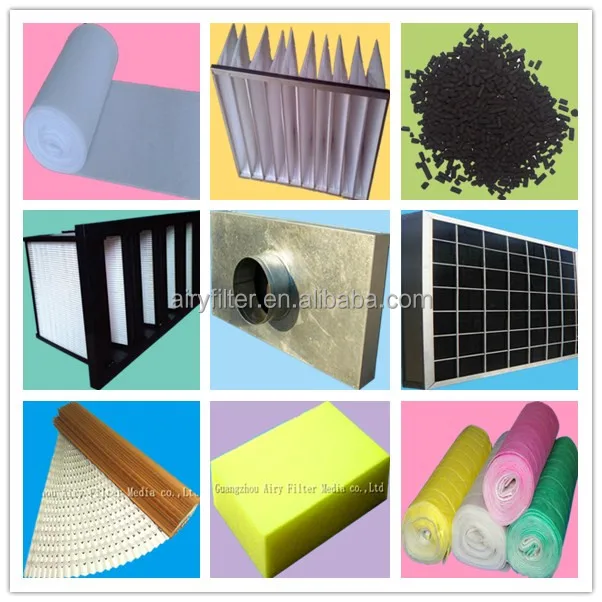

Products photos:

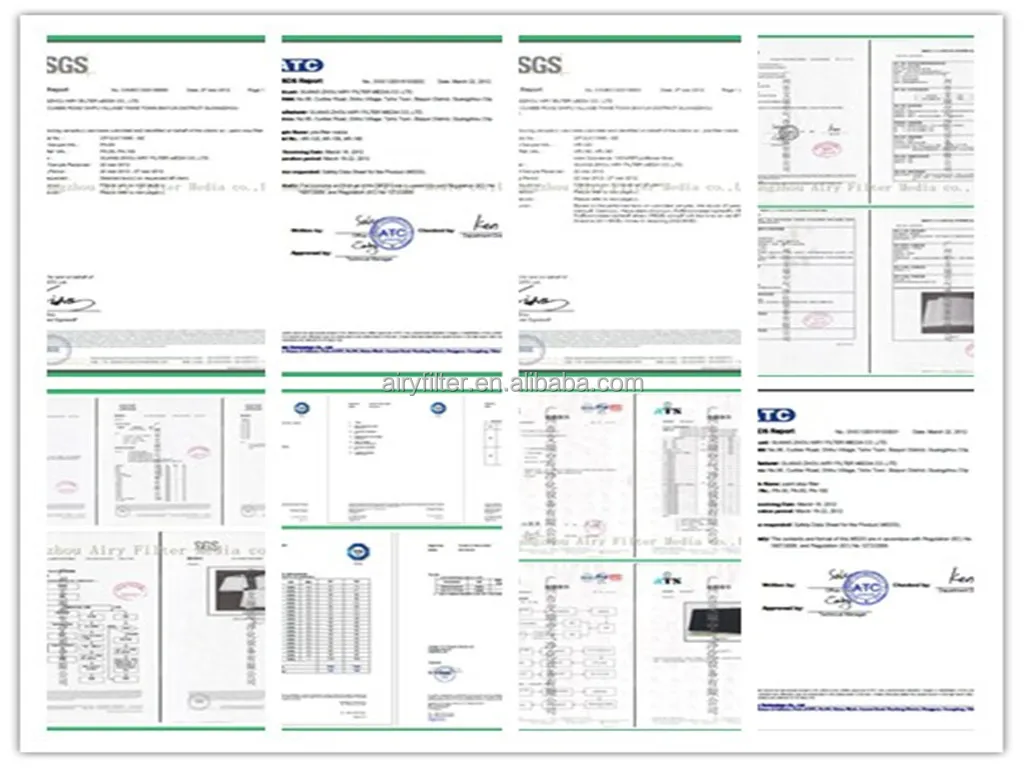

Certificates
