magnetic damper / magnet motor/ motor magnets

Product Overview

Description

magnetic damper / magnet motor/ motor magnets



Magnetic Feature:

1) Material: SrO or BaO and Fe2O3 by ceramic processing technology;

2) Grade:Y10T,Y20,Y25,Y30,Y30BH,Y35,C1,C5,C8,C8B,C9,C10,C11 and so on.

3) Shape: ring,block,disc,bar and so on;

4) Size: according to customers' request;

5) According to customer's request .We can supply different size magnetic hook.

6) Good quality with competitive price and best delivery date.

7) Application: sensors,motors, rotors, wind turbines,wind generators, loudspeakers,magnetic holder, filters automobiles and so on.

8) Certificate:TS16949, SGS test report



We are specialized in producing Magnet over many years,We guarantee the best price based on the same quality and service. Our finance conditiearon and industrial reputation are excellent





Two manufacturing Process







1. Dry process: By dry process, can produce isotropic & anisotropic magnets;the tool can be changed and developed easily.
2. Wet process: By wet process, only anisotropic magnets can be produced;it is complicated to change the tool and the tooling charge is much higher

Magnetization
1.Isotropic ferrite magnets are not oriented and can be magnetized in any direction;
2.Anisotropic ferrite magnets are different, they are all oriented in the manufacturing direction, and should be magnetized in the direction of orientation.

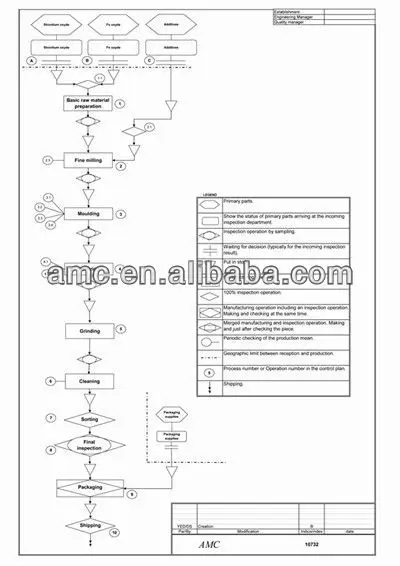

Flow chart for Magnetic Stator Motor :



Magnetic property for Magnetic Stator Motor :

tems	Ferrite Magnet
Material	Ferrite magnet is made of Sro or Bao and Fe2o3 by Ceramic processing technology
Shape available	Disc,cylinder,rectangle,square,ring, etc.
Specification	Grade	Br		Hcb		(BH)max
		T	Gs	KA/m	Oe	Kj/m3	MGOe
	Y25	0.35-0.39	3500-3900	128-192	1600-2400	22.3-25.5	2.8-3.2
	Y30	0.38-0.42	3800-4200	160-216	2000-2700	26.3-29.5	3.3-3.7
	Y35	0.4-0.44	4000-4400	176-224	2200-2800	30.3-33.4	3.8-4.2
	Y25BH	0.36-0.39	3600-3900	176-216	2200-2700	23.9-27.1	3.0-3.4
	Y30BH	0.38-0.4	3800-4000	224-240	2800-3000	27.1-30.3	3.4-3.8
Characteristics	Lost Cost,Higher Coercive Force; It need not to be coated because it is difficult to be eroded and oxidized
Application	Motors,Sperkers,Toys,Crafts,etc.

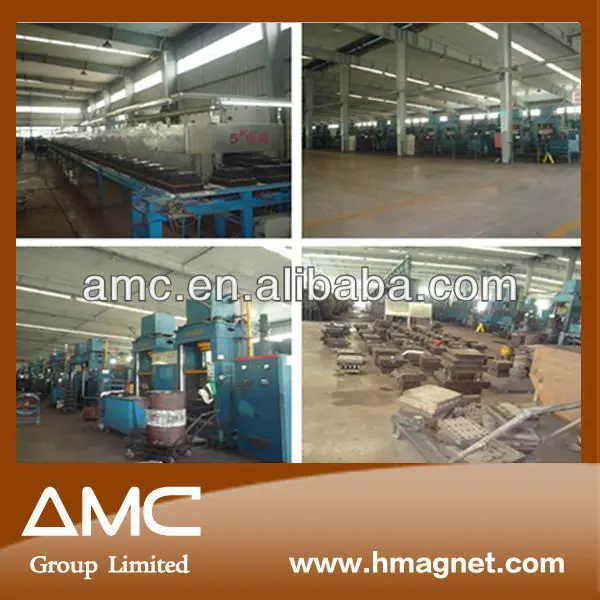

Machine for Magnetic Stator Motor :





Packaging for Magnetic Stator Motor :
