Heavy Duty battery electric powered wheelbarrow
US $80.00-$150.00
Garden Loader power barrow mini dumper
- Category: Wheelbarrows >>>
- Supplier: Nantong Ant Machinery Co. Lid.
Share on (2000922049):
Product Overview
Description
Product Description

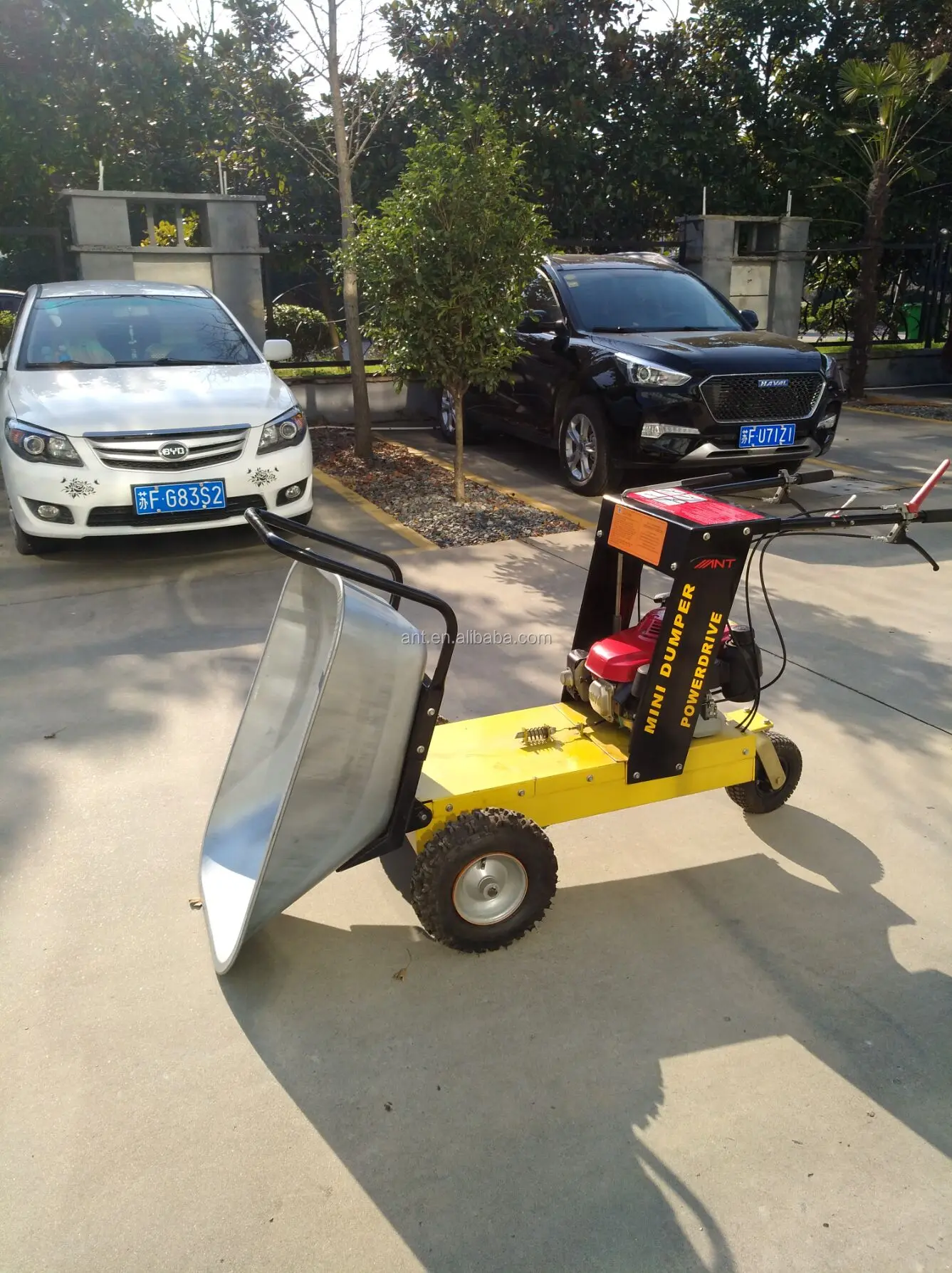

Garden Loader Wheel Barrow
(1)Good stability with low centre of gravity
(2)Hand grips give good control and reduce vibration.
(3)Engine well protected by steel cowling
(4)Spark resistant plastic fuel tank with fuel tap.
(5)Easy access for maintenance.
(6)Adequate guards covering moving parts.
(7)Loaded unit is well balnced for transport and tipping function

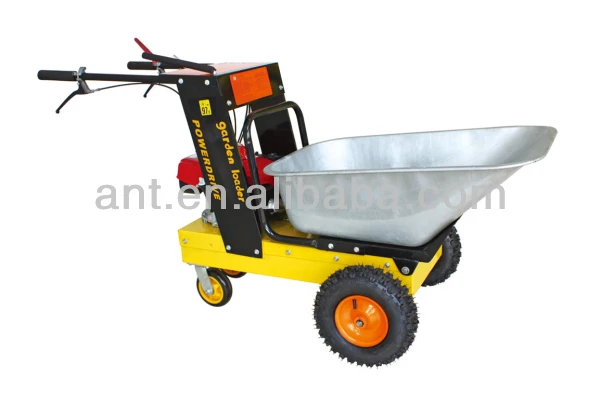

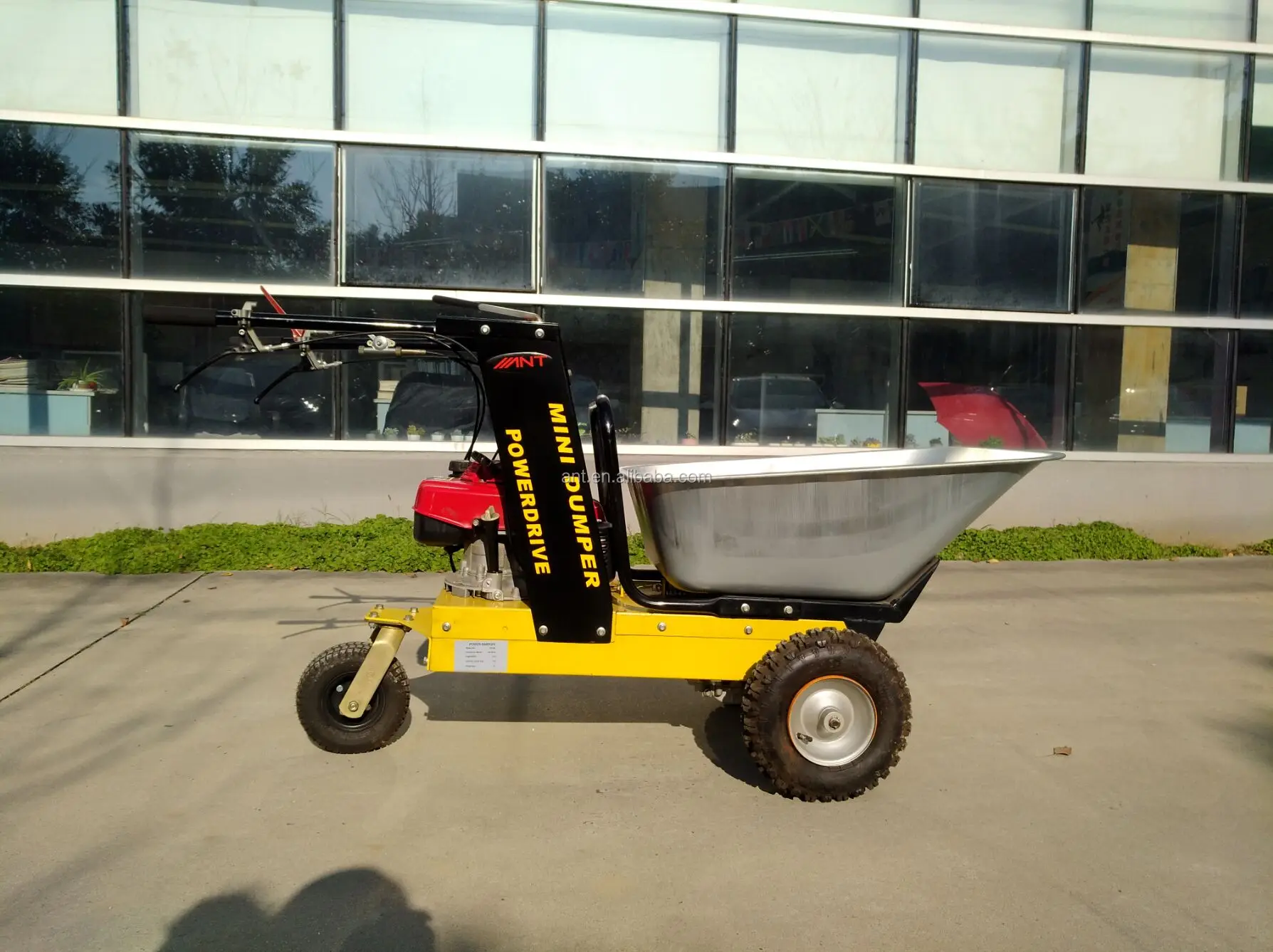

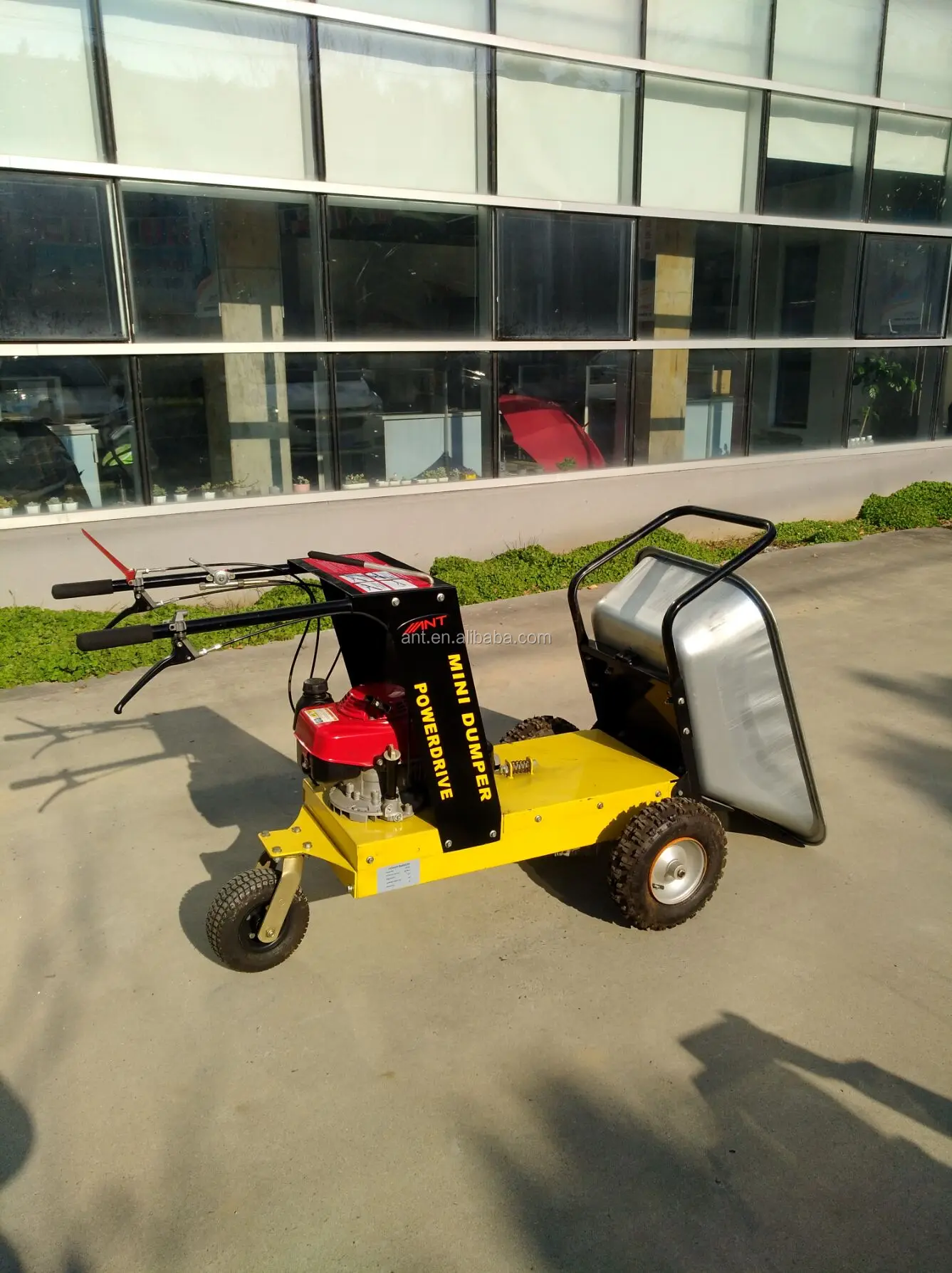

MODEL BY150
Engine Loncin 4hp gasoline
Engine type 4stroke,1cylinder,OHV,air-cooled
Capacity 85L or 150KG weight
Transmission mechanical transaxle
Speed 4 forward/1 null/1 reverse speeds
Forward speed 3.6km/h
Reverse speed 2km/h
Front wheel dia 12"/pneunatic tyre
rear wheel dia 6" /solid tyre
Drum Material aluminum alloy
POWER BARROW SERIES:

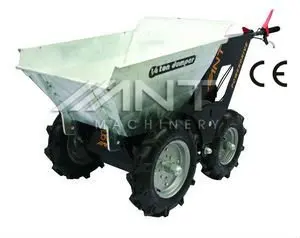

BY250
| MODEL | BY250 |
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Transmission | mechanical transaxle |
| Speed | 4 forward/1 null/1 reverse speeds |
| Capacity | 6cu.ft.(170L) or 1/4 tone(250kgs) |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | yellow plastic spray |
| Packing | |
| Weight | 121kgs |
| Dimension | 128*74*108(L*W*H cm) |
| 20GP | 24PCS |
| 40GP | 54PCS |
BY250X
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Engine start | electric |
| Dumping | electric automatic |
| Transmission | mechanical transaxle |
| Speed | 4 forward/1 null/1 reverse speeds |
| Capacity | 6cu.ft.(170L) or 1/4 tone(250kgs) |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | yellow plastic spray |
| Packing | |
| Weight | 121kgs |
| Dimension | 128*74*106(L*W*H cm) |
| 20GP | 24PCS |
| 40GP | 54PCS |
BY300
| MODEL | BY300 |
| Engine | Honda GXV160 5.5HP |
| Engine type | 4stroke,1cylinder,OHV,air-cooled |
| Transmission | hydro-gear assembled in USA |
| Speeds | stepless forward and reverse |
| Capacity | 6cu.ft.(170L) or 300kgs |
| Brake | Disk |
| Cabels | protected |
| Wheels | Front 400×10,4 ply,rear 400×8 |
| Drum Material | red plastic spray |
| Packing | |
| Weight | 131kgs |
| Dimension | 128*74*108(L*W*H cm) |
| 20GP | 24PCS |
| 40GP | 54PCS |

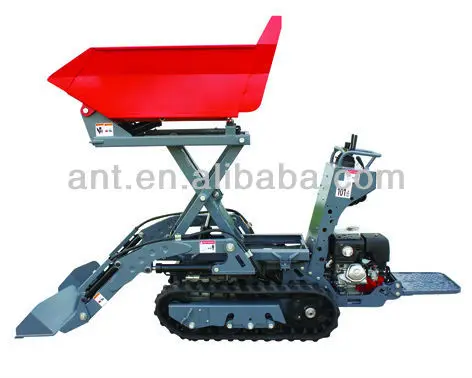

BY800
| MODEL | BY800 |
| Engine | 13hp 4stroke gasoline or diesel |
| Operative weight | 800kgs(1762lbs) |
| Max travel speed | 0-4.8km/h(0-3.0mph) |
| Transmission | |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4Vmin(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | Mechanical |
| Hydraulic system | |
| Hydraulic pump | Gear pump |
| Flow | 1*13.5Vmin(1*3.5gpm) |
| Hi-flow | 1*22Vmin(1*3.5gpm) |
| Max pressure | 150bar(2180psi) |
| Main valve | 2-3way |
| Cooled system | air-cooled |
| Skip tipping system | Hydraulic |
| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | Yes |
| Track tensioning | Yes |
| Loading capacity | |
| 20GP | 6pcs |
| 40GP | 14pcs |
| Packing | |
| Weight | 650kgs |
| Dimension | 220*96*145(L*W*H cm) |
| 20GP | 6PCS |
| 40GP | 12PCS |

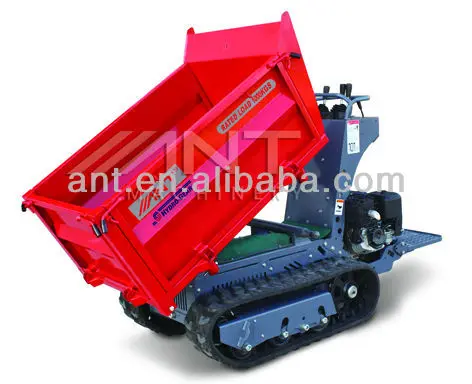

BY1000
| Engine | 13hp 4stroke gasoline engine |
| Max loading capacity | 1ton |
| Max travel speed | 0-4.8km/h(0-3.9mph |
| Hydraulic pump | 2*variable displ. |
| Flow | 2*32.4l/min(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | mechanical |
Lower fuel consume, gasoline engine,low noise !
Packaging & Shipping
Our Services
Warranty
Mini dumpers are guaranted for 6 months from the date of its delivery and includes the substitution of anything in partichlar that has resulted as, in the opinion of our Technical Office, affected by construction defects.
Company Information
Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta
The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields
Global market
Europe, America, southeast, Asia and Africa
Exhibition
Our clients
FAQ
*Q:What's your MOQ of this term?
A:1 pcs
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:6 months for used or 1 year after leave factory
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A: 30% T/T advance as a deposite,the balance paid off before transported to the loading port
*Q:What's your delivery time?
A:Delivery timely about 30-40 days after receiving the deposit
