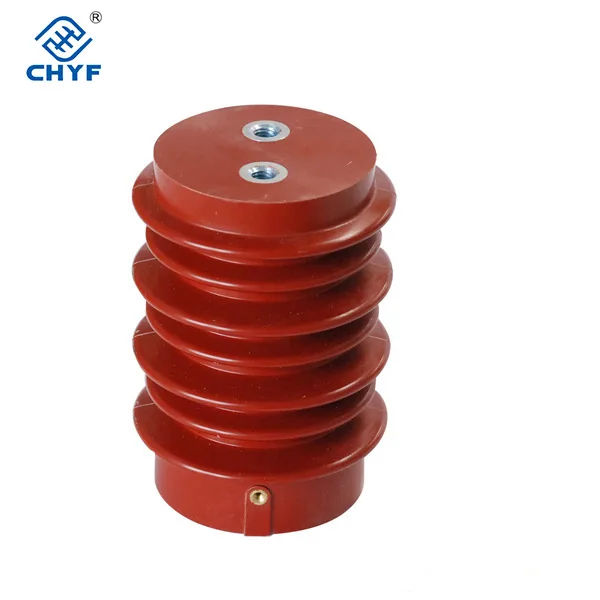

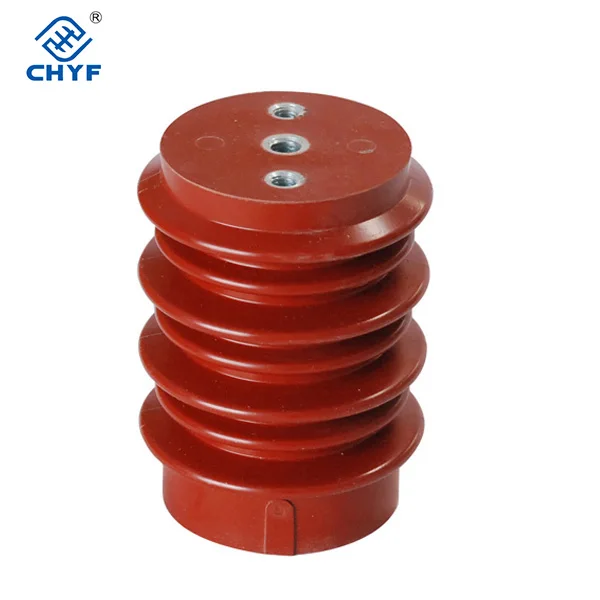

24 KV epoxy resin insulator high tension voltage with capacitor capacitor insulator 110x225
- Category: >>>
- Supplier: Yufeng Electric Co. Ltd.
Share on (2001051188):
Product Overview
Description
Products Description
Working condition
high voltage insulator details are listed as below:
Material: Epoxy Resin
Rated Voltage: 35KV
Technology: The Automatic Pressure Gelation (APG)
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear
Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, vapor, or dust that may severely affect the insulation of the contact box, no explosive or corrosive substance.
Technical Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse voltage (peak value)of 75KV;
2. The temperature of the lead-out terminal shall not be more than 65º C if the contact box is used for a long time in rated current condition.
Material: Epoxy Resin
Rated Voltage: 35KV
Technology: The Automatic Pressure Gelation (APG)
Application: Used for insulation, isolation & connection transition in various kinds of handcart switchgear
Operation Condition
1. Altitude: ≤ 1000m;
2. Ambient temperature: +40~-10º C;
3. The relative humidity shall not be more than 95% at+20 º C ambient temperature;
4. NO gas, vapor, or dust that may severely affect the insulation of the contact box, no explosive or corrosive substance.
Technical Requirement
1. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse voltage (peak value)of 75KV;
2. The temperature of the lead-out terminal shall not be more than 65º C if the contact box is used for a long time in rated current condition.
Size |
95*140 |
95X145 |
95X130 |
105X130 |
105X140 |
105X140，20PF |
105X145 |
100x160 |
100x170 |
75x210 |
110x210 |
110X225 |
130X320 |
130*340 |
130*360 |
130*380 |
Details Images
More information and more size ,pls inquiry us directly .OEM is available
Other Products
Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory with more than 20 years experience in this field.
Q: Can I get a sample before the bulk order?
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: How to solve the quality problems after sales?
A: We are factory with more than 20 years experience in this field.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are
acceptable.
acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days.if the goods are not in stock, it is according to quantity
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days.if the goods are not in stock, it is according to quantity
Q:Do your company have a website ?
A:Please check :www.cnyufeng.cn
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
Q: What is your terms of payment ?
A: Payment=5000 USD, 30% T/T in advance ,balance before shippment.
A: Payment=5000 USD, 30% T/T in advance ,balance before shippment.
