Explosive Detectors , Under Car Mirror Bomb Detector Scanner TEC V3D

Product Overview

Description

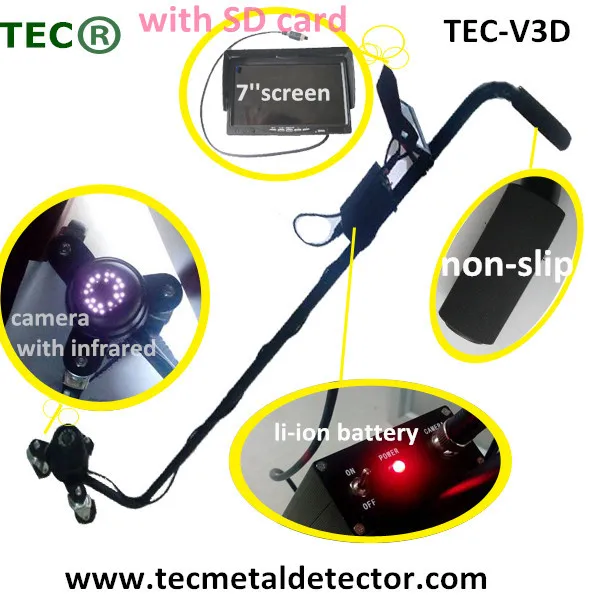

Explosive Detectors , Under Car Mirror Bomb Detector Scanner  TEC-V3D

The visual vehicle inspection mirrors with the function of Video Recording, using multi-media player with a 7-inch LCD screen and DVR, not only can process real-time checks, but also to screen checked record for future view.







Specifications:



Working voltage: DC12V



Operating Current: 220mA.



LCD screen: 7 inch high-definition screen



camera: 1 / 3 "Sharp-chip



power supply: large-capacity rechargeable battery



Lens angle: 3.6mm wide-angle lens.

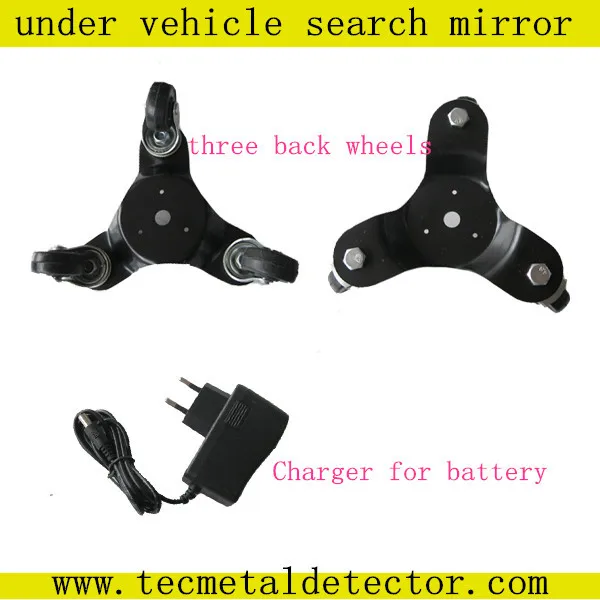

Three back wheels

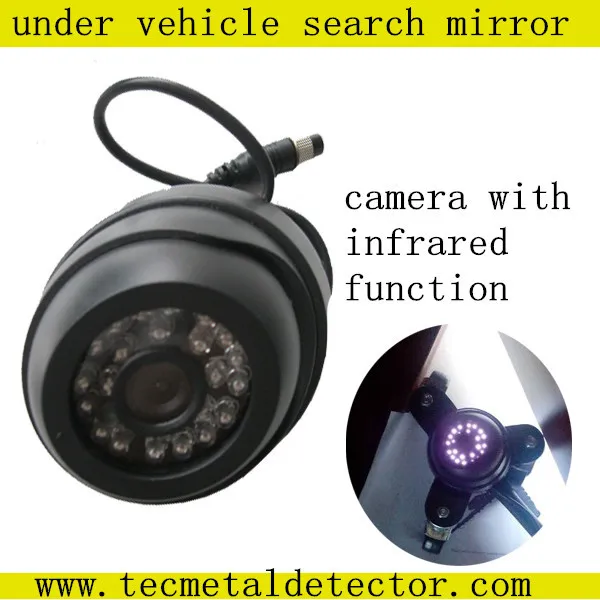

1,CAMERA:



Resolution: 1 / 3 inch



chip: 420 line Sharp CCD



Power Supply: DC12V



automatic infrared night vision function

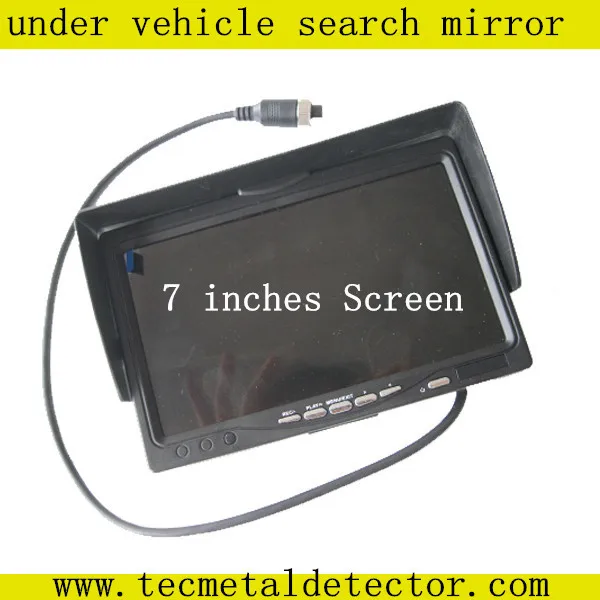

 2,LCD/DVR



Screen size: 7 inches



Resolution: 480 * 320 * RGB



Power supply: Built-in 3.7V rechargeable battery





BATTERY



1 HOST BOX CHARGE



When the screen images distorted or no images and the indicator behind the host box is not extinguished, you should charge the host box. Using the 13.8V/1000mA charger to change the Host Box, at the process,at forst it is red,when full, it is green



2 LCD/DVR CHARGE



When appears the low-voltage logo on the screen or automatic shutdown, you need to use the 5V/1A of small charger to charge the DVR.Charging time is normally 4-8 hours, preferably not more than 8 hours, or DVR's Built-in battery life will be affected. In the process of charging, DVR the will be a small indicator light is red on the lower right corner of DVR , green when it is full.





 PACKAGE LIST



One Camera



One Host Box(with Aluminum)



One DVR /LCD



Two Charger (13.8V/1000mA,5V/1A)
