4.universal drive machine for dry and wet drilling
5.for pipeline and cable ducting,ventilation channels ,test core drilling
Ordering information
Model
Motor (W)
Speed (RPM)
Capacity (mm)
ZIZ 250PRO
4080W
360/720rpm
250mm
ZIZ 130
1350W
2300rpm
130mm
ZIZ 200
3000W
360/720rpm
200mm
ZIZ 250
3500W
360/720rpm
250mm

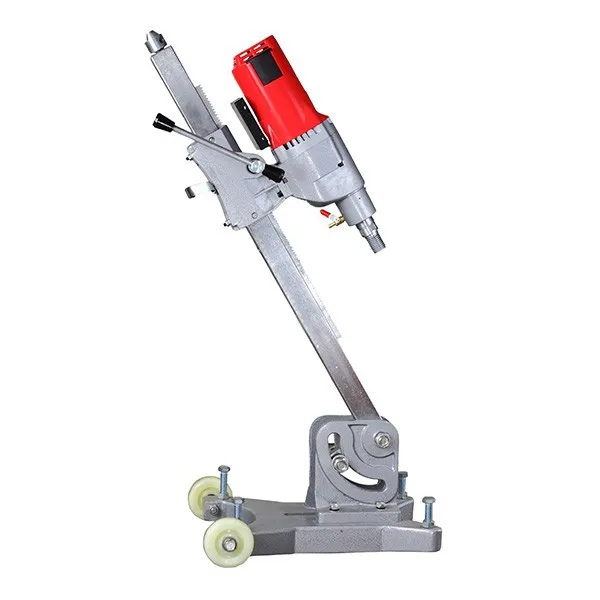

ZIZ 250A
3500W
360/720rpm
250mm
ZIZ 350
3500W
600rpm
350mm
Cat no.
Model no.
Description
Weight
ZIZ 250pro
Engineeringd rill,220V,50HZ ,110V,60HZ
35kg
ZIZ 130
Engineering drill,220V,50HZ ,110V,60HZ
12kg
ZIZ 200
Engineering drill,220V,50HZ ,110V,60HZ
25kg
ZIZ 250
Engineering drill,220V,50HZ ,110V,60HZ
25kg
ZIZ 250A
Engineering drill,220V,50HZ ,110V,60HZ
38kg
ZIZ 350
Engineering drill,220V,50HZ ,110V,60HZ
28kg
Diamond core drill bits
Laser Welded core drill bits
Type
Diameter
Length
threads
laser welded core drill bits
32mm
400mm
1 1/4"-7UNC
38mm
400mm
1 1/4"-7UNC
51mm
400mm
1 1/4"-7UNC
63mm
400mm
1 1/4"-7UNC
76mm
400mm
1 1/4"-7UNC
83mm
400mm
1 1/4"-7UNC
89mm
400mm
1 1/4"-7UNC
102mm
400mm
1 1/4"-7UNC
108mm
400mm
1 1/4"-7UNC
114mm
400mm
1 1/4"-7UNC
127mm
400mm
1 1/4"-7UNC
132mm
400mm
1 1/4"-7UNC
150mm
400mm
1 1/4"-7UNC
159mm
400mm
1 1/4"-7UNC
168mm
400mm
1 1/4"-7UNC
180mm
400mm
1 1/4"-7UNC
200mm
400mm
1 1/4"-7UNC
219mm
400mm
1 1/4"-7UNC
250mm
400mm
1 1/4"-7UNC
299mm
400mm
1 1/4"-7UNC
350mm
400mm
1 1/4"-7UNC
High Frequency core drill bits
Type
Diameter
Length
threads
high frequency core drill bits
Diameter
Length
threads
25mm
400mm
1 1/4"-7UNC
27mm
400mm
1 1/4"-7UNC
32mm
400mm
1 1/4"-7UNC
38mm
400mm
1 1/4"-7UNC
40mm
400mm
1 1/4"-7UNC
44mm
400mm
1 1/4"-7UNC
51mm
400mm
1 1/4"-7UNC
57mm
400mm
1 1/4"-7UNC
63mm
400mm
1 1/4"-7UNC
71mm
400mm
1 1/4"-7UNC
76mm
400mm
1 1/4"-7UNC
83mm
400mm
1 1/4"-7UNC
89mm
400mm
1 1/4"-7UNC
102mm
400mm
1 1/4"-7UNC
108mm
400mm
1 1/4"-7UNC
114mm
400mm
1 1/4"-7UNC
120mm
400mm
1 1/4"-7UNC
127mm
400mm
1 1/4"-7UNC
132mm
400mm
1 1/4"-7UNC
150mm
400mm
1 1/4"-7UNC
159mm
400mm
1 1/4"-7UNC
168mm
400mm
1 1/4"-7UNC
180mm
400mm
1 1/4"-7UNC
200mm
400mm
1 1/4"-7UNC
220mm
400mm
1 1/4"-7UNC
245mm
400mm
1 1/4"-7UNC
300mm
400mm
1 1/4"-7UNC
Packaging & Shipping
Packing details:plywood case
Model
Gross weight(kg)
Net weight(kg)
L(cm)
W(cm)
H(cm)
ZIZ-250A
28
25
90
40
25
Our Services
Our service
About OEM
OEM is availible, but we need a certain demand quantity. We can make the LOGO sticker/lables or make the casting as your request.
Warranty
1) How long is the warranty? ----- We provide 1 year warranty for the main parts of our product. Like, gearbox, motor, cast body etc.
The quick worn parts are not included. Like the dies, carbon brushes, cutting wheels, sealing rings etc.
2) What should I do if my tool is broken? ----- Inthe warranty period, we will make compensation free for all non-human factors damage. Once your tool damaged in working, please take photos at the sight, and we will deliver the spare parts to you immediately. If your tool was broken by human factors, or outside the warranty period, we can also send you the spare parts for your replacement, but need to charge.
3) What should I do when I received a damaged goods? ----- If you found there is any part damaged in the delivery, please take photos once your open the package, we will send you a new one for Half-Price.
Lead Time
1) If you order samples, we will finish the goods within 7 working days, and prepare to deliver to you.
2) If your quantity is large, don't worry, we will try our best to finish the production ASAP. It will be within 20~35 days.
About Discount
Discount will be based on large quantity. Please consult us, we will tell you the corresponding quantity discount.
Want to become our distributor?
Of Course, welcome you become to our distributor in your area. We will allow you special discount, and will transfer all enquires directly to you from your area. If you have are interested, please contact with us in details.
Company Information
About us
Hangzhou Hongli Pipe Machinery Co.,Ltd established in 1986, is a company that brings
together technology and engineering to provide innovative solutions for our customers in
the range of pipe machinery. Hangzhou Guanba Machinery Import & Export Co., Ltd is
our sister company speciali-zing in exporting different kinds of threaders, groovers, pipe
cutters,etc..Our products enjoy a gre-at popularity in North and South America,Mid East,
Africa, etc..Our priority is to design, produce and deliver products which facilitate your work.
About our R&D
Since the foundation of Huaxing Machinery Factory (our initial company) in 1988,
R&D is one of our main focus. It’s our belief that creativity and innovation is the key
to success. In the past 20+ years, our engineers and technicians contributed lots of
intelligence and efforts to many products. With these innovative products, we enjoy
a high reputation in the range of pipe machinery.
Our progress:
1988
Designed the first 2”threading machine
1997
Designed the first portable threader in China
2003
Designed the first hydralic pipe cutter
2005
Designed the first roll groover
2006-until now
Coming with more high efficient threading machines
Innovation is the soul of our company. Our R&D department will shoulder the expec-
tations ofthe company and help us walk toward a bright future
Why us?
Our substantial industrial experience and ultramodern manufacturing facilities are
the two important factors that are responsible for our consistent growth in this cut
throat market scenario. We are able to win the trust and confidence of our valued
clients by supplying best customized products to them as per their exact demands.
Some other factors that contribute in our success are as follows:
Wide range of qualitative products
Stringent quality control policies
Competitive pricing policy
Ethical business practices
Complete client satisfaction guaranteed
Prompt delivery schedules
Well established distribution network
Professional QC team
Customized products by CNC processing centre
Professional R&D
Factory image
Certification
FAQ
FAQ
Q1.:What's your type of payment?
Paypal, TT, Western Union are all acceptable payment terms. According to your specific circumstances, you can choose the most suitable payment terms
Q2.May i have a inspection?
In order to ensure the interests of both sides, we support buyer or third party to inspect
the goods at our factory before shipment, the third party should be entrusted by
buyer. We also will arrange self-inspection and send the photos to buyer before shipment.
Q3.What's your transportation?
We support to arrange delivery to buyer’s destination by Air, by Sea, or Express.
We normally send goods from Shanghai or Ningbo. If from other port, we will charge
for logistic fee, the cost is depends on the delivery distance.
We suggest buyer to make insurance for goods, to avoid any loss in transportation.
