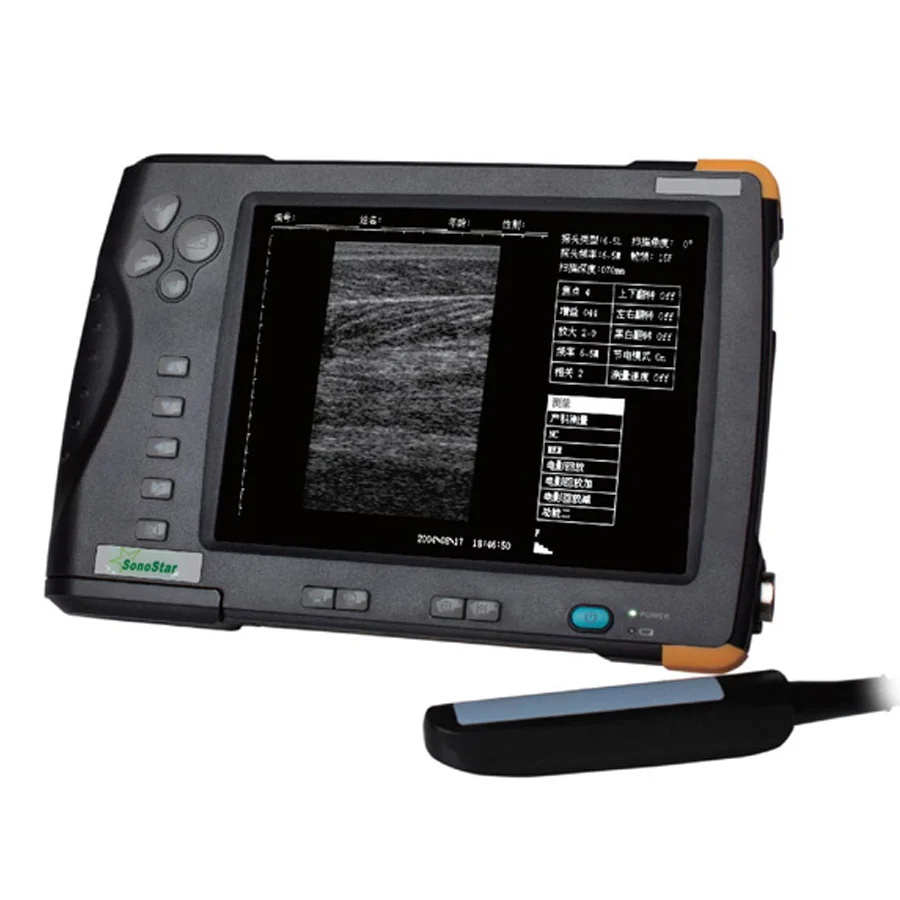

-7 inch TFT screen -Pretty and very light -Full digital imaging technology, crystal-clear Image -Can work with backfat probe -Low power consumption -2G Large volume storage image -Built-in battery -Solid shell and structure -Waterproof(Optional) -High Cost-effective
Specifications:

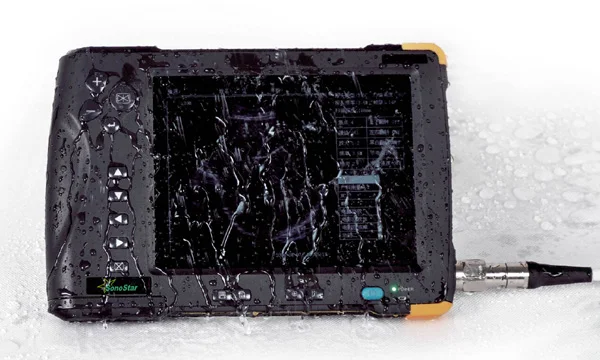

Display size: 7 inch TFT Scanning manner: Electronic convex array, electronic linear array Working frequency: 2.0MHz~10MHz Display mode: B, B+B, B+M, M, 4B Scanning range: Convex array 60°~150° Amplification factor:1.0, 1.2, 1.5,2.0 Gain control: 8 segments TGC and overall gain can be adjusted respectively Image processing: 8 γ corrections, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc Image gray-scale: 256 levels Scanning line number: 512 lines/frame Frame rate: 30 frames/second Digital scanning conversion: 512×512×8 bits Memory capacity: ≥2GB Conventional measurements: distance, perimeter, area, volume Obstetric measurement: horses, cattle, sheep, dogs, cats obstetric measurement Report function: auto make report Battery capacity: 3000mAH/7.4V,can work more than 2 hours Display screen: 7" TFT Output interface: USB port, video. Overall size: 216mm×147mm×27mm Total weight: 950g(with battery) Waterproof: IP65(optional)

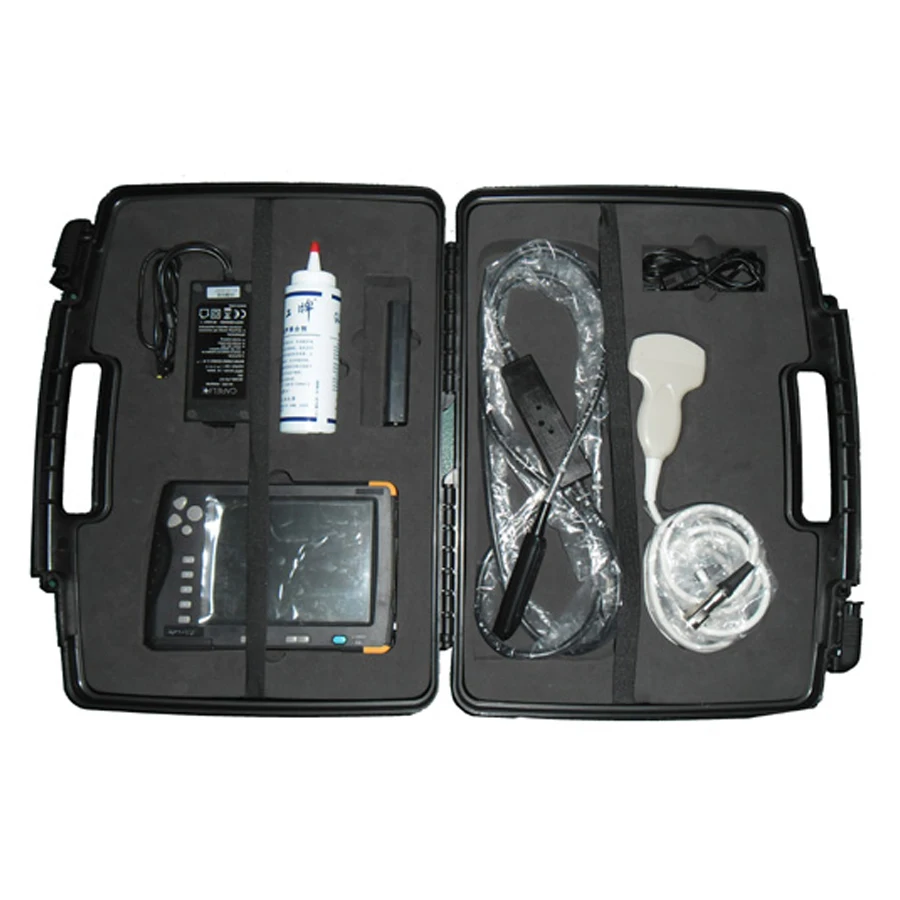

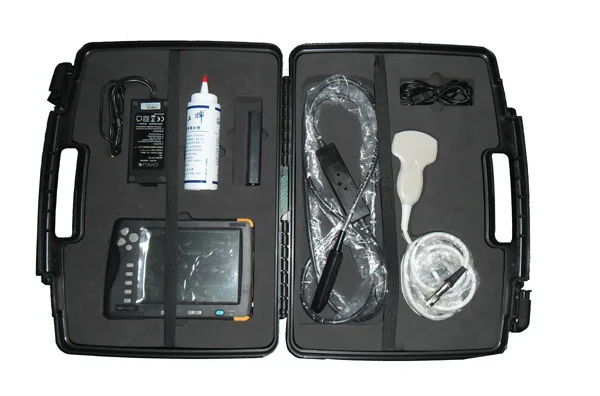

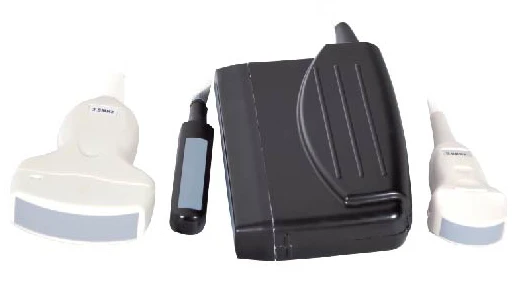

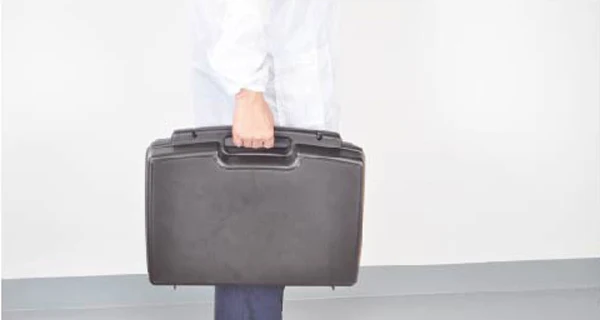

Standard Configuration: Host, convex probe, built-in battery, power adapter, bag. Optional: Linear probe, Micro-convex probe, Rectal probe, Backfat probe.
Our Services
1. We offer18 months warranty period, 24 hours calling service. 2. There is OEM&ODM service for distributor. 3. Support iOS, Android, Windows connection, APP belongs to Sonostar, free for lifetime use. 4. 100% Calibration before Shipment. 5. All products will be shipped within1-3 working days upon payment.
