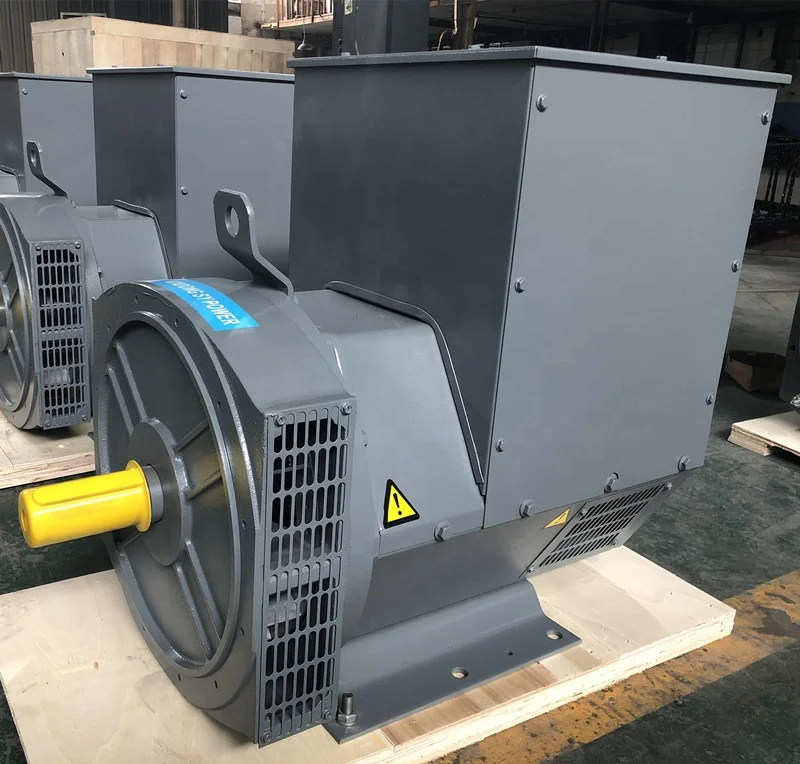

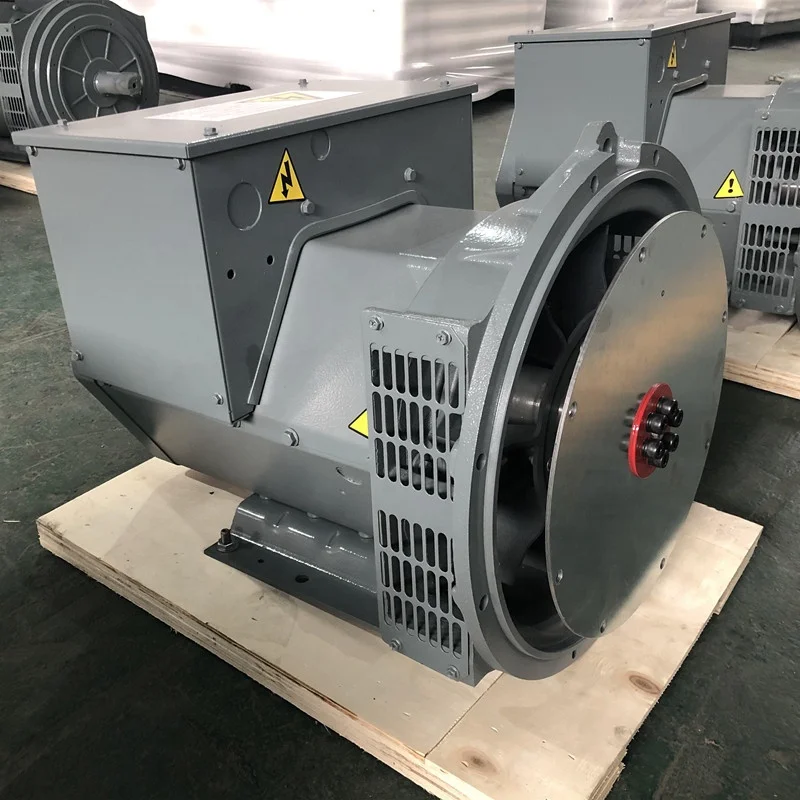

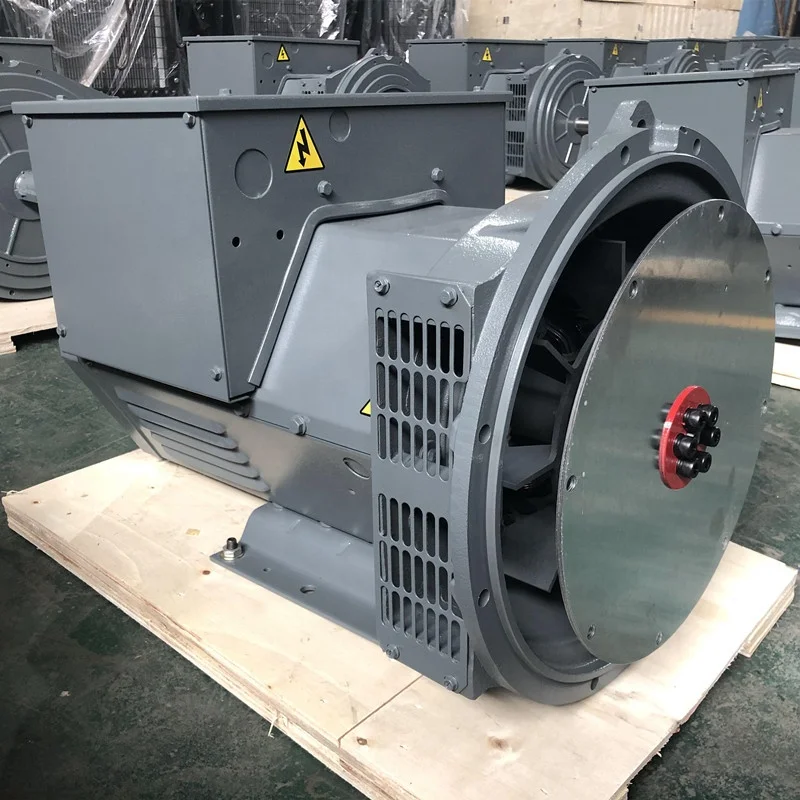

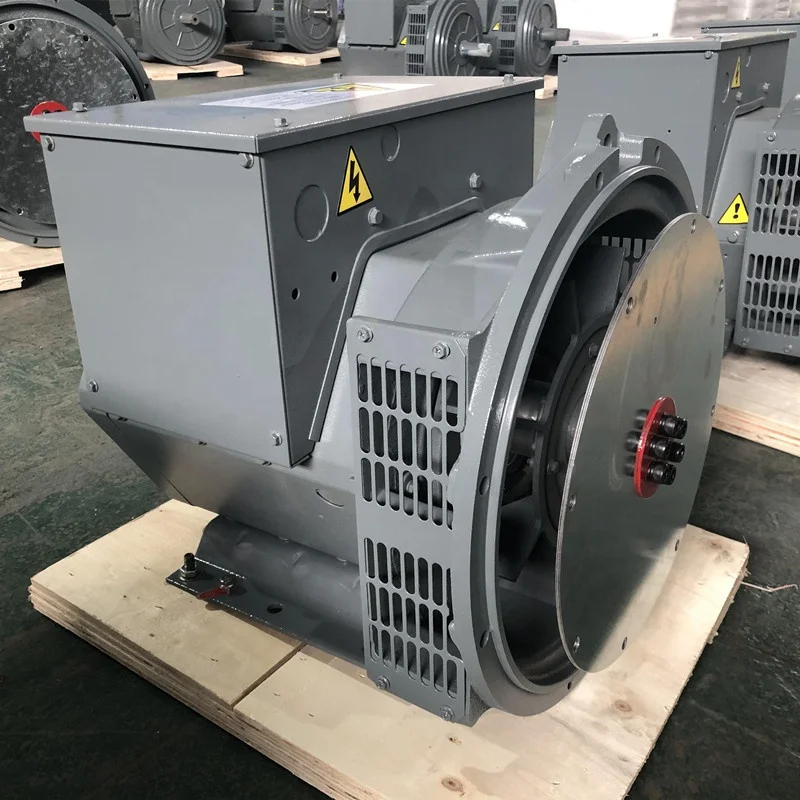

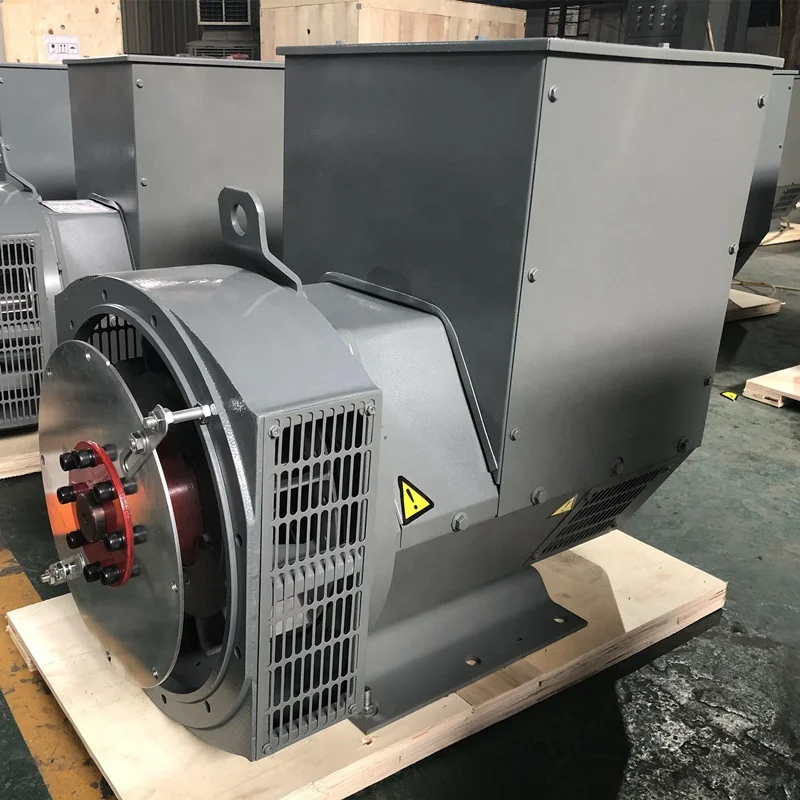

Fuan Mindong Minsun Generator 20KW Brushless AC Stamford Alternator

Product Overview

Description

Fuan Mindong Minsun Generator 20KW Brushless AC Stamford Alternator





Specification

Molde	Frame.No	Rated Power (50Hz)		Rated Power(60Hz)		Specification	G.W/N.W	Form
		(KW/KVA)		(KW/KVA)
		KW	KVA	KW	KVA	Packing Size
SY-A-164A	4#160	6.8	8.5	8.5	10.6	55×49×56	100/90	Hexagonal
SY-A-164B	4#160	8.8	11	11	13.8		110/100
SY-A-164C	4#160	10.8	13.5	13.5	16.9		120/108	Steel
SY-A-164D	4#160	12.8	16	16	20		130/118
SY-A-184E	4#180	18	22.5	23	28.8	64×49×56	140/130	Plate
SY-A-184F	4#180	22	27.5	27.5	34.4		150/140
SY-A-184G	4#180	25	31.3	30	37.5		160/150
SY-A-184H	4#180	30	37.5	37.5	34.9	88×54×81	220/190
SY-A-184J	4#180	32	40	40	50		220/190
MODEL	Frame.No	Rated Power(50Hz)(KW/KVA)		Rated Power(60Hz)(KW/KVA)		Specification	G.W/N.W	Form
		KW	KVA	KW	KVA	Packing Size
SY-A224C	5#.225	34	42.5	42	52.5	88×54×81	275/235	Hexagonal
SY-A224D	5#.225	40	50	50	62.5		292/255
SY-A224E	5#.225	48	60	56	70		315/300	Steel
SY-A224F	5#.225	58	72.5	70	87.5	96×54×81	340/320
SY-A224G	5#.225	68	85	78	97.5		396/380	Plate
SY-A274C	7#.270	80	100	94	118	88×62×88	425/390
SY-A274D	7#.270	91	114	110	138		455/430
SY-A274E	7#.270	112	140	134	168		510/480
SY-A274F	7#.270	128	160	152	190	100×62×88	555/520
SY-A274G	7#.270	140	175	170	213		610/570
SY-A274H	7#.270	160	200	196	145		625/585
SY-A274J	7#.270	180	225	225	282	120×66×88	700/660
SY-A274K	7#.270	200	250	250	312.5		770/730



Introduction



Minsun Stamford SY-A series A.C.synchronous brushless alternator, base on absorbing and digesting the update technology of international electrical industry, is a new-type designed by ourselves.
It compliance with all main standards,such as :GB755, EN60034, BS5000, VDE0530, NEMA MG1-32, IEC34, etc…



Mechanical specification
Excellent silicon steel sheet frame and import rings.
Mounting type: single bearing with standard SAE connection and SAE driving chip.Double bearing with standard shaft extension and flange connection cover.



Electric performance
Rated output power: 6.5kw-1000 kw(8kva-1250kva)
Rated voltage:400/230v, 440/254v, 220/127v, etc.
Phase/connecting method: 3 phase 4wire/Y type connection
Rated frequency: 50/60hz
Rated speed: 1500/1800rpm
Excited type: Brushless, self excited
Insulation: Class H
Protection: IP21~IP23
Voltage regulation: AVR automatic control
Steady voltage regulation≤±1.0%
Transient voltage regulations≤+20%, -15%(60%ln,cos≤0.4 lag)
Adjustable voltage range 95-105%Un
Sine waveform distortion rate at no-load, ≤5%,(line voltage)



This series alternator can be operated continuous at rated load under following conditions:
Altitude above sea level: ≤1000 meters
Ambient air temperature: ≤40℃ Relative air humidity: ≤ 90%
It has outstanding performance,reliable quality, convenient maintenance. Using steel or flexible material, it can be connected with engine as a gensets to use in factories, buildings and work sites for lighting and electric power source.





 WELCOME TO INQUIRY!
