This product reaches the advanced international level. It can replace for the imported equipments. The sound when the machine runs is lower than 80Db(A). It is an ideal device for GMP and CGMP Attestation.
Characteristics:
1.High efficiency: double pipe input structure, protuberant point deign filter board highly increases the liquid working sectional area.
2. Very good sealing: All the parts are installed with silicone rubber, when work, there will be no leak.
3. Remove bacterial: when use middle-speed filter paper and tiny-hole filter film as filter medium, can remove bacterial well.
4. Easy to take-down: The whole machine structure is very easy to take-down, use snap ring to join, easy to clean and take-down.
5. Easy to adjust: According to different production technology of products requiments (first-filter, half extractive filter, extractive filter), you can adjust the frame, board and filter medium of the filter machine.
6. Can filter high viscidity liquid.
7. Meet the sanitation requirement: Use sanitation septum pressure gauge, septum ball valve, the whole machine meets the requirement of sanitation.
8. Prolong the use life of the filter materials: protuberant point deign filter board can help the filter materials (such as filter film, filter paper) not easy to break.
9. Improve the stability of the liquid capacity: protuberant point deign filter board make the liquid can flow to any direction well.
10. It is very easy to clean the filter materials. This machine has automaticcircumfluence equipments.
Technical parameters:
Model
Filter area (m²)
Filter board size
(mm)
Filter frame size
(mm)
Machine size
(mm)
Machine weight
Kg
Layers
Water flow t/h
Filter pressure
Mpa
Pump motor power
Kw
CXAS
0.4
176×176
200×200
700×330×650
75
13
3
0.2
0.75
CXAS
1
268×268
300×300
900×460×870
190
17
7
0.2
1.5
CXAS
2
352×352
400×400
1100×560×960
300
19
9
0.3
2.2
CXAS
4
352×352
400×400
1500×560×960
450
35
11
0.3
3
CXAS
6
402×402
450×450
2200×680×1180
680
39
14
0.4
3
CXAS
8
402×402
450×450
2400×680×1180
790
53
17
0.4
4
CXAS
10
402×402
450×450
2600×680×1180
920
65
20
0.4
4
CXAS
12
402×402
450×450
2800×680×1180
1200
77
22
0.4
5.5
CXAS
14
402×402
450×450
3000×680×1180
1500
89
26
0.4
5.5
CXAS
18
528×528
600×600
2800×780×1200
1900
67
28
0.4
7.5
CXAS
20
528×528
600×600
3000×780×1200
2300
75
33
0.4
7.5

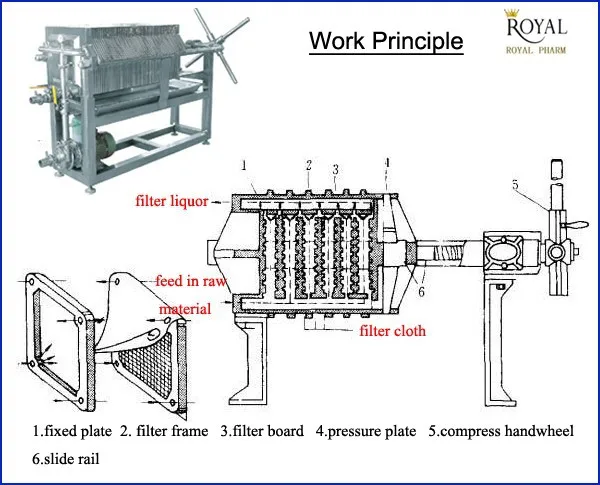

Work Principle:
Main Uses:
This machine can be used for the filtration, clarify, purification and removing bacterial of liquid
products. It meets GMP standard. It is suitable for medical, food, drink, petro-chemical, fine daily
chemicals, paint, grease, brewing etc.
It is suitable for the filter media such as the multiple filter cloth, filter plates, filter film.

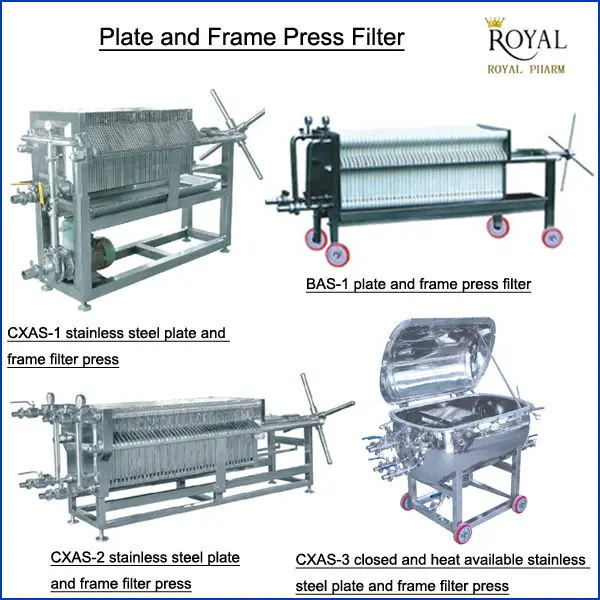

Main Types:

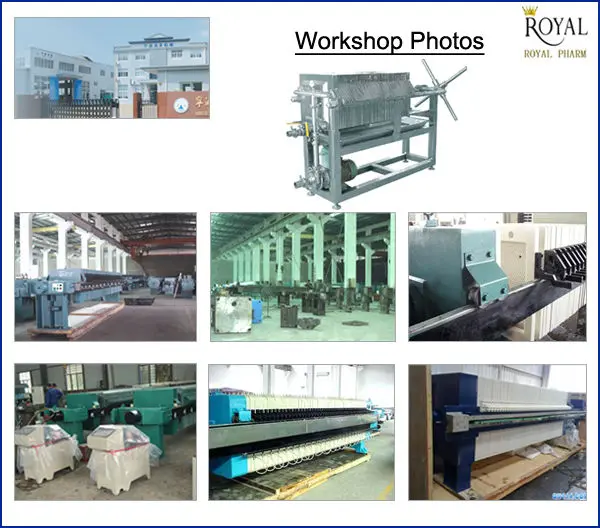

Our Workshop:
Packaging & Shipping
Container Loading:
It is suitable for sea shipment, and usually packed in wooden box. The detailed packing should
