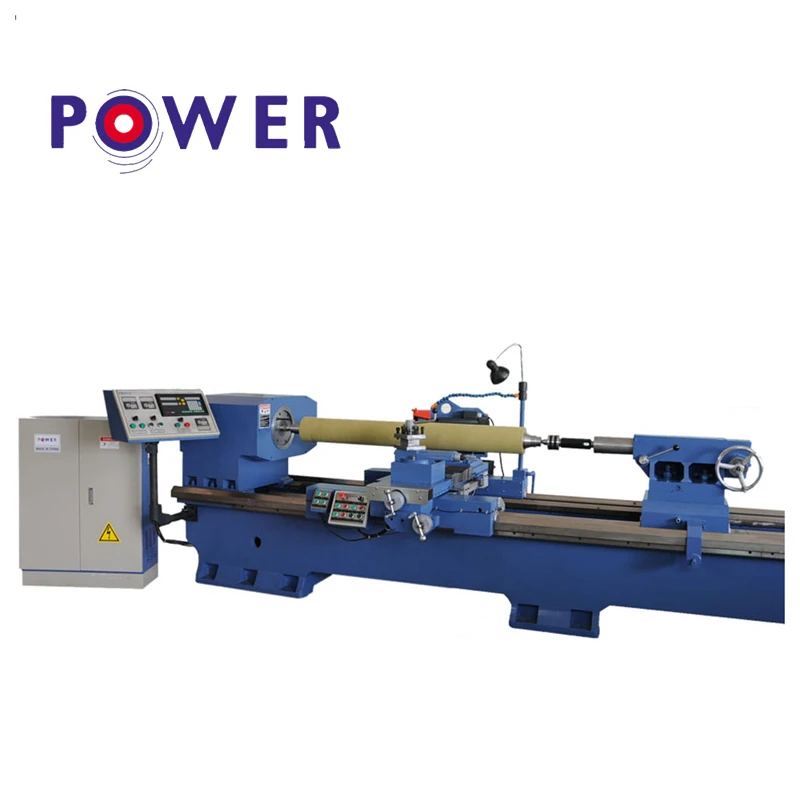

PSM 1260 General Rubber Roller Grinding Machine
- Category: >>>
- Supplier: Jinan Power Roller Equipment Co. Ltd.
Share on (2002020362):
Product Overview
Description
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
1. Standard equipment of PSM series includes：
a. a full flood recirculating coolant system
b. motorized tailstock
c. variable speed traverse and spindle drives
d. front and rear independently operated carriage tables
e. a direct drive grinding head mounted on the rear
2. Specially designed to replace the tradtional roller grinding process method.
3. Two medium carriage tables assembled to ensure accurate performance and operating stability.
4. The max. linear speed of grinding head is over 90m/s. Production efficiency is highly increased and the geometric size is guaranteed.
5. Advanced measuring device assembled timely checks the processing datas and provides effective help to control the grinding size.
6. Capable of realizing expansion of processing of special-shaped rubber rollers.
MODEL | SPECIFICATION | MAX. DIAMETER | MAX. LENGTH | CUBAGE | POWER |
LIGHT SCALE | PSM-4020 | 16" 400mm | 80" 2000mm | 158"*55"*55" 4m*1.4m*1.4m | 10KW |
STANDARD | PSM-8040 | 32" 800mm | 158" 4000mm | 256"*63"*63" 6.5m*1.6m*1.6m | 15KW |
HEAVY DUTY | PSM-1260 | 47" 1200mm | 236" 6000mm | 315"*71"*71" 8.0m*1.8m*1.8m | 18KW |
LARGE SCALE | PSM-1680 | 63" 1600mm | 315" 8000mm | 433"*87"*71" 11m*2.2m*1.8m | 22KW |
PSM series rubber roller grinding machine is specially designed and manufactured to replace the past roller processing method by metallic manufacturing equipment.
Mounted grinding head on the standard metal processing lathe is one of the traditional methods to manufacture rubber roller, which leads the quality of roller is difficult to reach the higher requirement.
With the consideration of the rubber characteristics, safe production and higher efficiency, we designed the PSM series grinding machine with lower and wider lathe body to reduce vibration, and selected alloy grinding wheels for surface processing.
We also provide the CNC grinding machine with grooving functions for you to select.
PSM series rubber roller grinding machine is specially designed and manufactured to replace the past roller processing method by metallic manufacturing equipment. Mounted grinding head on the engine lathe is the past method to manufacture roller, which the quality of roller is difficult to reach the requirement of the present standard. The main reason lies in the structure of lathe.
After all, it is not the grinding machine; the moving spaces of the big and medium carriage table are larger than that of grinding machine. Therefore, vibration may be produced while in the grinding processing, which will generate ripple at the surface of processing rollers. Further, due to the width limit of the guide-rail of lathe, the way of mounted grinding head is hardly to ensure the stability while in operation.
The structure of PSM series grinding machine is to be designed to make up for the shortage of present lathe. By means of assembly two medium carriage tables, the grinding machine enjoys the advantages of more functions than engine lathe and its performance and operating stability have reached the accuracy requirement. Then why the modern rubber roller professional manufacturing technology gradually stops to use cylindrical grinding machine? It is because of the low rotation speed of grinding wheel, the linear velocity is only 40m per second. That is the reason that causes low production efficiency. Further, while in grinding the stiff and wearable rubbers, and when the grinding from one side to the other, the geometric size of both ends of roller is hardly to keep consistency due to the abrasion of vitrified abrasive wheels. The generating heat in the course of grinding will be accumulated in the vitrified wheels which are difficult to radiate, therefore, the vitrified wheels have the hazard to explosive, more seriously, and it may cause fatal accident.
PSM series grinding machine adopts high-speed grinding head, equipped with the first-grade alloy grinding wheels for rubber, the permissible maximum linear speed can reach more than 90m per second. Not only the production efficiency increases, but the geometric size of the roller’s surface is also can be guaranteed. As for the surface finish of rollers, it can be realized by adjusting the speed of grinding wheel. Moreover, while in the processing, the online measuring is also a kind of highly specialized skill. For the roller is an elastic body, even with the same measuring tool, the various people can get different value, errors would occur. For the purpose to overwhelm the difficulty, the advanced measuring device is assembled on the PSM series grinding machine, not only it can timely measure the size of processed parts, but also can provide effective help to control the grinding size. In a word, PSM series grinding machine is ideal professional equipment for the modern processing of rubber roller.
After all, it is not the grinding machine; the moving spaces of the big and medium carriage table are larger than that of grinding machine. Therefore, vibration may be produced while in the grinding processing, which will generate ripple at the surface of processing rollers. Further, due to the width limit of the guide-rail of lathe, the way of mounted grinding head is hardly to ensure the stability while in operation.
The structure of PSM series grinding machine is to be designed to make up for the shortage of present lathe. By means of assembly two medium carriage tables, the grinding machine enjoys the advantages of more functions than engine lathe and its performance and operating stability have reached the accuracy requirement. Then why the modern rubber roller professional manufacturing technology gradually stops to use cylindrical grinding machine? It is because of the low rotation speed of grinding wheel, the linear velocity is only 40m per second. That is the reason that causes low production efficiency. Further, while in grinding the stiff and wearable rubbers, and when the grinding from one side to the other, the geometric size of both ends of roller is hardly to keep consistency due to the abrasion of vitrified abrasive wheels. The generating heat in the course of grinding will be accumulated in the vitrified wheels which are difficult to radiate, therefore, the vitrified wheels have the hazard to explosive, more seriously, and it may cause fatal accident.
PSM series grinding machine adopts high-speed grinding head, equipped with the first-grade alloy grinding wheels for rubber, the permissible maximum linear speed can reach more than 90m per second. Not only the production efficiency increases, but the geometric size of the roller’s surface is also can be guaranteed. As for the surface finish of rollers, it can be realized by adjusting the speed of grinding wheel. Moreover, while in the processing, the online measuring is also a kind of highly specialized skill. For the roller is an elastic body, even with the same measuring tool, the various people can get different value, errors would occur. For the purpose to overwhelm the difficulty, the advanced measuring device is assembled on the PSM series grinding machine, not only it can timely measure the size of processed parts, but also can provide effective help to control the grinding size. In a word, PSM series grinding machine is ideal professional equipment for the modern processing of rubber roller.
\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Services \t\t\t\t\t\t\t
1.Installation service.
2.Maintenance service.
3.Technical support online service provided.
4.Technical files service provided.
5.On-site training service provided.
6.Spare parts replacement and repair service provided.
\t\t\t\t\t\t\t\t\tPacking & Delivery \t\t\t\t\t\t\t
Packaging detail:
1. Outside package: Standard export wooden cases.
2. Inner package: Stretch film.
Shipping detail:
Within 2-4 weeks
Our Company
About us
Jinan Power Rubber Roller Equipment Co., Ltd is a modern private enterprise embodying scientific research and production. It was set up in 1998, and now is the main base in our country for manufacturing rubber roller special machine.
Power Company is a professional producer engaged in rubber roller manufacturing equipment, with a large production scale and strong technical force. The products we provide are: Rubber Roller Builder, Rubber Roller Grinding Machine, External Cylindrical Grinder, Emery Belt Precision Machine, Fully Automatic Measuring Instrument, Grinding Head and Fitting of Equipment. More than eight products have been awarded National or Shandong Provincial level product prizes and three scientific-research achievement prizes. In 2000, our products passed the inspection by CCIB Quality Certification Center in accordance with ISO 9001 standards. By using our equipment, you will increase processing efficiency, and raise product quality. Also it can bring much economical benefit.
Power Company regards "customers first" as its principle and has been developing and producing satisfactory products for different types for customers. Janna Power Rubber Roller Equipment Co., Ltd sincerely welcomes friends at home and abroad to come here for business talks.
