Cheap computerized comforter making machine, industrial quilting machine making duvet
- Category: >>>
- Supplier: Dongguan Yuxing Machinery Equipment Technology Co. Ltd.
Share on (2002136495):
Product Overview
Description

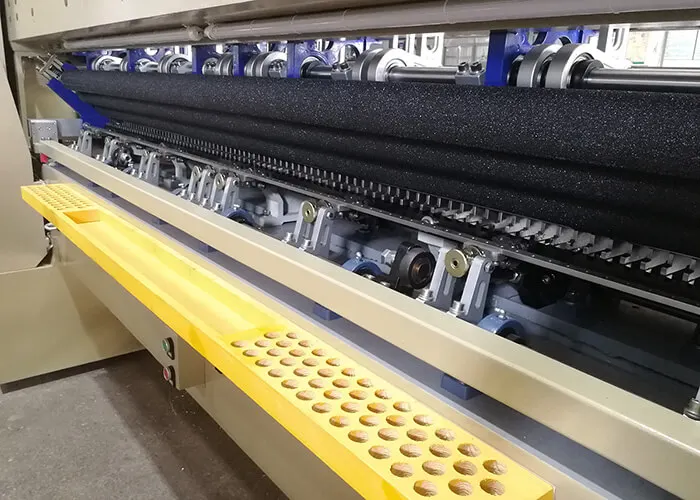

Computerized shuttle (lock stitch) multi-needle quilting machine
YXS-82-3CS
Product Description
Use:garments,sleeping bags,handbags,quilts,bedspread and all kinds of cushions.
Important parameter:
Product Name | Computerized shuttle (lock stitch) multi-needle quilting machine |
Model | YXS-82-3CS |
Over size(L*W*H) | 4300*1500* 1700mm |
Weight | 4500kg |
Max.quilting width | 2100mm |
Max.quilting thickness | ≤50mm |
Rotation speed | 1000r/min |
Needle type | 19#,16# |
Max.horizontal movement | 254mm |
Needle space | 25.4mm |
Stitch size | 2-8mm |
Power supply | 380v/220v |
Power | 5.5KW |
Special feature:

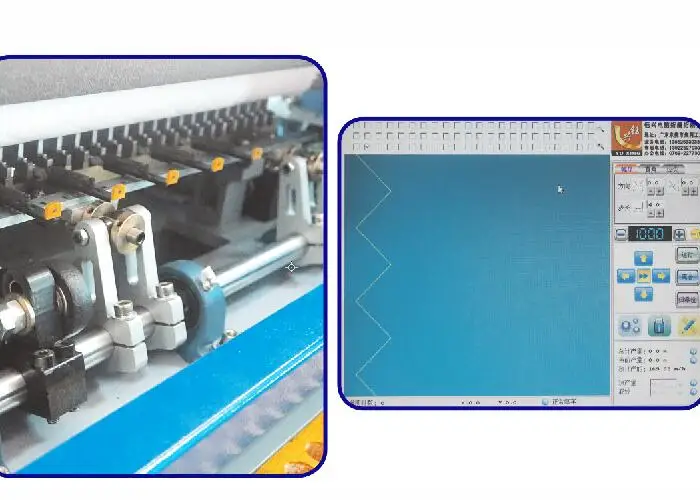

The upgraded computer control system and mechanical manufacturing process technology.
Needles bar running with needle bar frame, no need to add extra lube and avoid the materials be soiled by lube.
Needle bar frame structure is more firm and durable, so that the cost of maintenance is cheaper.
Both the saddle frames and the rollers are imported servo drive equipment,
Adopt sadding rack guide rail, steady running, patterns are more precise, lower thread break rate.
Principal axis adopt the frequency conversion device.
Adjust speed by computer system and the speed can reach 500-1000r/min, the stitch can be set between 2-8mm.
Adopt the mouse make patterns directly and compatible with embroidery file format(DST/DSB)
Can 360°random quilting and limitless multi-span and independent quilting
The compensation function, an effective solution for looping patterns with thick material.
Advanced and practical testing upper thread broken techniques, the machine will auto-stop when thread is broken.
Fuselage of beam is reinforced and the machine runs more stably.
Adopt automatic refueling system to extend bearing life.
Packaging & Shipping
All our machines are packed in elastic film or wooden case as required before shipping.The goods can be shipped 20 days after receiving advance payment.
Our Services
Guarantee: 1 year.
After-sale service: Engineer can send to customer factory for installation, and customer staff can come our factory for training for free.
CE and ISO9001:2008 approved.
FAQ
- Voltage:Our country's voltage is 380v/50HZ,220v/60HZ. Please be sure to tell us your country's rated voltage before shipping.
- Payment terms: TT:30% in advance, 70% was paid off before delivery.
Company Information
Our company is specialized in manufacturing computerized multi-needle quilting machine,
computerized non-shuttle multi-needle quilting machine,cutting machine and bobbin winding
machine,more than 10 kinds of products.
It passed the ISO9001 Quality Management System,and was honored as "Private Scientific and Technological Enterprises" by Dongguan city Science & Technology Bureau and Dongguan City Intellectual Property Bureau.Yuxing machines get a high credit standing at the correlative industry.
We always insist the tenet of "Honest Business,Credit First".In the condition of fierce competitive market,we make progress and get innovation constantly.We firmly believe high quality and good service are the best support for users' trust.
Welcome to visit our factory!!^_^
