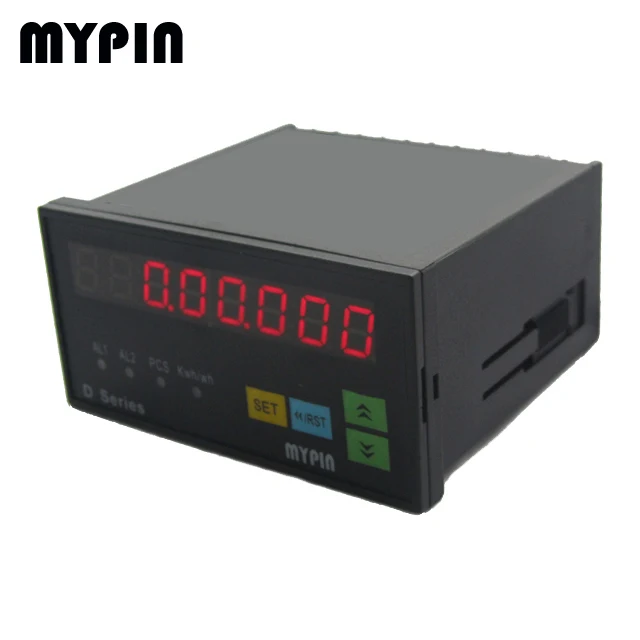

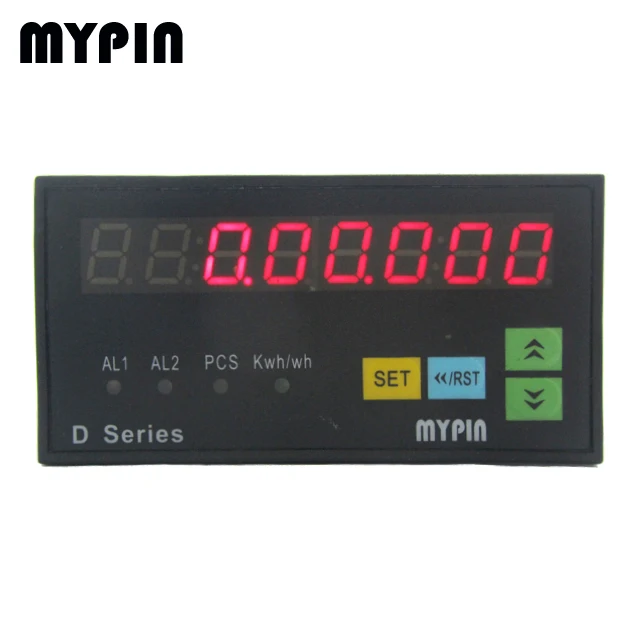

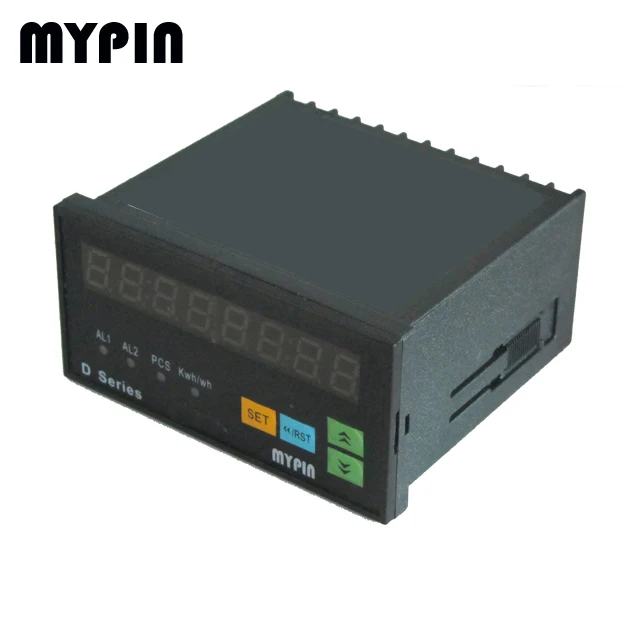

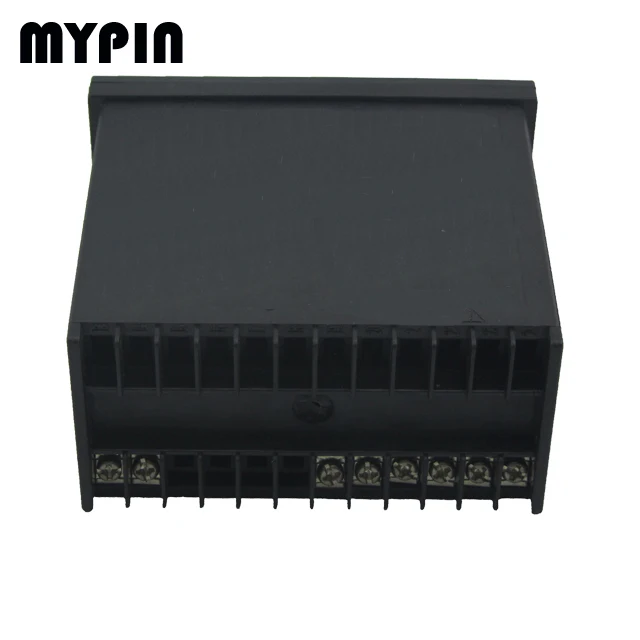

8 digits LED Pulse counter, digital counter meter(MYPIN)

Product Overview

Description

8 digits LED Pulse counter(MYPIN)







1, Various wave form pulse input,contact switch,encoder(NPN PNP) to used with available;widely

    used in line of machinery,food,package,etc for measuring not only height, location, angle,length,

    counting, batch.

2, Opical isolation for input and output,high anti-interference.

3, Output: 4 input mode with 8 output mode,up to 3 segments output with output control mode set

    freely.

4, Display: 8 digits display,high precisionmdemical point floating,sensor power supply

    12V/24V/30mA available.

5, RS232 or RS485 Modbus RTU protocol, connectable with various equipment,computer or PLC

    directly.

6, Power supply:regular: 80-265V AC/DC,others:12--30V AC/DC indicate when ordering.

7, Dimemsions: FH8: 48*96*80, Case class:IP65..









1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

 2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

 3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.









Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..



Additonally,OEM service,Design service offer, Buyer laber offer.
