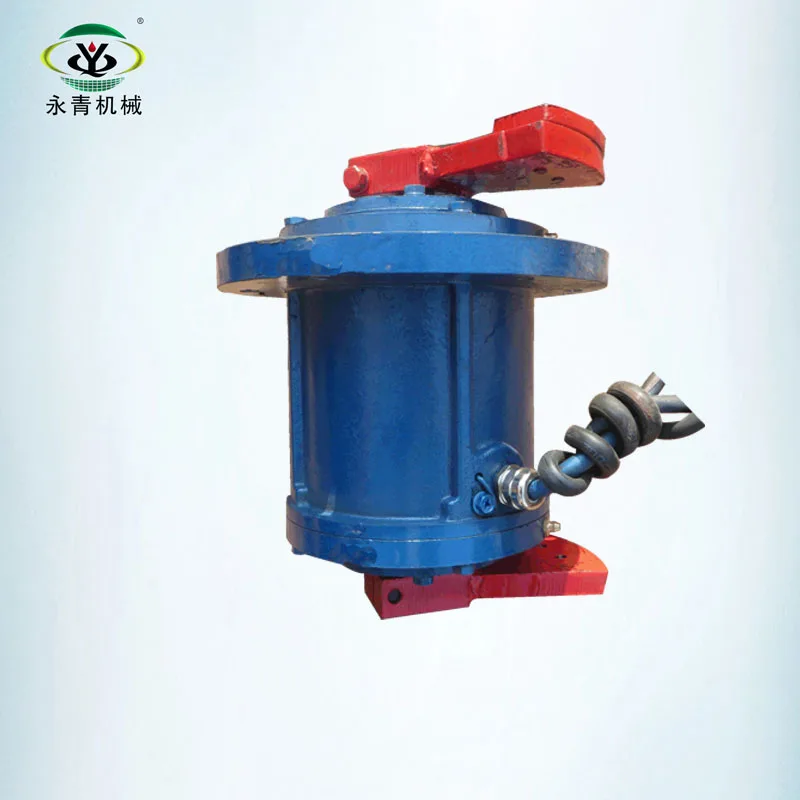

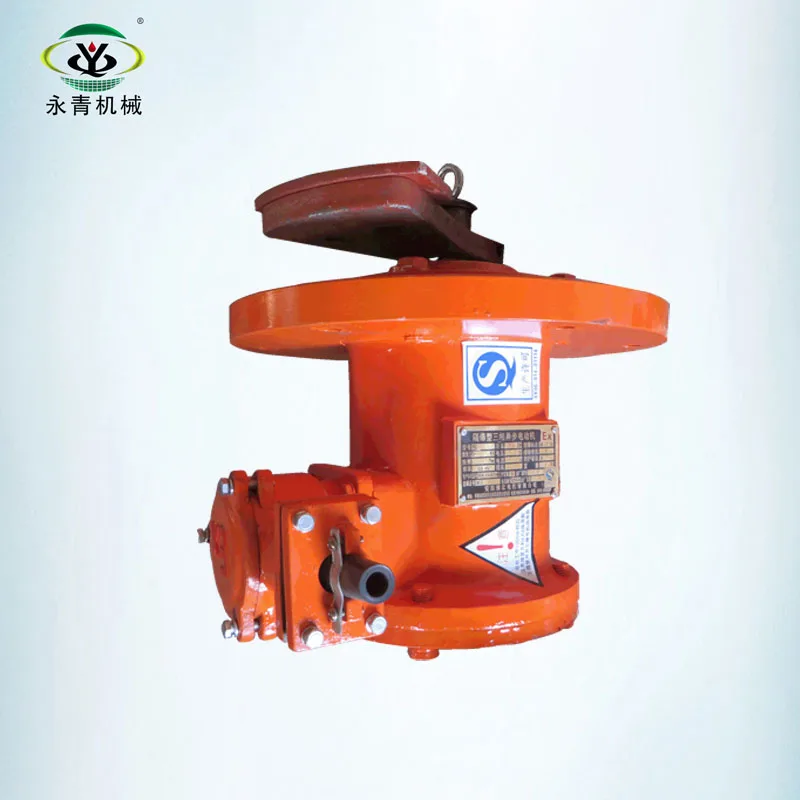

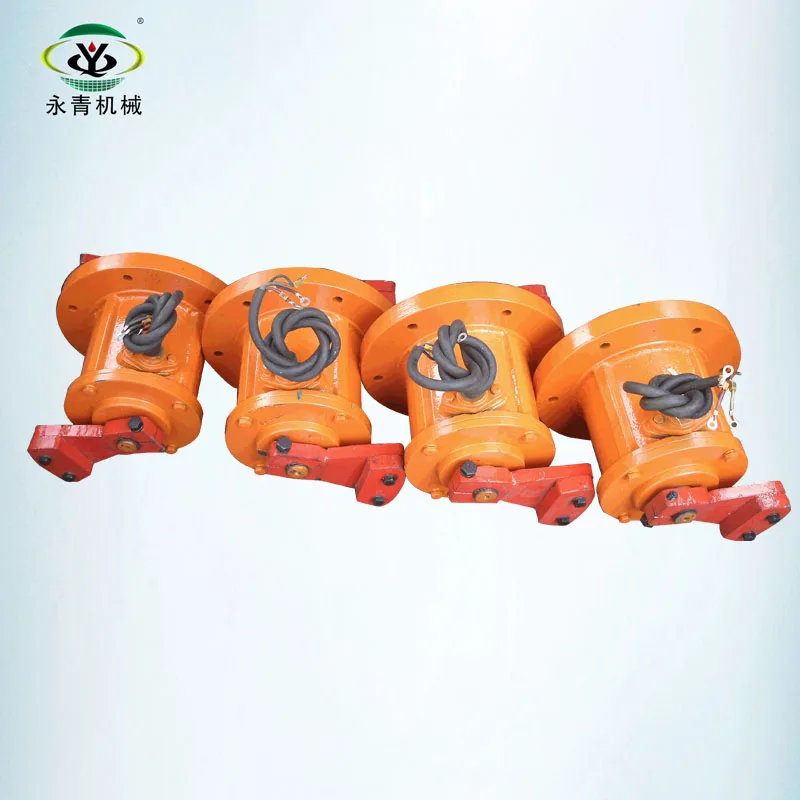

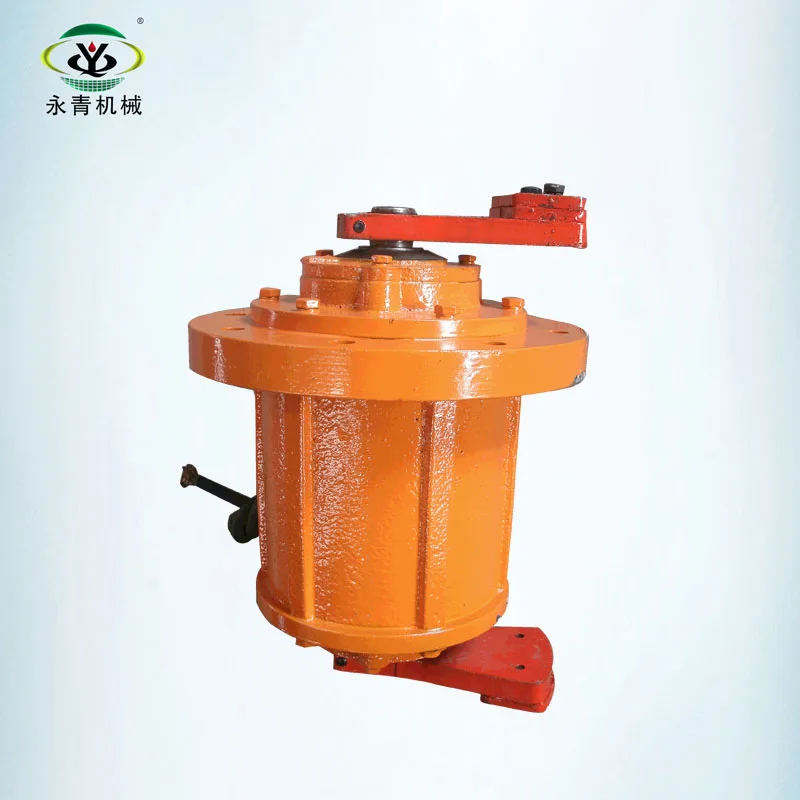

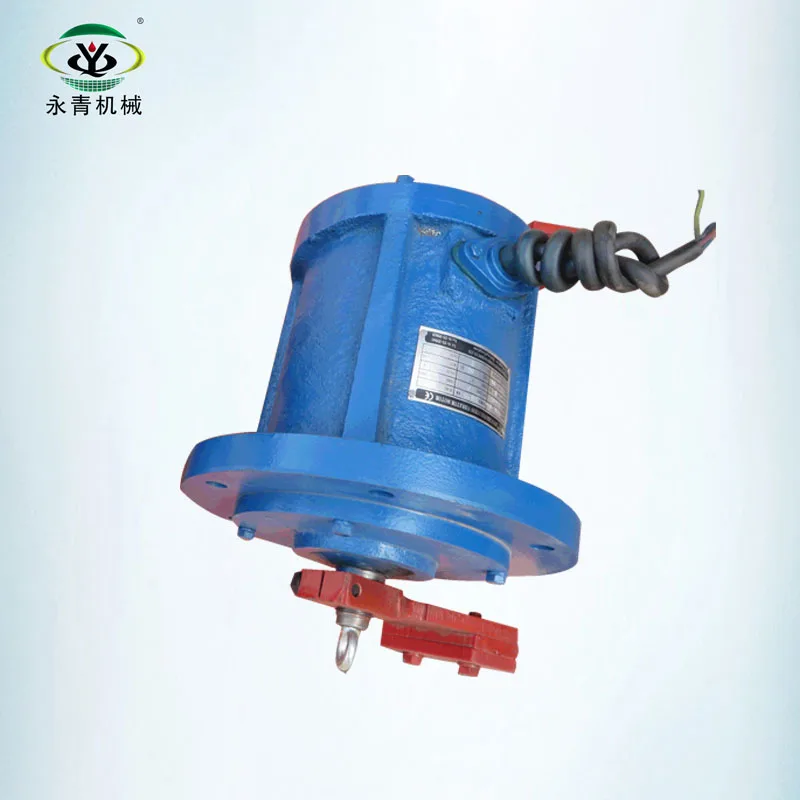

YZUL series vertical vibration motor for rotary sieve used in food and chemical industry

Product Overview

Description

YZUL series vertical vibration motor for rotary sieve used in food and chemical industry



Introduction:



It  is special asynchronous vibrating source uniting motive power source and vibrating source into once, it and can be used to equip vibrating  screen, vibrating feeder, vibrating conveyor, vibrating ore drawing machine, vibrating shakeout machine, vibrating platform (plain bumper), bulkhead vibration.



Features:



Rated voltage: 220/380V    Rated frequency: 50/60Hz   Phase: Three

Protective grade: IP55   Insulation grade: F   Work system:SI

Ambient temperature: below 100°C        Altitude: below 1000m



Vibrating motor Parameters
Model	Exciting force	Rotation speed	Power	Voltage	Weight
YZUL1-4	1KN	4 pole 1500rpm	0.12KW	110/220/380/415/450V 50/60HZ  3phase	12kg
YZUL3-4	3KN	4 pole 1500rpm	0.18KW		23kg
YZUL5-4	5KN	4 pole 1500rpm	0.25KW		28kg
YZUL8-4	8KN	4 pole 1500rpm	0.55KW		39kg

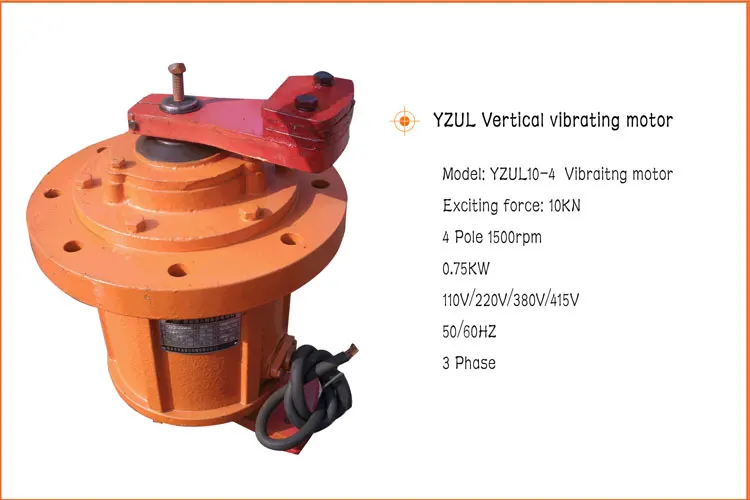

YZUL10-4	10KN	4 pole 1500rpm	0.75KW		65kg
YZUL15-4	15KN	4 pole 1500rpm	1.1KW		71kg
YZUL30-4	30KN	4 pole 1500rpm	1.5KW		85kg
YZUL50-4	50KN	4 pole 1500rpm	2.2KW		160kg
