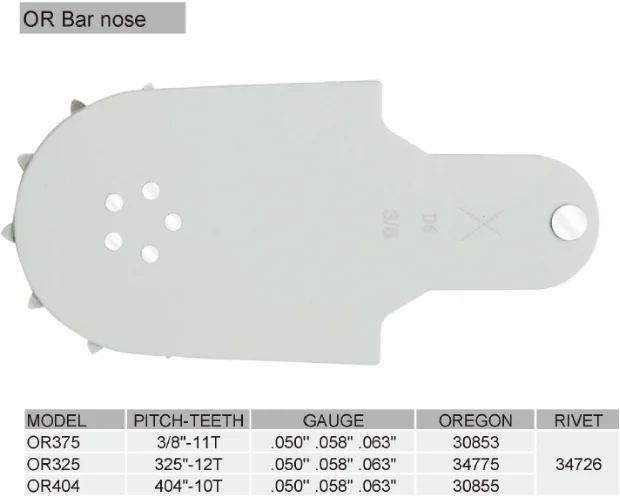

Chain saw steel guide bar nose for replacement bars

Product Overview

Description



Chain Saw Steel Guide Bar Nose For Replacement Bars



1) Parameters of bar nose



name of commodity	PITCH TOOTH COUNT	GAUGE	N.W(g)	measurement
WS375(STA-375)	3/8"---11	.050",.058",  .063"	150	36*21*22
WS325(STA-325)	.325"---12	.050", .058", .063"	150	36*21*22
WS404(STA-404)	.404"---10	.050",.058",  .063"	150	36*21*22



name of commodity	PITCH TOOTH COUNT	GAUGE	N.W(g)	measurement
ST375	3/8"---11	.050",.058",  .063"	170	36*21*22



name of commodity

PITCH TOOTH COUNT

GAUGE

N.W(g)

measurement

OR375	3/8"---11	.050",.058",  .063"	190	36*21*22
OR325	.325"---12	.050",.058",  .063"	190	36*21*22
OR404	.404"---10	.050",.058",  .063"	190	36*21*22



name of commodity	PITCH TOOTH COUNT	GAUGE	N.W(kg)	measurement
GB375	3/8"---11	.050",.058", .063"	130	36*21*22



name of commodity	PITCH TOOTH COUNT	GAUGE	N.W(kg)	measurement
SV375	3/8"---9	.050",.058"	70	36*21*22



2) Material: we import material from the USA and Switzerland directly, and also for the equipment, imported from Germany and Taiwan, all of these make our quality much better than any company in China.

3)Heattreatment: using the most advanced laser heattreatment machine which was imported from Germany to make the process, and the edge hardness could be 60 degree, and the edge depth is about 0.6mm, long time, good performance.
