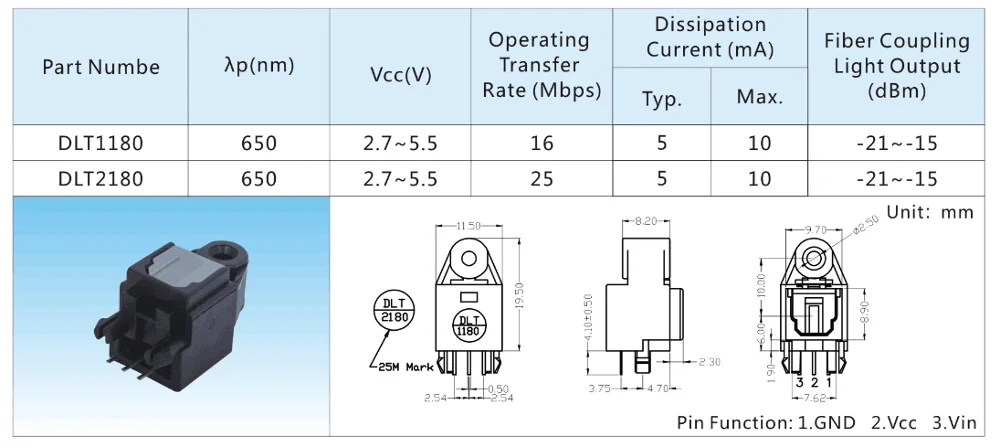

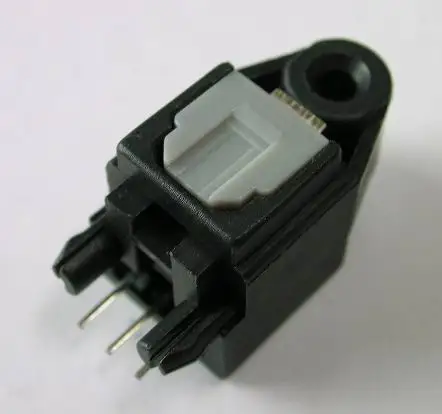

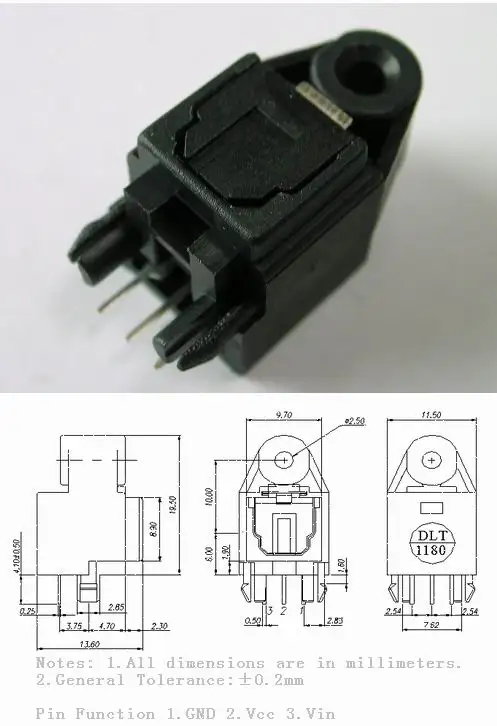

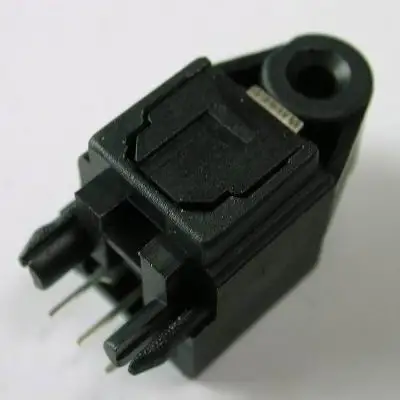

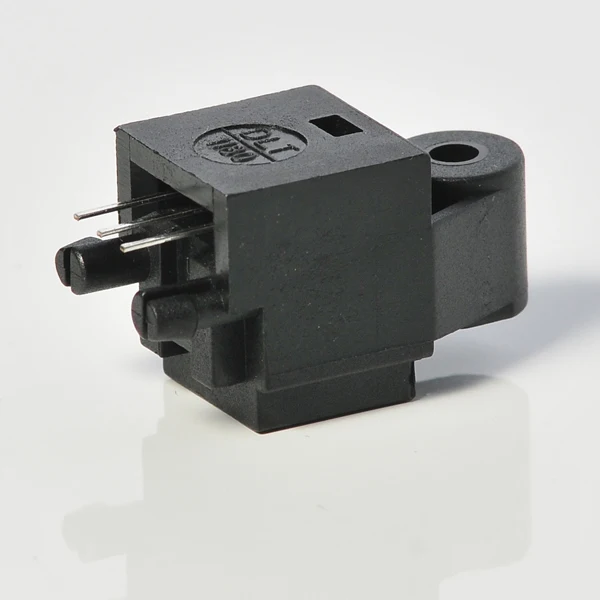

optical fiber socket toslink 25M TX Series DLT2180

Product Overview

Description

Descriptions

The light transmitting unit is a standard-package product with connector and opto-electric component packaged with LED and drive IC. The function of unit changes the electric signal into light signal and be transmitted by plastic fiber.

The unit is operated at single+3V~ +5V and the input signal is TTL compatible. The DLT2180 has a maximum operating speed of 25 Mbps. The light signal is coupled into plastic fiber by connector. The unit has high performance at low dissipation current, steady light output and efficient light coupling.

Applications

· Audio equipment

· DVD player

· PC, Notebook

· Sound card

Optical Fiber Connector Transmitter
