2021 New Design China pipe jacking machine/tunnel boring machine
US $580000-$585000
open face type Tunnel Boring Machine(TBMs)/Pipe Jacking Machines for sale in China
- Category: Pipe Jacking Machines >>>
- Supplier: Realtop Heavy Industry Co. Ltd. [Hunan China]Realtop
Share on (2003337550):
Product Overview
Description
250mm~5000mm Pipe Jacking Machine/Tunnel Boring Machine
Company Information
1. more than 10 years experience on manufacturing Pipe Jacking Machine(TBM),
2. Remote-controlled Slurry Balance Pipe-Jacking Machine.
3. Multi-disciplinary technologies in one, such as the machinery units, hydraulic system, electric controller (including PLC), Laser system, measuring device, etc.
4. High efficiency, NO effect on the traffics on surface,good for the environment, lower the cost.
5. More than 20 units in Singapore
6. Concrete jacking pipe, segmental concrete pipe both ok;
7. Customer-built
Tunnel Boring Machine
Our Services
1. On site service support;
2. 12month warranty;
3. Life time service support,

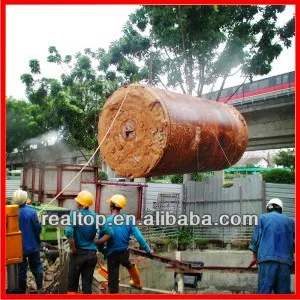

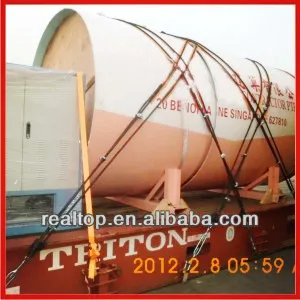

4. Photos of machine on-site
Product Description
we could supply pipe jacking machine model from DG250mm to DG4500, not only for round shape and rectangle shape.
Two hot models for your reference: DG600 and DG1200
Models& Parameters | DG600-QNP | |
Dimention | Inner diameter (mm) | 600 |
Outer diameter (mm) | 780 | |
Total Length (mm) | 3800 | |
Main drive | Rated Power (kW) | 18.5 |
Max. torque (kN·m) | 29 | |
Revolution (r/min) | 6.14 | |
Steering | Steering cylinders | 4 |
Force per cyl. / oil pressure (kN) | 375 | |
Stroke per cyl. (mm) | 35 | |
Steering angle (°) | ±2 | |
Inside hydraulic system | Rated power (kW) | 1.1 |
working pressure (MPa) | 25 | |
Slurry system | Rated Power of Water Supply Pump (kW) | 18.5 |
Rated Power of slurry-out Pump (kW) | 30 | |
Side-Slurry line diam. | 80 | |
Main Jacking system | Rated Jacking Speed mm/min | 0--100 |
Model Name | DG1200-QNP | |
Dimensions | Inner Diameter (mm) | 1,200 |
Outer Diameter (mm) | 1,470 | |
Total Length (mm) | 3800 | |
Cutting Part | Motor Power (kW) | 37 |
Cutterhead Torque (kN·m) | 67 | |
Cutterhead Rotating Speed (r/min) | 0-5.25 | |
Timing Way | VVVF | |
Oil Cylinder of Rectifying | Quantity | 4 |
Thrust Force (kN) | 800 | |
Stroke (mm) | 60 | |
Rectifying Angle (°) | ±2 | |
Hydraulic System | Motor Power (kW) | 1.5 |
Working Pressure (MPa) | 25 | |
Slurry In & Out System | Water-in Gravel Pump(kW) | 22 |
Slurry-out Gravel Pump(kW) | 37 | |
Timing Way | VVVF | |
Main Jacking System | Jacking Speed (mm/min) | 0~80 |
Rated Pressure (MPa) | 31.5 | |
Rated Jacking Force (kN·m) | 2,000 *6 | |
Main Pump Power (kW) | 22 | |
Vice Pump Power (kW) | 15 | |
Timing Way | VVVF | |
