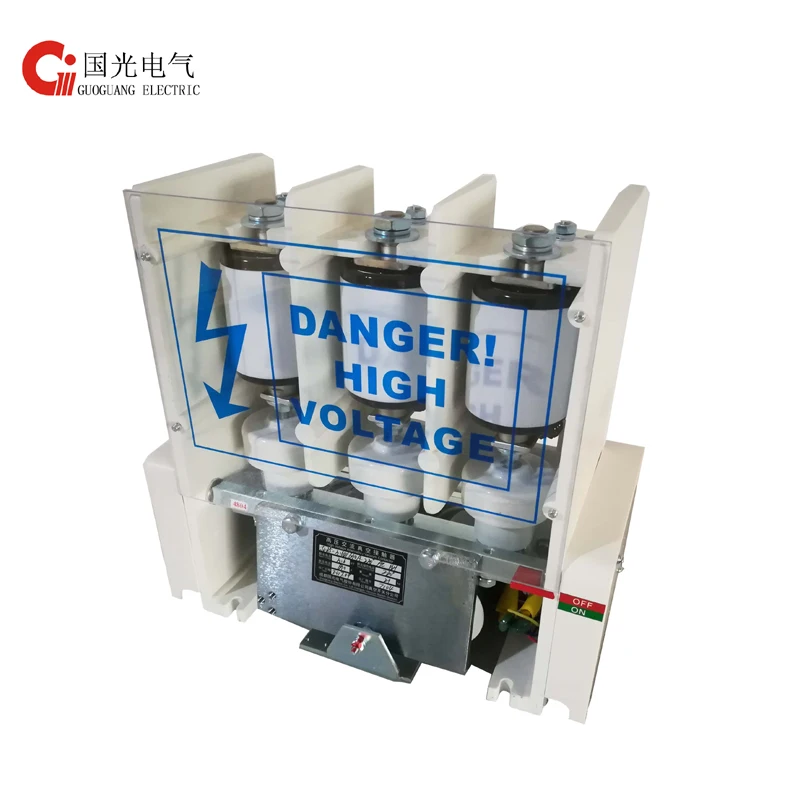

3.6kV Vacuum Contactor, vacuum switch
- Category: >>>
- Supplier: Guoguang Electric Co. Ltd. Chengdu
Share on (200338415):
Product Overview
Description
Products Description
| Usage | Distribution system of metallurgy, mine, petro-chemistry and building, to control the equipments used eletricity |
| Rated current: | 800A, 630A, 400A, 200A |

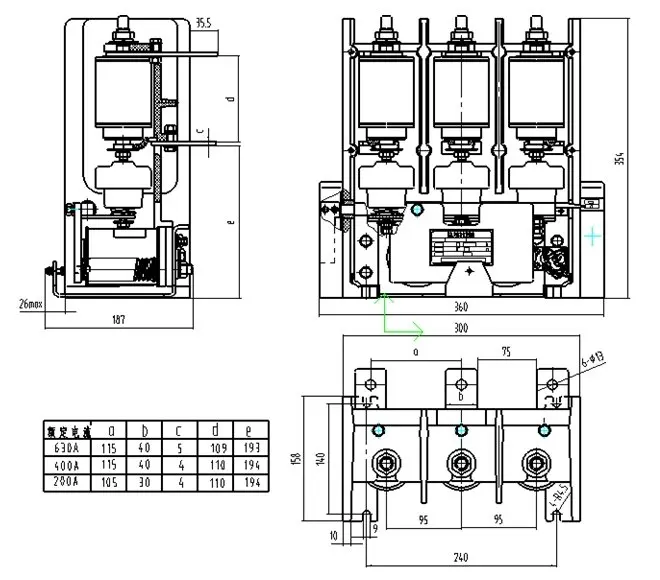

Size: | 360mm*220mm*335mm |
| Electricity life: | AC-3: 25×104 times ; AC-4: 10×104 times |
| Mechanical life: | 30×104 times (J type); 100×104 times (D type) |
| Rated operating frequency: | 300times/h (J type); 1800times/h (D type) |
Rated operating voltage: | 110/220V (AC, DC). |
| Rated interrupted current in maximum: | 6400A, 5040A, 3200A, 1600A |
Rated Making current: | 8000A, 6300A, 4000A, 2000A |
Our Advantages
Product packaging
Certifications
Company Profile
FAQ
FAQ
Q: How could I get price from you?A: Send us the detail like size, weight, the design, etc. Our sales team shall forward you the prices with 12 hours.Q: Does the OEM available? A: We can produce the products as your design. Q: How long it will take to open a new mould? A: 30~35 days. Q: What kind of artwork are available for open a mould? A: AI design or CDR design Q: Do you inspect the finished goods? A: Yes, our QC will inspect products in every step of production. Q: What would be the payment terms? A: 30% T/T in advance as a bond, the balance 70% against documents.
