Lowest stroke 200mm CNC plasma flame cutting machine cutting torch electric lifter
- Category: Other Cutting & Forming Tools >>>
- Supplier: Wuxi Longteng Welding And Cutting Equipment Co. Ltd.
Share on (2003420461):
Product Overview
Description
1)Quick Detail:
1. Lifter for torch height controller
2. Used for oxy fuel cutting torch,plasma cutting torch
3. Gantry CNC Flame and plasma cutting machine use
2) Description:
1>Structural Features
Different ways of motion can be customized as one needs.
It possessed an aluminum integrated structure with compact- size,low mass but high intensity.
It adopts high precision liner bearing system which makes the operation more accurately.
It is easy to install with reliable performance.
3) Applications:
Applicable to CNC flame cutting machine and plasma cutting machine.
Electric lifter makes it possible for a rotating motor to run linearly back and forth by means of screw ans screw pair.A electric lifter equipped with corresponding electrical device can achieve the positioning control of the linear as well as the limit control.
4) Specifications:

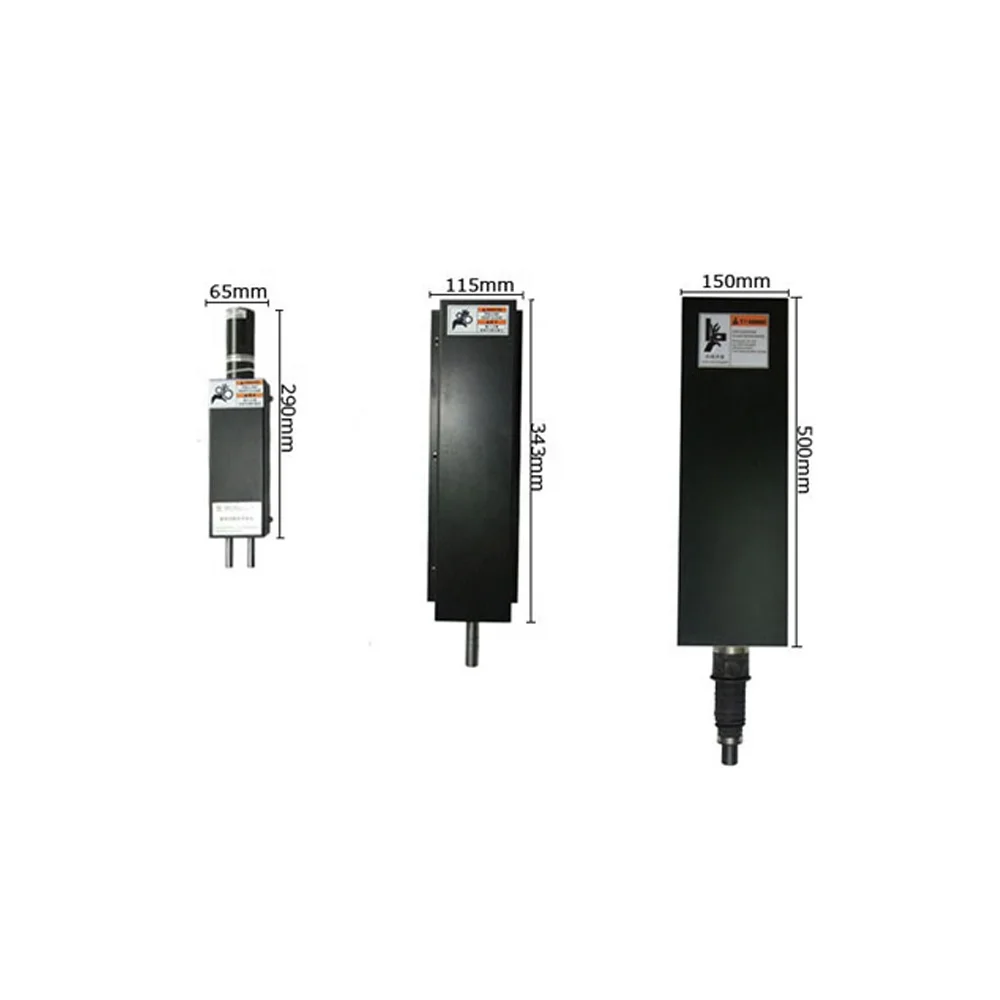

Model No. | Working Voltage | Motor | Working Temperature | Lifting Speed | Lift Range | Self Weight | Maximum lifting Weight |
100 | DC24V 0.9A | 11W | -25°C~60°C | 1200mm/min | Max100mm | 1.9kg | 8.5kg |
150 | DC24V 1.5A | 15W | -25°C~60°C | 1200mm/min | Max150mm | 3.5kg | 14..8kg |
200 | DC24V 2.2A | 30W | -25°C~60°C | 1800mm/min | Max200mm | 11kg | 20kg |

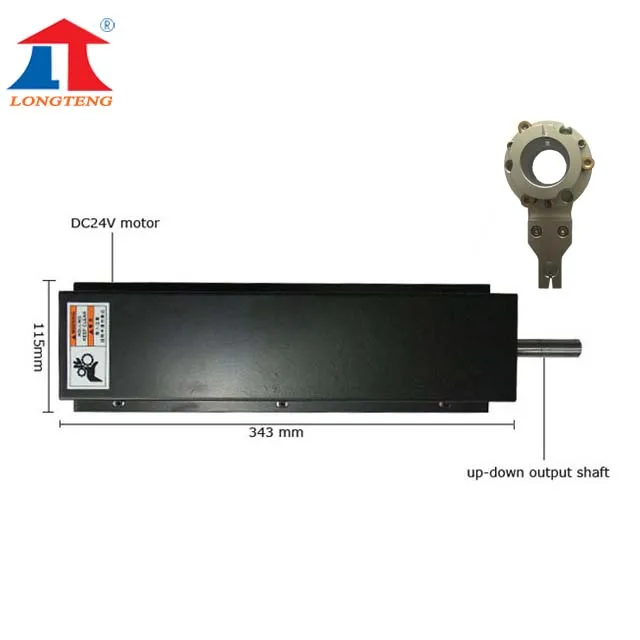

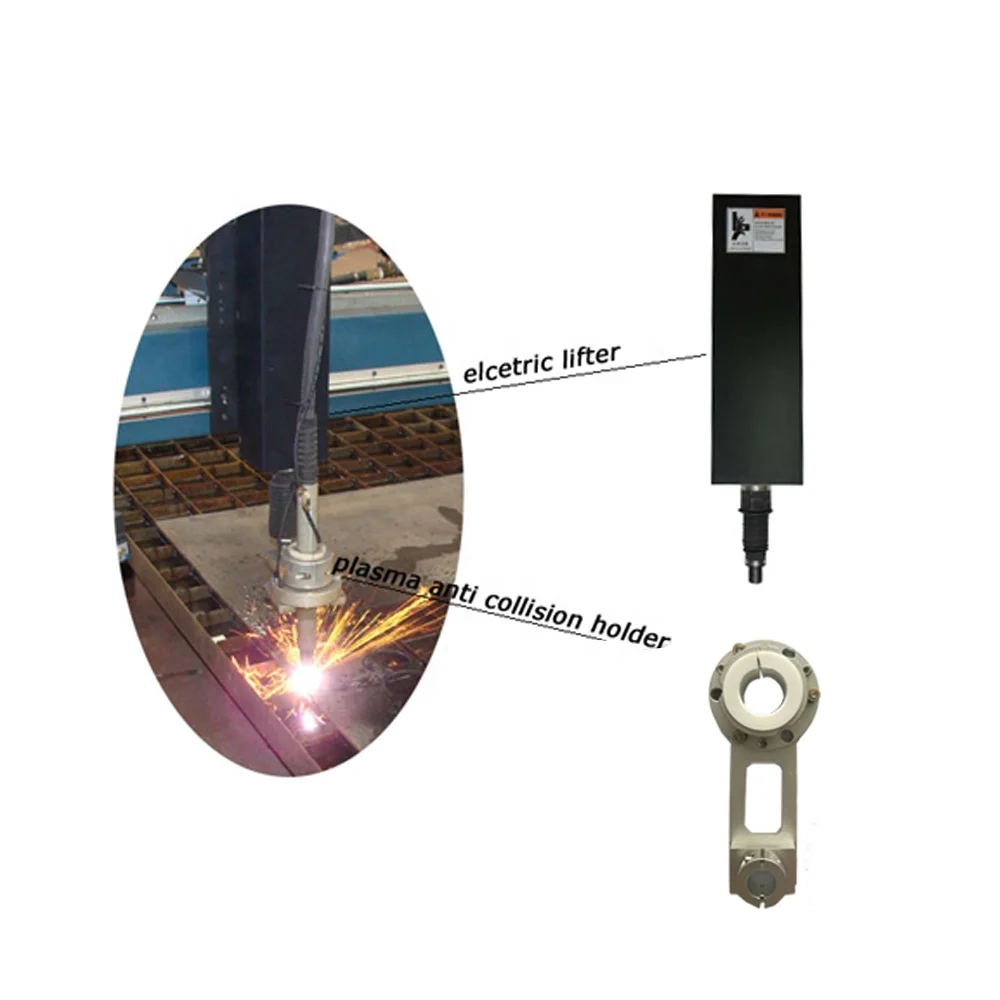

ACM150 electric lifter for table cnc cutting machine, with anti-collision plasma cutting torch holder.

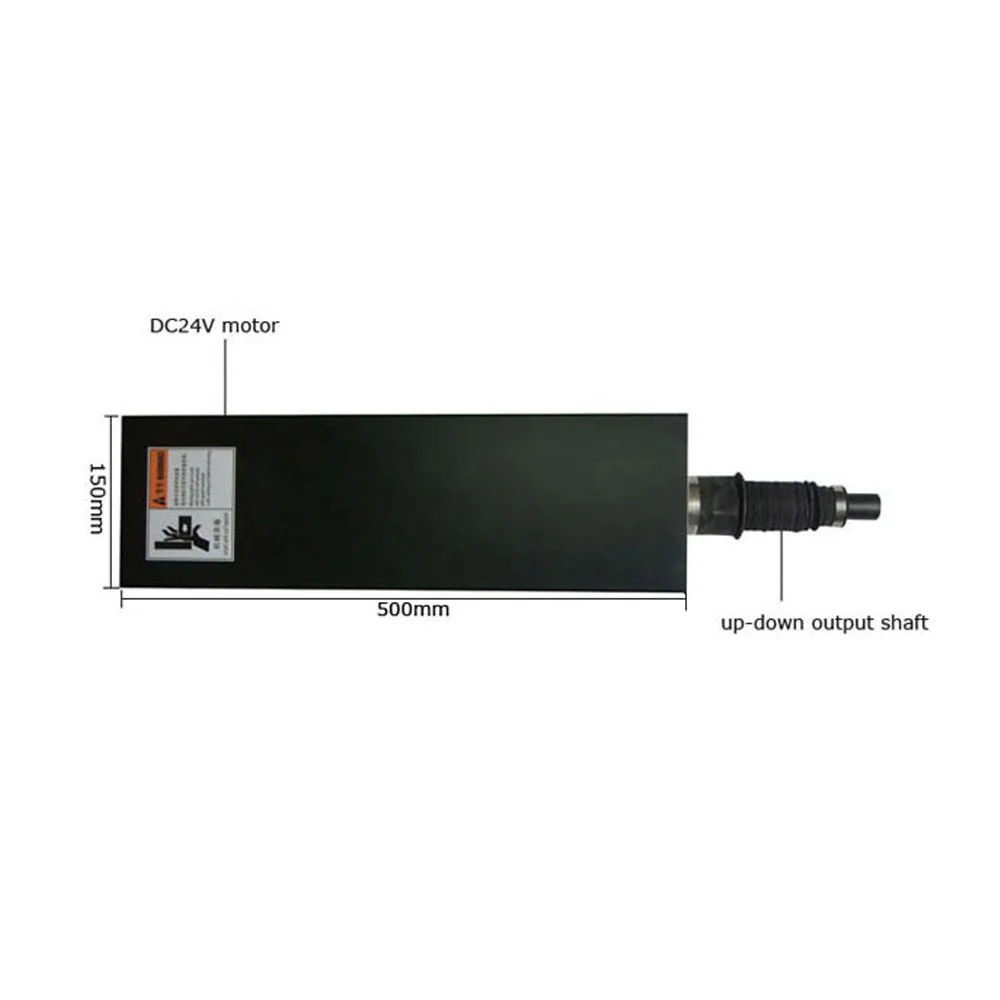

ACM200 electric lifter for gantry cnc cutting machine, with anti-collision plasma cutting torch holder.

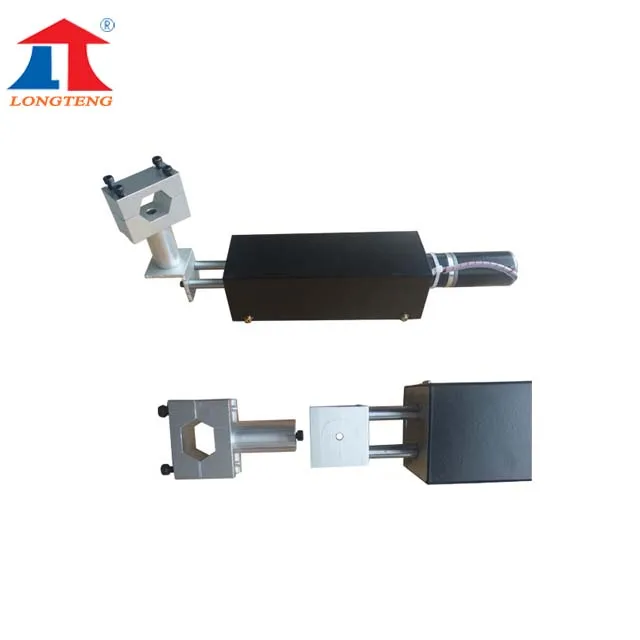

ACM100 for portable cnc cutting machine, with flame cutting torch holder or plasma anti-collision cutting torch holder.
FAQ:
Q1:When the machine can’t work well,What should I do?
A1.(1)Salesman is online for 24-hours, they can check the problems with engineer and then give you solutions as soon as possible.
(2)Our machine is with one’s year warranty, If any problems of machine parts under “normal use”,new machine parts will be sent by air in free.
(3)Please rest assured that operation CD and manual will be offered along with machine,making you can operate the machine easily.
Q2:What’s kind of payment way ?
A2.T/T ,Paypal,Western Union or Trade assurance order in alibaba.
Q3:Can you produce the product according to customers' request?
A3.Sure ,we are the professional manufacturer,just give us the drawing or request for customized.
