Biotechnology Equipments , Laboratory PP Fume Hood

Product Name

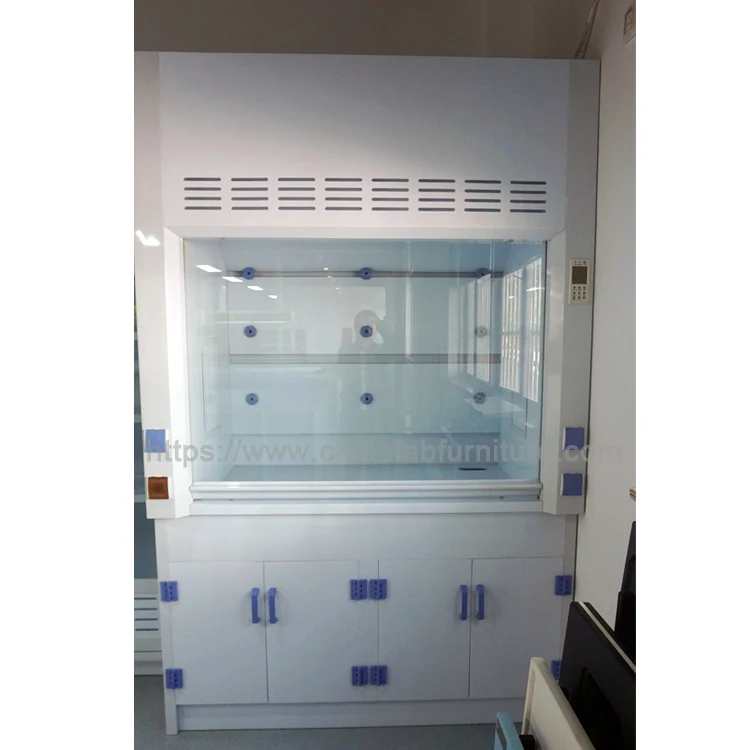

PP fume hood

Size

1200(W)*850(D)*2350(L) mm;

1500(W)*850(D)*2350(L) mm;

1800(W)*850(D)*2350 (L) mm.

Casework

Import PP material , specialize for chemical use

Inside Lining

Import PP material

Worktop

Import PP material

Sash

6mm of tempered glass

Sash Handle

 Import PP material Import PP material .

Illumination

with not less than 300 Lux 30W fluorescent lamp set

Cup sink

Oval shaped PP Cup sink

Water Tap

Molded in one piece copper water tap, epoxy powder coating surface with a ceramic valve.

Valve

1Water valve. (by custom)

Exhausting Duct

Anti-corrosion PP/PVC duct

Plinth

With import PP material , specialize for chemical use

Technical specification

Noise: less than 60db (International standard), Face velocity: 0.5m/s, 220V

Function

With an intelligent automatic delay protection device to exhaust residual corrosion air completely and prolong the service time of fume cupboard.

Socket

4 Electric sockets, (By custom)

Exhaust fan

not include exhausting duct &exhaust fan, will provide after receiving the detailed design of exhaustion duct.
