I.Brief Introduction to Ready Mixed Concrete Batching Plant
Brief Introduction
The HZS/HLS series of concrete mixing plants/towers are developed by HONGDA GROUP on the basis of bringing in the world’s frontier technologies, combining the advantages and technologies of the sophisticated domestic and foreign machines that have emerged in recent years, and taking advantage of the company’s experience in manufacturing concrete mixing equipment for many years. Having reached the national standards, this series of products have passed the test by the NationalBuilding and City Construction Machinery Quality Supervision and Testing Center of China. Besides, products of this series have alsopassed the sci-tech achievement appraisal carried out by the National Science and Technology Commission of China and organized by Shandong Provincial Department of Science and Technology. According to their appraisal, this series of products are “the only products in the same field that have reached the advanced domestic level in general index and attained the advanced world level in such aspects as productivity, noise control, operation and environmental production”. The HZS180 concrete mixing plant in this series was appraised as a new key product of China in 2005.
II.Technical Parameters of Ready Mixed Concrete Batching Plant
Technical Parameters
Model
HZS120
Rated Productivity
120m3/h
Main Mixer
JS2000 (2m3)
Max Aggregate Size
80mm
Aggregate Bin Capacity
4×20m3
Aggregate Conveying Mode
Flat Belt Conveyor
Aggregate Measuring Accuracy
2×3000Kg ±2%
Cement Measuring Accuracy
1200Kg ±1%
Fly Ash Measuring Accuracy
600Kg ±1%
Water Measuring Accuracy
600Kg ±1%
Concrete Mixing Plant Additive Measuring Accuracy
50Kg ±1%
Total Power
160Kw
Gross Weight
62000KG (excluding silos and screw conveyors)
Power Supply
380V/50HZ
Outline dimension (In Service: L×W×H)
44m×18m×12.7m
Discharge Height
3.8 m
Silos (for customer’s choice)
The number and capacity are chosen
according to customers’ requirements.
Screw Conveyors (for customer’s choice)
Each silo needs one φ219 or φ273 screw conveyor

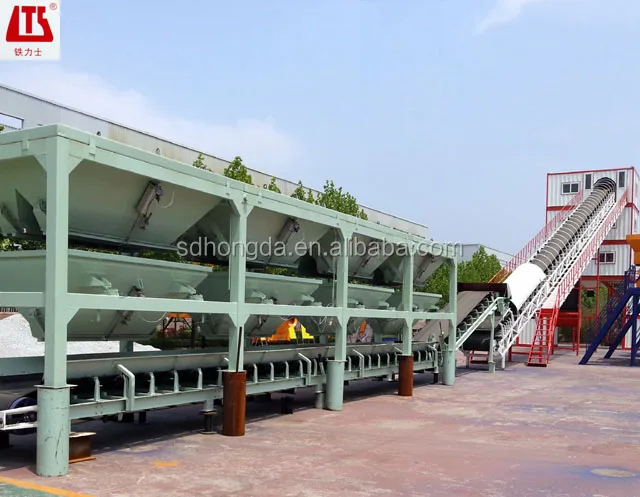

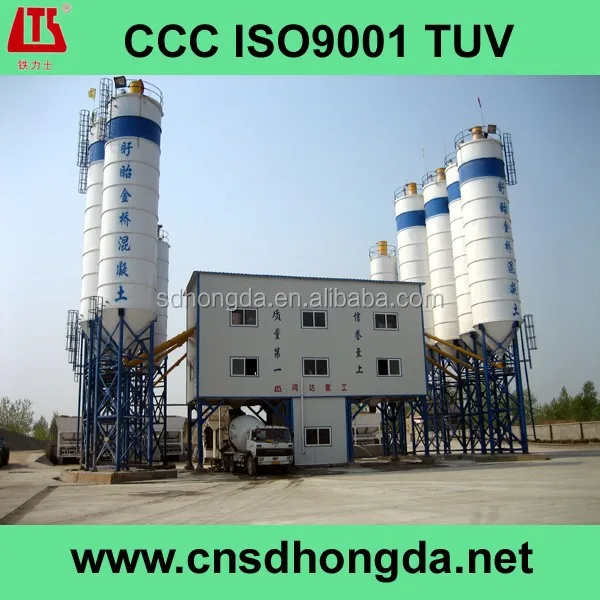

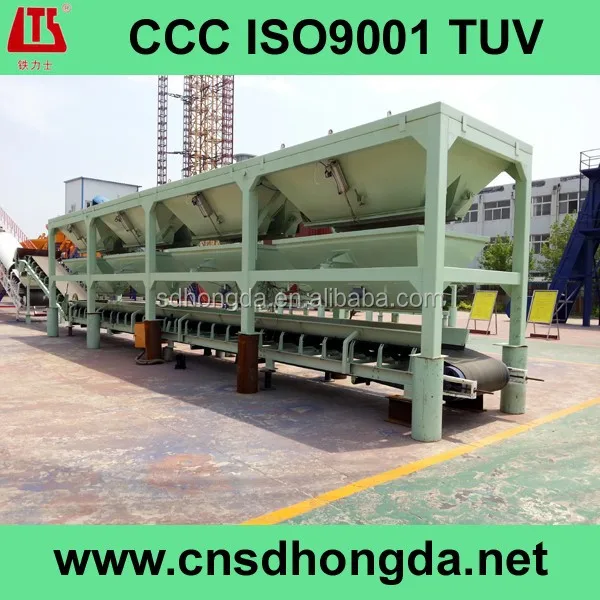

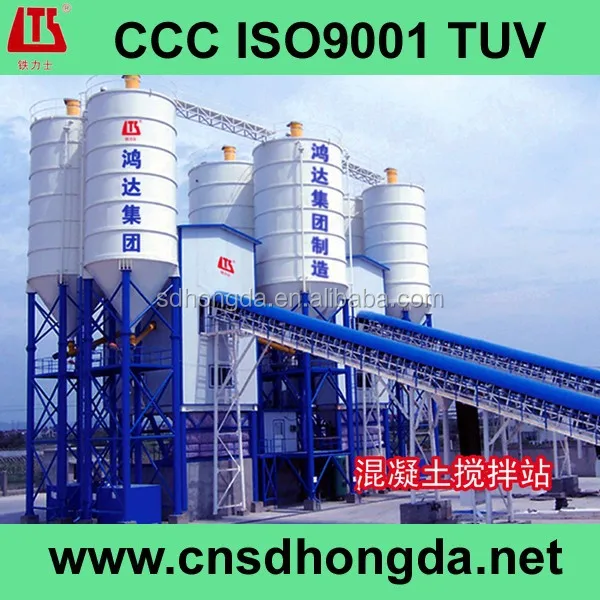

III.Detail Pictures of Ready Mixed Concrete Batching Plant
Detail Pictures
IV.Brief Introduction to Our Company
Our Main Products
We are Shandong Hongda Construction Machinery Group Co., Ltd., a professional construction machinery manufacturer with a history of 29 years. Our registered trademark “Tie Li Shi” (“Iron Giant” in English) has been approved as “Famous Trademark of China”.Our productshavepassed CE, CCC and ISO9001 quality certifications. Our company has been appraised as a Contract-honoring & Promise-keeping Enterprise by the government for many consecutive years.
