LINGZ Bed Lift Hospital Elevator Transporting

Product Overview

Description

Specifications

LINGZ Bed Lift Hospital Transporting

1)Drive type: Traction machine

2)Material: Hairline stainless steel

3)Load capacity: 1600kg

4)Speed: 1.0, 1.5, 1.75 m/s



LINGZ Bed Lift for Hospital Transporting Specificaion

Load (kg)	Speed (m/s)	Door open type	Entrance (mm)	Car size (mm)	Hoistway net size
					Size(mm)	Pit depth	Top floor height
1600	1.0	Center open	1100*2100	1400*2400	2300*2900	1600	4500
1600	1.5	Side open	1100*2100	1400*2400	2550*2900	1600	4500
1600	1.75	Side open	1100*2100	1400*2400	2550*2900	1700	4700

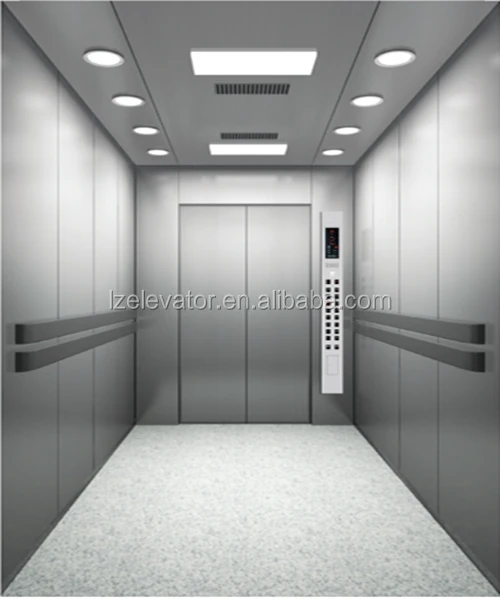

Car optional









Functions List of Bed Lift

• with/without drive operation


• Automatic return to the base landing


• Automatic landing


• Call cancel when begin reverse-running


• Cage door opening when elevator arrives the floor where there is a hall call


• Door opening / closing call indication


• Indication in the cage when hall calling


• Self-Learning of shaft data


• Full load non-stop operation


• Overload alarm, Car Operating panel display: “OL”


• Alarming device


• In-car and m/r inter talk device


• Light and fan auto-control


• Elevator Locking Device


• Door closing time auto delaying


• False-call canceling


• Emergency Light


• Driven over current protection


• Door opening / closing time-limited protection


• Rope sliding protection


• Door Nudging


• Trouble self-diagnosis and memory


• Over speed falling protection


• Top/Bottom landing overpass protection


• Inspection Operation


• Floor display


• Light curtain protection with mechanical safety edge


• Fireman’s return switch

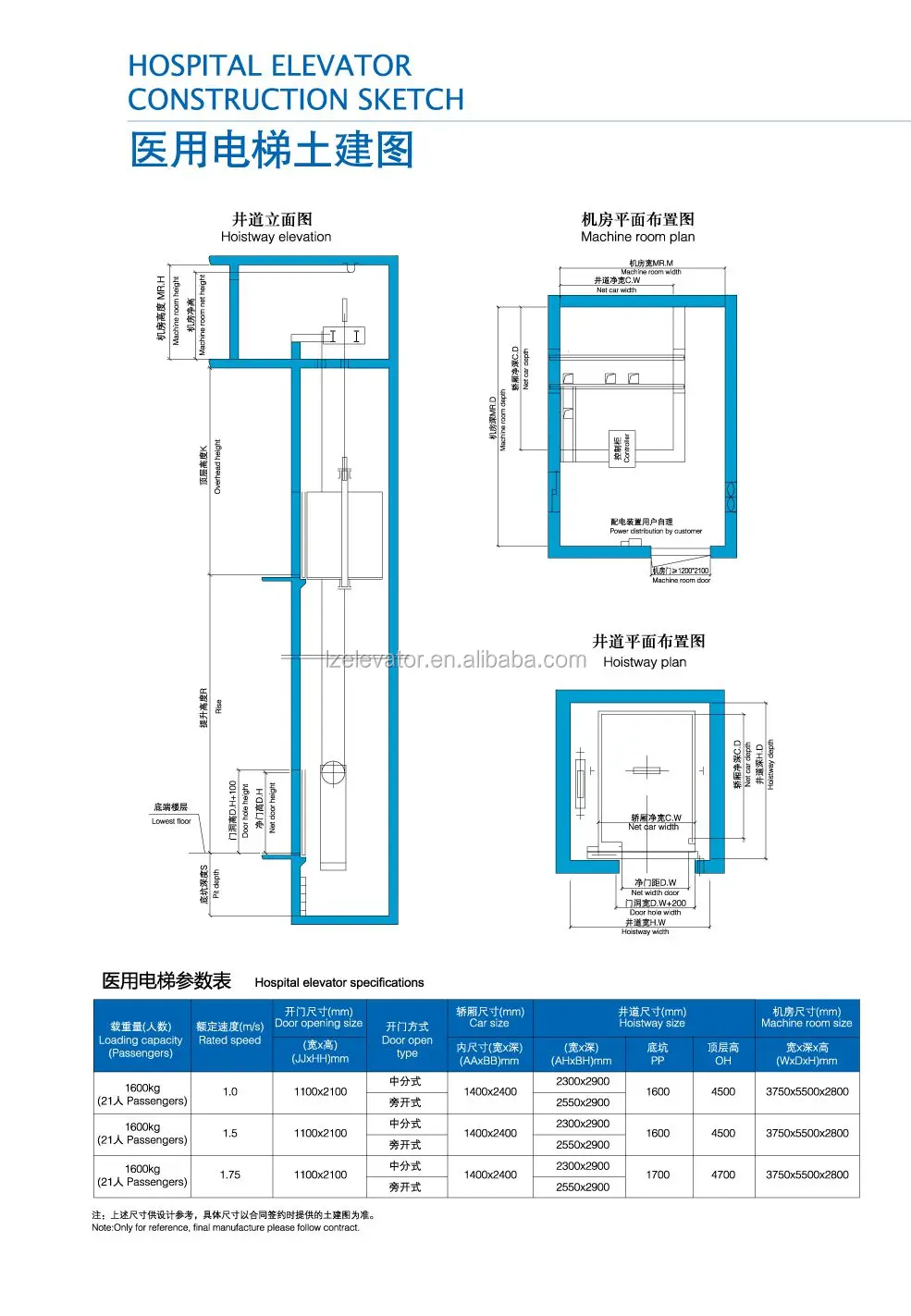

Bed Lift Construction sketch

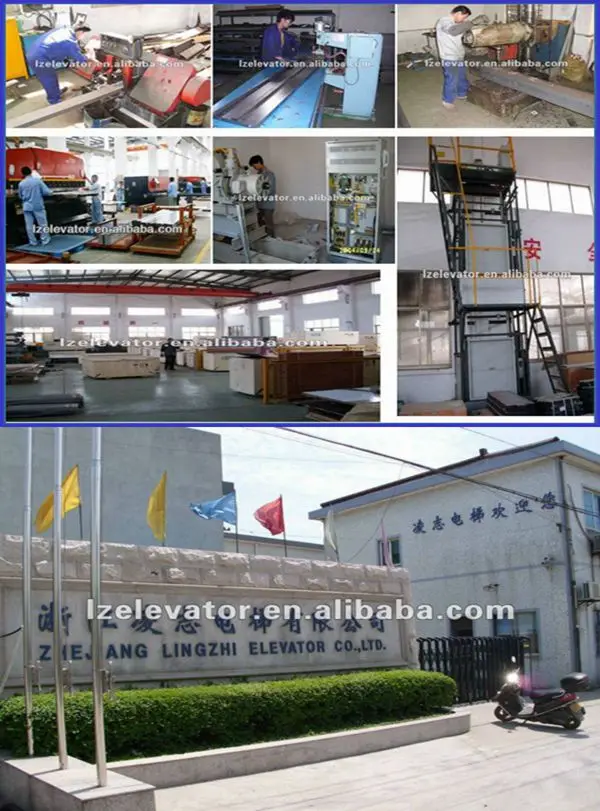

About our factory
