Wireless Magnetic Traffic Vehicle Detection Sensor Replace Inductance Loop Detector

Product Overview

Description





Wireless Magnetic Traffic Vehicle Detection Sensor Replace Inductance Loop Detector





Wireless vehicle detection sensor is designed to sense the presence vehicle on the road through magnetic

technology,which is the same methodology as Loop detector,so the data is accurate and steady as loops.



WVD130x send data to access point via wireless RF, which acts as a gateway between detectors and user system will send up-to-date information to user system through USB, RS-232/485,Ethernet,GPRS etc.

This system can be widely used for traffic application systems.

Adaptive traffic signal control system



Traveler information system

Traffic vehicle counting system









 2.Compared with Loops

In the past 5 more years, Rosim wireless vehicle detecting products had successfully replaced loops to monitor vehicles and the relative velocity, occupy rate and traffic flow in many projects of artery, freeway and intersection applications

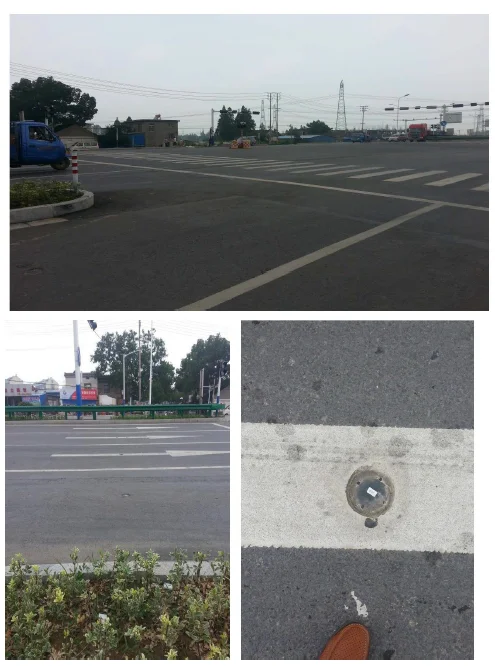

4.Case Study

 Adaptive Traffic signal control system  is one of the most vital issues in urban traffic management.





The time for red light status determination for each approach in the intersection in daily hours, different traffic situation and reliable data from traffic situation in the intersection are much helpful to reduce traffic volume.





In order to this, the red light intelligent controller is always high remarked for urban traffic management and this controller make the final decision based on vehicle presence detection on Real-time mode as input to the controller.

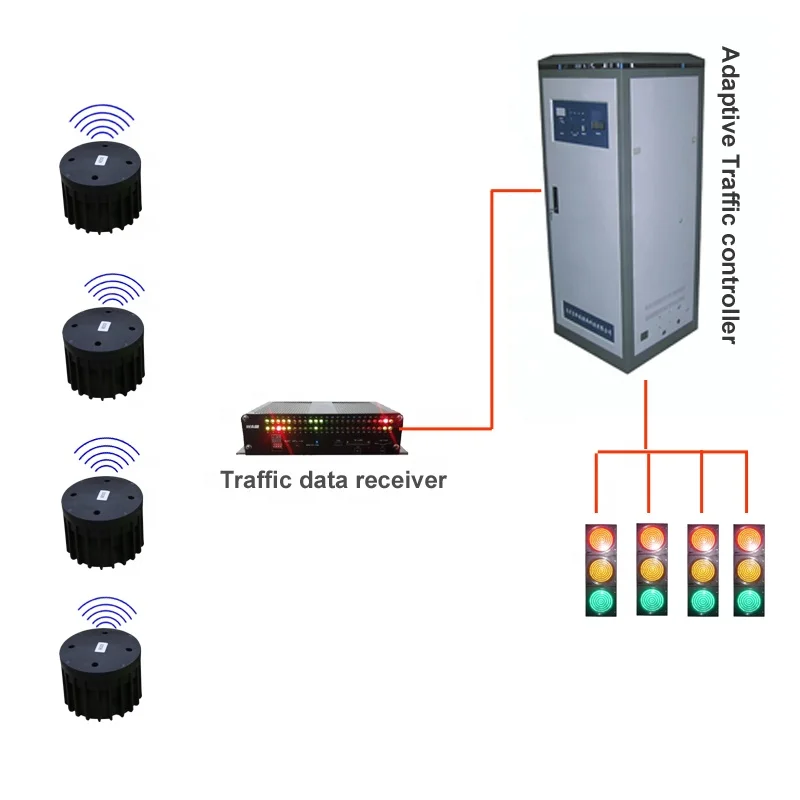

ROSIM WVD130x is the best choice for red light intelligent controller and it provides most accurate data along

 with WAP348x and Controller (installed inside the red light cabinet).





The Different controller is compatible such as SCOOT, SCATS, Tyco can achieve more reliable calculation.

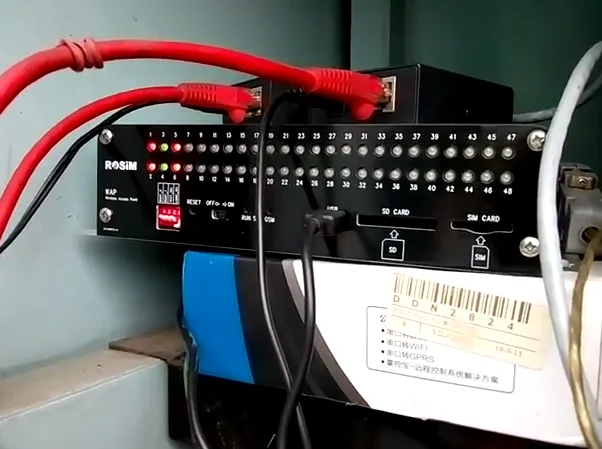

WAP also supply data transmission to your server/platform software for data display, via RS232 or TCP/IP.







5.Demo kit

ROSIM provides demo software for testing purpose, Which is the completely whole solution of traffic vehicle detection.





Optional accessoires as below:
