ZAF100 Best Explosion Proof Corrosion Proof Thermal Imaging Camera Prices
Product Description

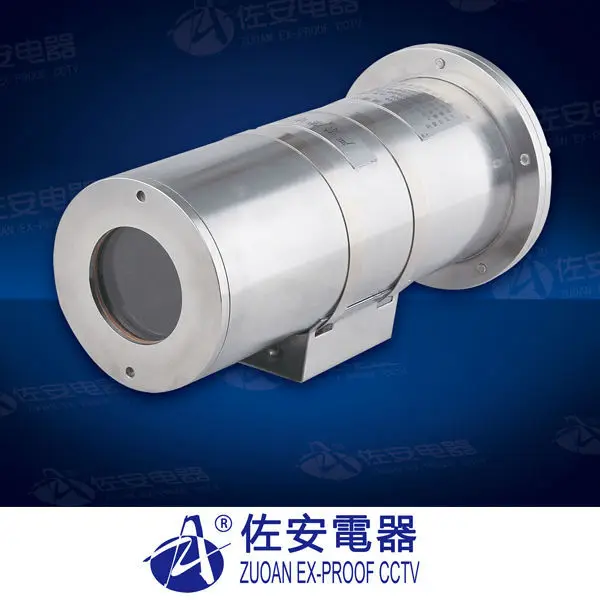

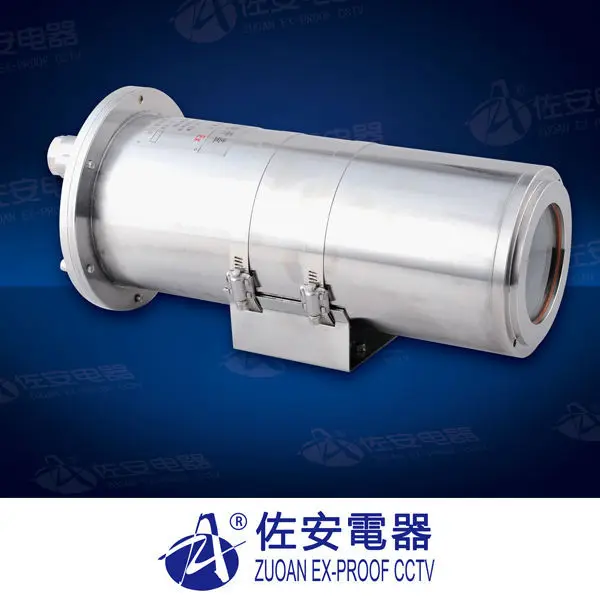

ZAF100 series large stainless steel housing for thermal imaging camera, protect camera against explosion, fire, widely used in harsh environment, industrial area, high corrosion area, marine. with Germanium window with AR/DLC coating for thermal vision . it is Exd type,which lines to GB3836.2, fit for gas zone 1, zone2. Dust zone 20, 21, 22. ZAF100 series's explosion proof marking is Exd II CT6/DIP A20 TA, T6. its dust protection rate reaches to IP66,which means dust tight, and can protect against powerful water jets. The heater de-moisturizes the housing front window , if needed. The cooling module make housing working under 60°C.
want to get the best thermal imaging camera price, pls contact : cookee.leeMain Features
Stainless steel 316L housing
Double ex-proof marking:EXd & DIP
explosion proof/ flame proof/ corrosion proof enclosure
ingress protection: IP66
ir glass window for thermal camera

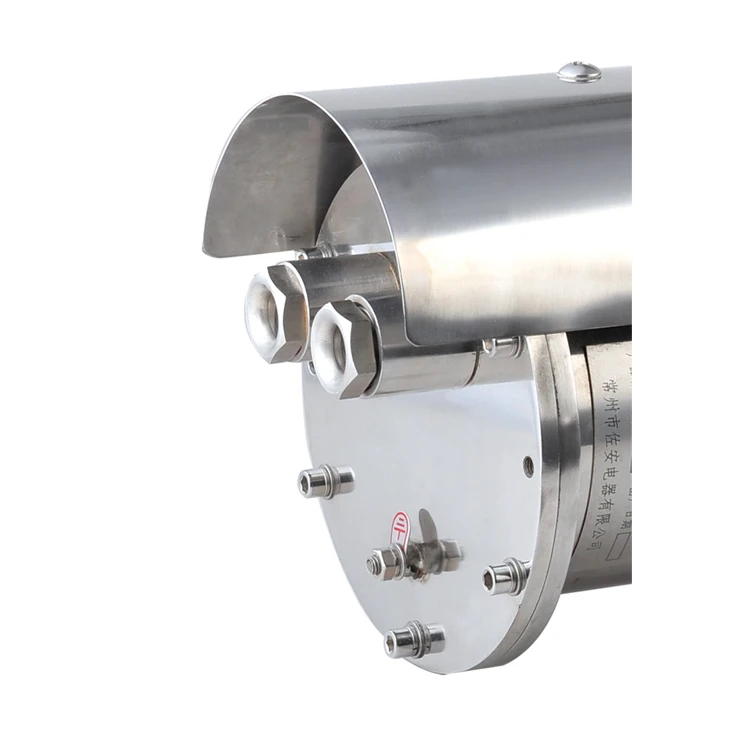

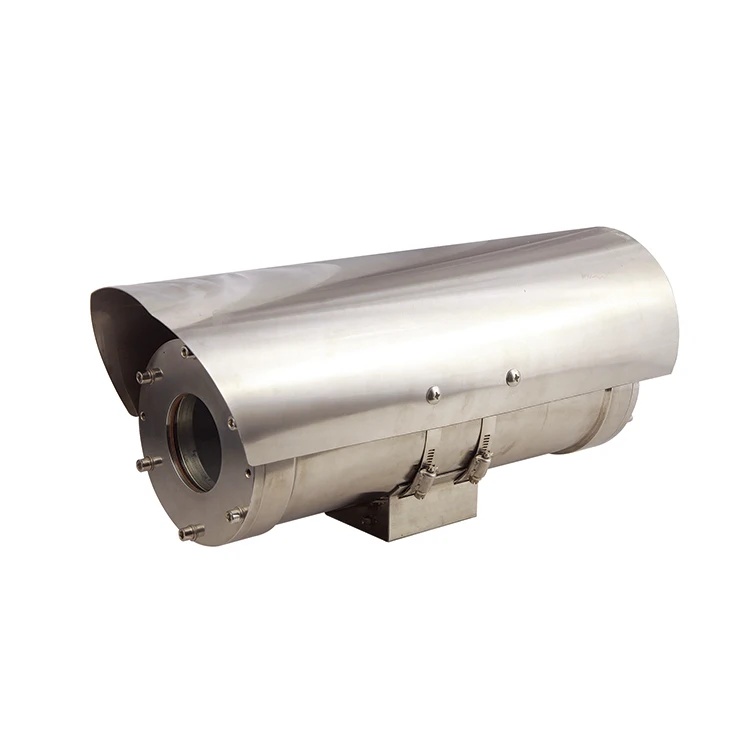

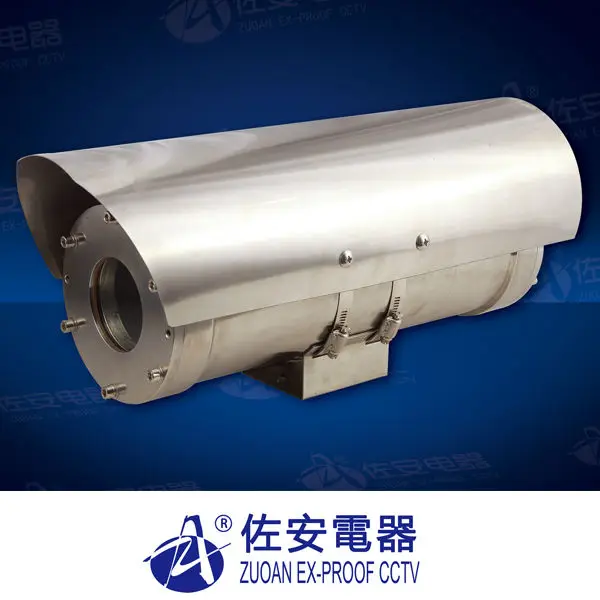

sunshiled protect camera against sunlight, hot,dust, water
wiper system version is available
Wide voltage:AC85~265V
Inner cooling module for high temperature operating place
Applications:
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Product Parameter:
| Model | ZAF100A-S-H | ZAF100B-S | ZAF100-IR |
| Atmospheric pressure | 80KPa~106Kpa | 80KPa~106Kpa | 80KPa~106Kpa |
| Ambient Temperature | –25°c~+60°c (-13°~140°F) | ||
| Relative Humidity | ≤95% (+25°c) | ≤95% (+25°c) | ≤95% (+25°c) |
| Ex-proof mark | CNEX: ·Ex d IIC T6 /·DIP A20 TA, T6 | ||
| CNEX certificate no. | · CNEX certificates no: CNEx 12.0006 | ||
| Ingress Protection | IP66 | IP66 | IP66 |
| Voltage Input | AC85-220V,AC24V, DC24V,DC12V, optional | ||
| Power supply (within) | AC85-265V | AC85-265V | AC85-265V |
| window glass |
Tempered glass for visible light
Zinc selenide with AR/AR coating for thermal vision
Germanium with AR/DLC coating for thermal vision
| ||
| Overall dimension LxWxH | 420*195*194mm 16.5x7.7x7.6in | 420*195*194mm 16.5x7.7x7.6in | 420*195*194mm 16.5x7.7x7.6in |
| Material | SS316L enclosure for harsh environment, marine industry | ||
| Auto-cooling | optional | optional | optional |
| Wiper | yes | yes | yes |
| wiper decoder | yes | yes | yes |
| lens decoder | yes | yes | yes |
| Control | RS485 | RS485 | RS485 |
| control protocal | Pelco-D/Pelco-P | Pelco-D/Pelco-P | Pelco-D/Pelco-P |
| output | AV/ fiber/ twisted-pair/H.264 network | AV/ fiber/ twisted-pair/H.264 | AV/ twisted-pair |
| Brackets and Pan& tilt | ZAZ100-B, bracket for ZAF100A,100B, 102, 103,1031,1032,105,106 series ZAZ104-B, bracket for ZAF104 ZAY200B, pan and title for ZAF100A,100B,102, 106 series ZAY210, pan and tilte for ZAF 103,1031, 104,105 series. | ||
thermal imaging camera:
| detector | uncooled FPA | uncooled FPA |
| resolution | 160*120 384*288 640*480 | 384*288 640*480 |
| pixel pitch | 25μm | 17μm |
| lens | 5mm,9mm,13mm,19mm, 25mm,50mm,75mm,100mm | 5mm,9mm,13mm,19mm, 25mm,50mm,75mm,100mm |
| start time | 6s | 3s |
| electrnoic zoom | 384*288, 2X 640*480, 2X,4X,8X | 384*288, 2X 640*480, 2X,4X,8X |
| size | 160*120,& 384*288, 48.5*49*51mm 640*480 , 69*58*57 mm | 44.5*44.5*37.5 mm 44.5*44.5*43.25 mm |
CCD camera, analog camera, network camera:
Detailed Images
Related Product
CLICK HERE CLICK HERE CLICK HERE CLICK HERE
CLICK HERE CLICK HERE CLICK HERE CLICK HERE
FAQ
What is hazardous locations/ area?
Hazardous locations/ area refer to a place where contains of flammable gas, vapor, VOCs( volatile organic chemicals) dusts, powder. In industry plants like chemical process plant, oil, natural gas, petroleum, offshore platform, refinery, coal mine, handling of large quantities of flammable liquids, dust, gas creates a risk of leaks. Many other area would also have a dangerous concentration of flammable substances during process upsets, equipment deterioration or maintenance, or during an incident.
What is explosion proof products?
To meet the criteria for the explosion proof rating, all explosion proof products have an enclosure, which must be able to contain any explosion originating within its housing and prevent sparks from within its housing from igniting vapors, gases, dust, or fibers in the air surrounding it. it is the enclosures ability to prevent an internal spark or explosion from causing a much larger blast.equipment must meet the temperature requirements of the specific application in which it is to be installed. This means that the operating temperature of the motor (and its enclosure) or other component cannot be greater than the lowest ignition/combustion temperature of the gases or dusts in the atmosphere where the component is to be installed.
What’s the vandal proof/ vandal resistant camera?
A vandalproof camera is a camera and housing intended to resist vandalism, making sure the camera will continue to operate in conditions where people attempt to break it or impair its function.
Buyers should not use vandal proof products in hazardous area, or replace the vandal proof products
as explosion proof products.
