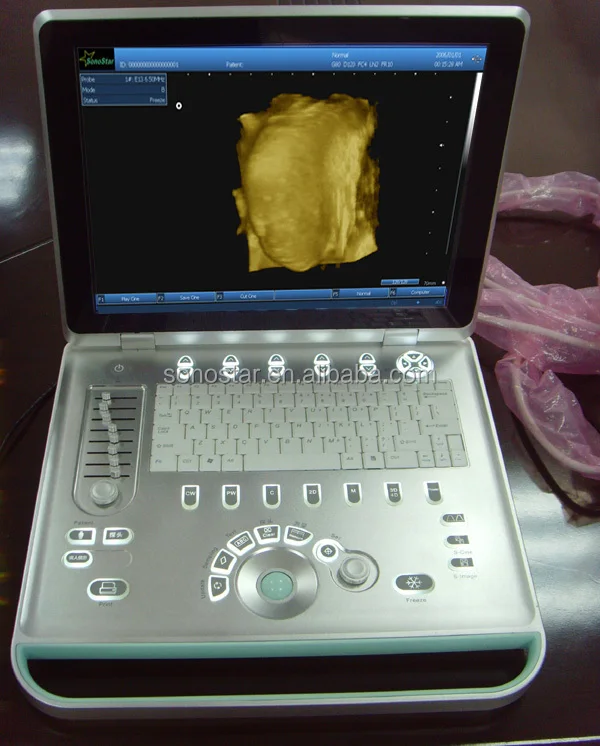

Feature: -3D imaging function -15 inch LED screen, pretty, portable and light
-Pseudo color image display -2 probe connector -Full digital imaging technology, crystal-clear Image -PC based system, abundant functions -Powerful image and report management -Large volume storage image and cineloop -DICOM display and transfer(optional) -Compatible with laser/inkjet printers -Built-in battery(Work 5 hours)
Specification: -Monitor: 15 inch color LED -Display mode: B, B+B, B+M, M, 4B, -Image gray scale: 256 level -Cine loop: Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M -Image storage: >50,000 frames -Scan angle: 60-160 degrees, depending on probe -Scan depth: 20mm~240mm -Dynamic range: ≥100dB, 4-level adjustable -Image flip: Up/down, left/right, black/ white, 90/180/270° -Zoom: Continuously, real-time dynamic PIP -Focus position: Adjustable -Focal space: Adjustable -Measurement: Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc. -Software packages: General, OB, GYN, cardiology, urinary, small organ -Notation: Date, time, name, sex, age, doctor, hospital name, full screen notation -Body mark: 43 types -Peripheral port: Video, S-video, USB2.0, DICOM3.0, VGA -Battery volume: 8,000mAh -Power consumption (MAX): 75VA -Dimension: 35.5*36.6*7.5 CM -Net Weight: 5kgs GW: 12.5Kgs
Standard Configuration: One Main Unit, One 3.5MHz/R60 Convex probe, One Power adapter, Alluminum alloy case

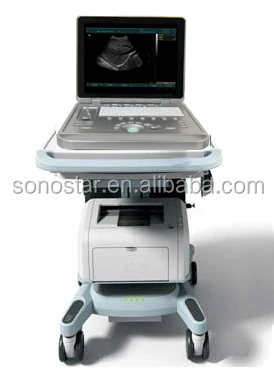

Optional: Linear, Trans-vaginal, Micro-convex,Rectal Probe; 3D software, Trolley; Laser Printer. Extra lithium battery.
Original factory package for better protection in shipment
*****Aluminum alloy case + dual carton package
Certifications
Exhibition
Our Services
1. We offer18 months warranty period, 24 hours calling service. 2. There is OEM&ODM service for distributor. 3. Support iOS, Android, Windows connection, APP belongs to Sonostar, free for lifetime use. 4. 100% Calibration before Shipment. 5. All products will be shipped within1-3 working days upon payment.
