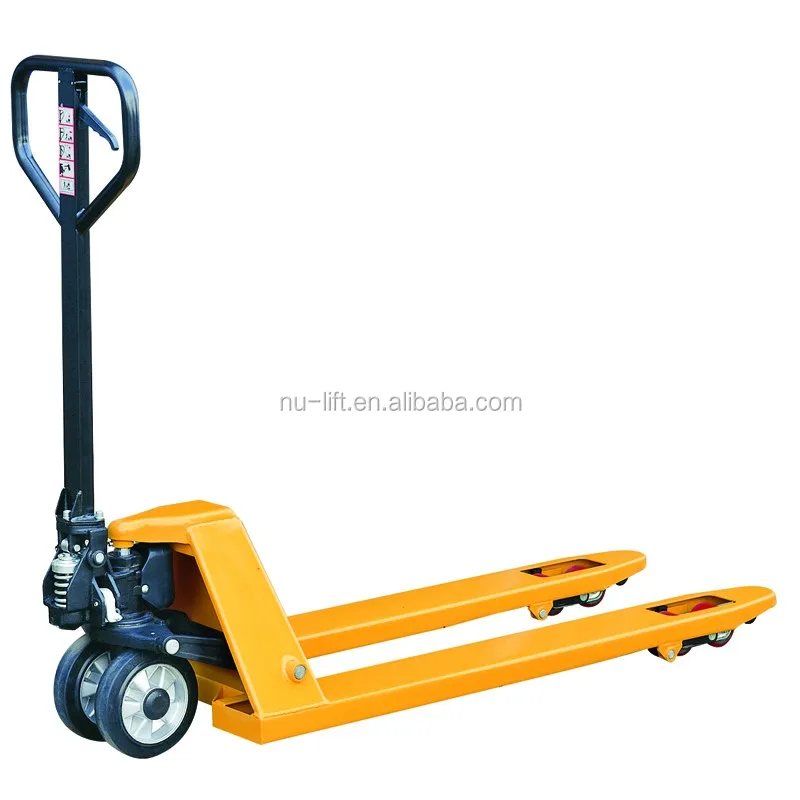

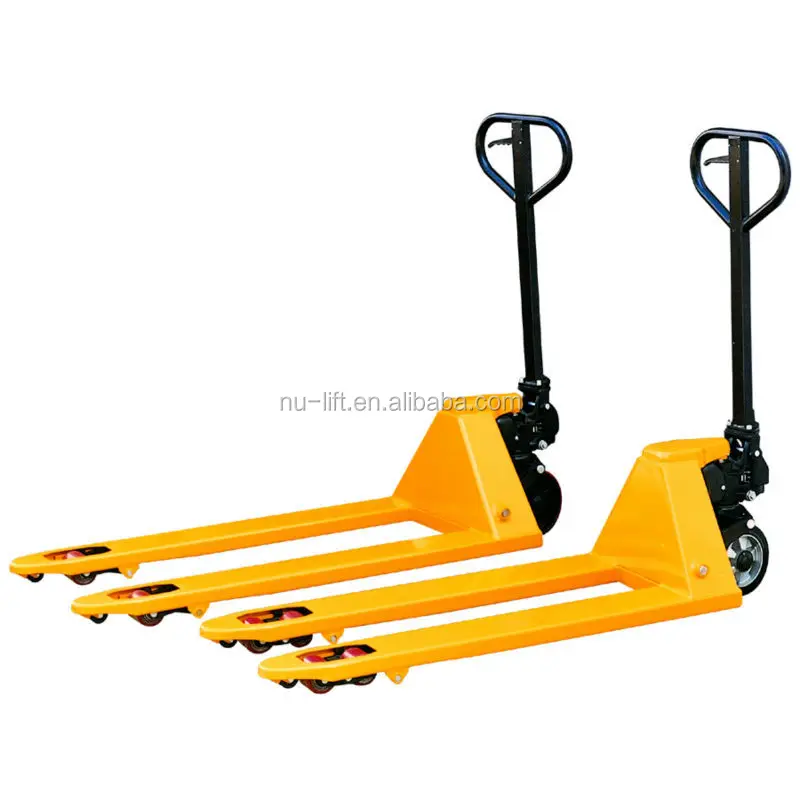

Hydraulic Hand Pallet Truck with German Style Pump top quality
- Category: >>>
- Supplier: Nu-Lift Equipment Co. Limited
Share on (200463263):
Product Overview
Description
Product Description
•Professional Class.
•One of best selling in the world.

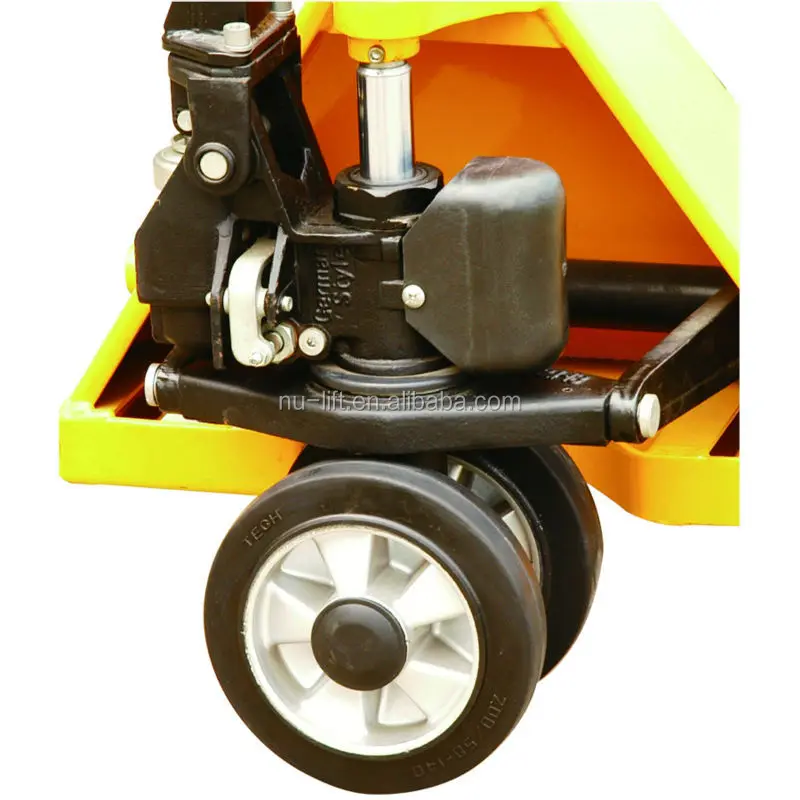

•3 years warranty pump: A built in overload valve and totally sealed hydraulic pump. German seal kit offers long span life of pump for 3 years warranty.
•Heavy duty and reinforced forks for greatest strength and durability.
•2 nylon entry and exit rollers prevent physical exertion of the operator and protect load rollers and pallet.
•Oiless bushings at key points offer you less operating force and longer span life of pallet truck.
•Conforms to EN1757-2.
•Special fork lengths available: 800mm, 900mm, 1000mm, 1220mm, 1300mm, 1400mm, 1500mm, 1800mm, 2000mm.

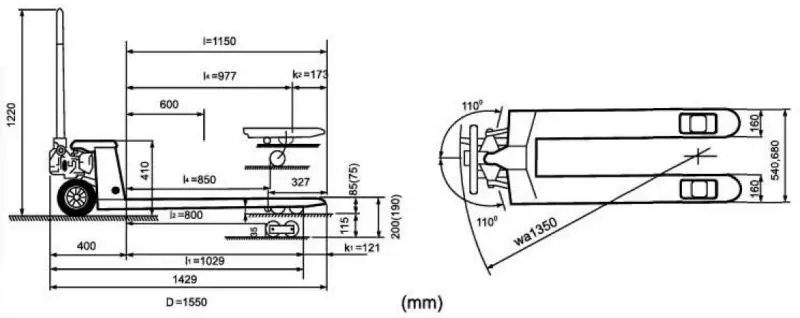

| Model | HP20S | HP20L | HP25S | HP25L | HP30S | HP30L |
| Capacity (kg) | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 |
| Max.Fork Height (mm) | 205 ( or 195 ) | |||||
| Min.Fork Height (mm) | 85 ( or 75 ) | |||||
| Fork Length (mm) | 1150 | 1220 | 1150 | 1220 | 1150 | 1200 |
| Width Overall Forks (mm) | 540 | 680 | 540 | 680 | 540 | 680 |
| Individual Fork Width (mm) | 160 | |||||

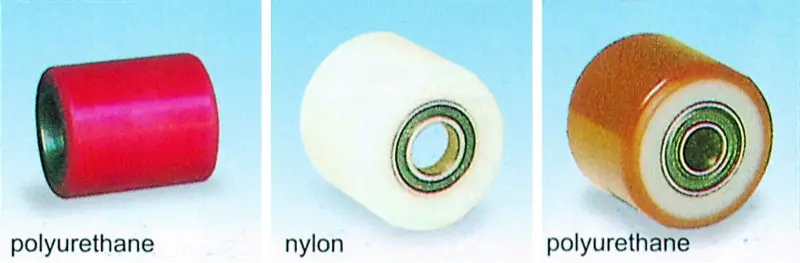

| Load Roller (mm) | 80×70or 70×70Nylon, Polyurethane | |||||

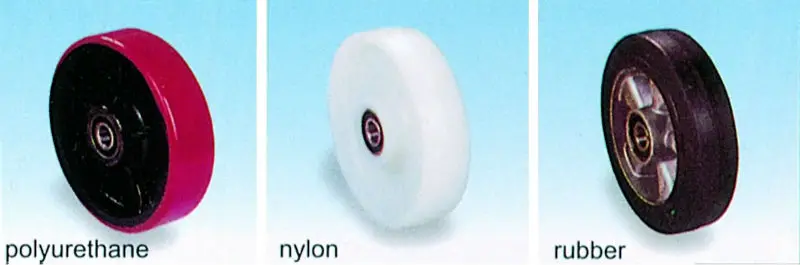

| Steering wheel (mm) | 200×50or 180×50Nylon, Polyurethane, Rubber | |||||
| Net Weight (kg) | 78 | 82 | 80 | 84 | 85 | 89 |
| Quick Lift (6 pump strokes) | HPQ20S | HPQ20L | HPQ25S | HPQ25L | HPQ30S | HPQ30L |
| With hand brake | HPH20S | HPH20L | HPH25S | HPH25L | HPH30S | HPH30L |
| With deadman brake | HPD20S | HPD20L | HPD25S | HPD25L | HPD30S | HPD30L |
| With foot brake | HPJ20S | HPJ20L | HPJ25S | HPJ25L | HPJ30S | HPJ30L |
