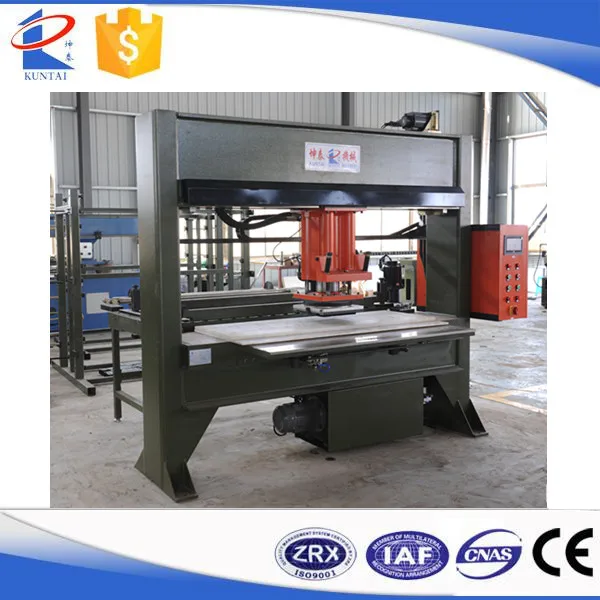

Hydraulic Travel Head Clicking EVA Sole Cutting Machine for Slippers

Product Overview

Description

Automatic Die Cutting Machine

EVA Sole Cutting Machine for Slippers

Hydraulic Travelling Head Cutting Press Machine

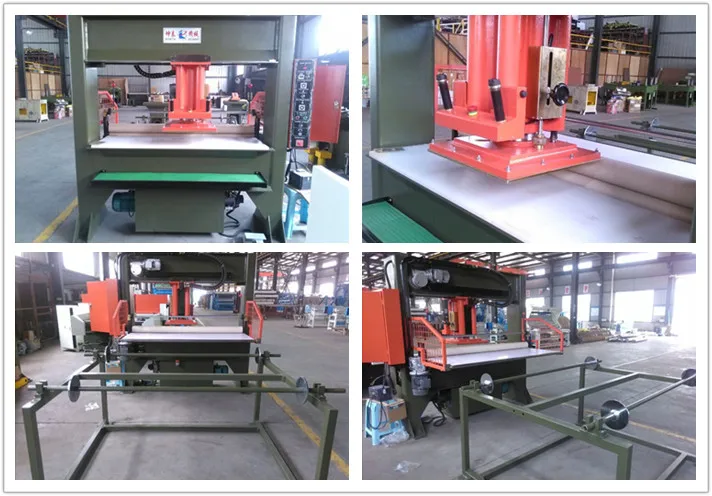

KT-C Hydraulic Travel Head Die Cutting Machine with Auto Feed System



Usage and Characteristics

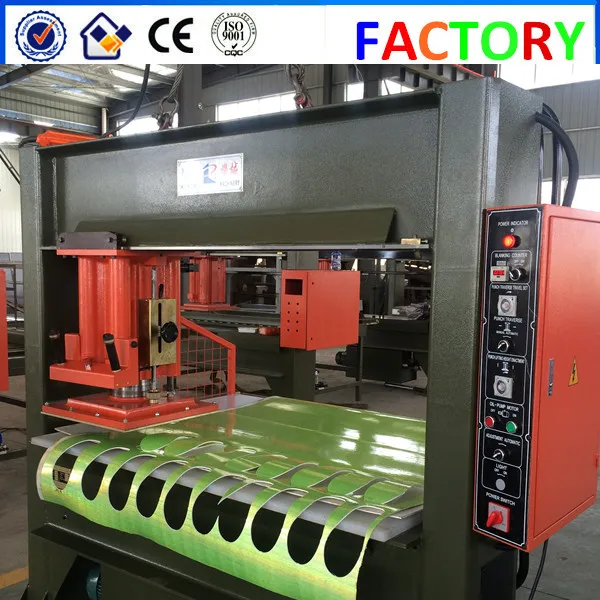

1. This type of cutting machines are widely used for continuous cutting applications of nonmetal materials in rolls, especially hard materials. Such products as insoles, football, volleyball or tennis panels, car interior decoration materials and medical supplies are made by this machine.



2. Servo motor makes accurate feeding possible and controls horizontal movement of the cutting head. Multilayers of materials can be clamped by the cylinder for step feeding. Other feeding methods are also available on request.



3. The feeding length can be easily set by the human-computer interface or PLC control panel (Optional).



4. Special hydraulic system makes low noise possible and saves oil.



5. High quality and imported oil pump and other parts are available on request.



6. Because the machine is well controlled by PLC control panel, only one worker is required for the whole operation. Therefore, the production efficiency of this kind of die cutting machine is 3 to 5 times that of a normal cutting machine and the power can be saved by about 2/3.



7. Maximum cutting force of the die cutting machine caters to customer’s specific application requirements.



Reference Technical Data (Customizable)

Model	KT-C Hydraulic Travel Head Die Cutting Machine
Maximum Cutting Force (ton)	25	25	25	50	50	50
Working Table (mm)	1600*500	1800*500	2000*500	1600*500	1800*500	2000*500
Travel Head Size (mm)	500*500	500*500	500*500	550*550	550*550	550*550
Adjustable Stroke (mm)	5-150	5-150	5-150	5-150	5-150	5-150
Motor Power (kw)	2.2	2.2	2.2	4.0	4.0	4.0
Estimated Machine Dimension (mm)	2200*720*2000	2400*720*2000	2600*720*2000	2200*720*2000	2400*720*2000	2600*720*2000
Estimated G.W (kg)	1800	2100	3000	3000	3800	5000

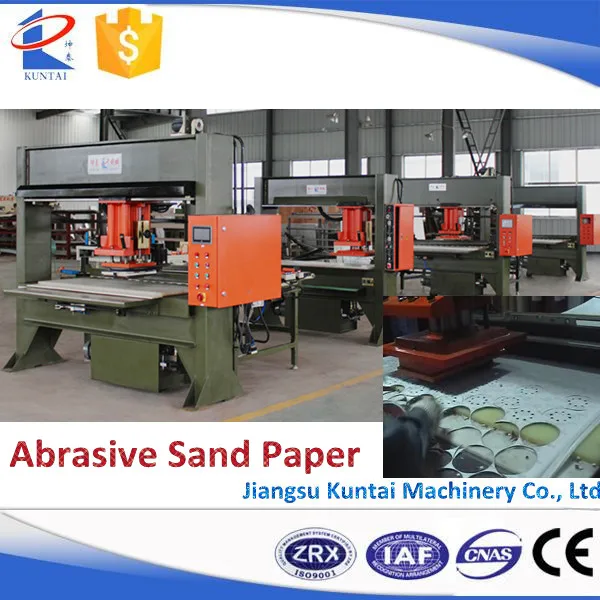

Hydraulic Travelling Head Cutting Press Machine Application:

Die Cutting Machine

Inner Package: Protective Film, etc

Outside Package: Plywood Case

• Machines well packed with protective film and loaded in plywood case or export container;
• English version operation manual and technical data;
• One-Year-Period wear parts;
• Tool kit

Various other types of die cutting machines are available on request!
