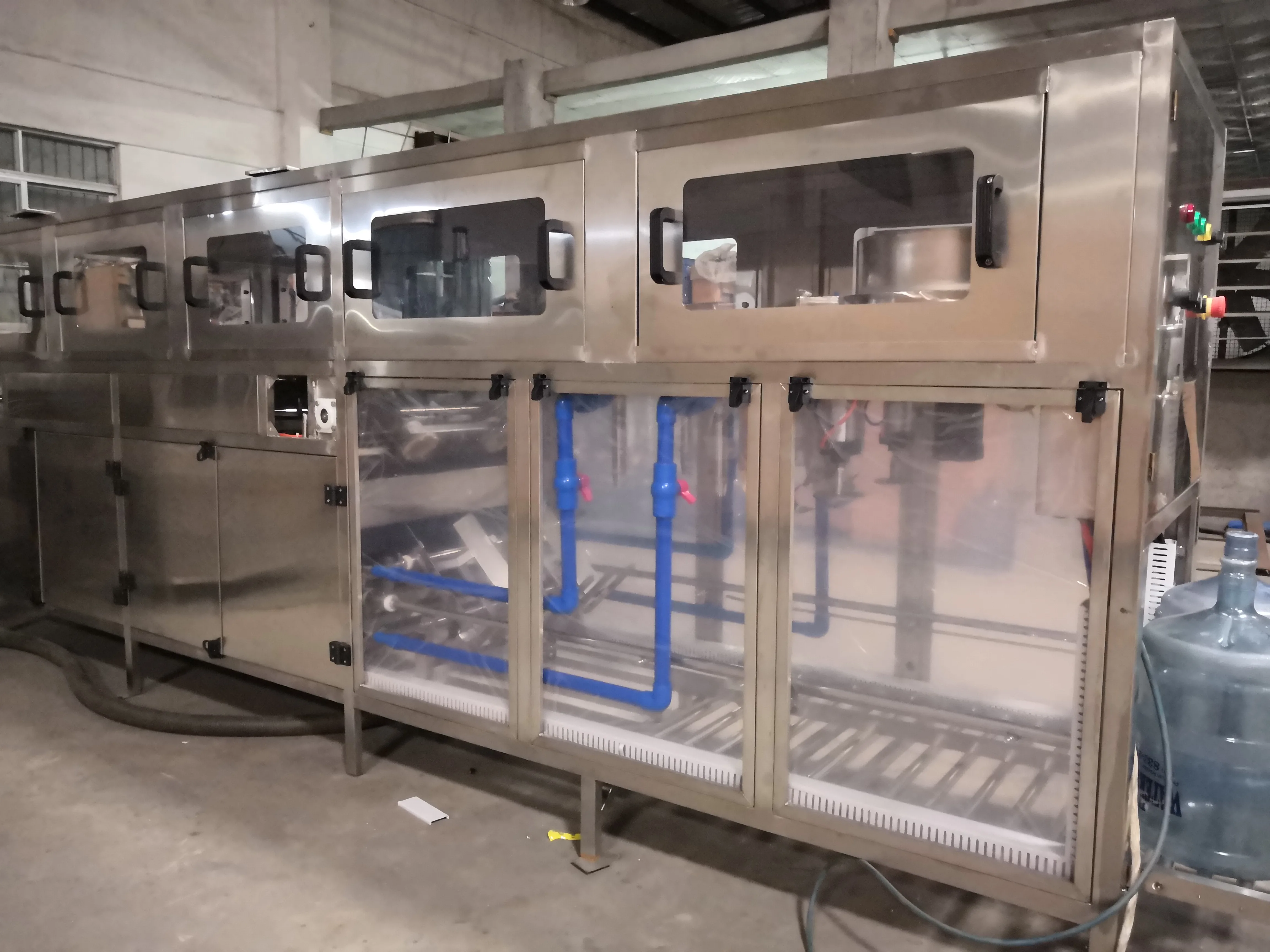

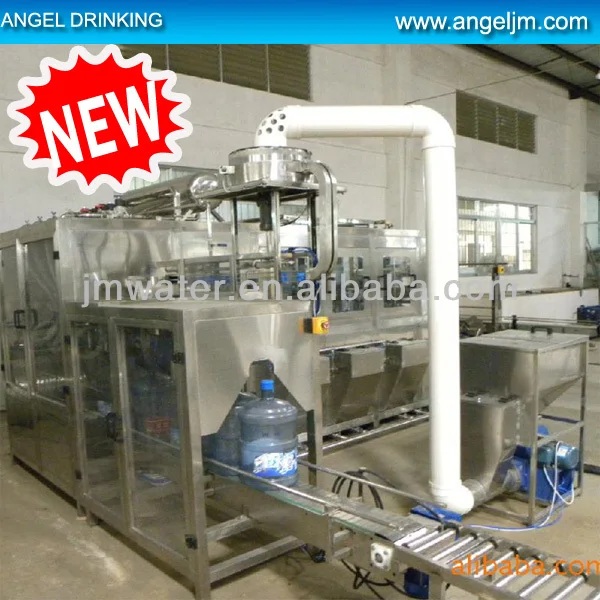

5 gallon 6 valve filling mineral water plant

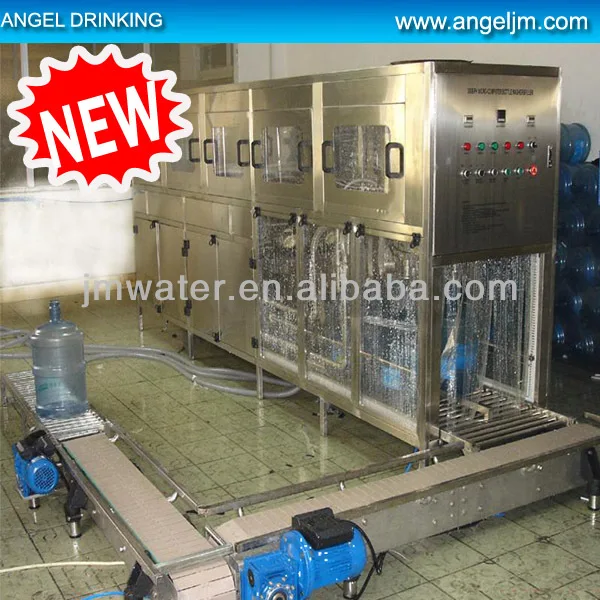

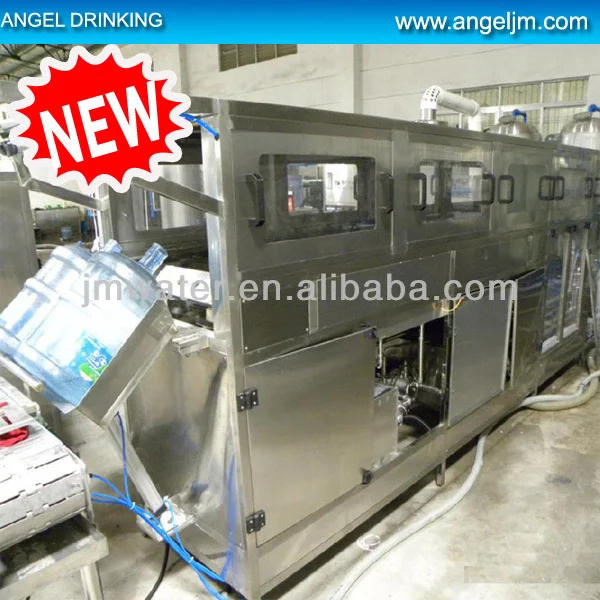

     5 gallon bucket pure water/mineral water filling line  is suitable for 3/5G bottle size. It adopts PLC automatic control system. It combines washing, filling and capping three functions into one machine. The whole frame is stainless steel SUS304. Appearance is beautiful, Easy to operating and maintaining. And it is high degree of automation.
Floating rotary filling system
Bottle feeding method: rotary clasping
Filling capacity : 60-1200 buckets/hr
Filling mold: Floating rotary filling; rising and feeding bottle to start filling; dropping and moving out bottle to finish filling.
Filling head: Italian type filling water nozzle
Bottle's spec(mm): 270*490*56
Cap's spec(mm):58*40(mm)

1.Working principle:

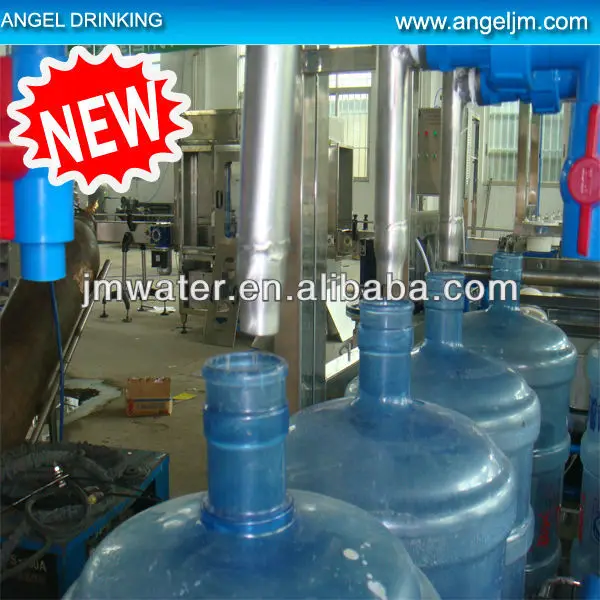

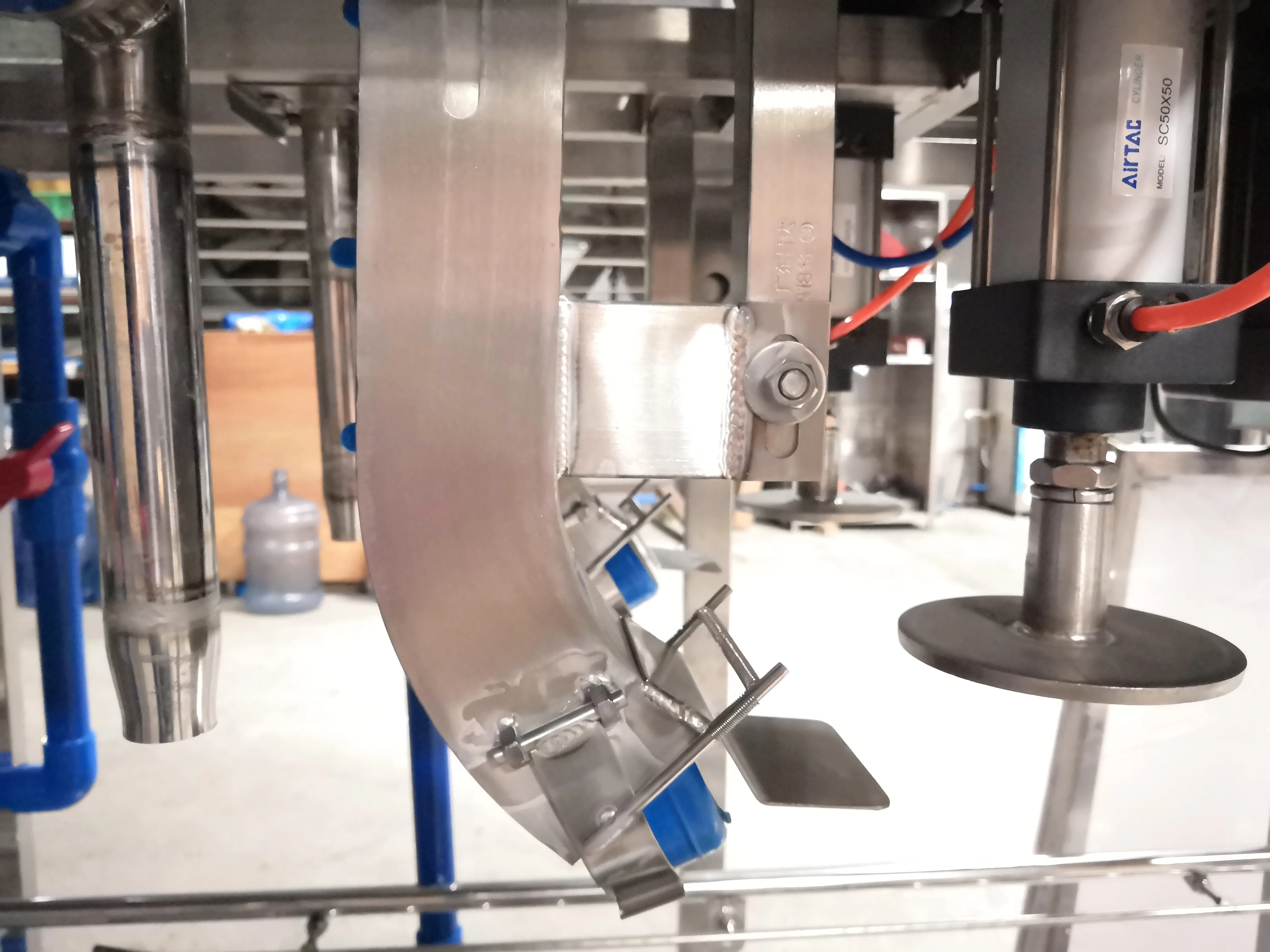

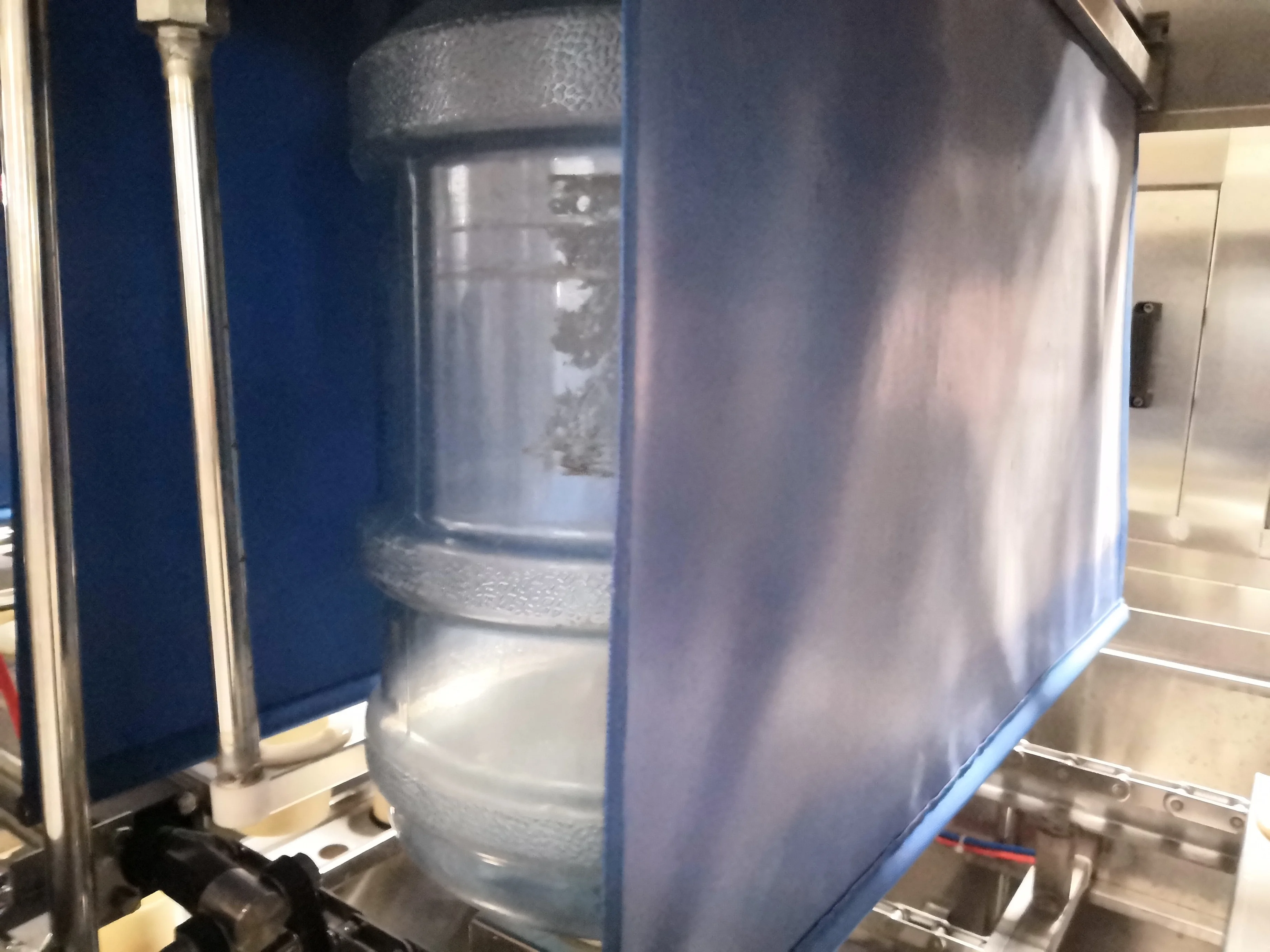

When bottles are sent to the machine by conveyor continuously, they firstly are delivered to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and turn over 180* to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel. 1) and to the filling part to be filled, then moved by middle thumb wheel. 2) and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.

2.Main characteristic:
1).Adaptability is wide: Because all parts have a height adjust device.
2).Production capacity can be adjusted continuously: using a frequency inv erter to control the speed. So it works more reliable.

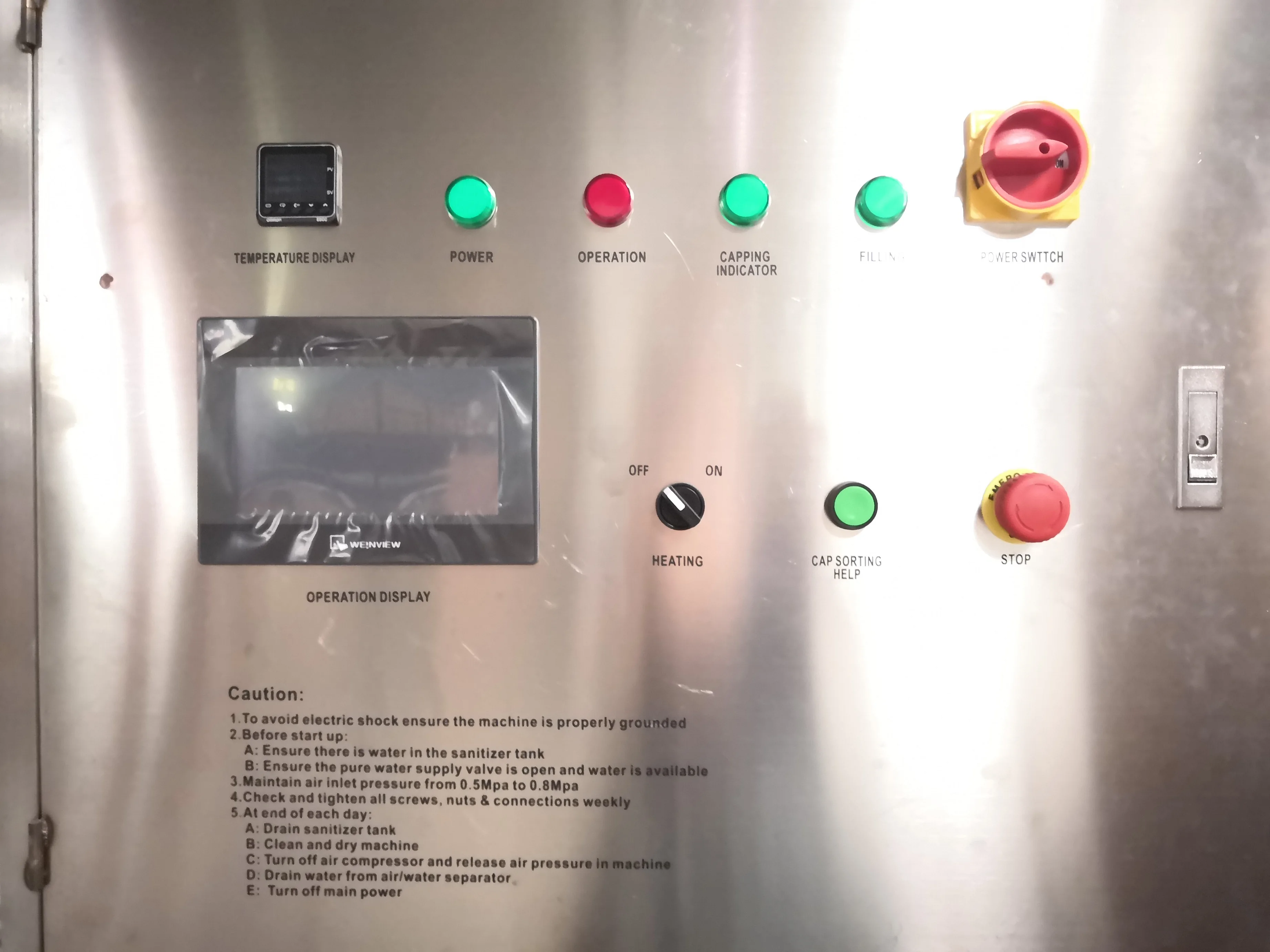

3) This machine has a complete set of reliable protection system to protect the machine itself and the operator.
4)Compare with similar type of machine, it has following performances:
More compact in structure, more beautiful in appearance.
The structure of bottle rinsing clamp is more delicate.
Screw head uses magnetic parts.

3. Parameter:

4.Assistant device for Micro-computer bottle production line

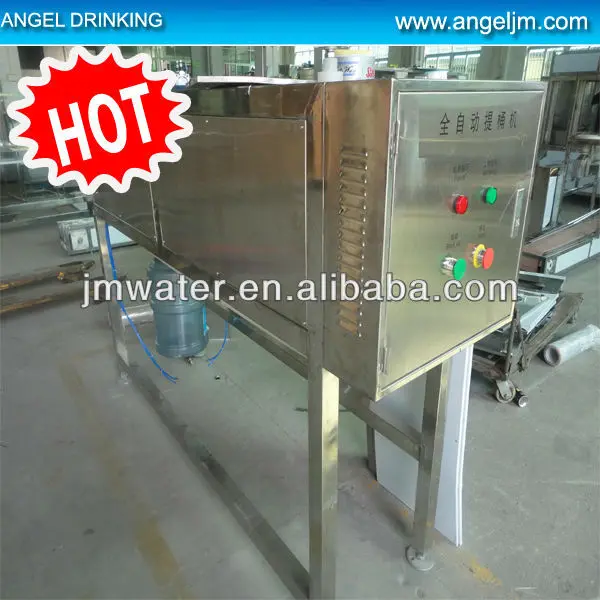

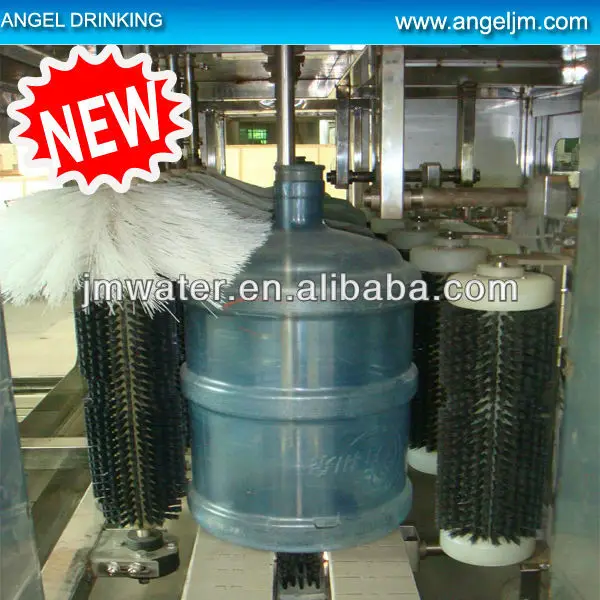

Bottle interior and exterior washing brusher	Bottle shrink film Machine	Bottle Inserted Machine	Bottle Lifting machine

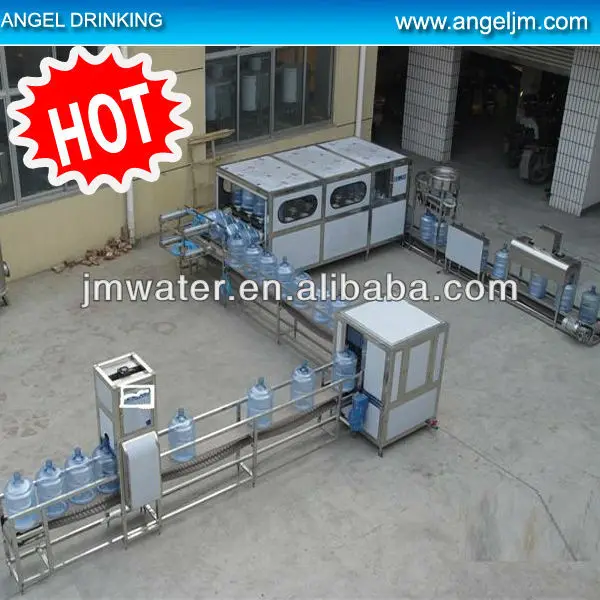

5. Turkey production line for drinking water

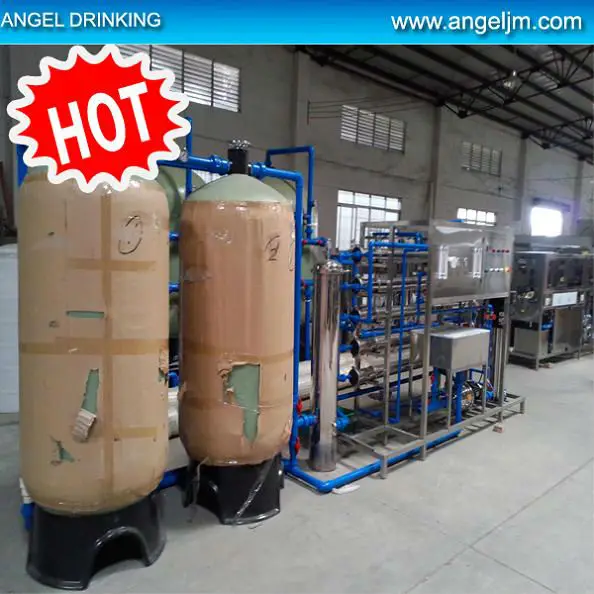

Water purification plant	500ml bottle water filling machine	Sachet water filling machine	5Gallon bottle manufacturing machine

Why our company is your correct choice in China

1. Small profits and quick returns is our business policy, so the water filling machine is worth every cent.

2. We focus on advanced supply chain management, which can ensure the raw materials are with good

quality and competitive price.

3. Workers, engineers and boss of our company have spent more than 20 years in beverage machinery industry,

so they have rich experience to provide Turn Key project Service.

4. There are several engineers available to oversea service, the salary per day is cheap. As long as our customers need them,

they can leave for your country as soon as possible, our principle to let our production line always runs normally.

5. We can update the production status for our customer once per week, our target is to let our customer receive goods on time.

Welcome to visit our factory.
